< PREPARATION >

[FOR EUROPE (RHD)]

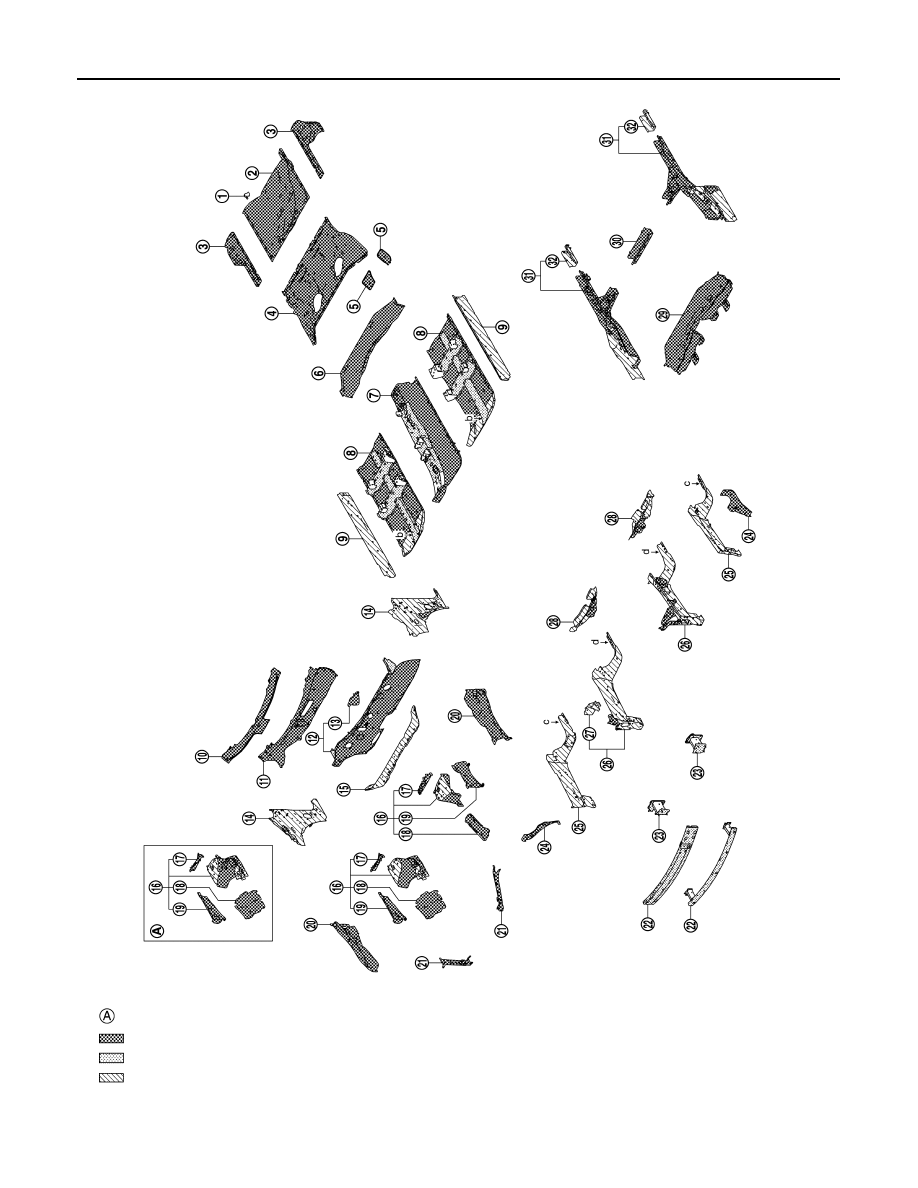

BODY COMPONENT PARTS

R9M engine models

: Both sided anti-corrosive precoated steel sections

: High strength steel (HSS) sections

: Both sided anti-corrosive steel and HSS sections

JSKIA3939ZZ

BODY COMPONENT PARTS

BRM-141

< PREPARATION >

[FOR EUROPE (RHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

No.

Parts name

Tensile strength

(MPa)

Both sided

anti-corrosive

precoated

steel sections

Spare wheel clamp bracket assembly

Under 440

—

Rear floor rear

Under 440

×

Rear floor side assembly (RH & LH)

Under 440

×

Rear floor front

Under 440

×

Inner rear belt anchor reinforcement assembly (RH & LH)

Under 440

×

Rear seat crossmember

Under 440

×

Center front floor assembly

780

×

Front floor assembly (RH & LH)

b.

LH

1350MPa

caution

T=1.4 mm (0.055 in)

590

×

RH

980MPa

caution

T=1.8 mm (0.071 in)

Inner sill assembly (RH & LH)

980MPa

caution

T=1.4 mm (0.055 in)

—

×

Cowl top

Under 440

×

Upper dash assembly

Under 440

×

Lower dash assembly

780

×

Steering hole cover assembly

Under 440

×

Side dash assembly (RH & LH)

590

×

Lower center dash crossmember assembly

980MPa

caution

T=2.0 mm (0.079 in)

—

×

Front strut housing assembly (RH & LH)

445

×

Upper side cowl top (RH & LH)

Under 440

×

Lower front hoodledge (RH & LH)

Under 440

×

Upper hoodledge assembly (RH & LH)

Under 440

×

Hoodledge reinforcement assembly (RH & LH)

Under 440

×

Side radiator core support assembly (RH & LH)

Under 440

×

Front bumper reinforcement assembly

1180MPa

caution

T=1.2 mm (0.079 in)

440

—

Lower front bumper stay (RH & LH)

600

—

Hoodledge connector assembly (RH & LH)

Under 440

×

Side member closing plate assembly (RH & LH)

c.

980MPa

caution

T=2.0 mm (0.079 in)

590

×

Front side member assembly (RH & LH)

d.

980MPa

caution

T=2.0 mm (0.079 in)

750

×

Engine mounting member bracket assembly

445

×

Front suspension mounting rear bracket assembly (RH & LH)

590

×

Rear floor front extension assembly

Under 440

×

Center rear crossmember assembly

Under 440

×

BRM-142

< PREPARATION >

[FOR EUROPE (RHD)]

BODY COMPONENT PARTS

CAUTION:

If the high strength steel (ultra high strength steel) of this is broken, replace by assembly for the supply part.

NOTE:

• For the parts without a number described in the figure, it is supplied only with the assembly part that the part is included with.

• Tensile strength column shows the largest strength value of a part in the component part.

4WD : Body Component Parts

INFOID:0000000010498726

Refer to parts catalogue for the replacement parts.

Rear side member assembly (RH & LH)

590

×

Rear side member extension assembly (RH & LH)

780

×

No.

Parts name

Tensile strength

(MPa)

Both sided

anti-corrosive

precoated

steel sections

BODY COMPONENT PARTS

BRM-143

< PREPARATION >

[FOR EUROPE (RHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

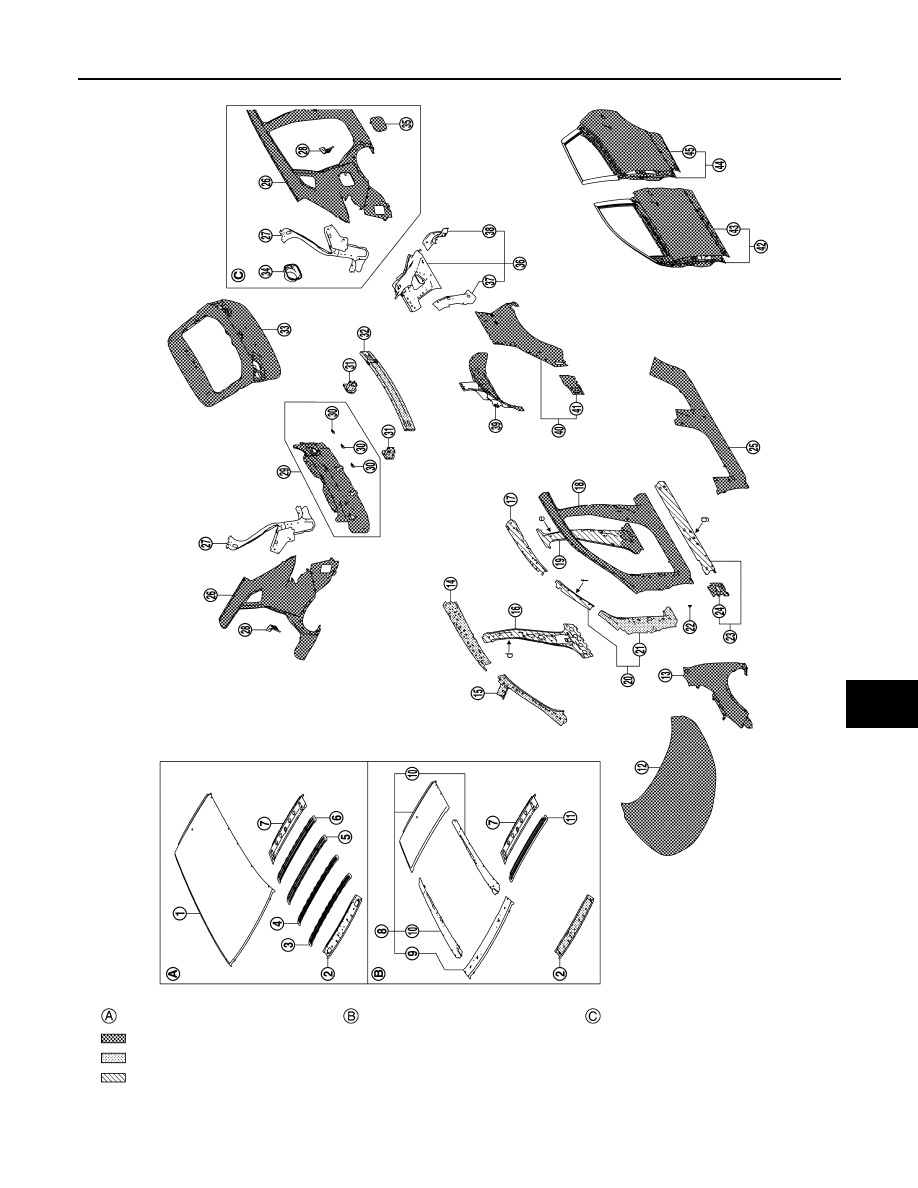

Without sunroof models

With sunroof models

Right side

: Both sided anti-corrosive precoated steel sections

: High strength steel (HSS) sections

: Both sided anti-corrosive steel and HSS sections

JSKIA3886ZZ
