REPLACEMENT OPERATIONS

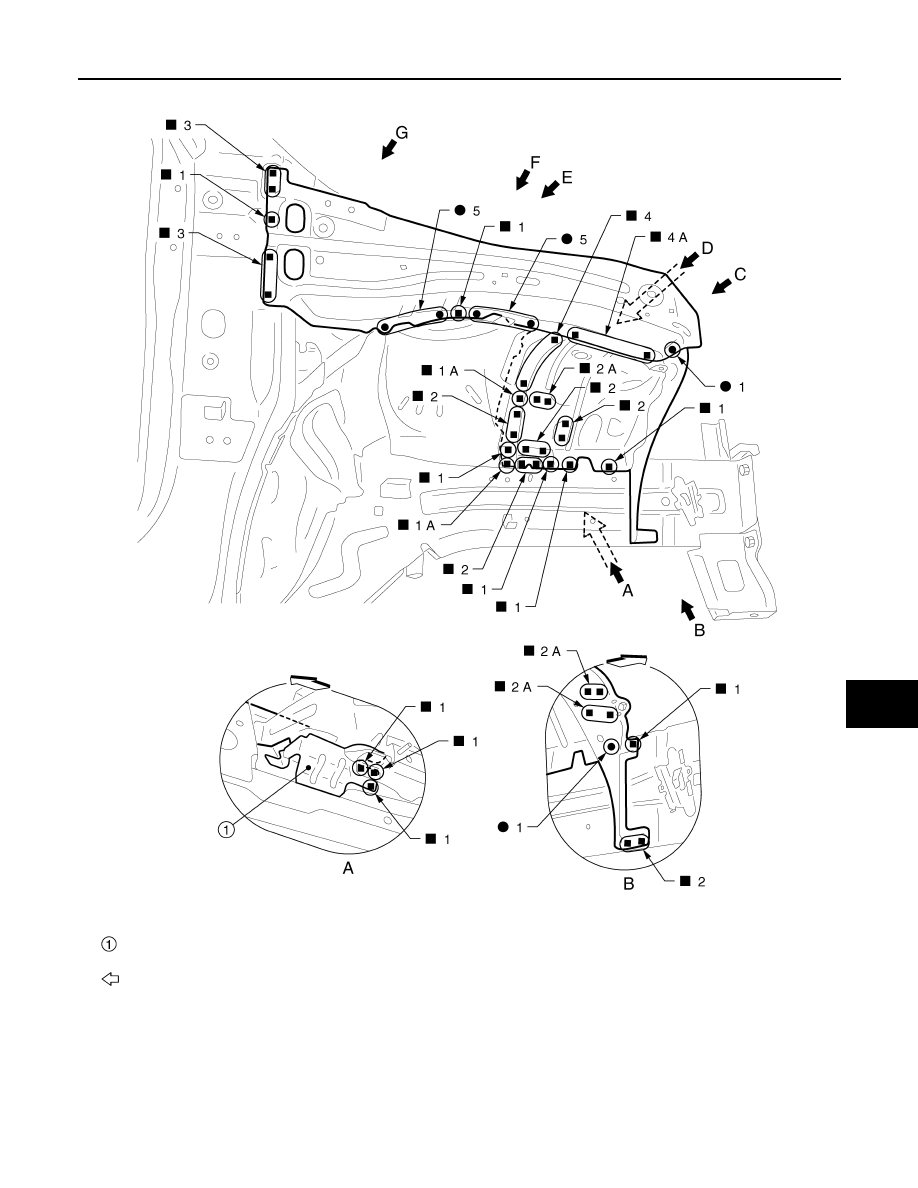

View F: Before installing hoodledge reinforcement assembly

Hoodledge (Partial Replacement)

INFOID:0000000010312605

Work after radiator core support is removed.
Remove the engine mounting bracket reinforcement (reusable) for easier installation.

: Vehicle front

JSKIA4002ZZ

REPLACEMENT OPERATIONS

BRM-53

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Engine mounting bracket reinforce-
ment (reusable)

: Vehicle front

Replacement part

z

Hoodledge reinforcement assembly

z

Upper hoodledge assembly

z

Lower front hoodledge

JSKIA4003ZZ

BRM-54

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

REPLACEMENT OPERATIONS

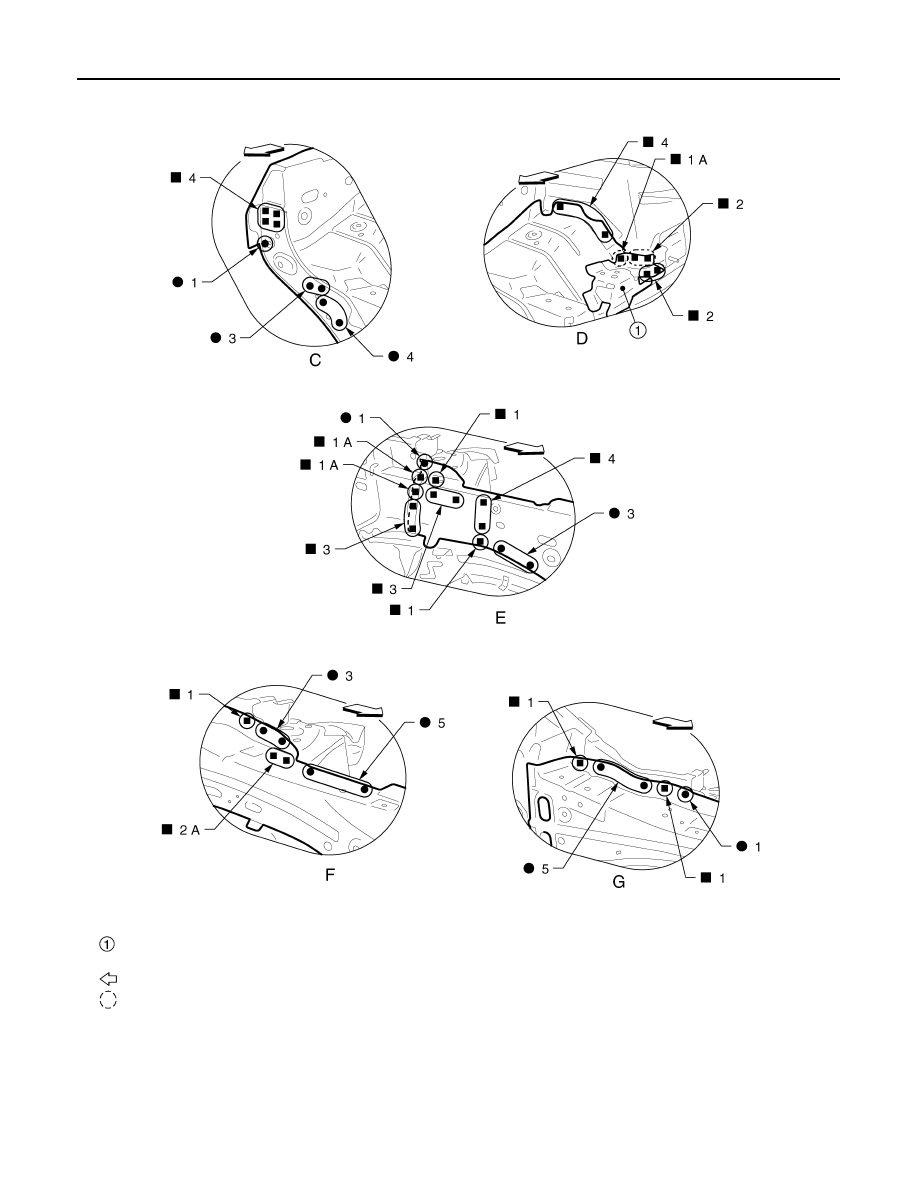

View E: Before installing hoodledge reinforcement assembly

Front Side Member

INFOID:0000000010287986

Work after radiator core support and hoodledge are removed.

Engine mounting bracket reinforce-
ment (reusable)

: Vehicle front

: Weld the parts onto the back of the component part.

JSKIA4004ZZ

REPLACEMENT OPERATIONS

BRM-55

< REMOVAL AND INSTALLATION >

[FOR EUROPE (LHD)]

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

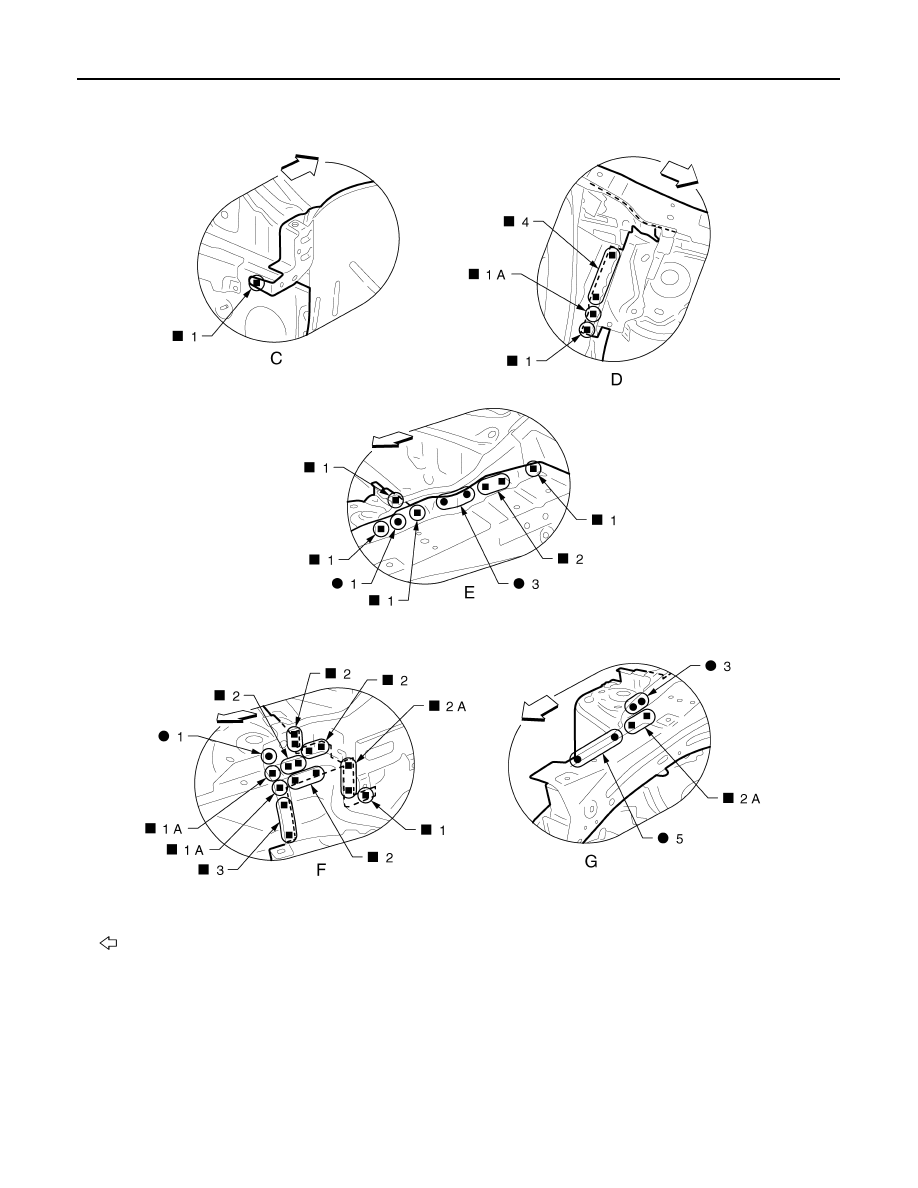

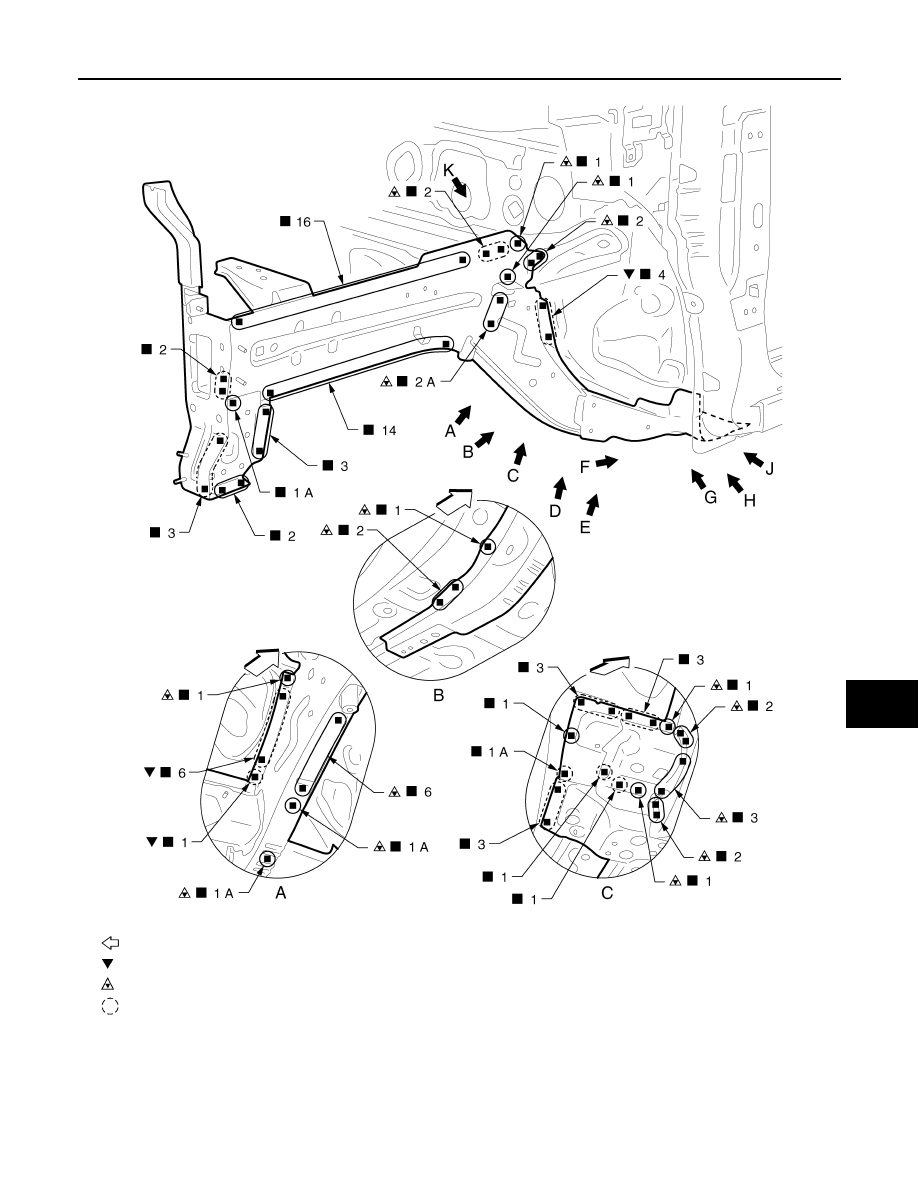

View B: Before installing front suspension mounting rear bracket assembly

: Vehicle front

: Drill

φ

7 mm (0.28 in) hole for the plug welding hole (ultra high strength steel).

: Drill

φ

12 mm (0.47 in) hole for the plug welding hole (ultra high strength steel).

: Weld the parts onto the back of the component part.

Replacement part

z

Front side member assembly

z

Side member closing plate assembly

z

Front suspension mounting rear
bracket assembly

JSKIA4005ZZ
