< PRECAUTION >

PRECAUTIONS

5.

When the repair work is completed, return the ignition switch to the LOCK position before connecting the
battery cables. (At this time, the steering lock mechanism will engage.)

6.

Perform a self-diagnosis check of all control units using CONSULT.

Precaution for Procedure without Cowl Top Cover

INFOID:0000000010377900

When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc to prevent damage to
windshield.

Precaution for Work

INFOID:0000000010377901

• After removing and installing the opening/closing parts, be sure to carry out fitting adjustments to check their

operation.

• Check the lubrication level, damage, and wear of each part. If necessary, grease or replace it.

PIIB3706J

PREPARATION

EXT-11

< PREPARATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

PREPARATION

PREPARATION

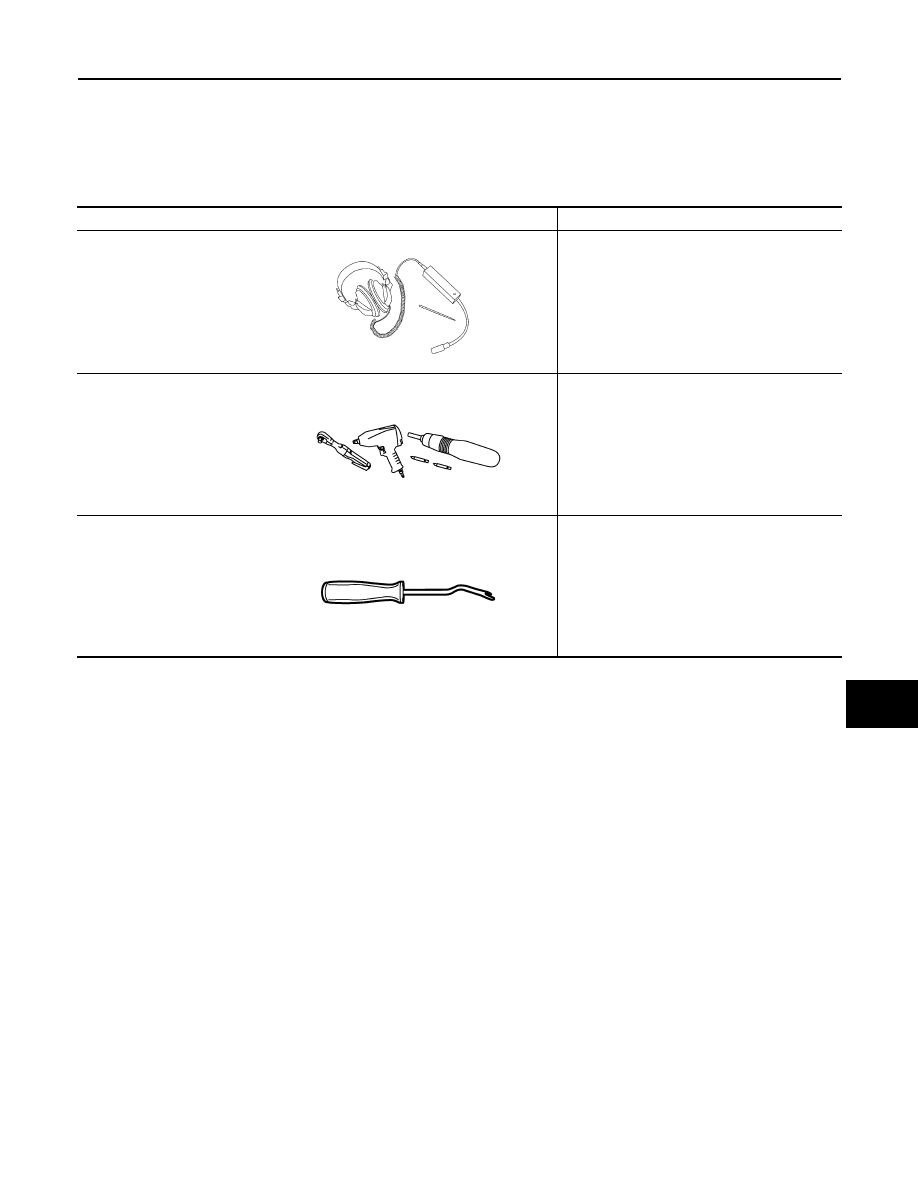

Commercial Service Tools

INFOID:0000000010377902

Tool name

Description

Engine ear

Locating the noise

Power tool

Clip remover

Removing clips

SIIA0995E

PIIB1407E

E1KIA0055GB

EXT-12

< SYSTEM DESCRIPTION >

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

ACTIVE GRILLE SHUTTER SYSTEM

ACTIVE GRILLE SHUTTER SYSTEM : Component Parts Location

INFOID:0000000010479943

For the engine related component parts, refer to

ECK-12, "Component Parts Location"

 (K9K engine),

EC9-12,

"Component Parts Location"

 (R9M engine).

ACTIVE GRILLE SHUTTER SYSTEM : Active grille shutter

INFOID:0000000010479944

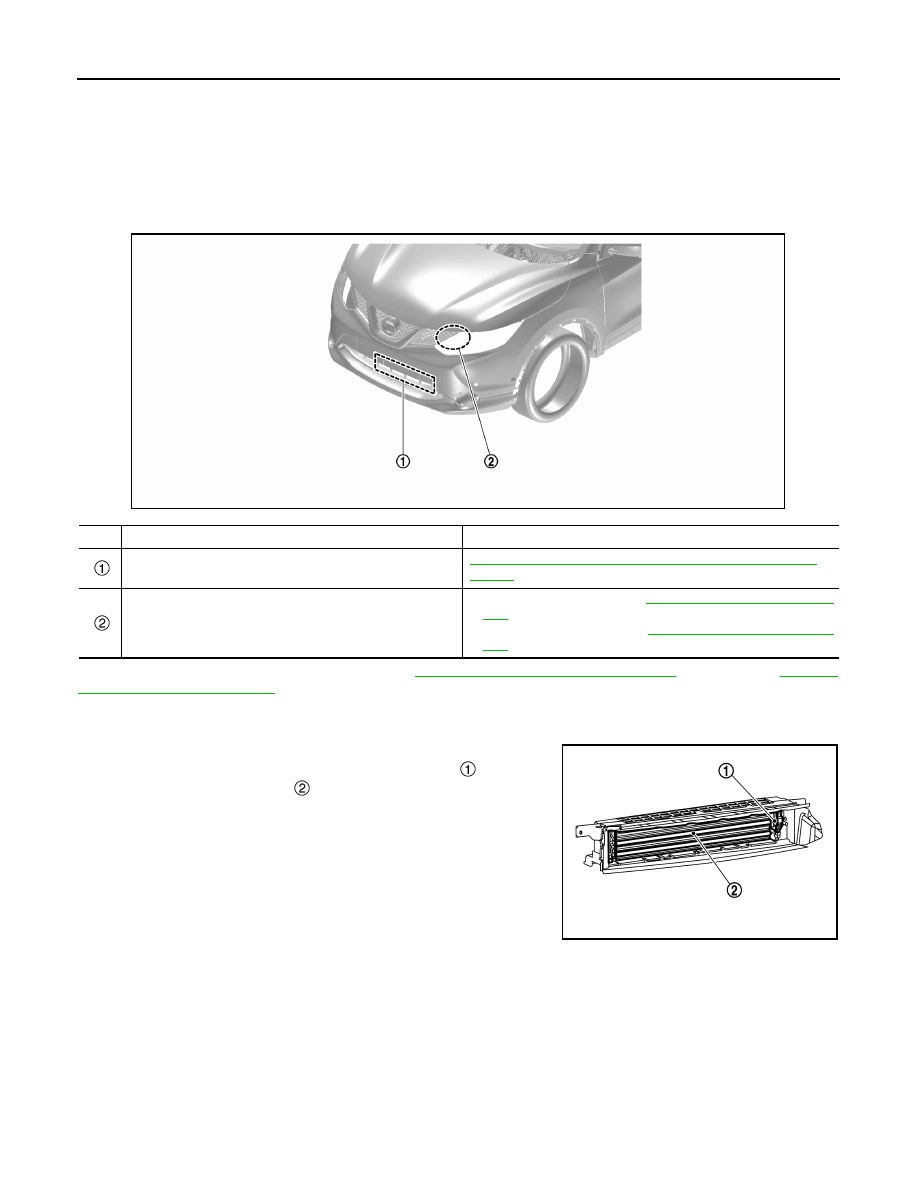

Active grille shutter is located at front bumper lower opening, and
according to the signal from ECM it operates actuator

 to perform

open/close movement of flap

 to control the amount of air flow

taken into engine compartment.

JSBIA4779ZZ

No.

Component

Reference

Active grille shutter

EXT-12, "ACTIVE GRILLE SHUTTER SYSTEM : Active grille
shutter"

ECM

• K9K engine models: Refer to

ECK-12, "Component Parts Loca-

tion"

• R9M engine models: Refer to

EC9-12, "Component Parts Loca-

tion"

JSBIA3648ZZ

SYSTEM

EXT-13

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

SYSTEM

ACTIVE GRILLE SHUTTER SYSTEM

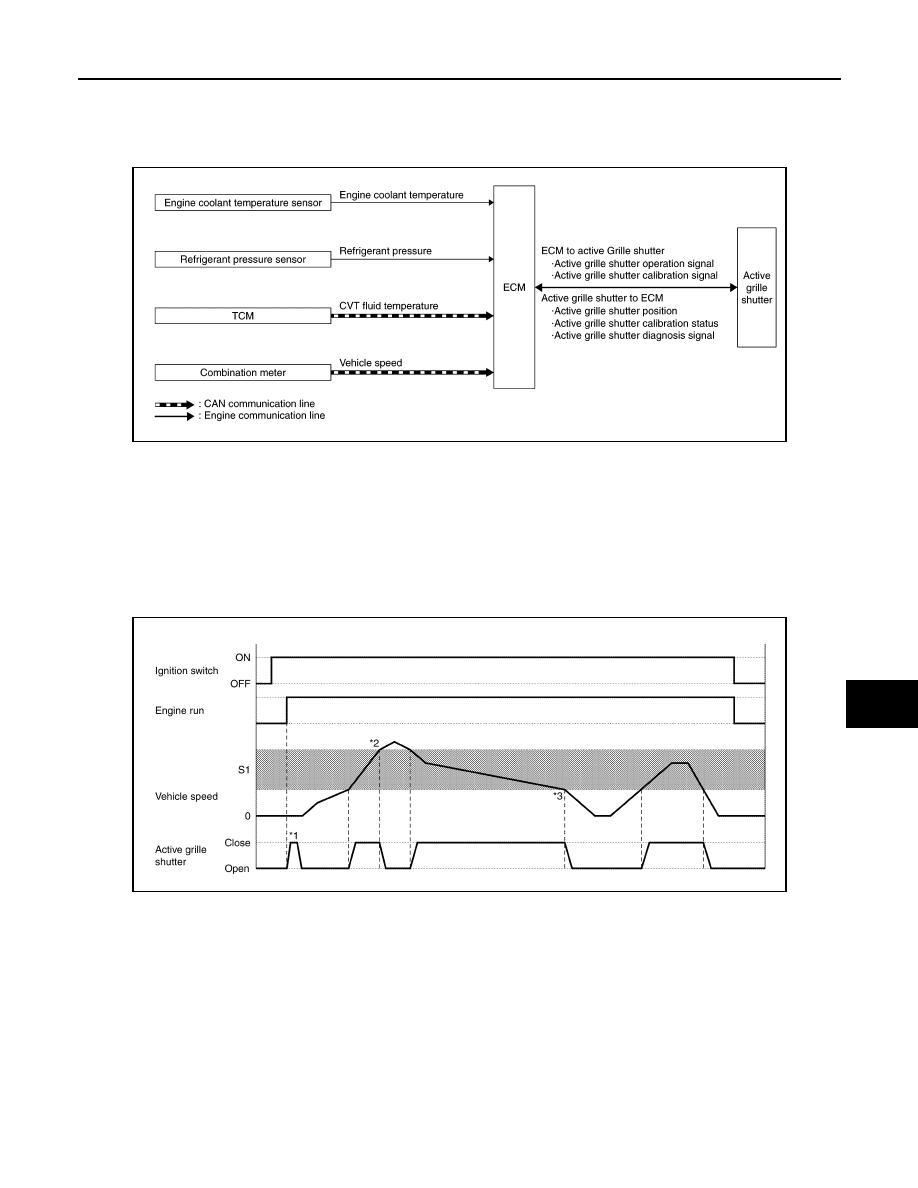

ACTIVE GRILLE SHUTTER SYSTEM : System Diagram

INFOID:0000000010479945

ACTIVE GRILLE SHUTTER SYSTEM : System Description

INFOID:0000000010479946

While driving, the active grille shutter system closes shutter to reduce air flow to engine compartment for the
purpose of reducing aerodynamic drag, and as a result, improves the vehicle's fuel efficiency.
ECM controls active grille shutter system by detecting vehicle status through respective modules and sensors.
Active grille shutter actuator is equipped with self-diagnosis function. When it detects malfunction, transmits
diagnosis signal to ECM and ECM records active grille shutter malfunction.

BASIC MOVEMENTS

• S1: Approximately 30 - 160 km/h (19 - 100 MPH)
• *1: Shutter initial position learning.
• *2: Judgement of high vehicle speed.
• *3: Judgement of low vehicle speed.

DESCRIPTION OF MOVEMENTS

Active grille shutter is fully open when the vehicle stops or the ignition switch is turned OFF.
ECM operates the shutter to close position in order to perform shutter's initial position learning when the igni-
tion switch is turned ON and the vehicle reaches the specified speed for the first time. At the end of initial posi-
tion leaning ECM operates shutter to open position. (The initial position learning is performed every time when
ignition switch is turned OFF

→

 ON.)

While driving, after the initial position learning ends, ECM operates the active grille shutter to close position
when the operational conditions of active grille shutter are met.
While driving at high speed, ECM operates the shutter to open position when the vehicle reaches the specified
speed in order to prevent the shutter from shutting up by wind resistance.

JSBIA5056GB

JSBIA5059GB
