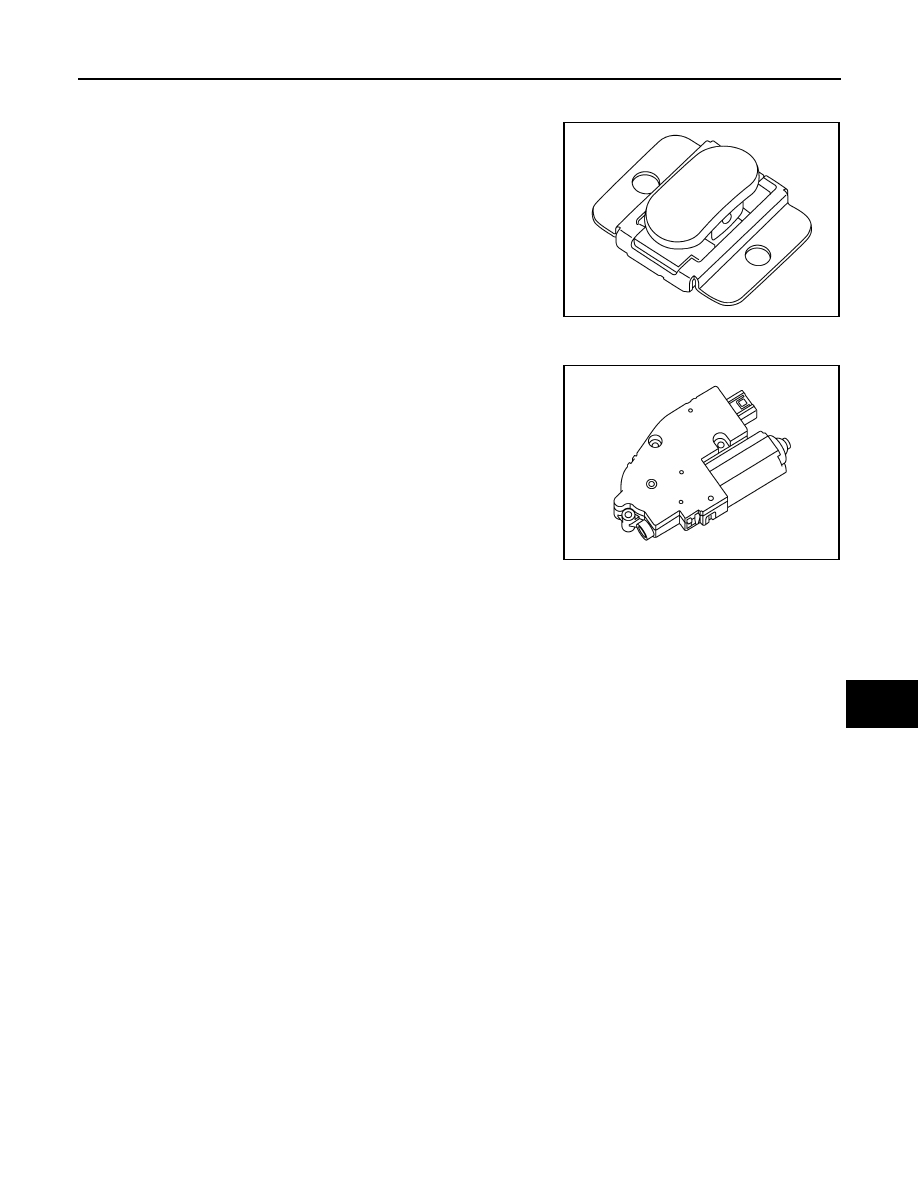

SUNSHADE SYSTEM : Sunshade Switch

INFOID:0000000010286622

• Transmits open and close signal to sunshade motor assembly.

SUNSHADE SYSTEM : Sunshade Motor Assembly

INFOID:0000000010286623

• Sunshade motor and CPU are integrated in sunshade motor

assembly.

• Sunshade motor assembly operates sunshade to open or close by

sunshade switch operation.

JMKIB2992ZZ

JMKIB2993ZZ

RF-8

< SYSTEM DESCRIPTION >

SYSTEM

SYSTEM

System Description

INFOID:0000000010286624

SYSTEM DIAGRAM

SUNSHADE SYSTEM

• The sunshade system operates using ignition power source and accessory power source.
• Open and close signals from sunshade switch enables to operate sunshade motor.

AUTO OPERATION

• Sunshade AUTO feature makes it possible to slide open and slide close the sunshade without holding the

sunshade switch at the slide open or slide close position.

• Auto operation is activated by a short press. (Less than 0.7 second)

ANTI-PINCH FUNCTION

• The CPU of sunshade motor assembly monitors the sunshade motor operation and the shade position (fully-

closed or other) by the signals from sunshade motor assembly.

• When sunshade motor detects an interruption during the slide close operation, sunshade will auto open to

the full-open position.

JMKIB2989GB

SUNSHADE MOTOR ASSEMBLY

RF-9

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

ECU DIAGNOSIS INFORMATION

SUNSHADE MOTOR ASSEMBLY

Reference Value

INFOID:0000000010286629

TERMINAL LAYOUT

PHYSICAL VALUES

JMKIA2225ZZ

Terminal No.

Description

Condition

Voltage

+

Signal name

Input/

Output

1

(B)

Ground

Ground

0 - 1 V

6

(G)

Ground

Close signal

Input

Sunshade switch in close position

0 - 1 V

Other than the above

9 - 16 V

7

(P)

Ground

Battery power supply

Input

9 - 16 V

8

(Y)

Ground

Open signal

Input

Sunshade switch in open position

0 - 1 V

Other than the above

9 - 16 V

10

(SB)

Ground

Ignition (ACC or ON) power
supply

Input

Ignition power source and accessory
power source is ON

9 - 16 V

Other than the above

0 - 1 V

RF-10

< WIRING DIAGRAM >

SUNSHADE SYSTEM

WIRING DIAGRAM

SUNSHADE SYSTEM

Wiring Diagram

INFOID:0000000010286630

JRKWD0769GB
