WINDSHIELD GLASS

• The vehicle should not be driven for 24 hours or more or until the urethane adhesive is completely

cured. Curing time varies depending on temperature and humidity. The curing time increases under
lower temperature and lower humidity.

INSPECTION

REPAIRING WATER LEAKAGE FOR WINDSHIELD GLASS

• Leakage can be repaired without removing the windshield glass.
• Determine the extent of leakage if water is leaking between the urethane adhesive material and body or

glass.

• This can be done by applying water to the windshield area while pushing glass outward.
• Apply primer (if necessary) and then urethane adhesive to the leakage point to stop the leakage.

Inspection

INFOID:0000000010499555

REPAIRING WATER LEAKAGE FOR WINDSHIELD GLASS

Leakage can be repaired without removing the windshield glass.
Determine the extent of leakage if water is leaking between the urethane adhesive material and body or glass.
This can be done by applying water to the windshield area while pushing glass outward.
Apply primer (if necessary) and then urethane adhesive to the leakage point to stop the leakage.

GLASS ROOF

GW-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

GLASS ROOF

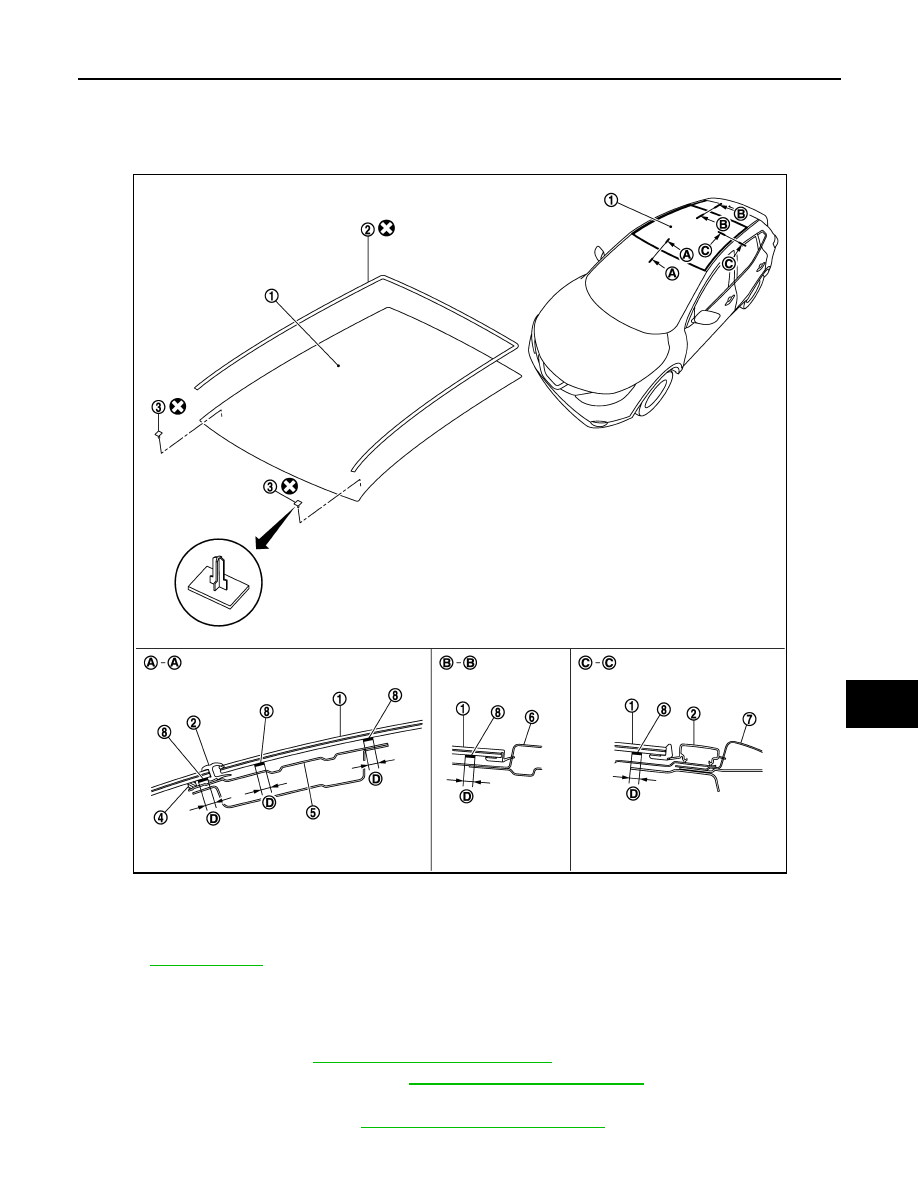

Exploded View

INFOID:0000000010478771

Removal and Installation

INFOID:0000000010478772

REMOVAL

1.

Remove headlining. Refer to

INT-25, "Removal and Installation"

.

2.

Remove sunshade unit assembly. Refer to

RF-31, "Removal and Installation"

.

3.

Remove clips on sunroof inner finisher, and remove the sunroof inner finisher.

4.

Remove roof side molding. Refer to

EXT-39, "Removal and Installation"

.

1.

Glass roof

2.

Glass roof molding

3.

Clip

4.

Dam rubber

5.

Front roof rail upper

6.

Roof

7.

Outer side body

8.

Adhesive

D.

7 mm (0.28 in)

Refer to

GI-4, "Components"

 for symbols in the figure.

E1KIA0138ZZ

GW-16

< REMOVAL AND INSTALLATION >

GLASS ROOF

5.

Remove windshield. Refer to

GW-13, "Removal and Installation"

.

6.

Apply protective tape around the sunroof glass and windshield glass and panel to protect from damage.

7.

Cut the sunroof moldings with the cutting knife.

8.

Remove the sunroof moldings using pliers, remove sunroof glass using piano wire or power cutting tool
and an inflatable pump bag.
NOTE:
If a glass is to be reused, mark the body and the glass with matching marks.

WARNING:

When cutting the glass from the vehicle, always wear safety glasses and heavy gloves to help pre-
vent glass splinters from entering your eyes or cutting your hands.

CAUTION:

• When a glass is to be reused, never use a cutting knife or power cutting tool.
• Never scratch the glass when removing.
• Never set or stand the glass on its edge. Small chips may develop into cracks.

INSTALLATION

• The dam rubber and clips should be installed in position.
• Use a genuine Nissan Urethane Adhesive Kit (if available) or an equivalent and follow the instructions pro-

vided with it.

• Open a door window while the urethane adhesive is curing. This prevents the glass from being forced out by

passenger room air pressure when all door windows are closed.

• Inform the customer that the vehicle should remain stationary until the urethane adhesive is completely

cured (approximately 24 hours). Curing time varies with temperature and humidity.

• Never reuse glass molding

WARNING:

• Keep heat and open flames away as primers and adhesive are flammable.
• The materials contained in the kit are harmful if swallowed, and may irritate skin and eyes. Never let

them come in contact with the skin and eyes.

• Use in an open, well ventilated location. Never breathe the vapors. They may be harmful if inhaled.

Move immediately to an area with fresh air if affected by vapor inhalation.

• Driving the vehicle before the urethane adhesive is completely cured may affect the performance of

the windshield in an accident.

CAUTION:

• When the light & rain sensor is removed from windshield, the light & rain sensor housing cannot

bere-used.

• Perform adjustment of front wiper arms stop location. Refer to

WW-79, "WIPER ARM : Adjustment"

.

• Never use an adhesive that is past its usable term. Shelf life of this product is limited to six months

after the date of manufacture. Adhere carefully to the expiration or manufacture date printed on the
box.

• Keep primers and adhesive in a cool, dry place. Ideally, they should be stored in a refrigerator.
• Never leave primers or adhesive cartridge unattended with their caps open or off.
• The vehicle should not be driven for 24 hours or more or until the urethane adhesive is completely

cured. Curing time varies depending on temperature and humidity. The curing time increases under
lower temperature and lower humidity.

SIDE WINDOW GLASS

GW-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

SIDE WINDOW GLASS

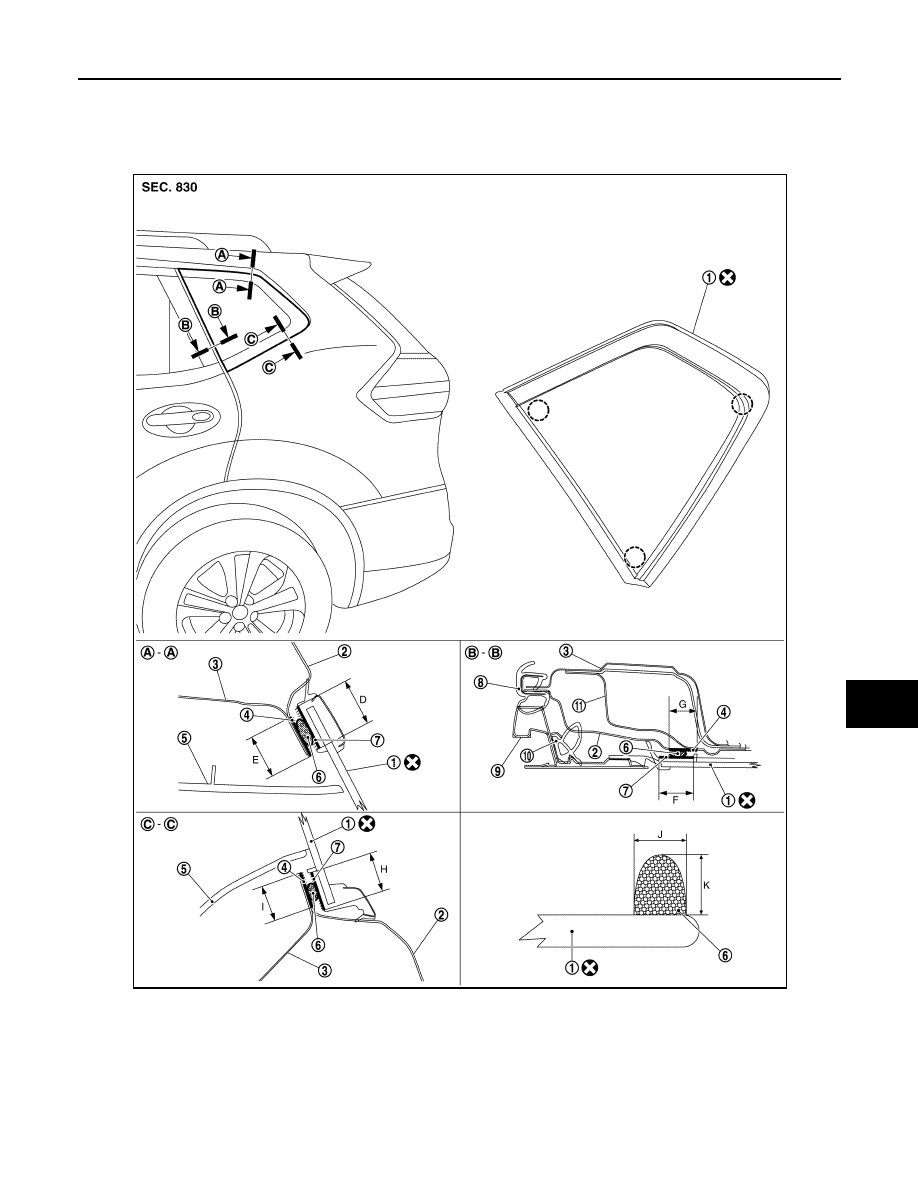

Exploded View

INFOID:0000000010478437

1.

Side window glass

2.

Body side outer panel

3.

Rear pillar inner panel

4.

Painted surface for primer

5.

Luggage side upper finisher

6.

Sealant

7.

Glass for primer

8.

Rear body side welt

9.

Rear door sash

10.

11.

Rear pillar inner reinforcement D.

17 mm (0.67 in)

E.

16 mm (0.63 in)

F.

17 mm (0.67 in)

G.

16 mm (0.63 in)

H.

17 mm (0.67 in)

I.

16 mm (0.63 in)

J.

7 mm (0.28 in)

JMKIB3124ZZ
