DIAGNOSIS SYSTEM (SIREN CONTROL UNIT)

SEC-207

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

DIAGNOSIS SYSTEM (SIREN CONTROL UNIT)

Diagnosis Description

INFOID:0000000010479870

DIAGNOSIS FUNCTION

Siren control unit has a self-diagnosis function which displays the diagnosis results for the following items.
• Circuit diagnosis: Displays if malfunction exists or not in the circuits between siren control unit and BCM or

siren control unit and sensors.

- Circuits are normal: Hazard warning lamp blinks 3 times.
- Circuit is malfunctioning: Hazard warning lamp does not blink.
• Alarm history: Displays alarm activation history for the maximum 3 items.
- Siren sounds for 0.4 seconds and sound interval is 0.4 seconds.
- When multiple symptoms exist, the interval between each alarm history is 2 seconds.

• Component diagnosis: Displays malfunctioning component (siren control unit or intruder sensor).
- Siren sounds for 1 second and sound interval is 0.4 seconds.
- When multiple symptoms exist, the interval between each diagnosis result is 2 seconds.

SELF-DIAGNOSIS PROCEDURE

1.

Connect CONSULT.

2.

Turn ignition switch ON.

3.

Select “ACTIVE TEST” mode of “THEFT ALM” of “BCM” using CONSULT.

4.

Select “SIREN” and touch “ON” to start self-diagnosis.

5.

Self-diagnosis result is displayed after 2 seconds.

SELF-DIAGNOSIS RESULT DISPLAY

Number of siren sounds

Cause of alarm activation

0

History is not found

1

Battery is disconnected and connected

2

Movement to enter into passenger room is detected

3

Communication between BCM and siren control unit is interrupted

4

Door or hood is opened

5

Difference of ID recognition between siren control unit and BCM

6

Communication between siren control unit and intruder sensor is interrupted

Number of siren sounds

Malfunctioning component

0

Malfunctioning component is not found

1

Siren control unit

2

Intruder sensor

SEC-208

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

DIAGNOSIS SYSTEM (SIREN CONTROL UNIT)

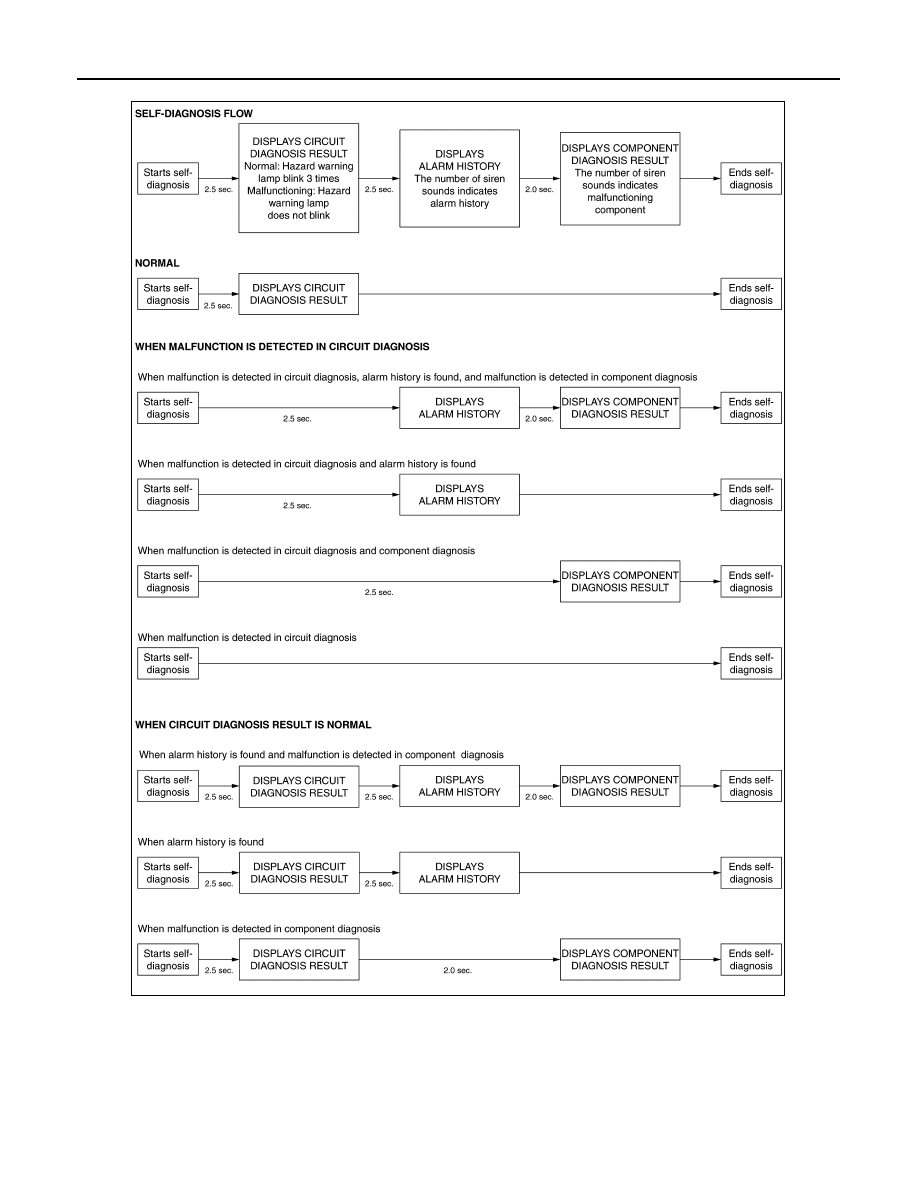

Self-diagnosis is performed as shown in the figure.

DIAGNOSIS PROCEDURE

Precaution for Diagnosis Procedure

• Self-diagnosis result is erased from siren control unit when setting alarm system after performing the self-

diagnosis.

- When performing self-diagnosis, it is advised to record the self-diagnosis result display on a memo pad.
- When replacing siren control unit, never set alarm system after performing the self-diagnosis.

JMKIB1922GB

DIAGNOSIS SYSTEM (SIREN CONTROL UNIT)

SEC-209

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

• The display pattern of the self-diagnosis is complicated. Therefore, repeat self-diagnosis multiple times to

check the display pattern correctly.

- Malfunctioning part and alarm activation history can be checked effectively by comparing self-diagnosis

result display and the record on the memo pad.

• It is advised to obtain and record information for the following items which are necessary when investigation

is needed.

- Self-diagnosis result (Circuit diagnosis, Alarm history, Component diagnosis)
- Conditions of alarm activation (Place, Time, Weather)
- Articles in passenger room (Accessories, Cellular phones, Beverage containers, and others)
- Opening and closing status of door windows
- Record and timing of battery discharge and battery replacement
- Serial number of siren control unit (on siren control unit label)
- Serial number of intruder sensor, if this sensor is cause of malfunction or alarm activation

1.

INSPECTION START

Perform SELF-DIAGNOSIS PROCEDURE described above to start self-diagnosis.

>> GO TO 2.

2.

CHECK CIRCUIT DIAGNOSIS RESULT

Check circuit diagnosis result display.
The diagnosis result is displayed by hazard warning lamp blink as per the following.

Does hazard warning lamp blink?

YES

>> GO TO 8.

NO

>> GO TO 3.

3.

CHECK VEHICLE SECURITY SYSTEM OPERATION 1

1.

Turn ignition switch OFF.

2.

Close hood and all doors.

3.

Lock all doors using the Keyfob or door request switch.

4.

Check that security indicator lamp blink quickly for 20 seconds. (PRE-ARMED phase)

Does security indicator lamp blink quickly?

YES

>> GO TO 5.

NO

>> GO TO 4.

4.

CHECK MALFUNCTIONING CIRCUIT 1

Check power supply and ground circuit for siren control unit. Refer to

SEC-271, "SIREN CONTROL UNIT :

Diagnosis Procedure"

.

>> INSPECTION END

5.

CHECK VEHICLE SECURITY SYSTEM OPERATION 2

1.

Check that security indicator lamp blinks slowly. (ARMED phase)

2.

Check if siren sounds 5 time or not. Refer to

SEC-195, "VEHICLE SECURITY SYSTEM : System Descrip-

tion"

.

Does siren sound?

YES

>> GO TO 7.

NO

>> GO TO 6.

6.

CHECK MALFUNCTIONING CIRCUIT 2

Check the following circuit.
• Circuit between siren control unit and intruder sensor. Refer to

SEC-277, "Component Function Check"

.

Number of hazard warning lamp blinks

Description

3 times

Normal

0 times

• Circuit malfunctioning between siren control unit and BCM (communication line)
• Circuit malfunctioning between siren control unit and BCM (hazard switch line)

SEC-210

< SYSTEM DESCRIPTION >

[WITHOUT INTELLIGENT KEY SYSTEM]

DIAGNOSIS SYSTEM (SIREN CONTROL UNIT)

>> INSPECTION END

7.

CHECK MALFUNCTIONING CIRCUIT 3

Check the following circuit.
• Circuit between siren control unit and BCM (hazard switch signal circuit). Refer to

SEC-282, "Component

Function Check"

.

• Circuit between siren control unit and BCM (communication signal circuit). Refer to

SEC-281, "Component

Function Check"

.

>> INSPECTION END

8.

ALARM HISTORY DISPLAY

Check alarm history display.
The cause of alarm activation is indicated by the number of siren sounds.

Does siren sound?

YES (A history is found)>>Check the cause of the alarm activation.
NO (History is not found)>>GO TO 9.

9.

SYSTEM DIAGNOSIS RESULT DISPLAY

Check component diagnosis result display.
The malfunctioning part is indicated by the number of siren sounds.

Does siren sound?

YES

>> Replace malfunctioning component.

NO

>> GO TO 10.

10.

OPERATION CHECK

1.

Close hood and all doors.

2.

Lock all doors using the Intelligent Key or door request switch.

3.

Check that security indicator lamp blinks quickly for 20 seconds.
NOTE:
If hood is not fully closed, security indicator lamp blinks slowly after all doors are locked. Fully close hood
and then lock all doors again.

4.

Check that security indicator lamp blinks slowly and siren does not sound. Refer to

SEC-195, "VEHICLE

SECURITY SYSTEM : System Description"

.

>> INSPECTION END

Number of siren sounds

Cause of alarm activation

0

History is not found

1

Battery is disconnected and connected

2

Movement to enter into passenger room is detected

3

Communication between BCM and siren control unit is interrupted

4

Door or hood is opened

5

Operate ignition switch with an unregistered key

6

Communication between siren control unit and intruder sensor is interrupted

Number of siren sounds

Malfunctioning component

0

Malfunctioning component is not found

1

Siren control unit

2

Intruder sensor
