Nissan Qashqai J11. Manual - part 1440

ECM, IPDM E/R, BCM

SEC-59

< ECU DIAGNOSIS INFORMATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

ECU DIAGNOSIS INFORMATION

ECM, IPDM E/R, BCM

List of ECU Reference

INFOID:0000000010337881

ECU

Reference

ECM(HRA2DDT)

Reference Value

ECH-59, "Reference Value"

DTC Index

ECH-71, "DTC Index"

ECM(K9K)

Reference Value

ECK-76, "Reference Value"

Fail-safe

ECK-88, "Fail-safe"

DTC Inspection Priority Chart

ECK-95, "DTC Inspection Priority Chart"

DTC Index

ECK-97, "DTC Index"

ECM(R9M)

Reference Value

EC9-89, "Reference Value"

Fail-safe

EC9-101, "Fail-safe"

DTC Inspection Priority Chart

EC9-107, "DTC Inspection Priority Chart"

DTC Index

EC9-108, "DTC Index"

BCM

Reference Value

BCS-64, "Reference Value"

Fail-safe

BCS-88, "Fail-safe"

DTC Inspection Priority Chart

BCS-89, "DTC Inspection Priority Chart"

DTC Index

BCS-90, "DTC Index"

IPDM E/R

Reference Value

PCS-21, "Reference Value"

Fail-safe

PCS-33, "Fail-safe"

DTC Inspection Priority Chart

PCS-36, "DTC Inspection Priority Chart"

DTC Index

PCS-37, "DTC Index"

SEC-60

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

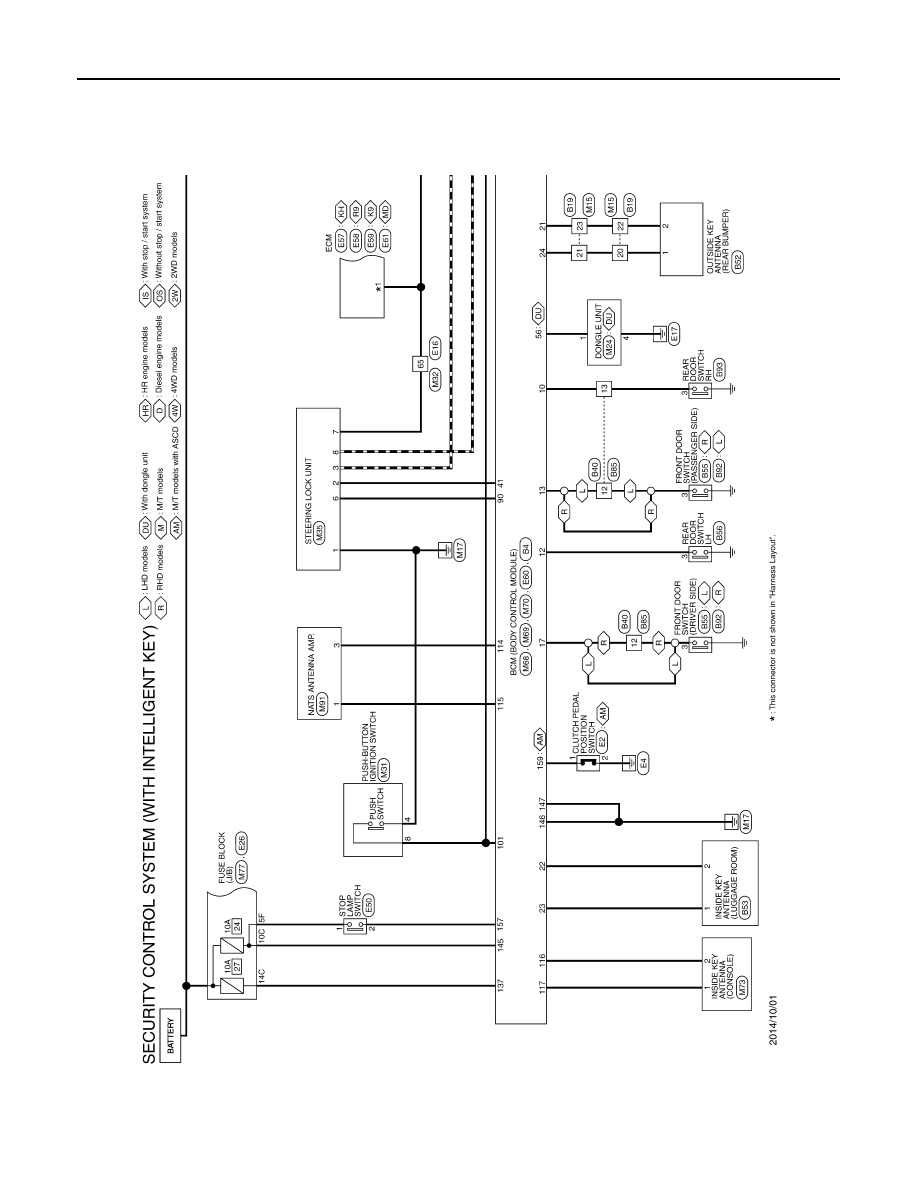

SECURITY CONTROL SYSTEM

WIRING DIAGRAM

SECURITY CONTROL SYSTEM

Wiring Diagram

INFOID:0000000010337882

JRKWE3997GB

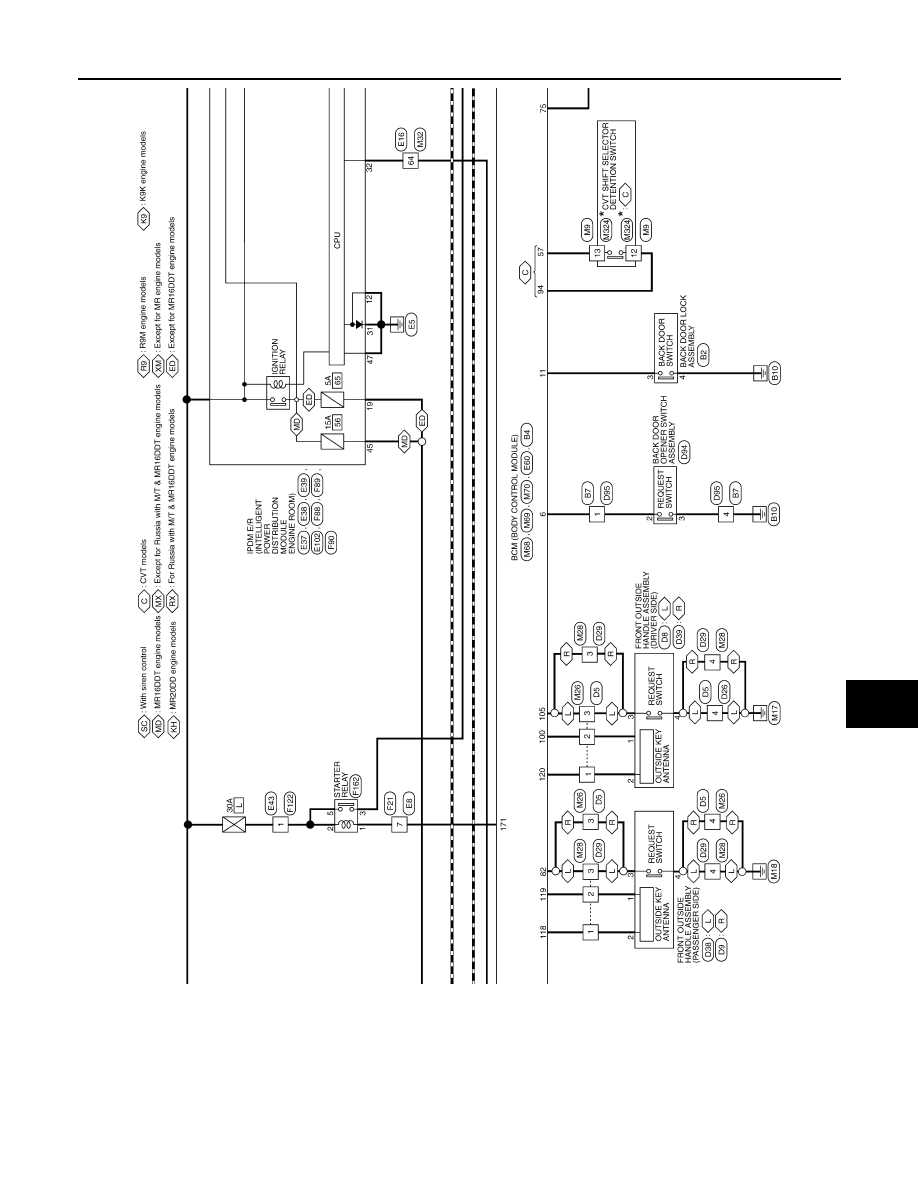

SECURITY CONTROL SYSTEM

SEC-61

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

JRKWE3998GB

SEC-62

< WIRING DIAGRAM >

[WITH INTELLIGENT KEY SYSTEM]

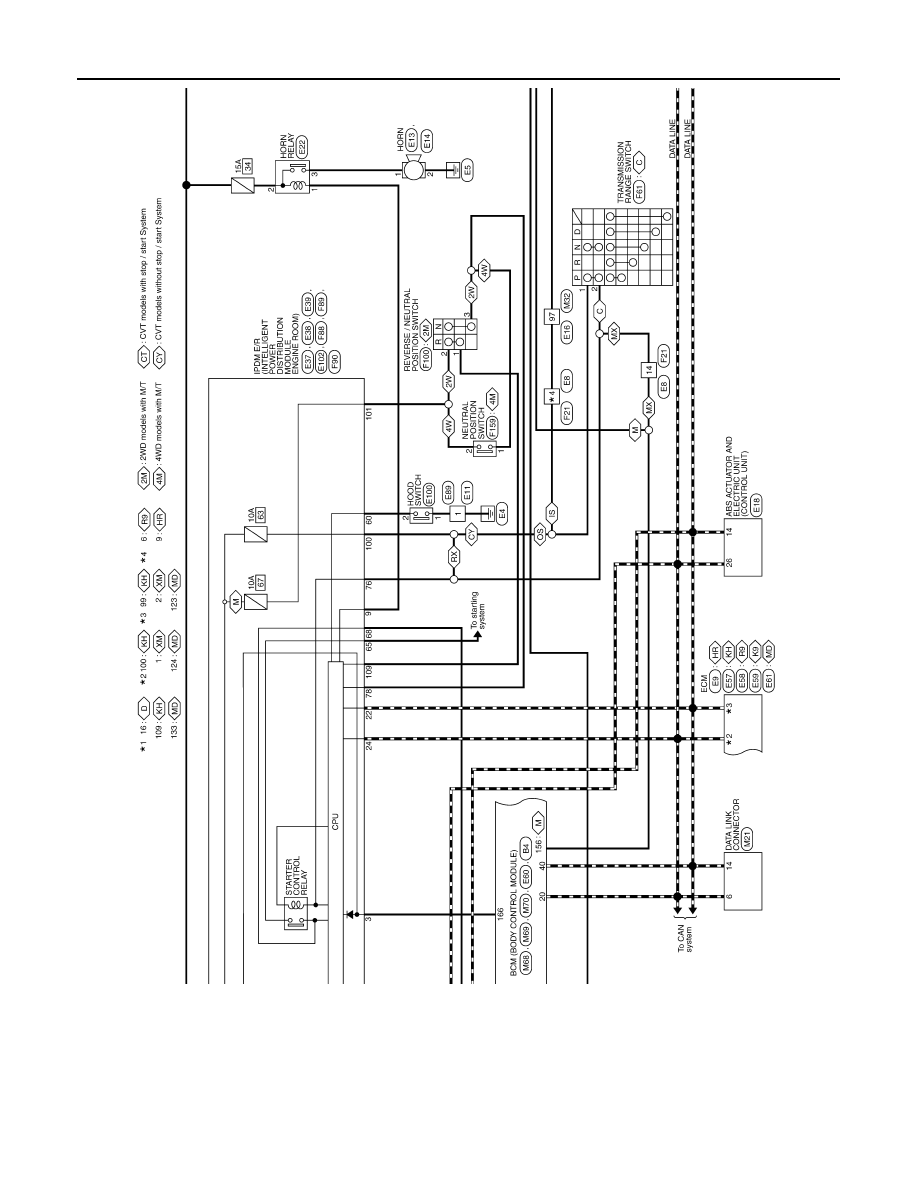

SECURITY CONTROL SYSTEM

JRKWE3999GB
