Nissan Qashqai J11. Manual - part 1415

RADIATOR CORE SUPPORT

DLK-929

< REMOVAL AND INSTALLATION >

[TYPE 6]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

CVT models

MR20DD : Removal and Installation

INFOID:0000000010678853

REMOVAL

1.

Remove front grille. Refer to

EXT-26, "Removal and Installation"

.

2.

Remove air duct (inlet). Refer to

EM-24, "Removal and Installation"

.

3.

Remove hood switch.

a.

Disconnect hood switch harness connector.

b.

Remove hood switch mounting bolt, and then remove hood switch.

4.

Remove hood lock assembly. Refer to

DLK-951, "HOOD LOCK : Removal and Installation"

.

5.

Remove hood lock control cable fixing clips from radiator core support upper. Refer to

DLK-950,

"Exploded View"

.

6.

Remove engine room harness fixing clips from radiator core support upper.

7.

Remove crash zone sensor. Refer to

SR-24, "Removal and Installation"

.

8.

Remove horn. Refer to

HRN-7, "Removal and Installation"

.

9.

Remove radiator mounting bracket. Refer to

CO-72, "Exploded View"

.

10. Remove A/C pipe bracket mounting bolt. Refer to

HA-124, "Exploded View"

.

11. Remove radiator core support upper mounting bolts, and then remove radiator core support upper.

INSTALLATION

Install in the reverse order of removal.

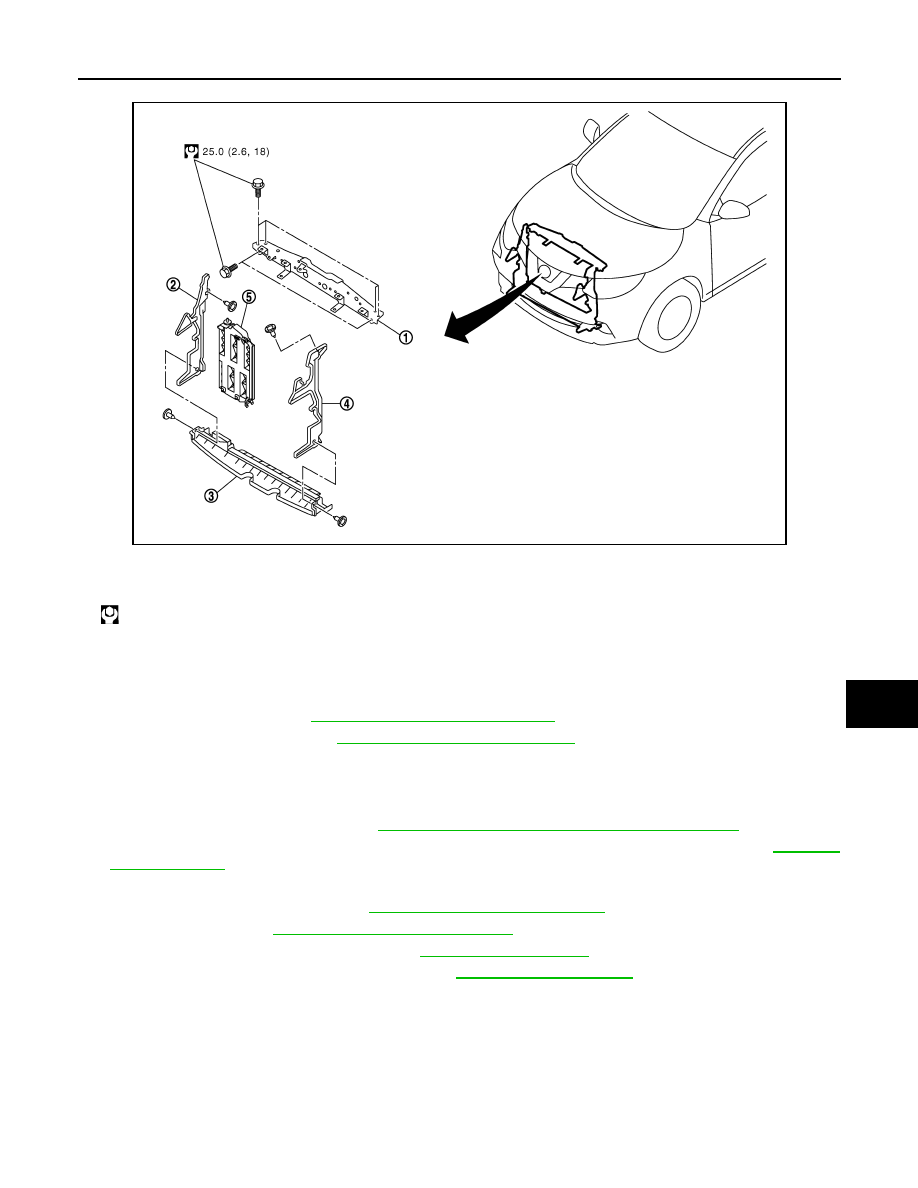

R9M

JMKIB3633GB

1.

Radiator core support upper

2.

Air guide RH

3.

Air lower guide

4.

Air guide LH

5.

Air guide plate

:N·m (kg-m, ft-lb)

DLK-930

< REMOVAL AND INSTALLATION >

[TYPE 6]

RADIATOR CORE SUPPORT

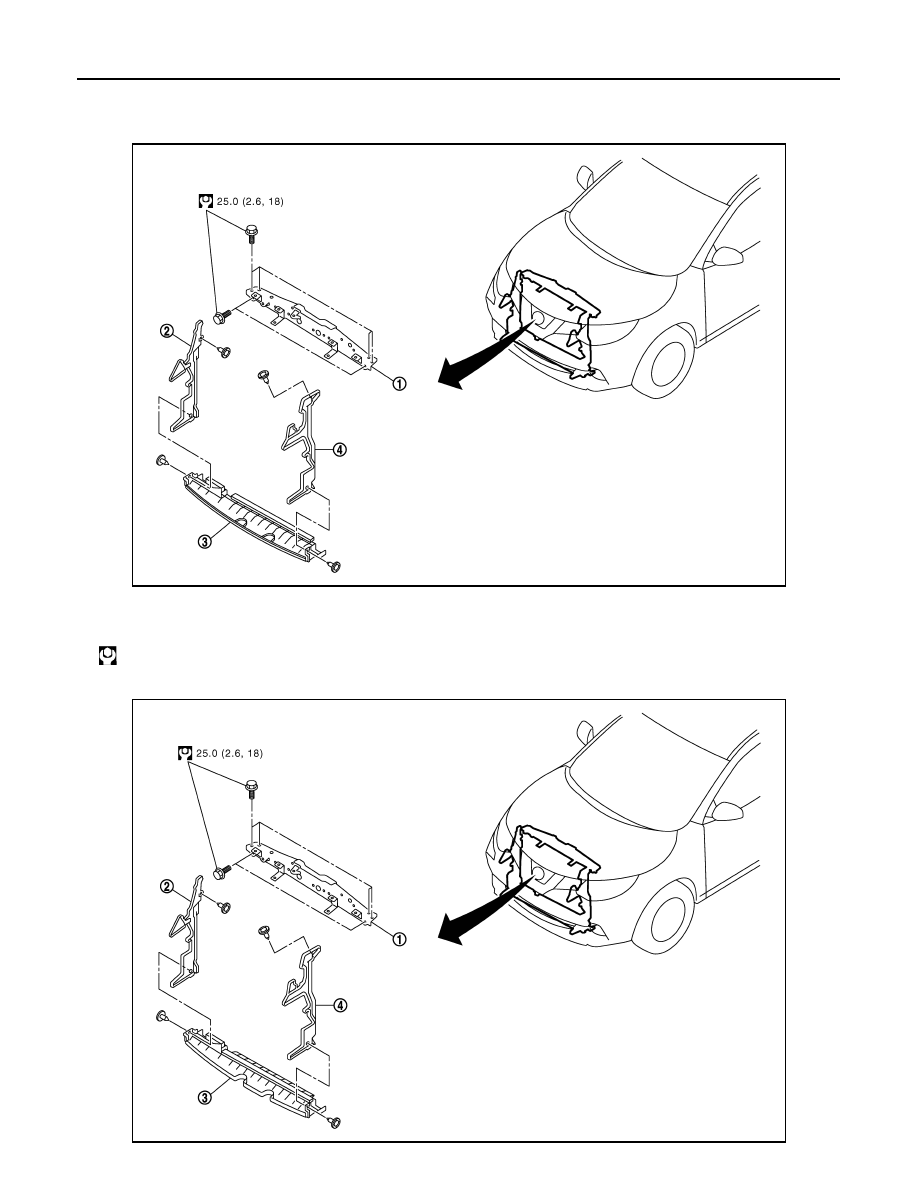

R9M : Exploded View

INFOID:0000000010678856

T/M models

CVT models

JMKIB3299GB

1.

Radiator core support upper

2.

Air guide RH

3.

Air lower guide

4.

Air guide LH

:N·m (kg-m, ft-lb)

JMKIB3300GB

RADIATOR CORE SUPPORT

DLK-931

< REMOVAL AND INSTALLATION >

[TYPE 6]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

R9M : Removal and Installation

INFOID:0000000010678857

REMOVAL

1.

Remove front grille. Refer to

EXT-26, "Removal and Installation"

.

2.

Remove air duct (inlet). Refer to

EM-528, "Removal and Installation"

.

3.

Remove hood switch.

a.

Disconnect hood switch harness connector.

b.

Remove hood switch mounting bolt, and then remove hood switch.

4.

Remove hood lock assembly. Refer to

DLK-951, "HOOD LOCK : Removal and Installation"

.

5.

Remove hood lock control cable fixing clips from radiator core support upper. Refer to

DLK-950,

"Exploded View"

.

6.

Remove engine room harness fixing clips from radiator core support upper.

7.

Remove crash zone sensor. Refer to

SR-24, "Removal and Installation"

.

8.

Remove horn. Refer to

HRN-7, "Removal and Installation"

.

9.

Remove radiator mounting bracket. Refer to

CO-125, "Exploded View"

.

10. Remove A/C pipe bracket mounting bolt. Refer to

HA-173, "Exploded View"

.

11. Remove radiator core support upper mounting bolts, and then remove radiator core support upper.

INSTALLATION

Install in the reverse order of removal.

1.

Radiator core support upper

2.

Air guide RH

3.

Air lower guide

4.

Air guide LH

:N·m (kg-m, ft-lb)

DLK-932

< REMOVAL AND INSTALLATION >

[TYPE 6]

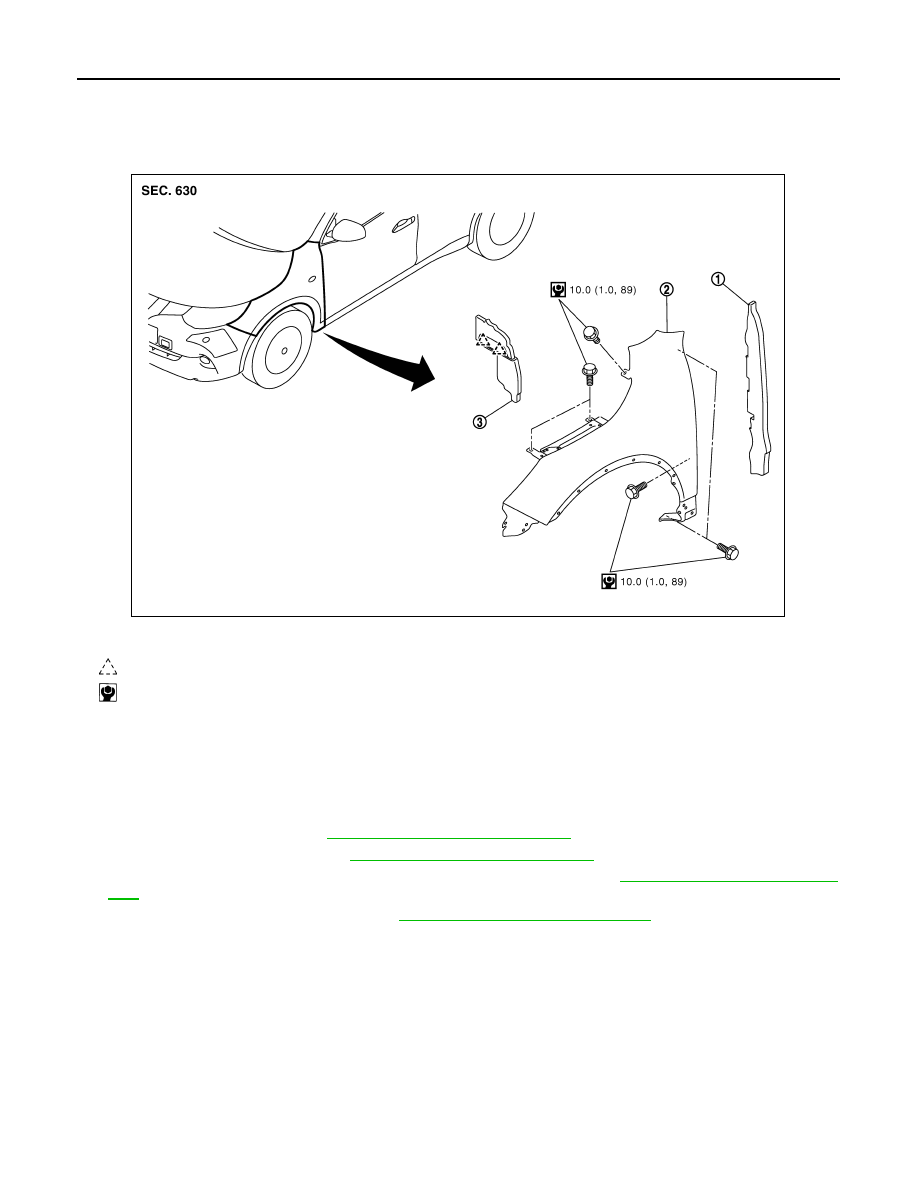

FRONT FENDER

FRONT FENDER

Exploded View

INFOID:0000000010678858

Removal and Installation

INFOID:0000000010678859

CAUTION:

Use protective tape or shop cloth to protect from damage during removal and installation.

REMOVAL

1.

Remove fillet molding. Refer to

EXT-38, "Removal and Installation"

.

2.

Remove fender protector. Refer to

EXT-33, "Removal and Installation"

.

3.

Remove front bumper fascia assembly and bumper side bracket. Refer to

EXT-20, "Removal and Installa-

tion"

.

4.

Remove front combination lamp. Refer to

EXL-319, "Removal and Installation"

.

5.

Remove front fender seal.

6.

Remove front fender assembly mounting bolts.

1.

Front fender seal

2.

Front fender assembly

3.

Hoodledge cover

: Pawl

: N·m (kg-m, in-lb)

JMKIB3315GB
