Nissan Qashqai J11. Manual - part 1400

DOOR & LOCK SYSTEM

DLK-869

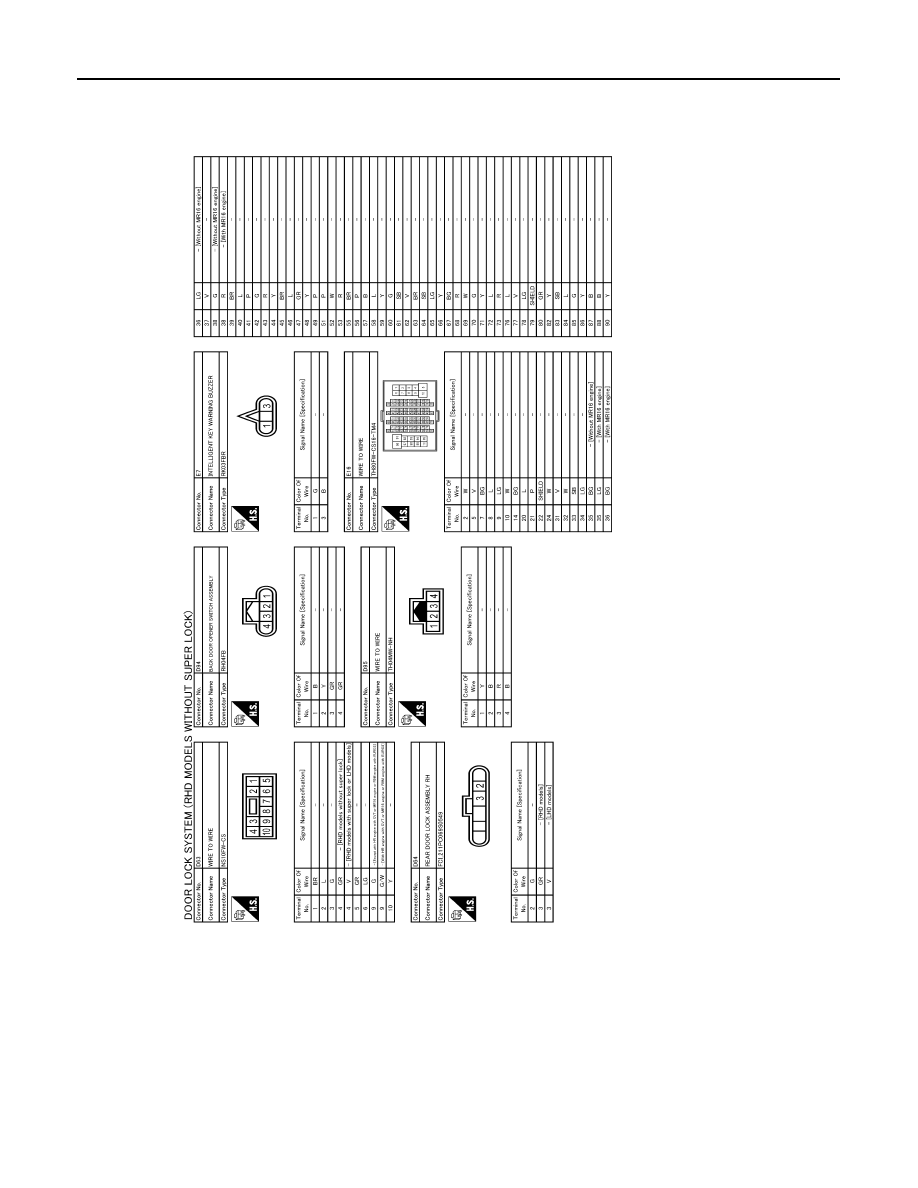

< WIRING DIAGRAM >

[TYPE 6]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

JRKWE3990GB

DLK-870

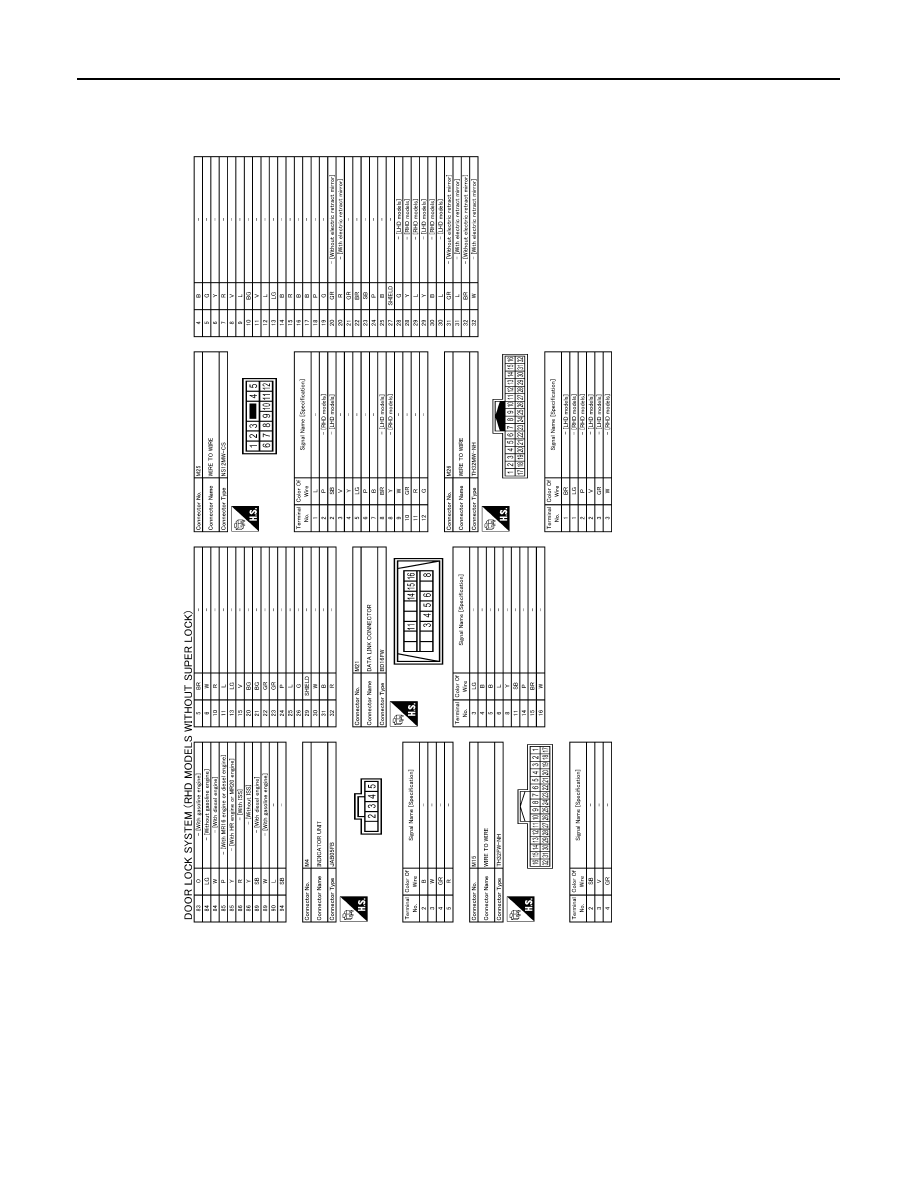

< WIRING DIAGRAM >

[TYPE 6]

DOOR & LOCK SYSTEM

JRKWE3991GB

DOOR & LOCK SYSTEM

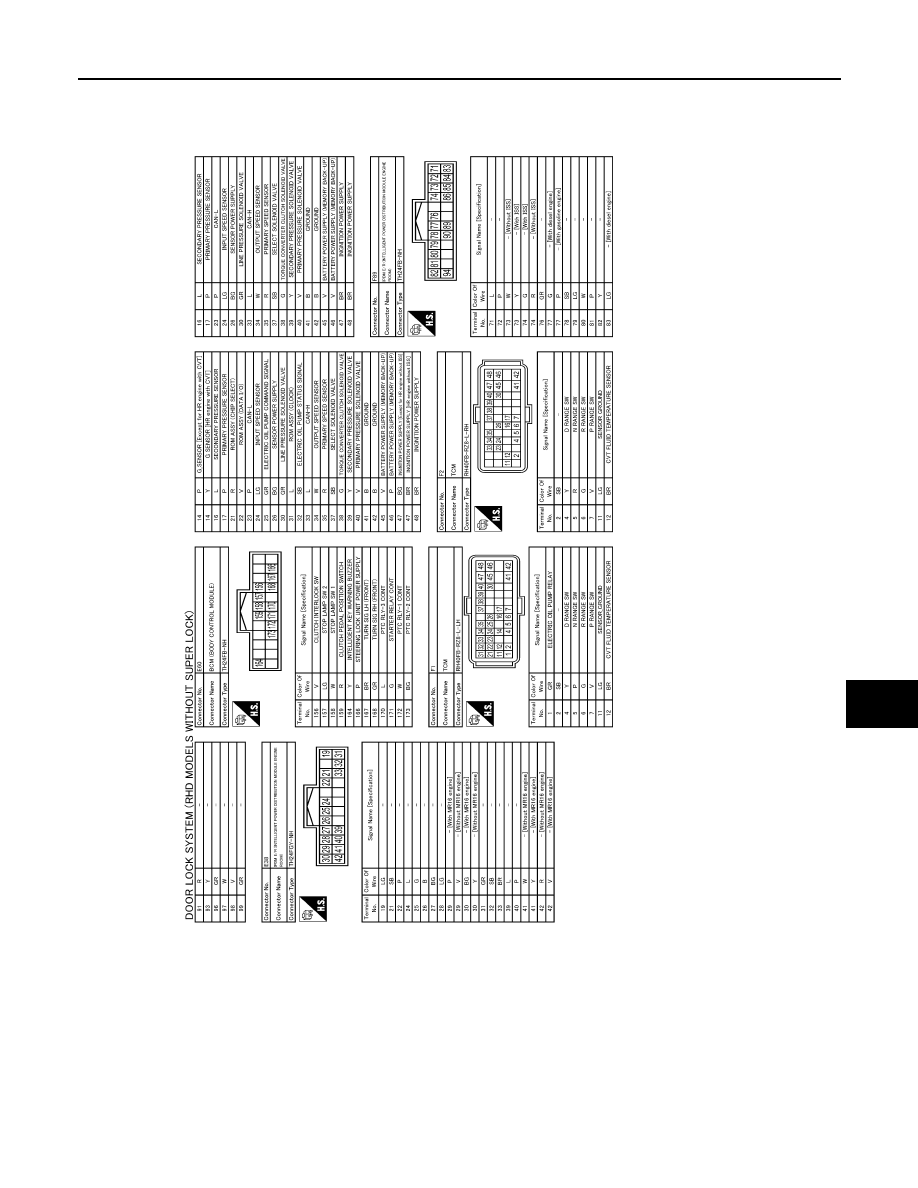

DLK-871

< WIRING DIAGRAM >

[TYPE 6]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

JRKWE3992GB

DLK-872

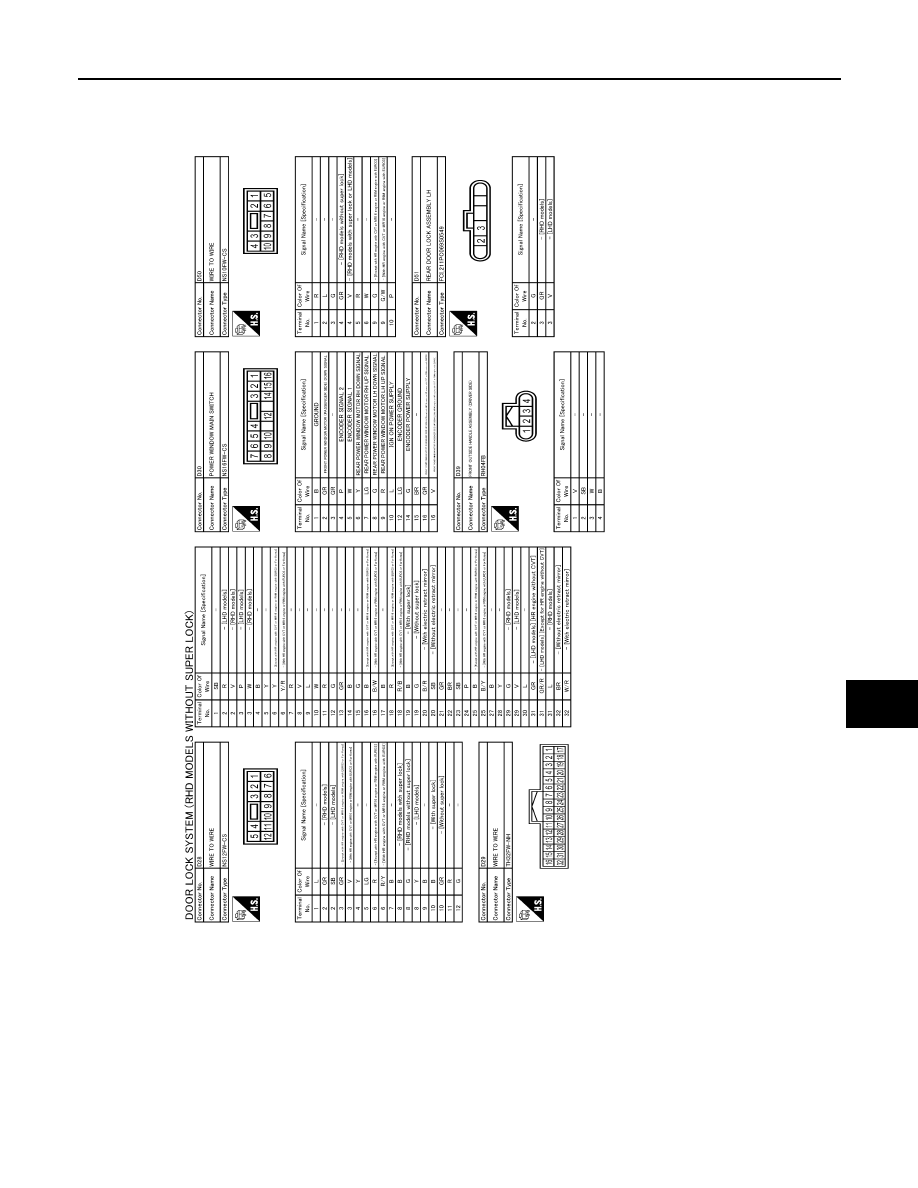

< WIRING DIAGRAM >

[TYPE 6]

DOOR & LOCK SYSTEM

JRKWE3993GB
