DOOR & LOCK SYSTEM

DLK-705

< WIRING DIAGRAM >

[TYPE 5]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

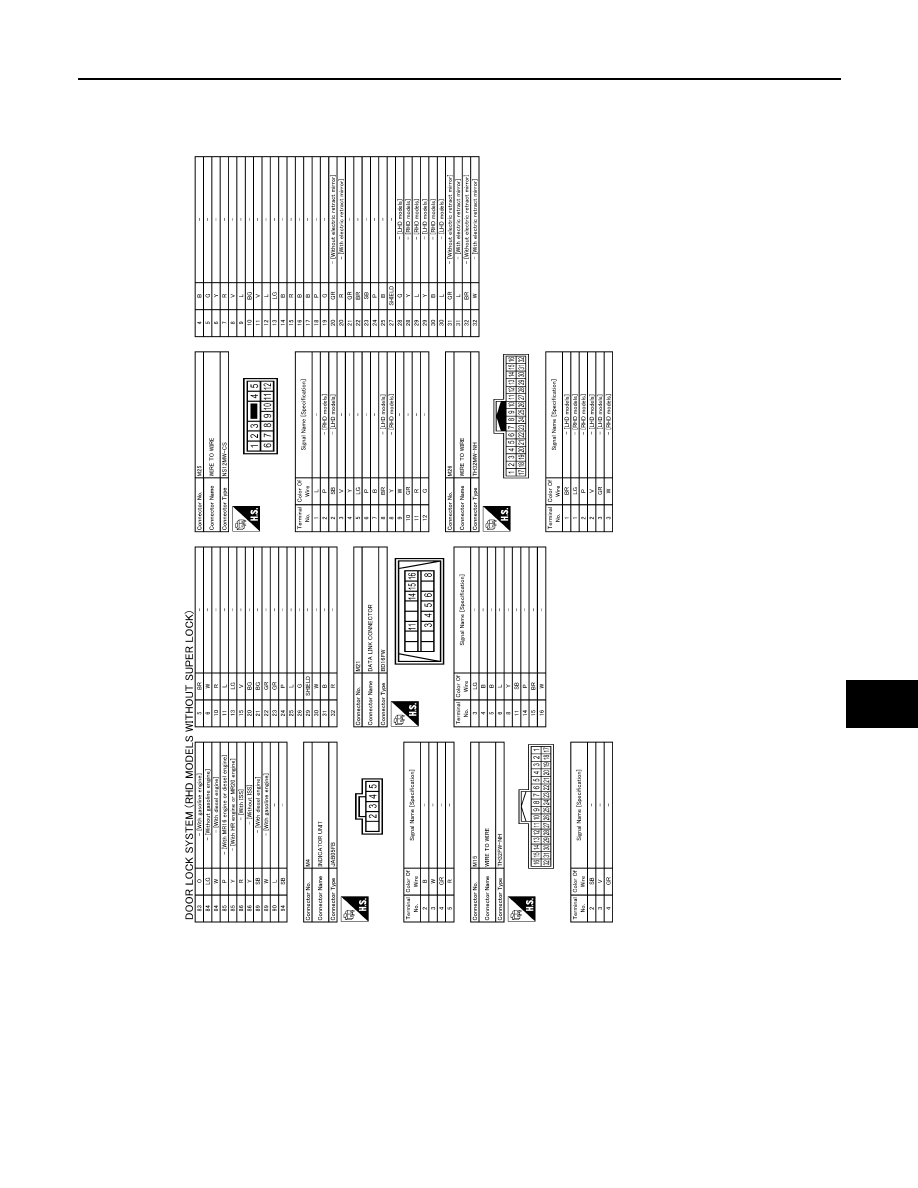

JRKWE3993GB

DLK-706

< WIRING DIAGRAM >

[TYPE 5]

DOOR & LOCK SYSTEM

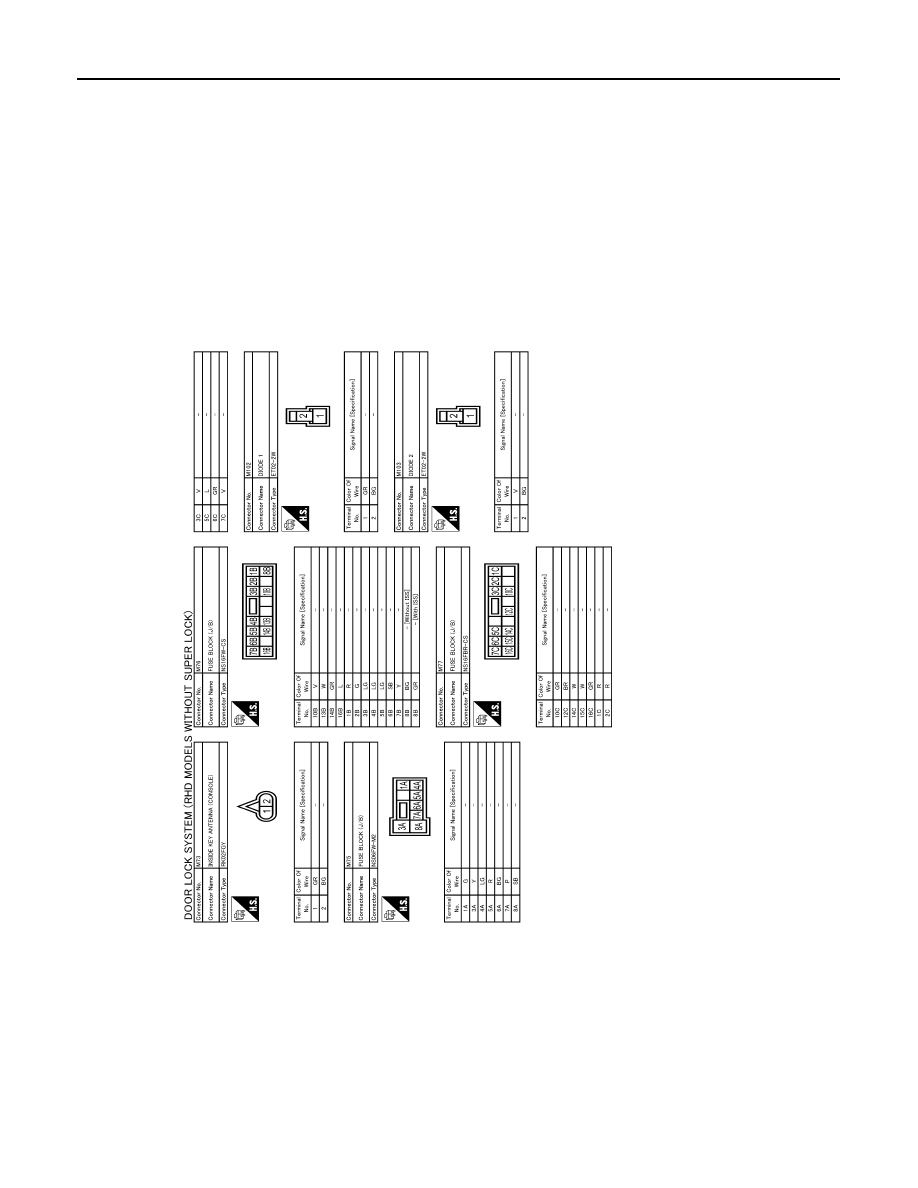

JRKWE3994GB

DOOR & LOCK SYSTEM

DLK-707

< WIRING DIAGRAM >

[TYPE 5]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

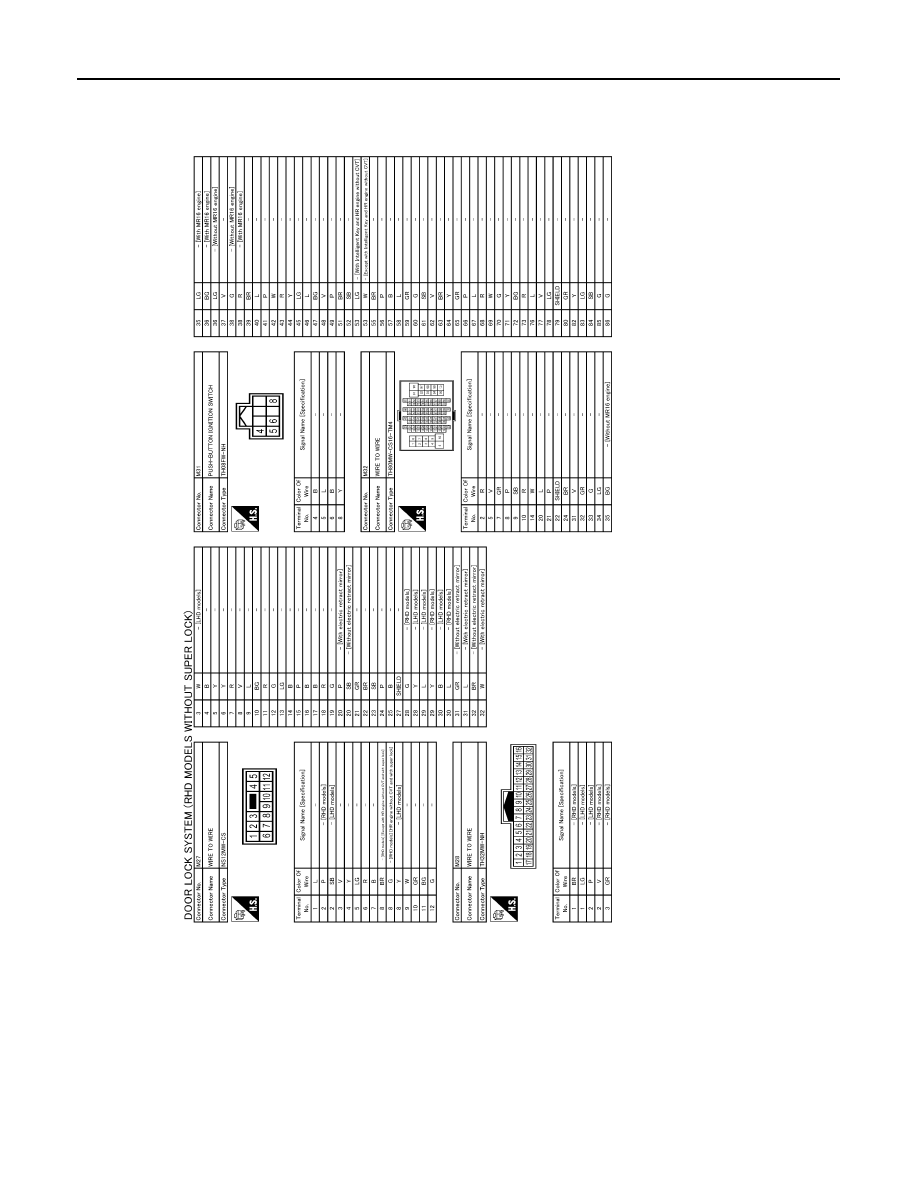

JRKWE3995GB

DLK-708

< WIRING DIAGRAM >

[TYPE 5]

DOOR & LOCK SYSTEM

JRKWE3996GB
