SERVICE DATA AND SPECIFICATIONS (SDS)

EM-479

< SERVICE DATA AND SPECIFICATIONS (SDS)

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

Main Bearing

INFOID:0000000010282037

MAIN BEARING GRADE TABLE

MAIN BEARING OIL CLEARANCE

Unit: mm (in)

Connecting Rod Bearing

INFOID:0000000010282038

CONNECTING ROD BEARING OIL CLEARANCE

Unit: mm (in)

Cylinder block main bearing
housing inner diameter

Grade mark A

55.4975 - 55.4985 (2.1849 - 2.185)

Grade mark B

55.4985 - 55.4995 (2.185)

Grade mark C

55.4995 - 55.5005 (2.185 - 2.1851)

Grade mark E

55.5005 - 55.5015 (2.1851)

Grade mark H

55.5015 - 55.5025 (2.1851)

Grade mark J

55.5025 - 55.5035 (2.1851 - 2.1852)

Grade mark K

55.5035 - 55.5045 (2.1852)

Grade mark L

55.5045 - 55.5055 (2.1852 - 2.1853)

Grade mark M

55.5055 - 55.5065 (2.1853)

Grade mark P

55.5065 - 55.5075 (2.1853)

Grade mark S

55.5075 - 55.5085 (2.1853 - 2.1854)

Grade mark T

55.5085 - 55.5095 (2.1854)

Grade mark U

55.5095 - 55.5105 (2.1854)

Grade mark Z

55.5105 - 55.5115 (2.1854 - 2.1855)

Marking

Thickness Identification

color

Lower shell

bearing

33281R or 4

1.989 mm (0.0783 in)

Blue

38751R or 3

1.985 mm (0.0781 in)

Black

37686R or 2

1.981 mm (0.0780 in)

Yellow

31153R or 1

1.977 mm (0.0778 in)

White

Upper shell

bearing

53785R or 4

1.989 mm (0.0783 in)

Blue

54889 or 3

1.985 mm (0.0781 in)

Black

7527 (upper)

1.981 mm (0.0780 in)

Yellow

7521 (lower)

1.977 mm (0.0778 in)

White

Main bearing oil clearance

Standard

0.035 - 0.065 (0.0014 - 0.0026)

Connecting rod bearing oil clearance

Standard

 0.053 - 0.093 (0.0021 - 0.0037)

LU-1

ENGINE

C

D

E

F

G

H

I

J

K

L

M

SECTION

LU

A

LU

N

O

P

CONTENTS

ENGINE LUBRICATION SYSTEM

HRA2DDT

SYSTEM DESCRIPTION  ..............................

3

DESCRIPTION ....................................................

3

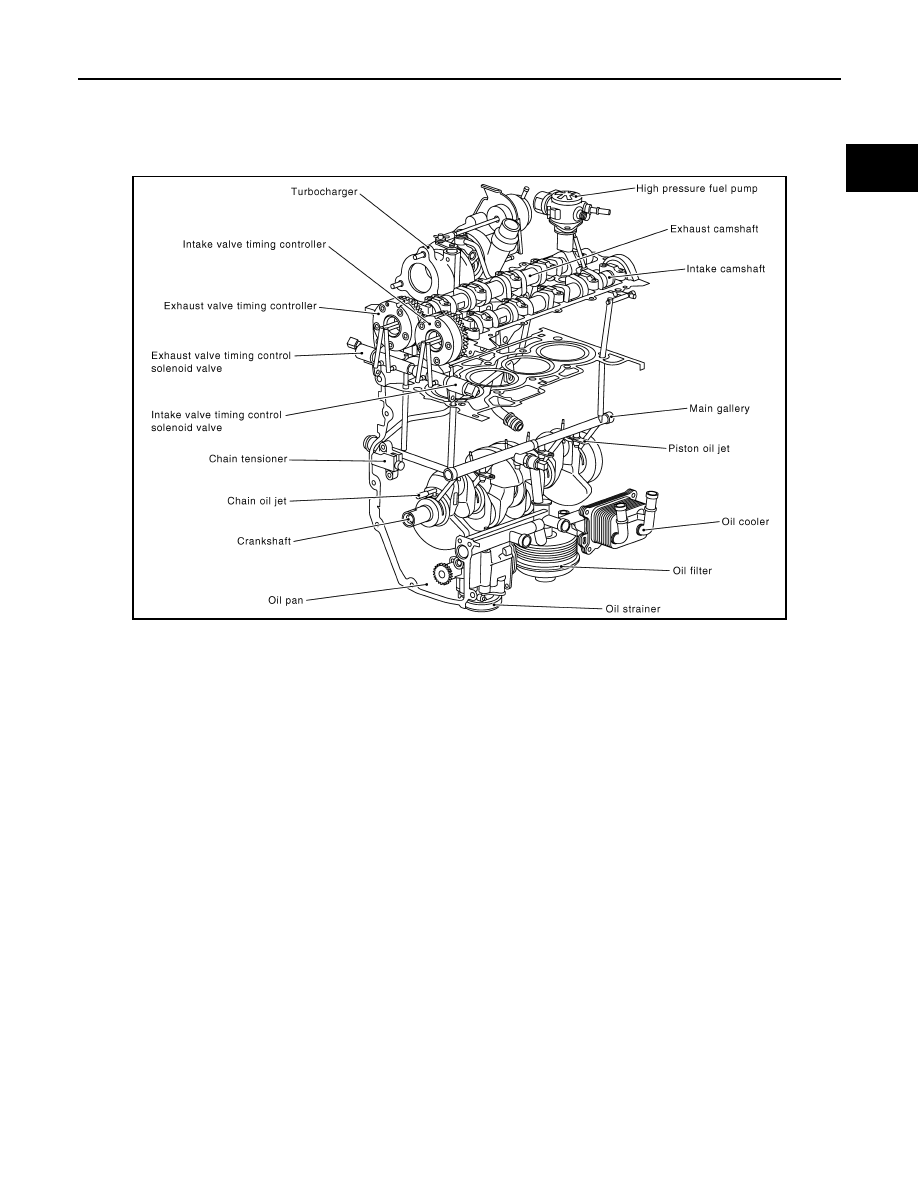

Engine Lubrication System  .......................................

3

PRECAUTION ...............................................

4

PRECAUTIONS ...................................................

4

Liquid Gasket  ............................................................

4

Precautions for Removing Battery Terminal  .............

5

PREPARATION ............................................

7

PREPARATION ...................................................

7

Special Service Tools ................................................

7

Commercial Service Tools  ........................................

7

PERIODIC MAINTENANCE ..........................

8

ENGINE OIL  ........................................................

8

Inspection ..................................................................

8

Draining .....................................................................

9

Refilling .....................................................................

9

OIL FILTER  ........................................................

10

Removal and Installation .........................................

10

Inspection ................................................................

10

REMOVAL AND INSTALLATION ...............

11

OIL PUMP ...........................................................

11

Exploded View  ........................................................

11

Removal and Installation .........................................

11

Inspection ................................................................

12

OIL COOLER ......................................................

13

Exploded View  ........................................................

13

Removal and Installation .........................................

13

Inspection ................................................................

14

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

15

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

15

Periodical Maintenance Specification ......................

15

Engine Oil Pressure .................................................

15

MR20DD

PRECAUTION ..............................................

16

PRECAUTIONS .................................................

16

Precautions for Removing Battery Terminal ............

16

Precautions For Engine Service  ..............................

16

Liquid Gasket ...........................................................

17

PREPARATION ...........................................

19

PREPARATION .................................................

19

Special Service Tools  ..............................................

19

Commercial Service Tools .......................................

19

SYSTEM DESCRIPTION  .............................

20

DESCRIPTION ..................................................

20

Engine Lubrication System ......................................

20

Engine Lubrication System Schematic  ....................

21

PERIODIC MAINTENANCE  ........................

22

ENGINE OIL  ......................................................

22

Inspection ................................................................

22

Draining ...................................................................

23

Refilling ....................................................................

23

OIL FILTER  .......................................................

25

Removal and Installation  .........................................

25

Inspection ................................................................

25

REMOVAL AND INSTALLATION  ...............

26

OIL COOLER  ....................................................

26

LU-2

Exploded View  ........................................................

26

Removal and Installation  ........................................

27

Inspection ...............................................................

28

UNIT DISASSEMBLY AND ASSEMBLY ....

29

OIL PUMP  ..........................................................

29

Exploded View  ........................................................

29

SERVICE DATA AND SPECIFICATIONS
(SDS) ...........................................................

30

SERVICE DATA AND SPECIFICATIONS
(SDS) ..................................................................

30

Periodical Maintenance Specification  .....................

30

Engine Oil Pressure ................................................

30

K9K

PRECAUTION .............................................

31

PRECAUTIONS  .................................................

31

Precaution for Liquid Gasket  ..................................

31

Precautions for Removing Battery Terminal  ...........

32

PREPARATION ...........................................

34

PREPARATION  .................................................

34

Special Service Tools  .............................................

34

Commercial Service Tools ......................................

34

PERIODIC MAINTENANCE ........................

35

ENGINE OIL .......................................................

35

Inspection ...............................................................

35

Draining ..................................................................

36

Refilling ...................................................................

36

OIL FILTER  ........................................................

37

Replacement ..........................................................

37

Inspection ...............................................................

37

REMOVAL AND INSTALLATION ...............

38

OIL FILTER BRACKET  .....................................

38

Exploded View  ........................................................

38

Removal and Installation  ........................................

38

OIL COOLER  .....................................................

39

Exploded View  ........................................................

39

Removal and Installation  ........................................

39

Inspection ...............................................................

40

OIL PUMP  ..........................................................

41

Exploded View  ........................................................

41

Removal and Installation  ........................................

41

SERVICE DATA AND SPECIFICATIONS
(SDS) ..........................................................

42

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

42

Periodical Maintenance Specification ....................

42

Engine Oil Pressure ..............................................

42

R9M

PRECAUTION ............................................

43

PRECAUTIONS  .................................................

43

Precaution for Liquid Gasket ...................................

43

Precautions for Removing Battery Terminal  ...........

44

PREPARATION ..........................................

46

PREPARATION .................................................

46

Special Service Tools  .............................................

46

SYSTEM DESCRIPTION  ...........................

47

DESCRIPTION ...................................................

47

Engine Lubrication System  .....................................

47

Engine Lubrication System Schematic  ...................

47

PERIODIC MAINTENANCE  .......................

48

ENGINE OIL  ......................................................

48

Inspection ................................................................

48

Draining ...................................................................

49

Refilling ...................................................................

49

OIL FILTER ........................................................

51

Removal and Installation .........................................

51

Inspection ................................................................

52

REMOVAL AND INSTALLATION ..............

53

OIL COOLER .....................................................

53

Exploded View  ........................................................

53

Removal and Installation .........................................

53

Inspection ................................................................

54

OIL PUMP ..........................................................

55

Exploded View  ........................................................

55

Removal and Installation .........................................

55

SERVICE DATA AND SPECIFICATIONS
(SDS) ..........................................................

57

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

57

Periodical Maintenance Specification  .....................

57

Engine Oil Pressure  ................................................

57

DESCRIPTION

LU-3

< SYSTEM DESCRIPTION >

[HRA2DDT]

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

SYSTEM DESCRIPTION

DESCRIPTION

Engine Lubrication System

INFOID:0000000010284170

E1BIA1111GB















Content   ..  133  134  135  136   ..
