BACK DOOR

DLK-625

< REMOVAL AND INSTALLATION >

[TYPE 4]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

REMOVAL

1.

Remove back door trim finisher lower and back door trim finisher upper. Refer to

INT-31, "Removal and

Installation"

.

2.

Remove rear washer tube from back door panel. Refer to

WW-90, "WASHER TUBE : Removal and Instal-

lation"

.

3.

Disconnect back door harness connectors from body harness connectors.

4.

Remove harness grommet from back door panel.

5.

Pull out body harness LH from back door panel.

6.

Support back door with the proper material to prevent it from falling.

WARNING:

Bodily injury may occur if no supporting rod is holding the back door open when removing the
back door stay.

7.

Remove back door stay of back door side. Refer to

DLK-628, "BACK DOOR STAY : Removal and Installa-

tion"

.

8.

Remove back door mounting nuts, and then remove back door assembly.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• After installation, perform the fitting adjustment. Refer to

DLK-625, "BACK DOOR ASSEMBLY :

Adjustment"

.

• Apply touch-up paint to the body color if the paint around back door hinge is peeled off.
• Check back door hinge rotating part for poor lubrication. Refer to

DLK-628, "BACK DOOR HINGE :

Inspection"

.

BACK DOOR ASSEMBLY : Adjustment

INFOID:0000000010479435

FITTING ADJUSTMENT

DLK-626

< REMOVAL AND INSTALLATION >

[TYPE 4]

BACK DOOR

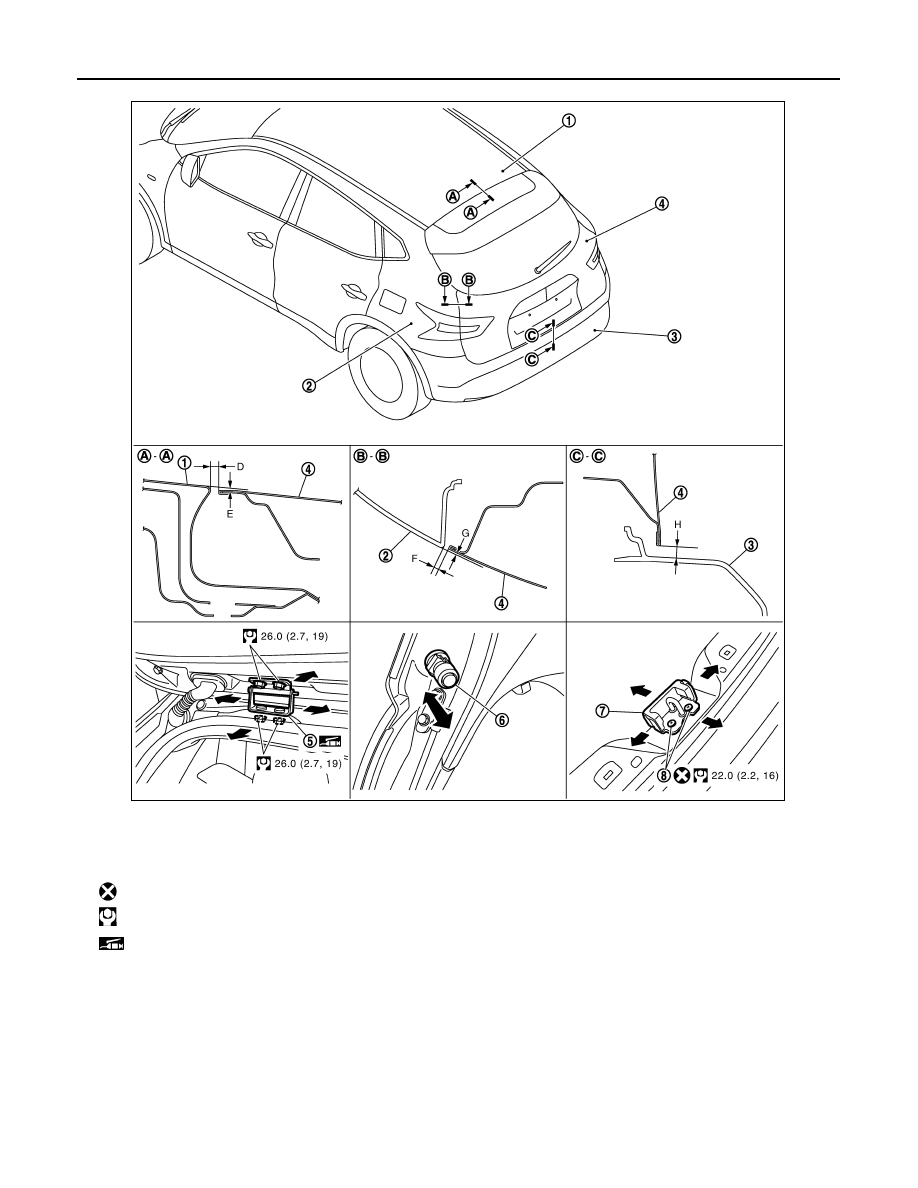

Fitting Adjustment Standard

Check the clearance and the surface height between back door and each part by seeing and touching.
If the clearance and the surface height are out of specification, adjust them according to the procedures
shown below.

1.

Roof panel

2.

Body side outer

3.

Rear bumper fascia

4.

Back door panel

5.

Back door hinge

6.

Back door bumper rubber

7.

Back door striker

8.

TORX bolt

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

: Body grease

JMKIB3321GB

BACK DOOR

DLK-627

< REMOVAL AND INSTALLATION >

[TYPE 4]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Unit: mm [in]

Fitting Adjustment Procedure

1.

Loosen back door striker mounting TORX bolts.

2.

Loosen back door hinge mounting nuts (back door side).

3.

Adjust back door using back door striker, back door hinge and back door bumper rubber to the specified
value, as shown in the following table.

4.

After adjustment tighten back door striker mounting bolts and back door hinge mounting nuts (back door
side) to the specified torque.

CAUTION:

• Apply touch-up paint to the body color if the paint around back door hinge, and back door hinge

mounting nuts is peeled off.

• Check back door hinge rotating part for poor lubrication. Refer to

DLK-628, "BACK DOOR HINGE :

Inspection"

.

BACK DOOR STRIKER ADJUSTMENT

Adjust back door striker so that it becomes parallel with back door lock insertion direction.

BACK DOOR STRIKER

BACK DOOR STRIKER : Removal and Installation

INFOID:0000000010479436

REMOVAL

1.

Remove luggage rear plate. Refer to

INT-30, "Luggage floor trim"

.

2.

Remove TORX bolts, and then remove back door striker.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Never reuse mounting TORX bolt. Always replace it with a new one when it is removed.
• After installation, perform the fitting adjustment. Refer to

DLK-625, "BACK DOOR ASSEMBLY :

Adjustment"

.

• After installation, check back door open/close, lock/unlock operation.

BACK DOOR HINGE

BACK DOOR HINGE : Removal and Installation

INFOID:0000000010479437

REMOVAL

1.

Remove back door assembly. Refer to

DLK-624, "BACK DOOR ASSEMBLY : Removal and Installation"

2.

Remove luggage side upper finisher LH and RH. Refer to

INT-29, "Luggage side trim"

.

3.

Lower the rear end of headlining to secure work space.

4.

Remove back door hinge mounting nut, and then remove back door hinge.

INSTALLATION

Portion

Standard

Difference

(RH/LH,MAX)

Back door – Roof panel

A – A

D

Clearance

5.0 – 7.0

[0.197 – 0.276]

E

Surface

height

0 – 2.0

[0 – 0.079]

Back door – Body side outer

B – B

F

Clearance

2.8 – 7.2

[0.110 – 0.283]

< 2.9

 [0.114]

G

Surface

height

0 – 4.0

[0 – 0.157]

< 2.5

 [0.098]

Back door – Rear bumper fascia

C – C

H

Clearance

4.8 – 9.2

[0.189 – 0.362]

DLK-628

< REMOVAL AND INSTALLATION >

[TYPE 4]

BACK DOOR

Note the following items, and install in the reverse order of removal.

CAUTION:

• Check back door hinge rotating part for poor lubrication. Refer to

DLK-628, "BACK DOOR HINGE :

Inspection"

.

• After installation, perform the fitting adjustment. Refer to

DLK-625, "BACK DOOR ASSEMBLY :

Adjustment"

.

• After installation, apply touch-up paint (the body color) onto the head of door hinge mounting nuts.

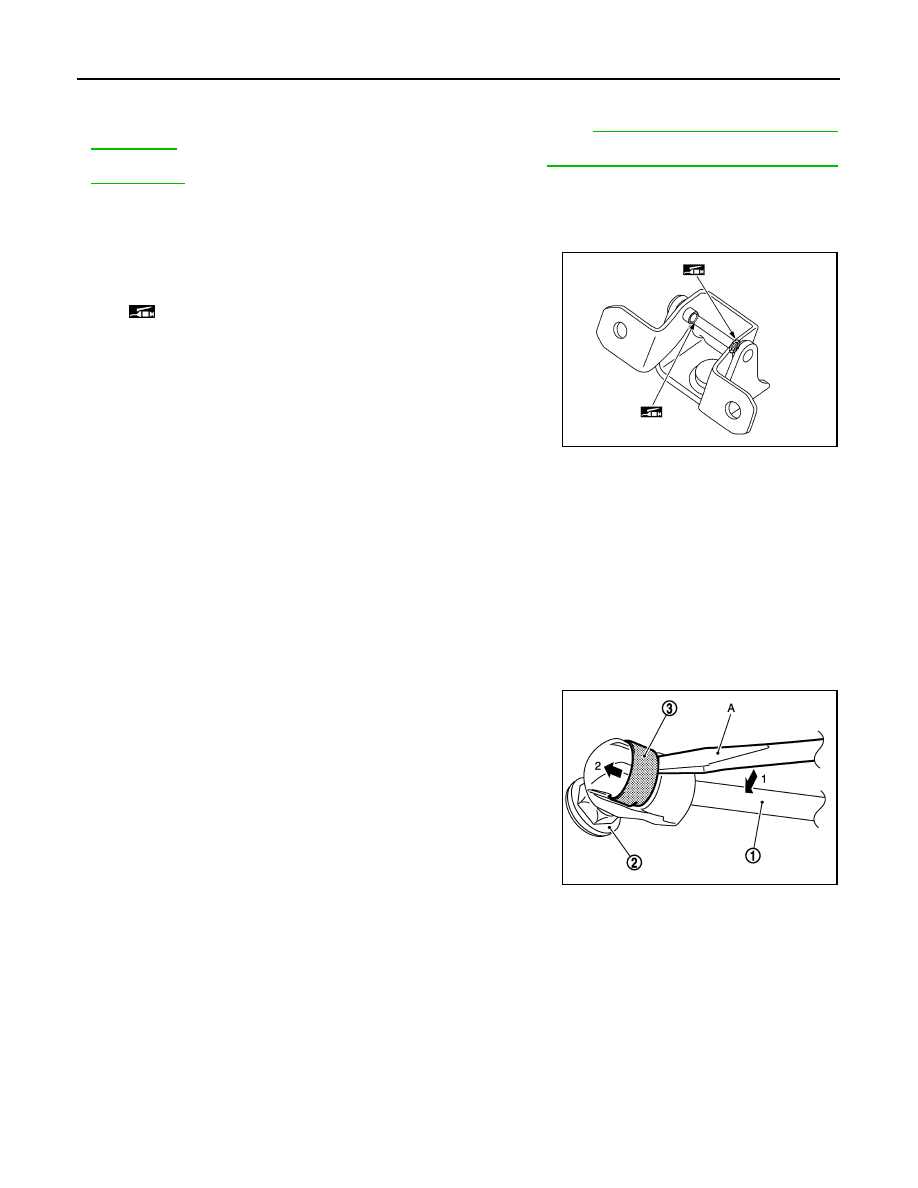

BACK DOOR HINGE : Inspection

INFOID:0000000010479438

Check door hinge rotating part for poor lubrication. Apply body
grease if necessary.

BACK DOOR STAY

BACK DOOR STAY : Removal and Installation

INFOID:0000000010479439

REMOVAL

1.

Support the back door with the suitable material to prevent it from falling.

WARNING:

Bodily injury may occur if no supporting rod is holding the back door open when removing the
back door stay.

CAUTION:

Use protective tape or shop cloth to protect from damage during removal and installation.

2.

Remove back door stay of vehicle body side.

a.

Remove the metal clip (3) located on the connection between
the back door stay (1) and the stud ball (2) by using a remover
tool (A) according to the numerical order 1

2 indicated by

arrows as shown in the figure.

b.

Disengage back door stay from stud ball.

3.

Remove back door stay mounting bolts of back door side, and then remove back door stay.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Apply anticorrosive agent onto the mounting surface.
• After installation, check back door open/close, lock/unlock operation.

BACK DOOR STAY : Disposal

INFOID:0000000010479440

CAUTION:

When performing disposal operation, wear the protective glasses and protective gloves.

: Body grease

JMKIB0628ZZ

JMKIA2255ZZ
