Nissan Qashqai J11. Manual - part 1334
RADIATOR CORE SUPPORT
DLK-605
< REMOVAL AND INSTALLATION >
[TYPE 4]
C
D
E
F
G
H
I
J
L
M
A
B
DLK
N
O
P
RADIATOR CORE SUPPORT
HRA2DDT

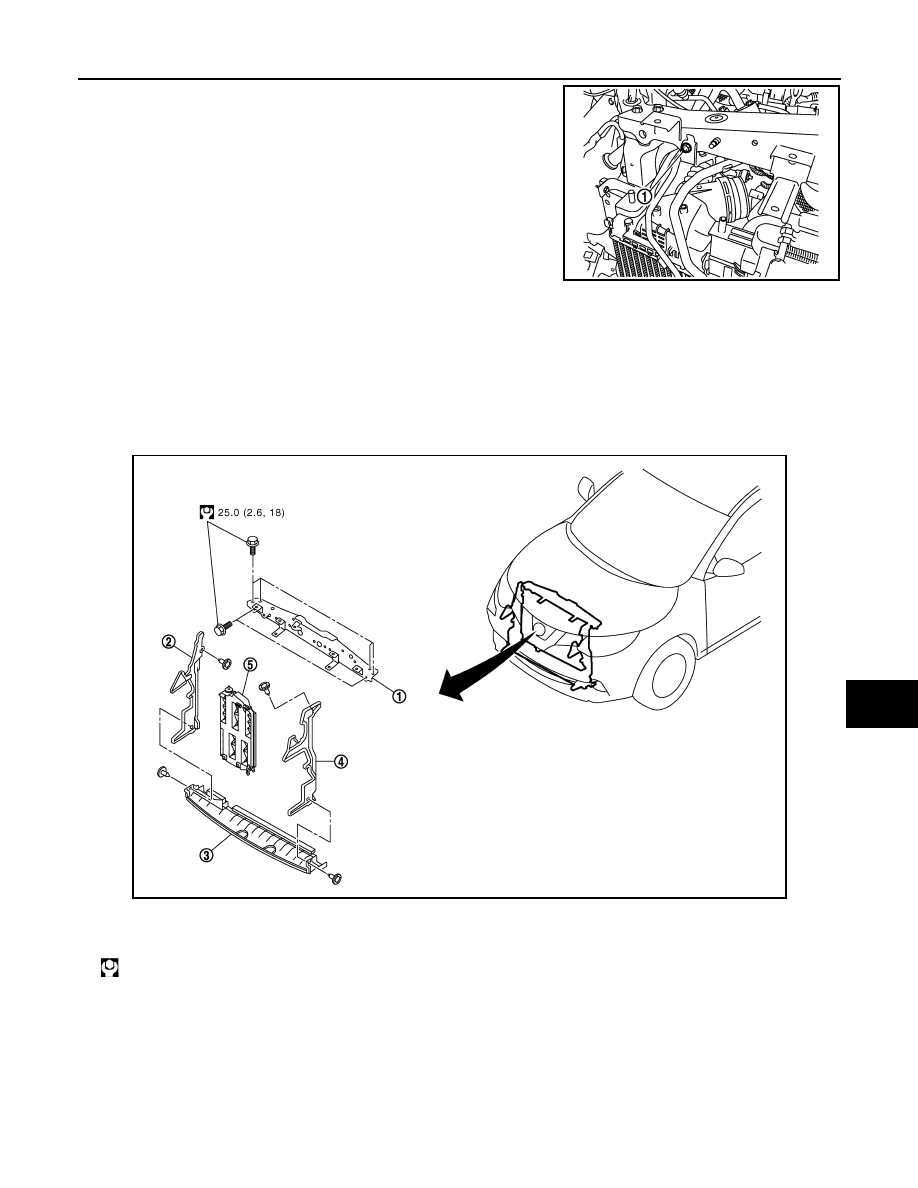

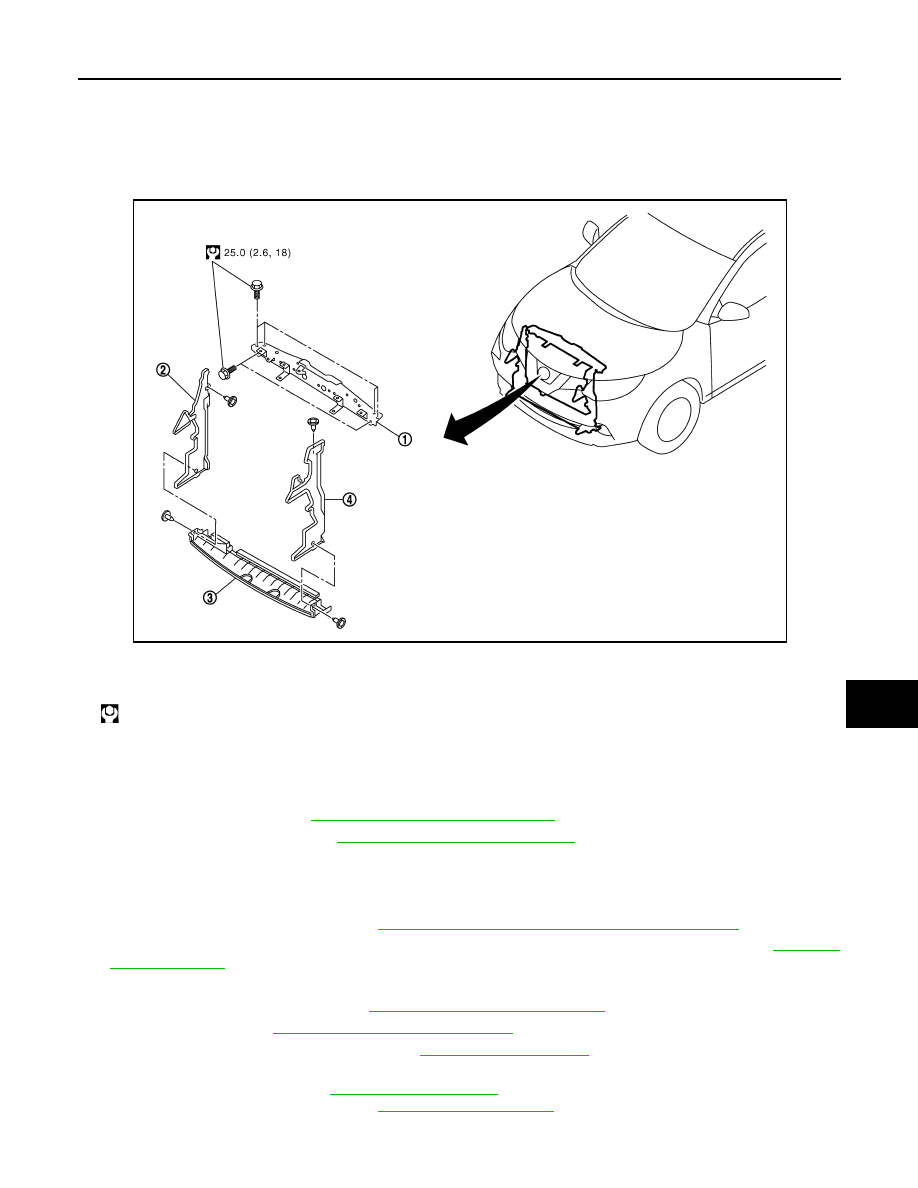

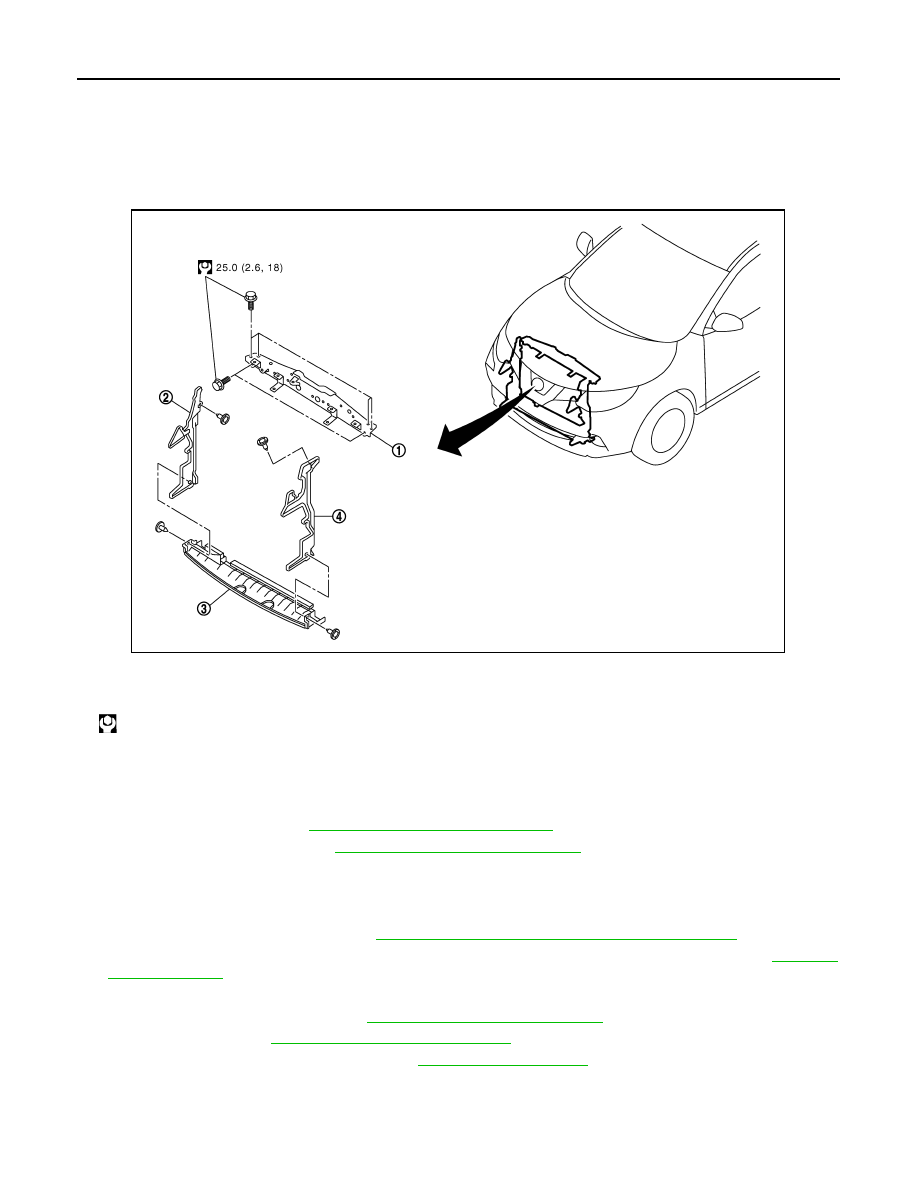

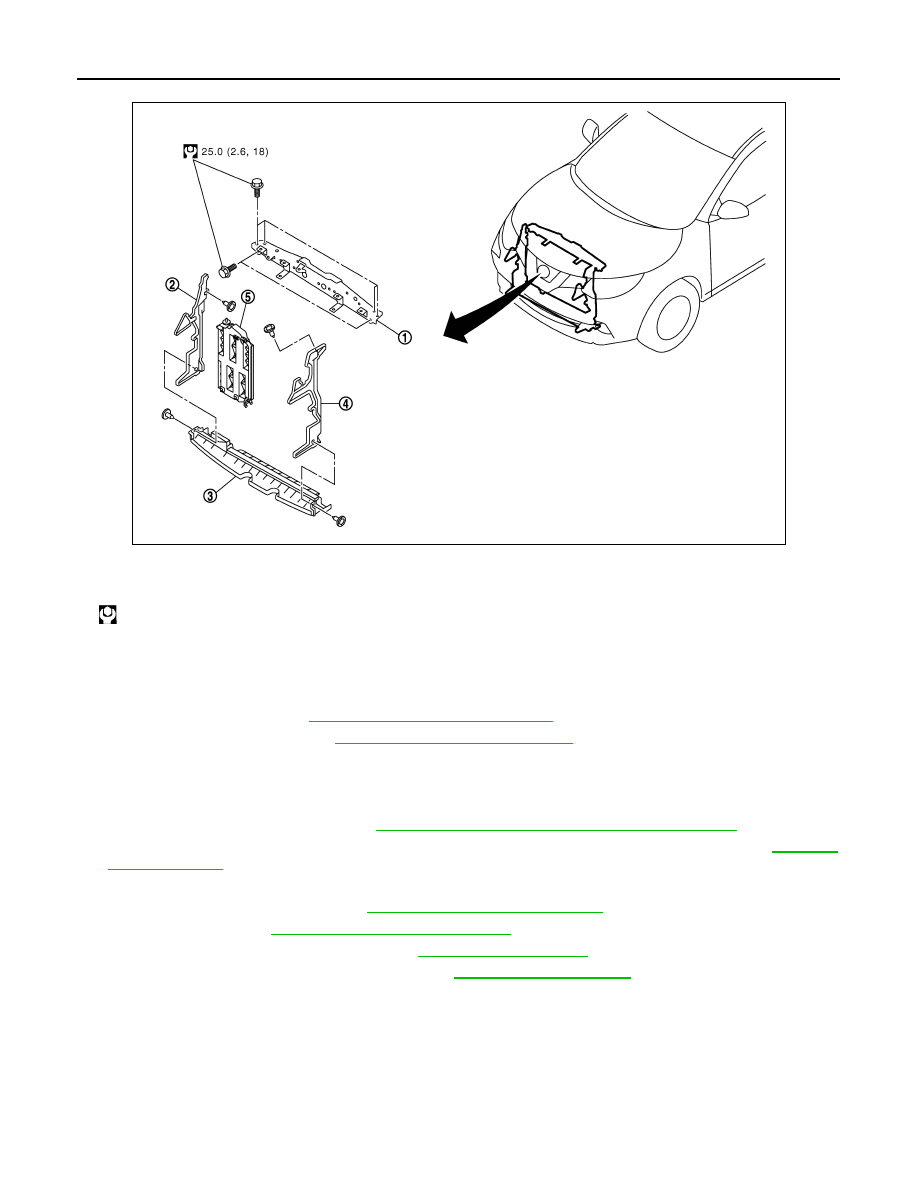

HRA2DDT : Exploded View
INFOID:0000000011734401
HRA2DDT : Removal and Installation
INFOID:0000000011734402
REMOVAL
1.
Remove front grille. Refer to
EXT-26, "Removal and Installation"
2.
Remove air duct (inlet). Refer to
EM-24, "Removal and Installation"
3.
Remove hood switch.
a.
Disconnect hood switch harness connector.
b.
Remove hood switch mounting bolt, and then remove hood switch.
4.
Remove hood lock assembly. Refer to
DLK-631, "HOOD LOCK : Removal and Installation"
.
5.
Remove hood lock control cable fixing clips from radiator core support upper. Refer to
6.
Remove engine room harness fixing clips from radiator core support upper.
7.
Remove crash zone sensor. Refer to
SR-24, "Removal and Installation"
.
8.
Remove horn. Refer to
HRN-7, "Removal and Installation"
9.
Remove radiator mounting bracket. Refer to
.
10. Remove A/C pipe bracket mounting bolt.
• For Europe: Refer to Refer to
.
• Except for Europe: Refer to Refer to
.
11. Remove radiator core support upper mounting bolts, and then remove radiator core support upper.
1.
Radiator core support upper
2.
Air guide RH
3.
Air lower guide
4.
Air guide LH
:N·m (kg-m, ft-lb)
JMKIB3298GB
