HAZARD FUNCTION

Component Function Check

INFOID:0000000010504777

1.

CHECK FUNCTION

1.

Select “INTELLIGENT KEY” of “BCM” using CONSULT.

2.

Select “FLASHER” in “ACTIVE TEST” mode.

3.

Check that the function operates normally according to the following conditions.

Is the inspection result normal?

YES

>> Hazard warning lamp circuit is OK.

NO

>> Refer to

DLK-573, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000010504778

1.

CHECK HAZARD OPERATION

Refer to

EXL-195, "TURN SIGNAL AND HAZARD WARNING LAMP SYSTEM : System Description"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Refer to

EXL-303, "Symptom Table"

.

2.

CHECK INTERMITTENT INCIDENT

Refer to

GI-44, "Intermittent Incident"

.

>> INSPECTION END

Monitor item

Status

FLASHER

LH

Front turn signal lamp LH

Turns ON

RH

Front turn signal lamp RH

Turns ON

OFF

Front turn signal lamp

Turns OFF

DLK-574

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 4]

KEY SWITCH

KEY SWITCH

Component Function Check

INFOID:0000000010434995

1.

CHECK FUNCTION

1.

Select “DOOR LOCK” of “BCM” using CONSULT.

2.

Select “KEY SW” in “DATA MONITOR” mode.

3.

Check that the function operates normally according to the following conditions.

Is the inspection result normal?

YES

>> Key switch is OK.

NO

>> Refer to

DLK-574, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000010434996

1.

CHECK KEY SWITCH POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect key switch connector.

3.

Check voltage between key switch harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

CHECK KEY SWITCH CIRCUIT

1.

Disconnect BCM connector.

2.

Check continuity between key switch harness connector and BCM harness connector.

3.

Check continuity between key switch connector and ground.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-135, "Removal and Installation"

.

NO

>> Repair or replace harness.

3.

CHECK GROUND CIRCUIT

Check continuity between key switch connector and ground.

Monitor item

Condition

Status

KEY SW

Keyfob

Inserted in key cylinder

ON

Removed from key cylinder

OFF

Key switch

Ground

Voltage

Connector

Terminal

M47

1

9 – 16 V

Key switch

BCM

Continuity

Connector

Terminal

Connector

Terminal

M47

1

M69

81

Existed

Key switch

Ground

Continuity

Connector

Terminal

M47

1

Not existed

Key switch

Ground

Continuity

Connector

Terminal

M47

2

Existed

KEY SWITCH

DLK-575

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 4]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Repair or replace harness.

4.

CHECK INTERMITTENT INCIDENT

Refer to

GI-44, "Intermittent Incident"

.

Is the inspection result normal?

YES

>> Replace ignition key cylinder.

NO

>> Repair or replace the malfunctioning parts.

DLK-576

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 4]

KEYFOB BATTERY

KEYFOB BATTERY

Component Inspection

INFOID:0000000010434999

1.

CHECK KEYFOB BATTERY

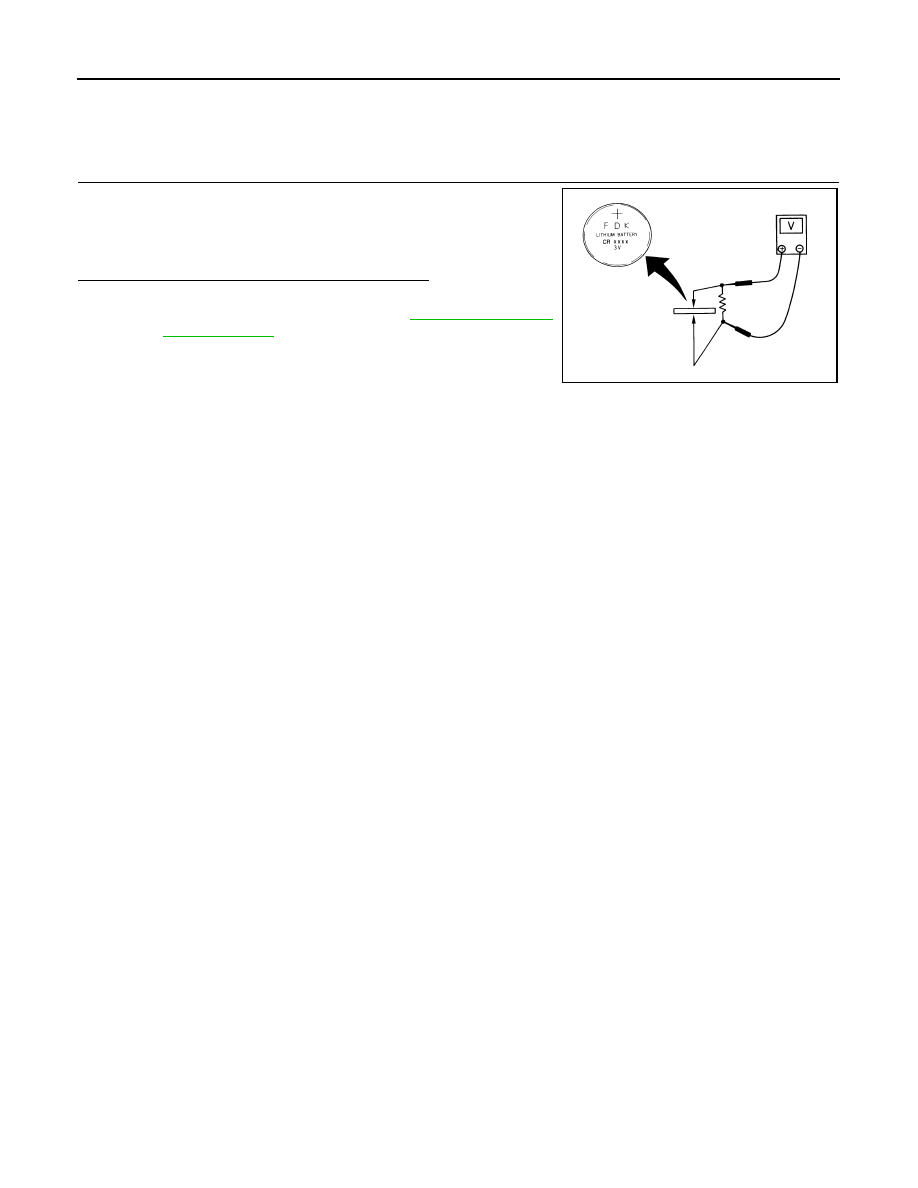

Check by connecting a resistance (approximately 300

) so that the

current value becomes about 10 mA.

Is the measurement value within the specification?

YES

>> INSPECTION END

NO

>> Replace keyfob battery. Refer to

DLK-509, "Removal

and Installation"

.

Standard

: Approx. 2.5 - 3.0 V

OCC0607D
