ECU DIAGNOSIS INFORMATION

BCM

List of ECU Reference

INFOID:0000000010435129

ECU

Reference

BCM

BCS-63, "Reference Value"

BCS-87, "Fail-safe"

BCS-88, "DTC Inspection Priority Chart"

BCS-89, "DTC Index"

DLK-526

< WIRING DIAGRAM >

[TYPE 4]

DOOR & LOCK SYSTEM

WIRING DIAGRAM

DOOR & LOCK SYSTEM

LHD

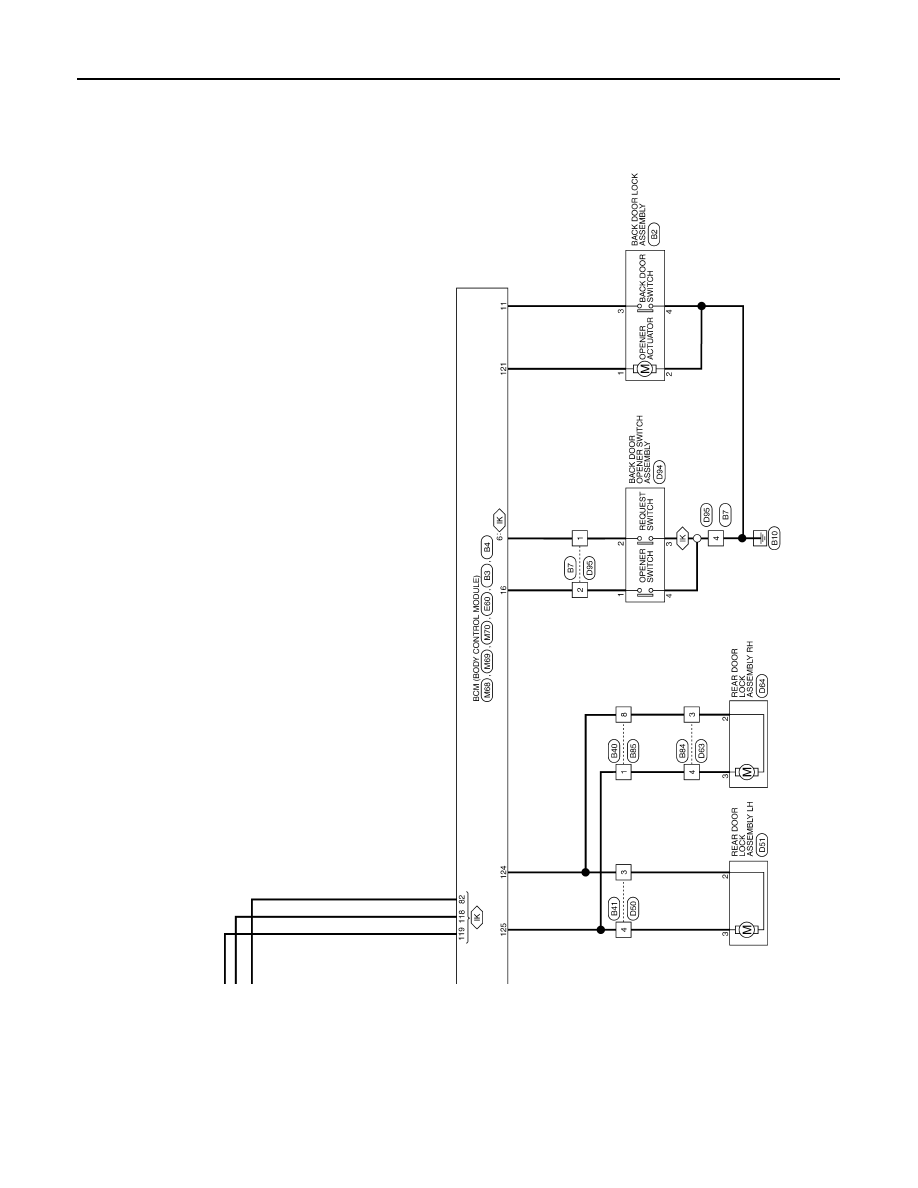

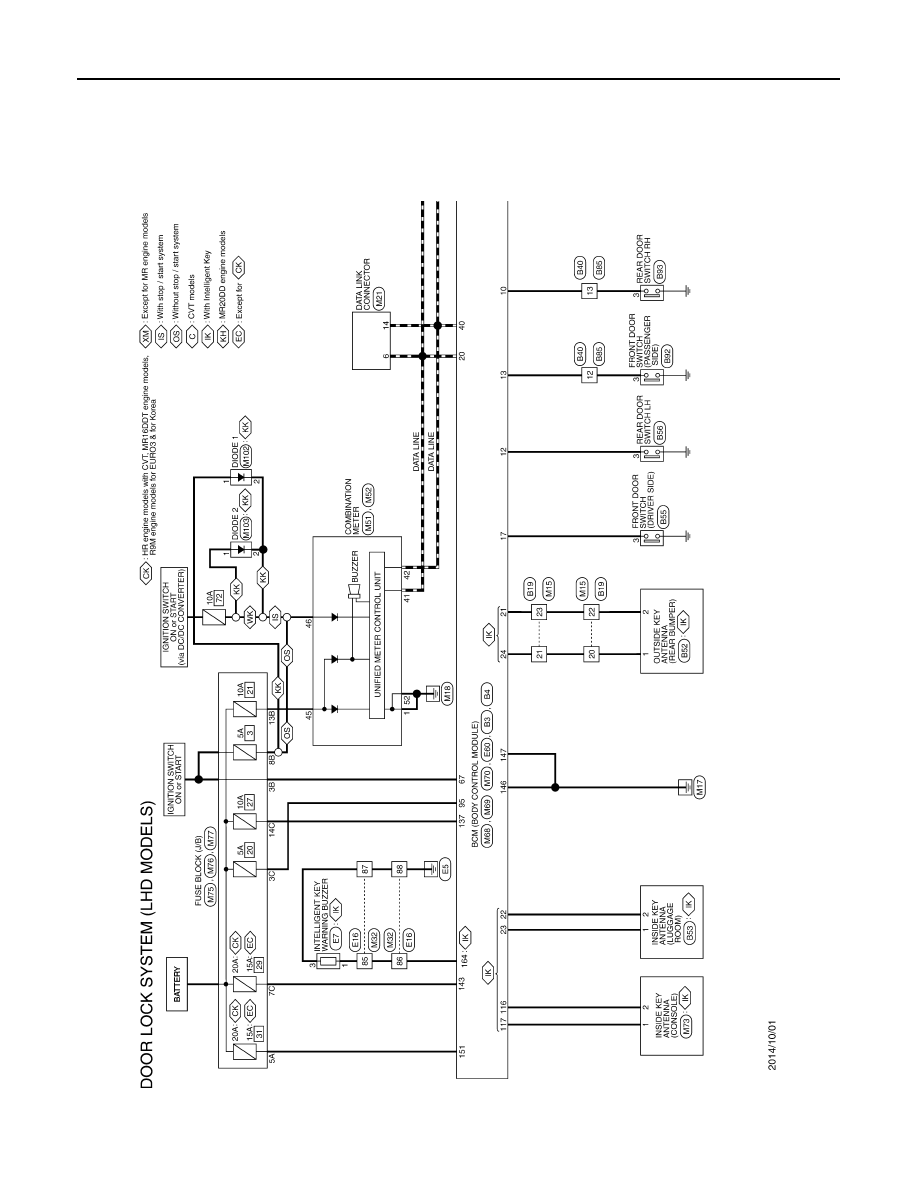

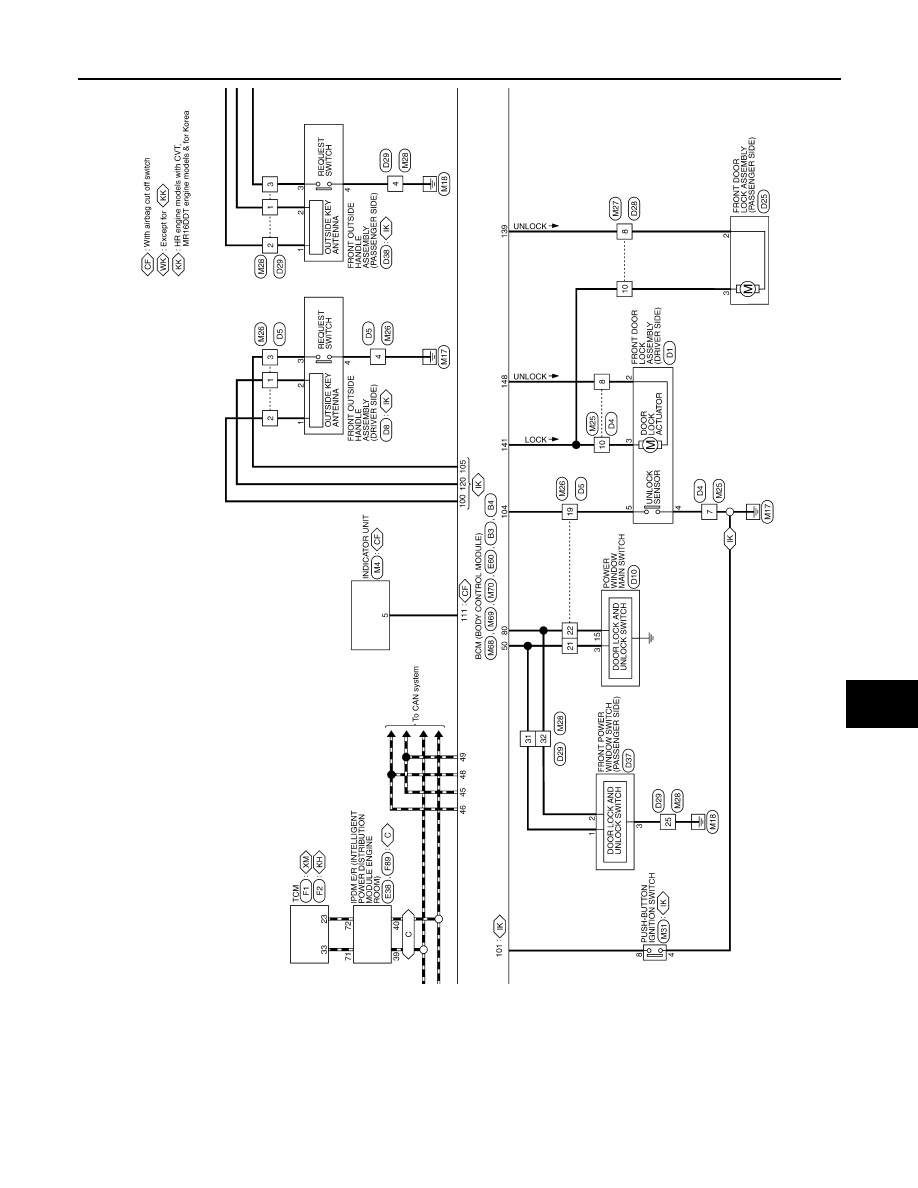

LHD : Wiring Diagram

INFOID:0000000011487294

JRKWE3958GB

DOOR & LOCK SYSTEM

DLK-527

< WIRING DIAGRAM >

[TYPE 4]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

JRKWE3959GB

DLK-528

< WIRING DIAGRAM >

[TYPE 4]

DOOR & LOCK SYSTEM

JRKWE3960GB
