PREPARATION

DLK-513

< PREPARATION >

[TYPE 4]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

PREPARATION

PREPARATION

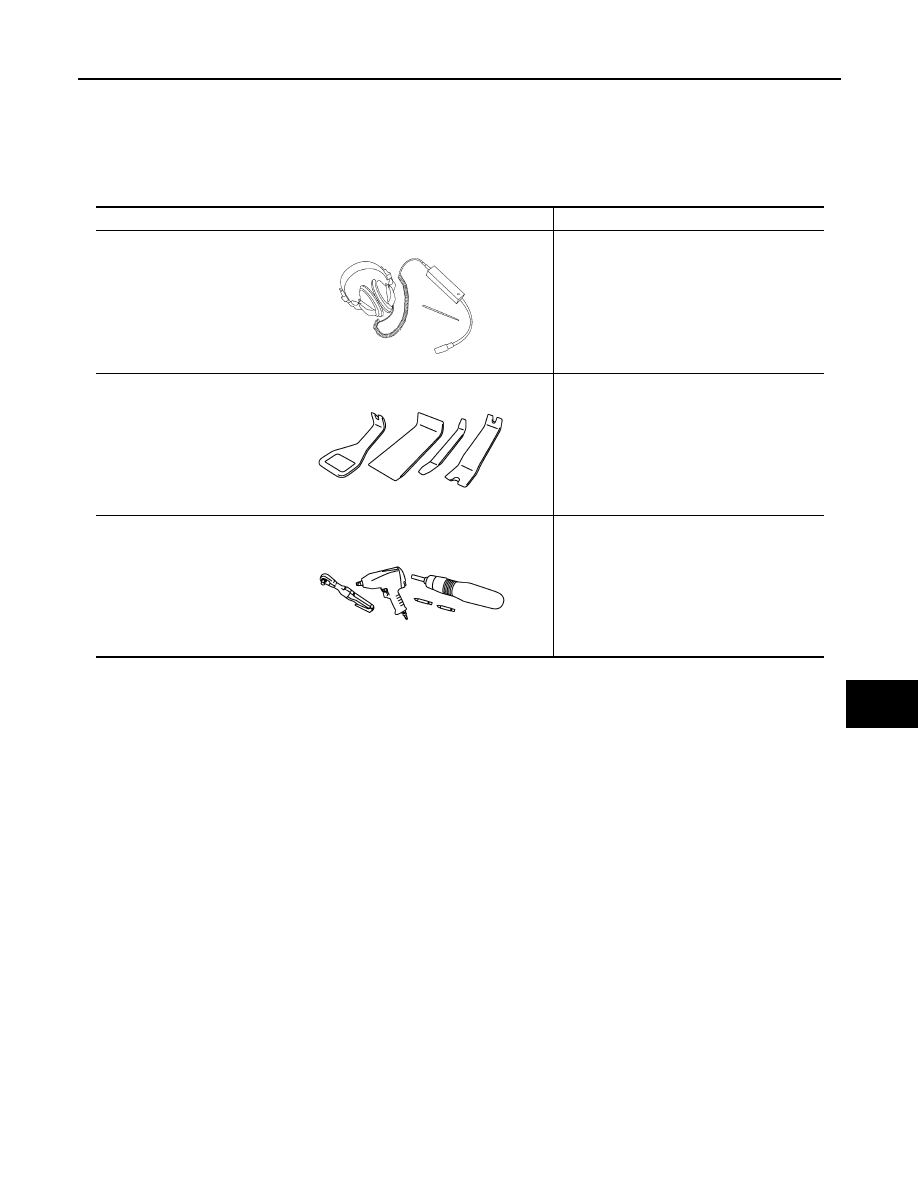

Commercial Service Tools

INFOID:0000000010435118

Tool name

Description

Engine ear

Locating the noise

Remover tool

Remove the clips, pawls, and metal clips

Power tool

SIIA0995E

PIIB7923J

PIIB1407E

DLK-514

< SYSTEM DESCRIPTION >

[TYPE 4]

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

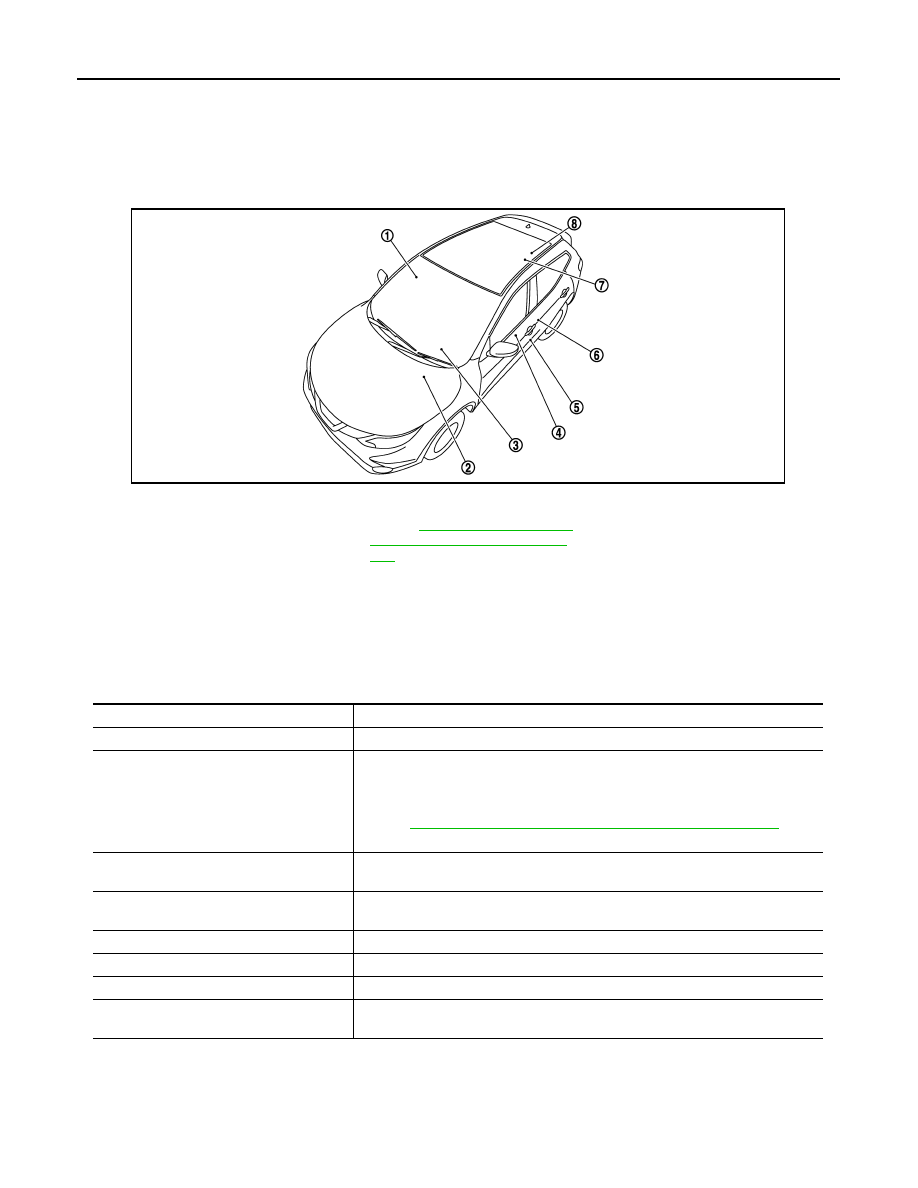

Component Parts Location

INFOID:0000000010435119

Component Description

INFOID:0000000010435120

1.

Power window main switch
(door lock/unlock switch)

2.

BCM
Refer to

BCS-6, "BODY CONTROL

SYSTEM : Component Parts Loca-
tion"

3.

Combination meter

4.

Front power window switch (passen-
ger side) (door lock and unlock
switch)

5.

Door lock assembly

6.

Door switch

7.

Back door lock assembly

8.

Back door opener switch

JMKIB3273ZZ

Item

Function

Back door lock assembly

Opens the back door with the back door open signal from BCM.

BCM

BCM detects the vehicle status according to signals from each door switch and
each outside/inside key antenna. BCM transmits drive signal to door lock actuator
when BCM receives operation signal from remote keyless entry receiver and each
switch.
Refer to

BCS-6, "BODY CONTROL SYSTEM : Component Parts Location"

 for de-

tailed installation location.

Combination meter

• Performs operation method guide and warning with buzzer.
• Transmits vehicle seep signal to CAN communication line.

Door lock actuator

• Inputs locks/unlocks signal from BCM and locks/unlocks each door.
• Integrated in each door lock assembly.

Door lock and unlock switch

Transmits door lock/unlock operation to BCM.

Door switch

Detects door open/close condition.

Keyfob

Transmits button operation to remote keyless entry receiver.

Key switch

Key switch detects that ignition key is inserted into the ignition key cylinder, and
then transmits the signal to BCM.

POWER DOOR LOCK SYSTEM

DLK-515

< SYSTEM DESCRIPTION >

[TYPE 4]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

POWER DOOR LOCK SYSTEM

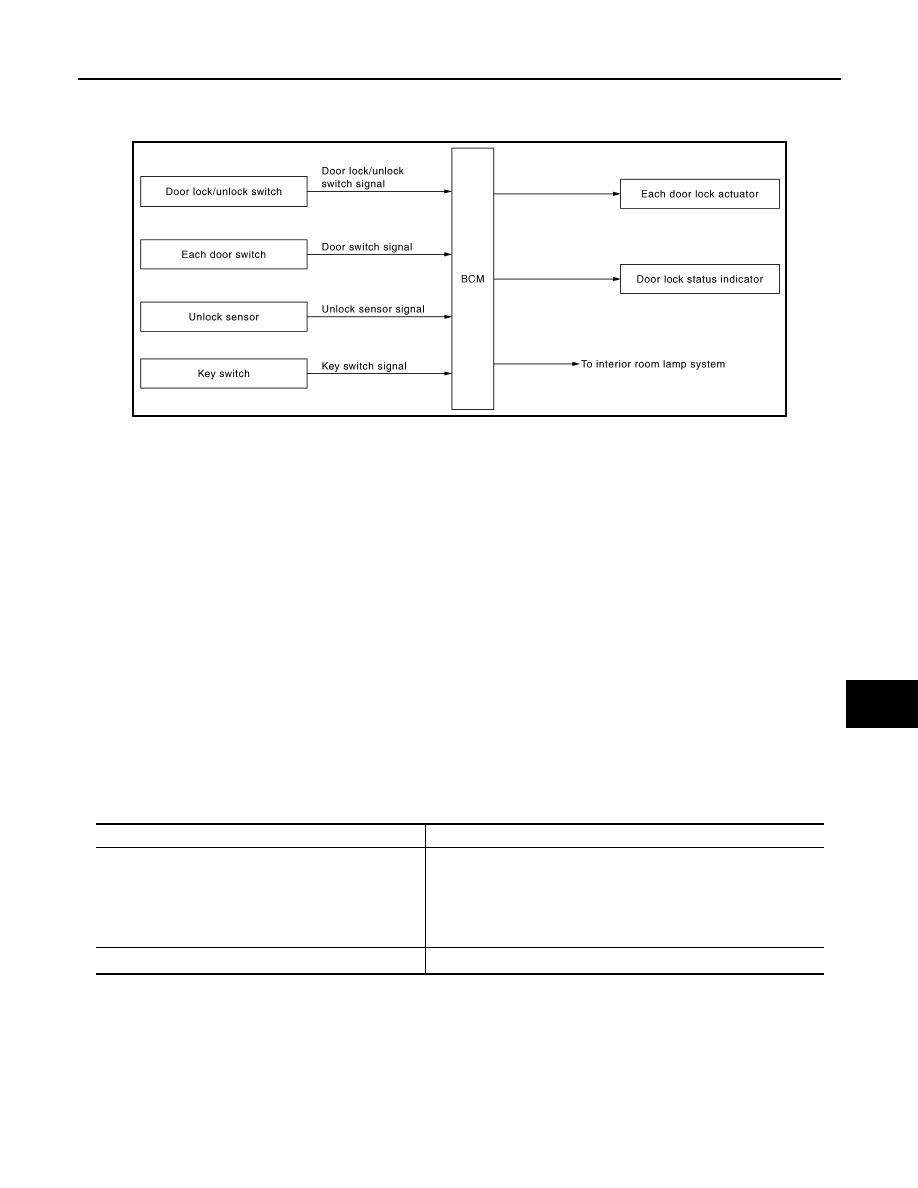

System Diagram

INFOID:0000000010435121

System Description

INFOID:0000000010435122

DOOR LOCK FUNCTION

Door Lock and Unlock Switch

• The door lock and unlock switch (driver side) is built into power window main switch.
• The door lock and unlock switch (passenger side) is built into front power window switch (passenger side).
• Interlocked with the locking operation of door lock and unlock switch, door lock actuators of all doors are

locked.

• Interlocked with the unlocking operation of door lock and unlock switch, door lock actuators of all doors actu-

ator are unlocked.

Unlock Sensor

• BCM locks all doors or unlocks all doors, when driver door lock knob is operated.
• With the mechanical key inserted in the door key cylinder on driver side, turning it to lock position, locks door

lock actuator of all doors.

• With the mechanical key inserted in the door key cylinder on driver side, turning it to unlock position, unlocks

door lock actuator of all doors.

Operation Condition

If all of the following conditions are satisfied, door lock and unlock operation is performed using the door lock
and unlock switch.

*

1

: While door lock and unlock switch is pressed in the lock direction during this state, combination meter buzzer sounds and warns.

*

2

: When this item becomes OK according to keyfob ID verification, door lock/unlock operation is allowed.

KEY REMINDER FUNCTION

• While ignition key is inserted in ignition key cylinder and driver door is open, door is not locked when door

lock and unlock switch is pressed in the lock direction. This prevents keyfob from being left in the vehicle.

• While door lock and unlock switch is pressed in the lock direction, combination meter buzzer sounds and

warns.

DOOR LOCK STATUS INDICATOR OPERATION

JMKIB2483GB

Door lock and unlock switch operation

Operation condition

LOCK

• Ignition Key is removed from ignition key cylinder and closed driver

side door*

1

• Doors other than drivers door are closed*

1

• Door are not locked by keyfob*

2

• Door lock that is requested is not auto door lock*

2

UNLOCK

Door are not locked by keyfob*

2

DLK-516

< SYSTEM DESCRIPTION >

[TYPE 4]

POWER DOOR LOCK SYSTEM

The door lock status indicator indicates door lock status under the following condition.

UNLOCK LINK FUNCTION

When driver door or passenger door is opened using the override function, all doors are unlocked.
Unlock function operates when driver door or passenger door is open while all of the following conditions are
satisfied.

NOTE:
When anti-hijack function is activated, only the applicable door is unlocked.

Indicator operation

Ignition position

Door status

Lock operation

ON (30 minutes timer)

OFF

All doors are closed and door
is locked

Door lock and unlock switch

ON

ON

All doors are closed and door
is locked

Door lock and unlock switch

ON (1 minute timer)

OFF

All doors are closed and door
is locked

Keyfob or auto door lock func-

tion

ON

ON

All doors are closed and door
is locked

Keyfob or auto door lock func-

tion

ON

→

 OFF

–

(All doors are closed

→

 any

door is open) or (All doors are
locked

→

 any door is un-

locked)

–

ON (timer is running)

→

 ON

(timer is stop)

OFF

→

 ON

–

–

ON

→

 ON (30 minutes timer)

ON

→

 OFF

–

Door lock and unlock switch

ON

→

 ON (1 minute timer)

ON

→

 OFF

–

Keyfob or auto door lock func-

tion

Operation condition

• Doors are locked by door lock/unlock switch or by automatic lock/unlock function
• Driver or passenger door switch is switched from OFF to ON
• Anti-hijack function is not activated
• Vehicle speed is 5 km/h (3 MPH) or less
