Nissan Qashqai J11. Manual - part 1267

RADIATOR CORE SUPPORT

DLK-337

< REMOVAL AND INSTALLATION >

[TYPE 2]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

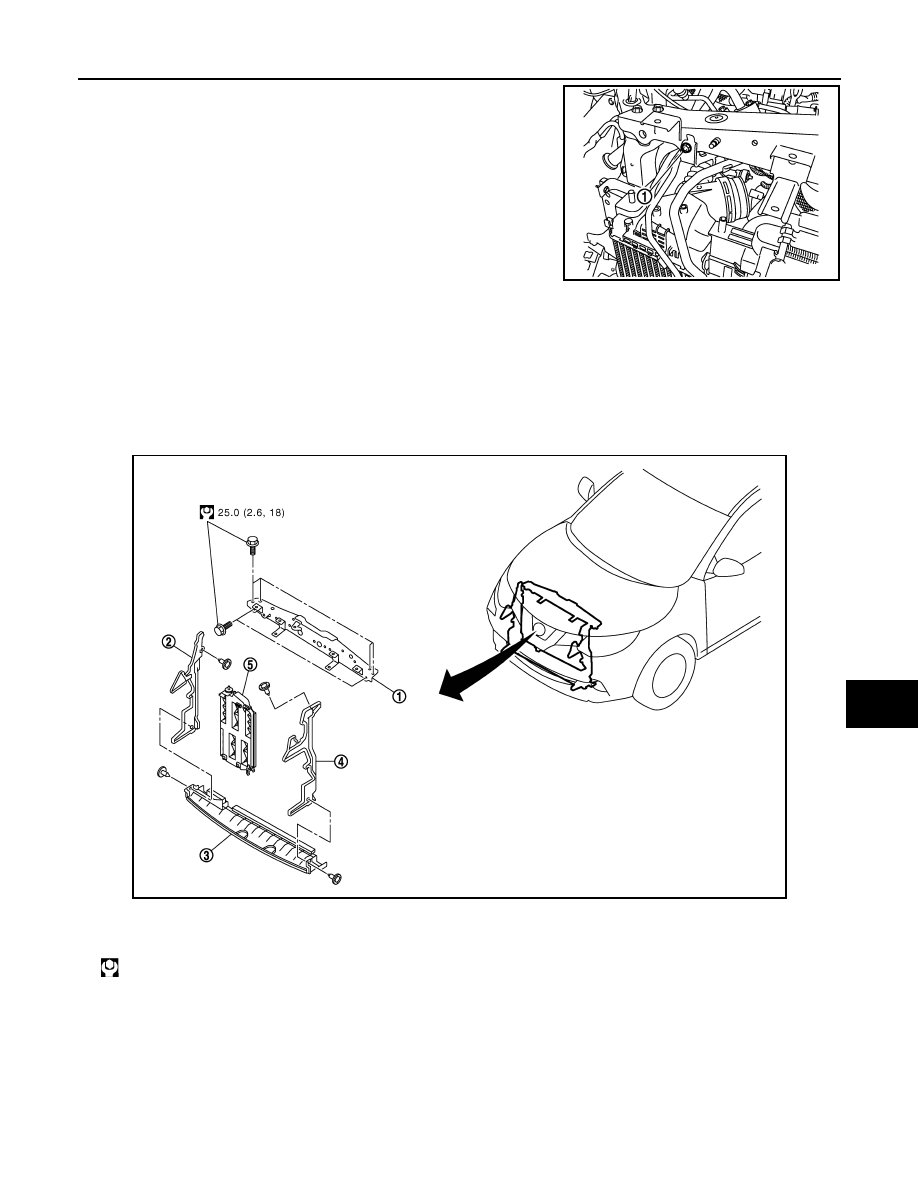

10. Remove A/C pipe bracket mounting bolt (1).

11. Remove radiator core support upper mounting bolts, and then remove radiator core support upper.

INSTALLATION

Install in the reverse order of removal.

MR20DD

MR20DD : Exploded View

INFOID:0000000010678770

T/M models

E1BIA1725ZZ

JMKIB3632GB

1.

Radiator core support upper

2.

Air guide RH

3.

Air lower guide

4.

Air guide LH

5.

Air guide plate

:N·m (kg-m, ft-lb)

DLK-338

< REMOVAL AND INSTALLATION >

[TYPE 2]

RADIATOR CORE SUPPORT

CVT models

MR20DD : Removal and Installation

INFOID:0000000010678771

REMOVAL

1.

Remove front grille. Refer to

EXT-26, "Removal and Installation"

.

2.

Remove air duct (inlet). Refer to

EM-24, "Removal and Installation"

.

3.

Remove hood switch.

a.

Disconnect hood switch harness connector.

b.

Remove hood switch mounting bolt, and then remove hood switch.

4.

Remove hood lock assembly. Refer to

DLK-361, "HOOD LOCK : Removal and Installation"

.

5.

Remove hood lock control cable fixing clips from radiator core support upper. Refer to

DLK-360,

"Exploded View"

.

6.

Remove engine room harness fixing clips from radiator core support upper.

7.

Remove crash zone sensor. Refer to

SR-24, "Removal and Installation"

.

8.

Remove horn. Refer to

HRN-7, "Removal and Installation"

.

9.

Remove radiator mounting bracket. Refer to

CO-72, "Exploded View"

.

10. Remove A/C pipe bracket mounting bolt. Refer to

HA-124, "Exploded View"

.

11. Remove radiator core support upper mounting bolts, and then remove radiator core support upper.

INSTALLATION

Install in the reverse order of removal.

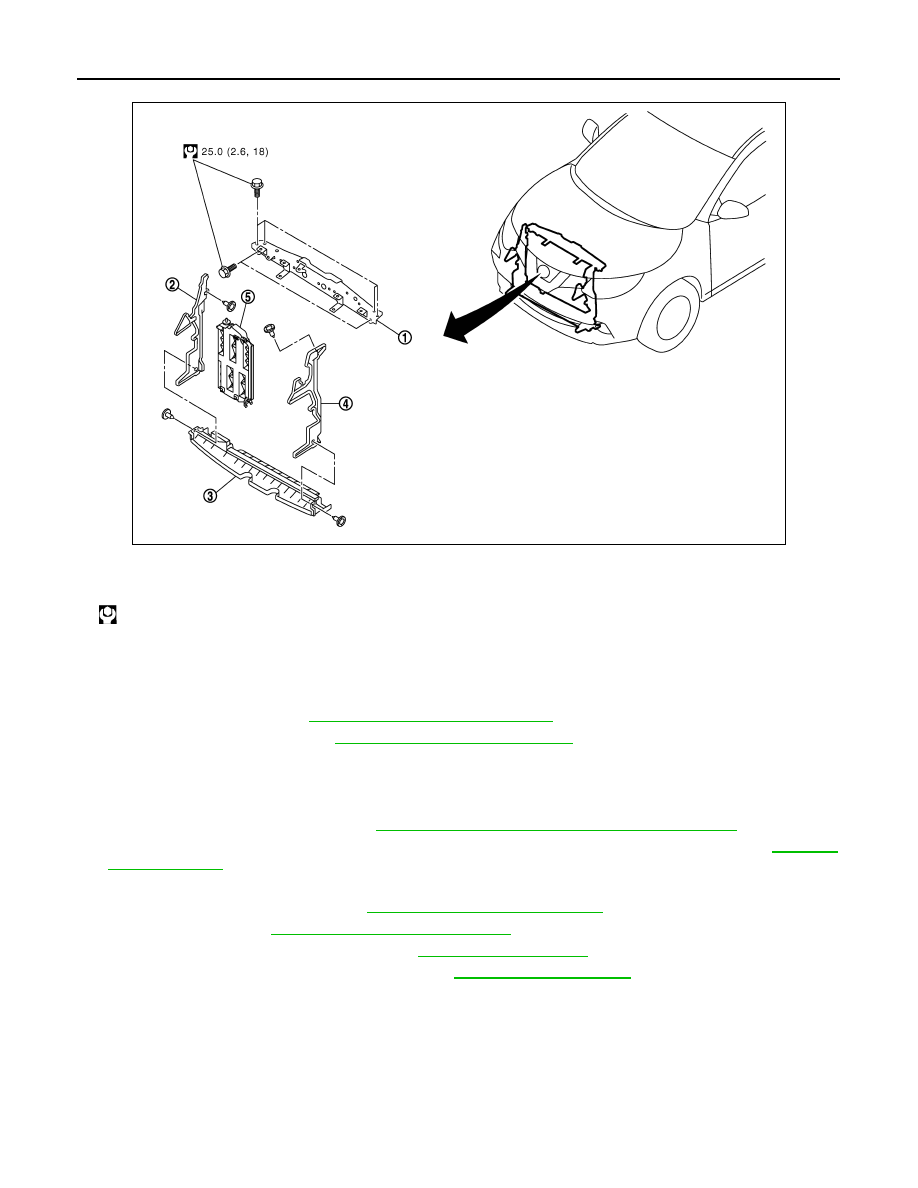

K9K

JMKIB3633GB

1.

Radiator core support upper

2.

Air guide RH

3.

Air lower guide

4.

Air guide LH

5.

Air guide plate

:N·m (kg-m, ft-lb)

RADIATOR CORE SUPPORT

DLK-339

< REMOVAL AND INSTALLATION >

[TYPE 2]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

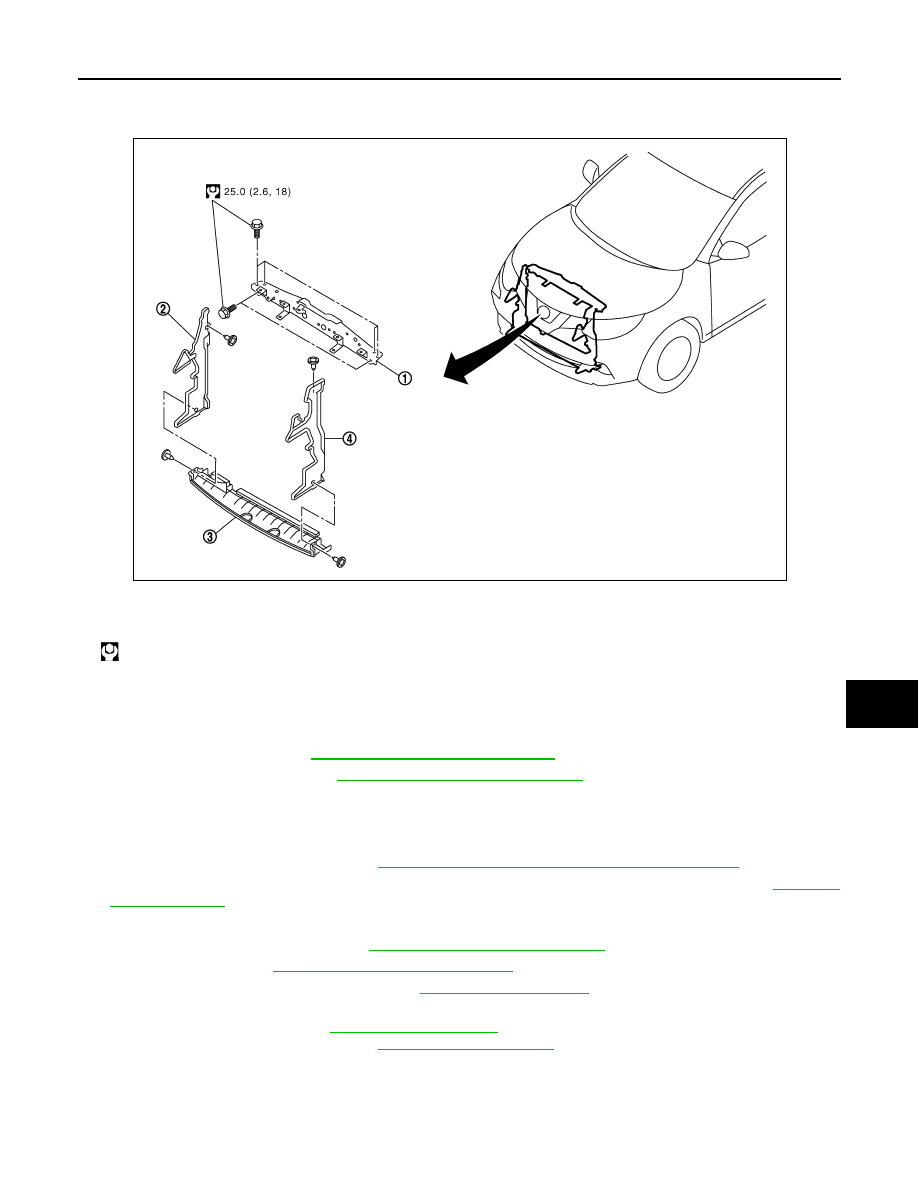

K9K : Exploded View

INFOID:0000000011734387

K9K : Removal and Installation

INFOID:0000000010478239

REMOVAL

1.

Remove front grille. Refer to

EXT-26, "Removal and Installation"

.

2.

Remove air duct (inlet). Refer to

EM-426, "Removal and Installation"

.

3.

Remove hood switch.

a.

Disconnect hood switch harness connector.

b.

Remove hood switch mounting bolt, and then remove hood switch.

4.

Remove hood lock assembly. Refer to

DLK-361, "HOOD LOCK : Removal and Installation"

.

5.

Remove hood lock control cable fixing clips from radiator core support upper. Refer to

DLK-360,

"Exploded View"

.

6.

Remove engine room harness fixing clips from radiator core support upper.

7.

Remove crash zone sensor. Refer to

SR-24, "Removal and Installation"

.

8.

Remove horn. Refer to

HRN-7, "Removal and Installation"

.

9.

Remove radiator mounting bracket. Refer to

CO-99, "Exploded View"

.

10. Remove A/C pipe bracket mounting bolt.

• For Europe: Refer to Refer to

HA-77, "Exploded View"

.

• Except for Europe: Refer to Refer to

HA-173, "Exploded View"

.

11. Remove radiator core support upper mounting bolts, and then remove radiator core support upper.

INSTALLATION

Install in the reverse order of removal.

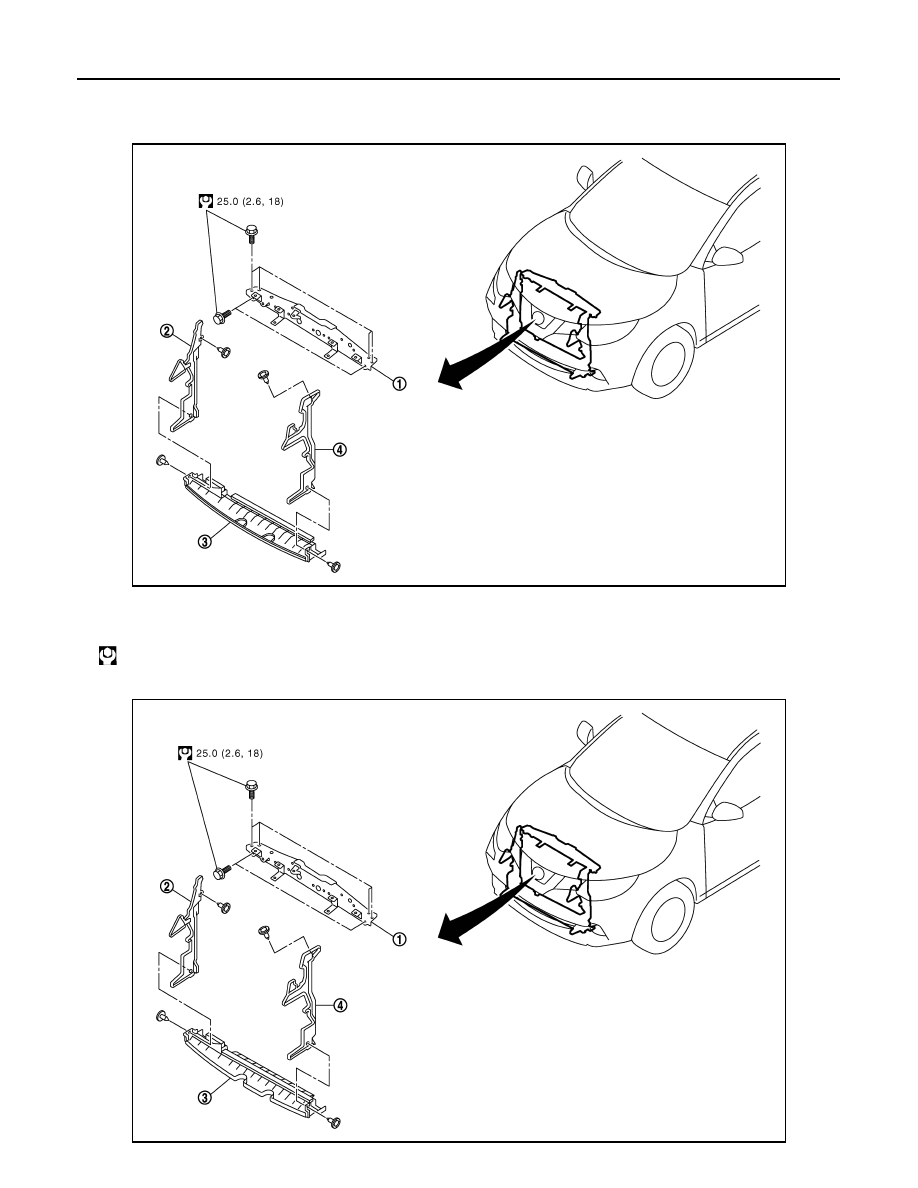

R9M

1.

Radiator core support upper

2.

Air guide RH

3.

Air lower guide

4.

Air guide LH

:N·m (kg-m, ft-lb)

JMKIB3298GB

DLK-340

< REMOVAL AND INSTALLATION >

[TYPE 2]

RADIATOR CORE SUPPORT

R9M : Exploded View

INFOID:0000000011734388

T/M models

CVT models

JMKIB3299GB

1.

Radiator core support upper

2.

Air guide RH

3.

Air lower guide

4.

Air guide LH

:N·m (kg-m, ft-lb)

JMKIB3300GB
