INTELLIGENT KEY WARNING BUZZER

DLK-293

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 2]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace harness.

4.

CHECK INTERMITTENT INCIDENT

Refer to

GI-44, "Intermittent Incident"

.

Is the inspection result normal?

YES

>> Replace Intelligent Key warning buzzer.

NO

>> Repair or replace the malfunctioning parts.

Intelligent Key warning buzzer

Ground

Continuity

Connector

Terminal

E7

3

Existed

DLK-294

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 2]

OUTSIDE KEY ANTENNA

OUTSIDE KEY ANTENNA

DRIVER SIDE

DRIVER SIDE : Diagnosis Procedure

INFOID:0000000010487318

1.

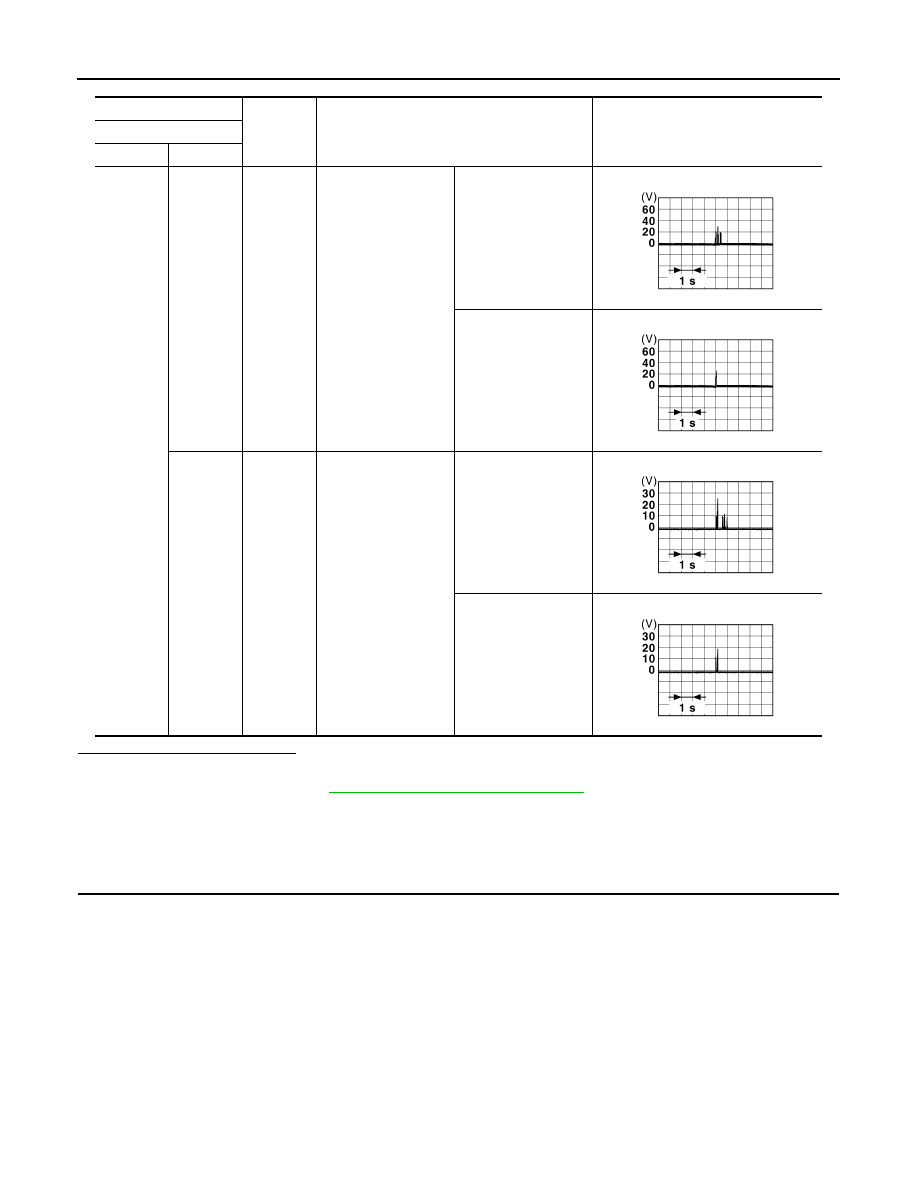

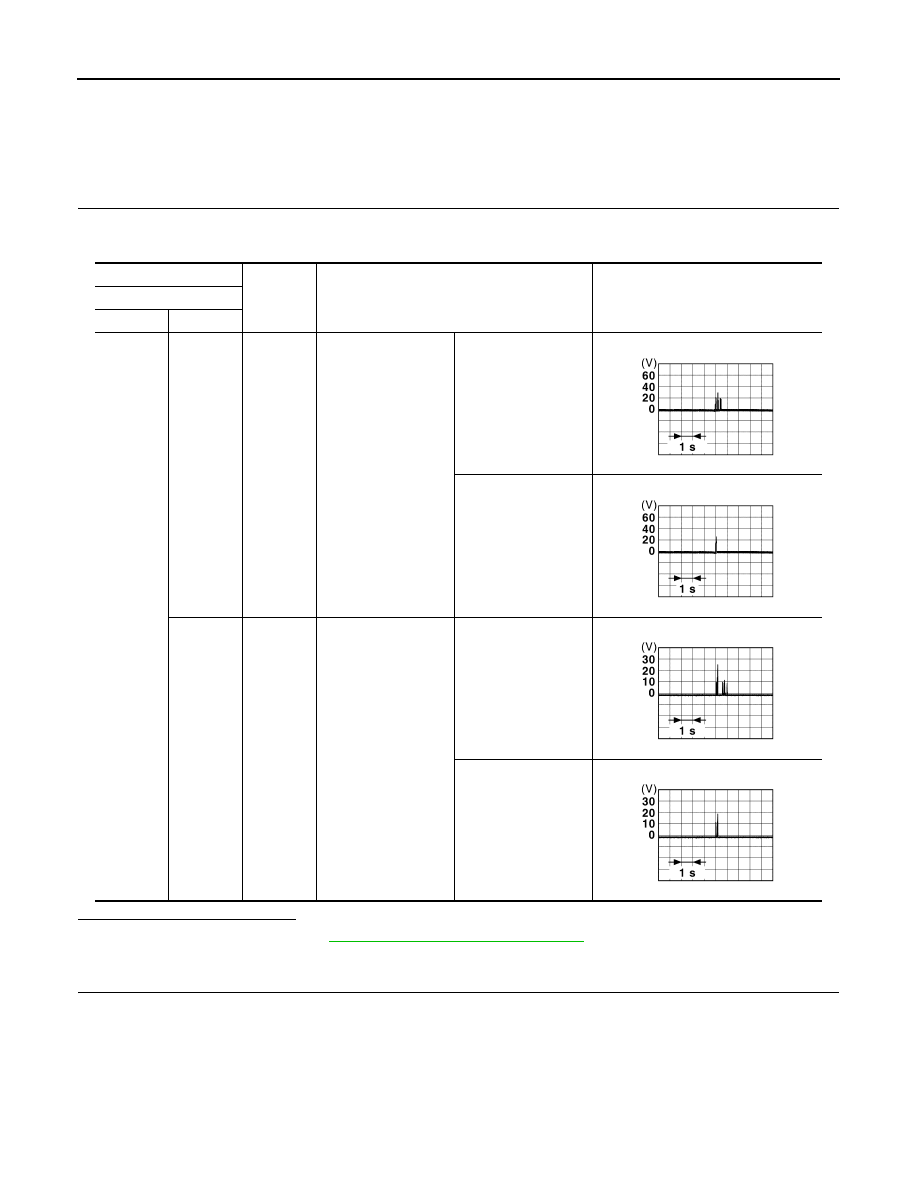

CHECK OUTSIDE KEY ANTENNA INPUT SIGNAL 1

1.

Turn ignition switch OFF.

2.

Check signal between BCM harness connector and ground using oscilloscope.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-135, "Removal and Installation"

.

NO

>> GO TO 2.

2.

CHECK OUTSIDE KEY ANTENNA CIRCUIT

1.

Disconnect BCM connector and front outside handle assembly (driver side) connector.

2.

Check continuity between BCM harness connector and front outside handle assembly (driver side) har-
ness connector.

(+)

(–)

Condition

Signal

(Reference value)

BCM

Connector

Terminal

M69

100

Ground

When ignition switch
and any door switch is
ON

When Intelligent Key
is not in the antenna
detection area

When Intelligent Key
is in the antenna de-
tection area

120

Ground

When ignition switch
and any door switch is
ON

When Intelligent Key
is not in the antenna
detection area

When Intelligent Key
is in the antenna de-
tection area

JSMIA1348GB

JSMIA1406GB

JSMIA1507GB

JSMIA1506GB

OUTSIDE KEY ANTENNA

DLK-295

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 2]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

LHD models

RHD models

3.

Check continuity between BCM harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness.

3.

CHECK OUTSIDE KEY ANTENNA INPUT SIGNAL 2

1.

Replace front outside handle assembly (driver side). (New antenna or other antenna)

2.

Connect BCM connector and front outside handle assembly (driver side) connector.

3.

Check signal between BCM harness connector and ground using oscilloscope.

BCM

Front outside handle assembly (driver side)

Continuity

Connector

Terminal

Connector

Terminal

M69

100

D8

1

Existed

120

2

BCM

Front outside handle assembly (driver side)

Continuity

Connector

Terminal

Connector

Terminal

M69

100

D39

1

Existed

120

2

BCM

Ground

Continuity

Connector

Terminal

M69

100

Not existed

120

DLK-296

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 2]

OUTSIDE KEY ANTENNA

Is the inspection result normal?

YES

>> Replace outside handle grip RH.

NO

>> Replace BCM. Refer to

BCS-135, "Removal and Installation"

.

PASSENGER SIDE

PASSENGER SIDE : Diagnosis Procedure

INFOID:0000000010487319

1.

CHECK OUTSIDE KEY ANTENNA INPUT SIGNAL 1

1.

Turn ignition switch OFF.

2.

Check signal between BCM harness connector and ground using oscilloscope.

(+)

(–)

Condition

Signal

(Reference value)

BCM

Connector

Terminal

M69

100

Ground

When ignition switch
and any door switch is
ON

When Intelligent Key
is not in the antenna
detection area

When Intelligent Key
is in the antenna de-
tection area

120

Ground

When ignition switch
and any door switch is
ON

When Intelligent Key
is not in the antenna
detection area

When Intelligent Key
is in the antenna de-
tection area

JSMIA1348GB

JSMIA1406GB

JSMIA1507GB

JSMIA1506GB
