TRUNK : CONSULT Function (BCM - TRUNK) (Type 2)

INFOID:0000000010478854

DATA MONITOR

NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.

AUTO ACC 1

This test is able to check BCM sends power supply to ignition relay
• On: Operate
• Off: Non-operation

TRUNK/LUGGAGE LAMP
TEST

This test is able to check trunk room lamp operation
• On: Operates
• Off: Non-operation

Test item

Description

Monitor Item

Contents

PUSH SW

Indicates [On/Off] condition of push switch

STARTER CUT RELAY

Indicates [On/Off] condition of starter control relay

DETECTION SENSOR (BK)

NOTE:
This item is displayed, but cannot be monitored

VEH SPEED 1

Indicates [Km/h] condition of vehicle speed signal from combination meter

KEY CYL SW-TR

NOTE:
This item is displayed, but cannot be monitored

TR CANCEL SW

NOTE:
This item is displayed, but cannot be monitored

TRUNK LID OPENER SW

NOTE:
This item is displayed, but cannot be monitored

BACK DOOR OEPENR SW

Indicates [On/Off] condition of back door opener switch

RKE-TR/BD

NOTE:
This item is displayed, but cannot be monitored

DLK-230

< ECU DIAGNOSIS INFORMATION >

[TYPE 2]

BCM

ECU DIAGNOSIS INFORMATION

BCM

List of ECU Reference

INFOID:0000000010434776

ECU

Reference

BCM

BCS-63, "Reference Value"

BCS-87, "Fail-safe"

BCS-88, "DTC Inspection Priority Chart"

BCS-89, "DTC Index"

DOOR & LOCK SYSTEM

DLK-231

< WIRING DIAGRAM >

[TYPE 2]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

WIRING DIAGRAM

DOOR & LOCK SYSTEM

LHD

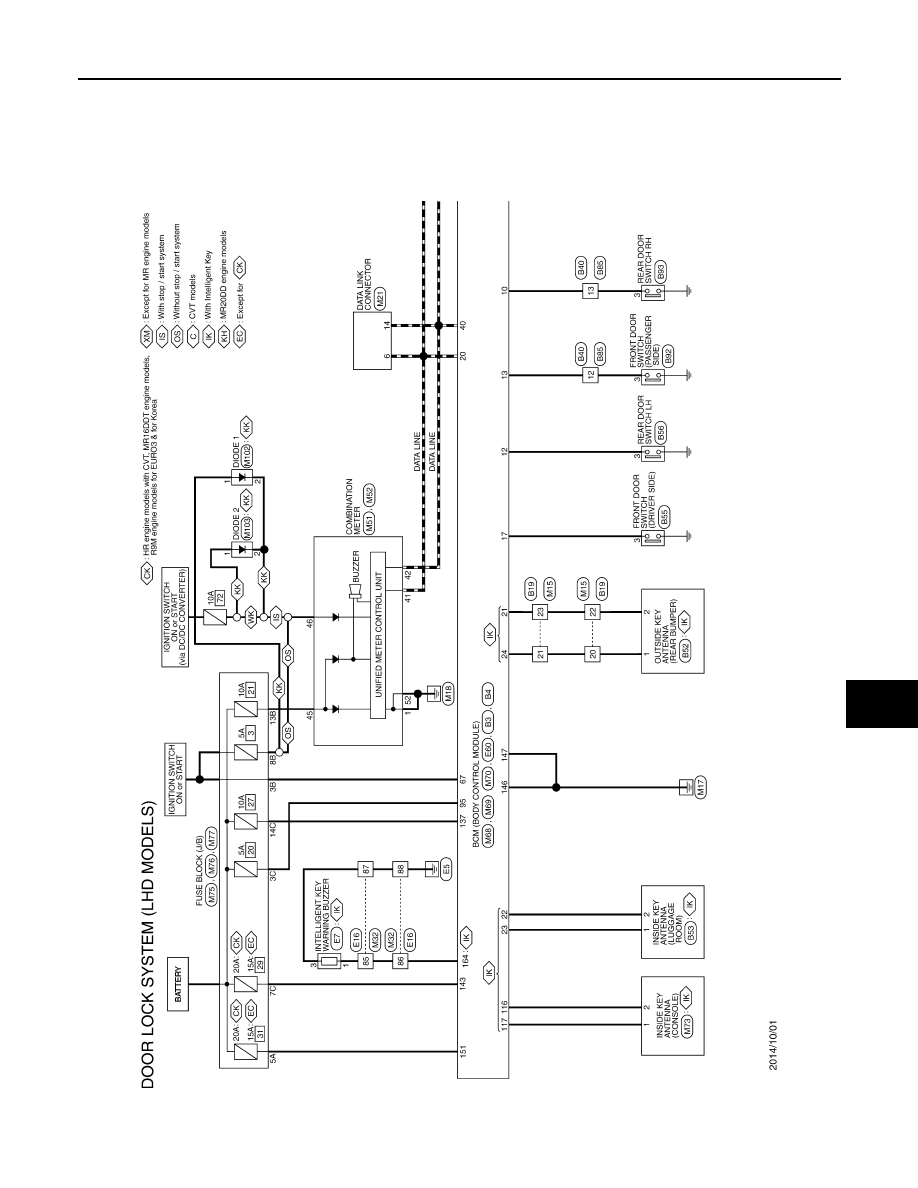

LHD : Wiring Diagram

INFOID:0000000010434777

JRKWE3958GB

DLK-232

< WIRING DIAGRAM >

[TYPE 2]

DOOR & LOCK SYSTEM

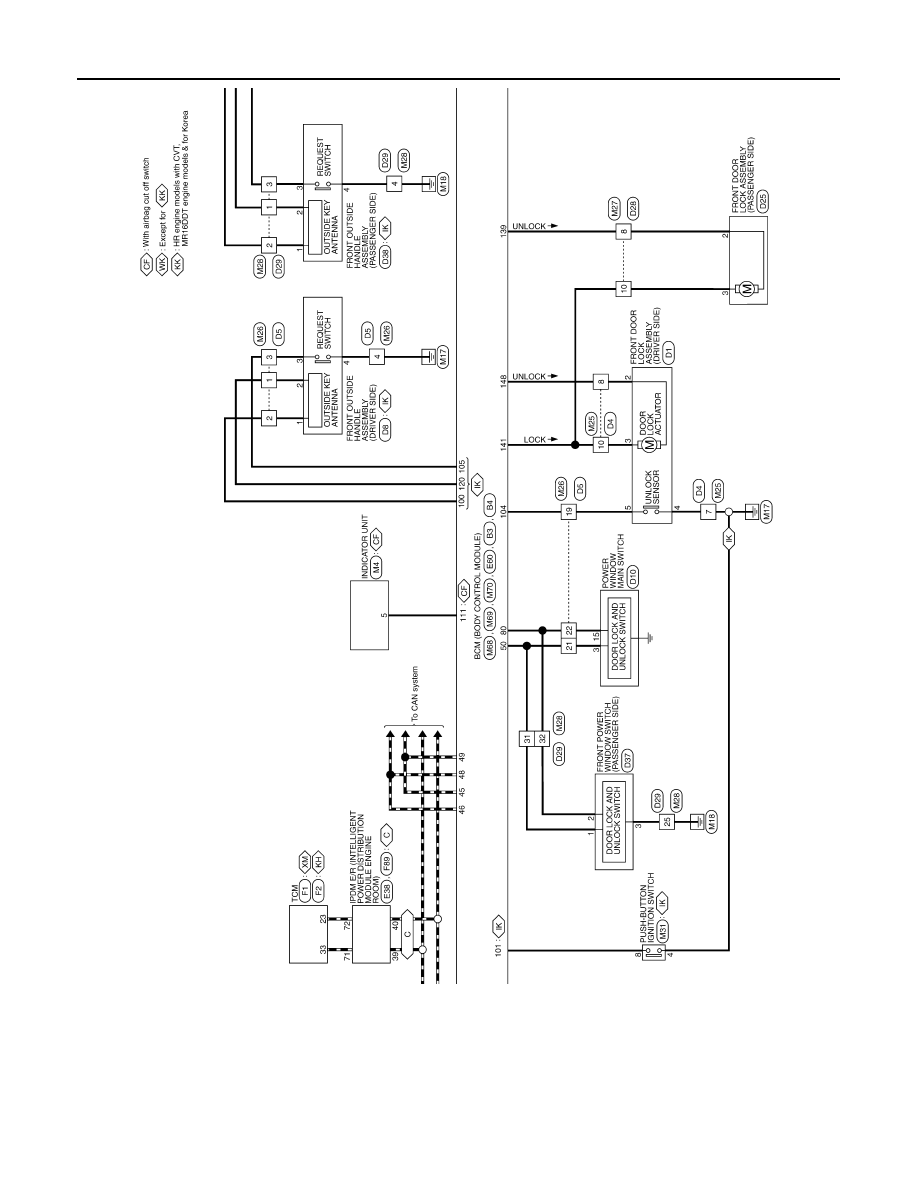

JRKWE3959GB
