HAC-296

< REMOVAL AND INSTALLATION >

[MANUAL HEATER ]

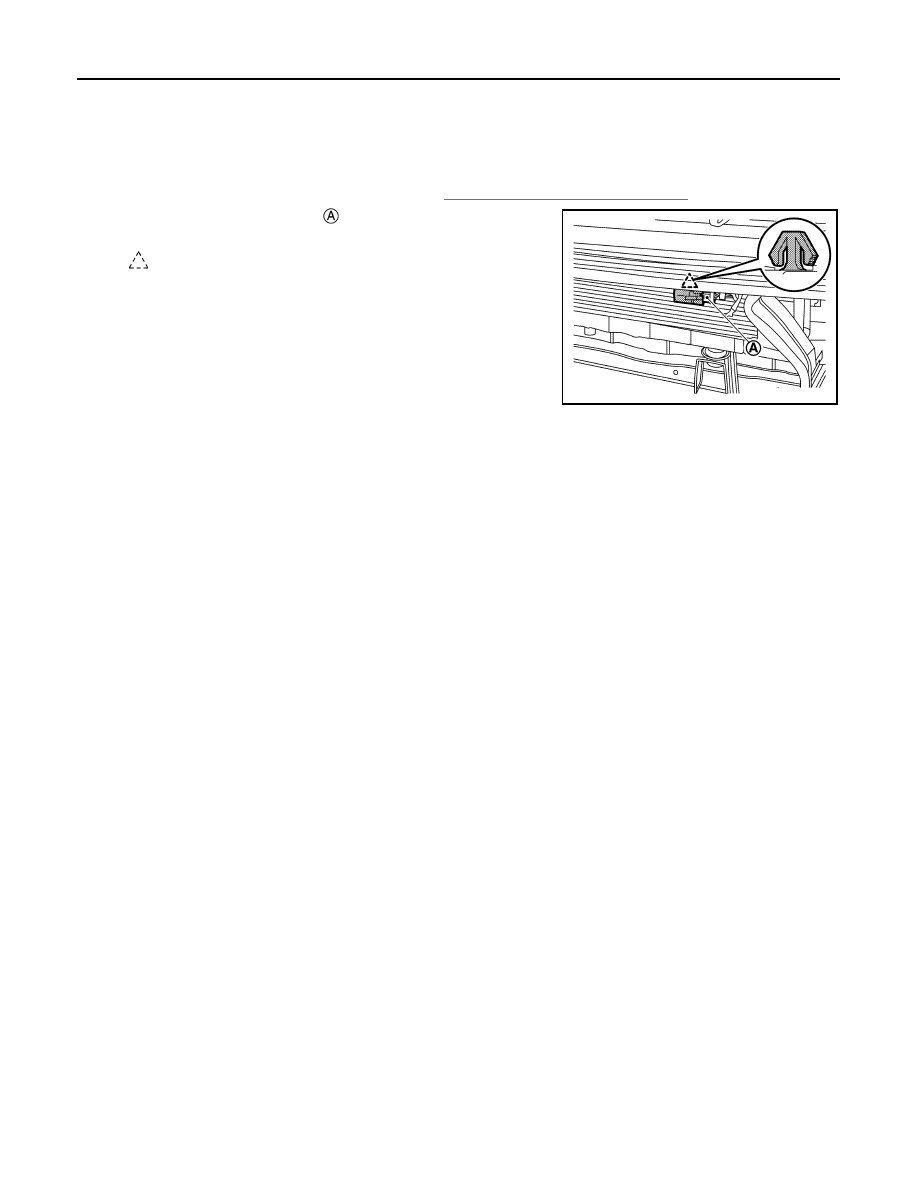

AMBIENT SENSOR

AMBIENT SENSOR

Removal and Installation

INFOID:0000000010433487

REMOVAL

1.

Remove front bumper fascia assembly. Refer to

EXT-20, "Removal and Installation"

.

2.

Disconnect harness connector

.

3.

Disengage fixing pawl, and then remove ambient sensor.

INSTALLATION

Install in the reverse order of removal.

: Pawl

JMIIA3393ZZ

PTC HEATER

HAC-297

< REMOVAL AND INSTALLATION >

[MANUAL HEATER ]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

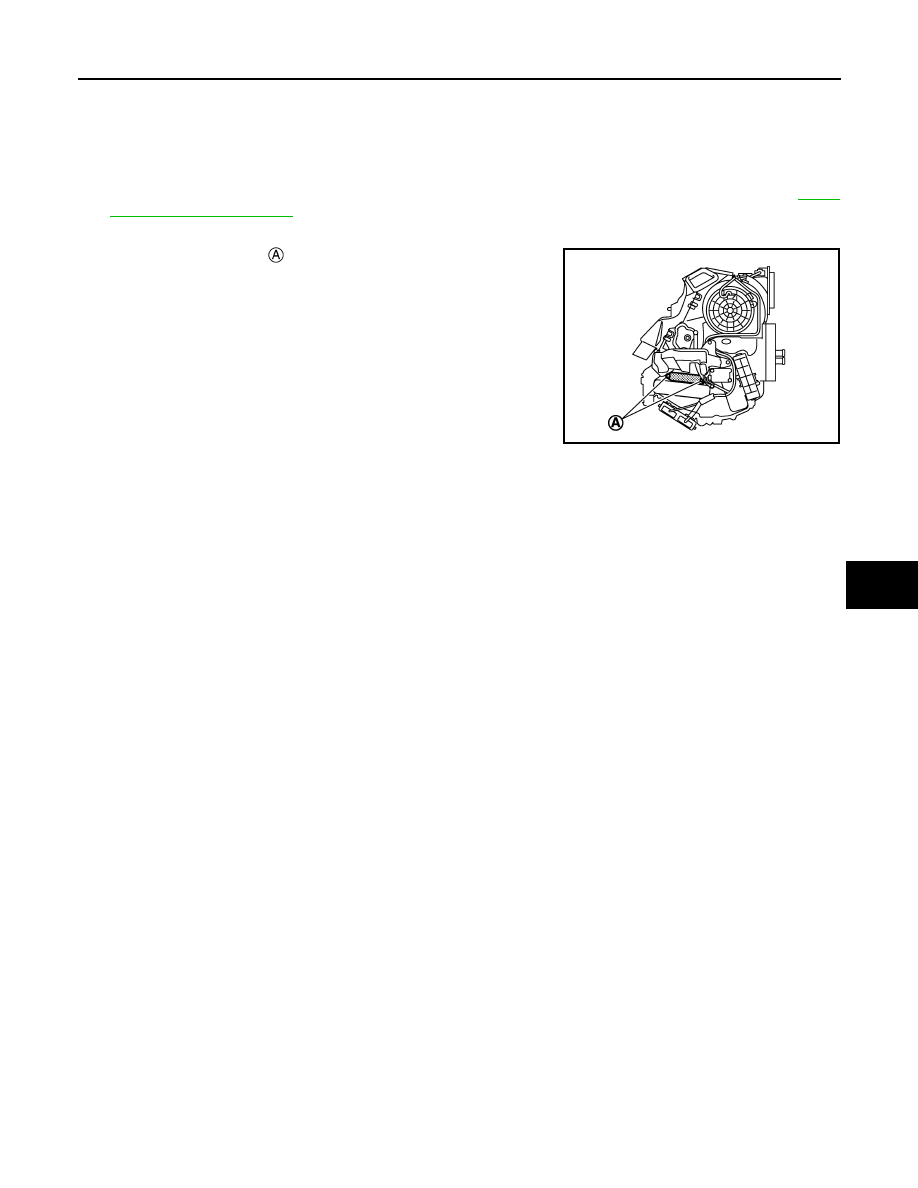

PTC HEATER

Removal and Installation

INFOID:0000000010500717

REMOVAL

1.

Remove instrument lower cover RH (RHD models) or glove box cover (LHD models). Refer to

IP-13,

"Removal and Installation"

.

2.

Disconnect PTC heater connector.

3.

Remove fixing screws

, and then remove PTC heater from A/

C unit assembly.

INSTALLATION

Install in the reverse order of removal.

JMIIA3532ZZ

HAC-298

< REMOVAL AND INSTALLATION >

[MANUAL HEATER ]

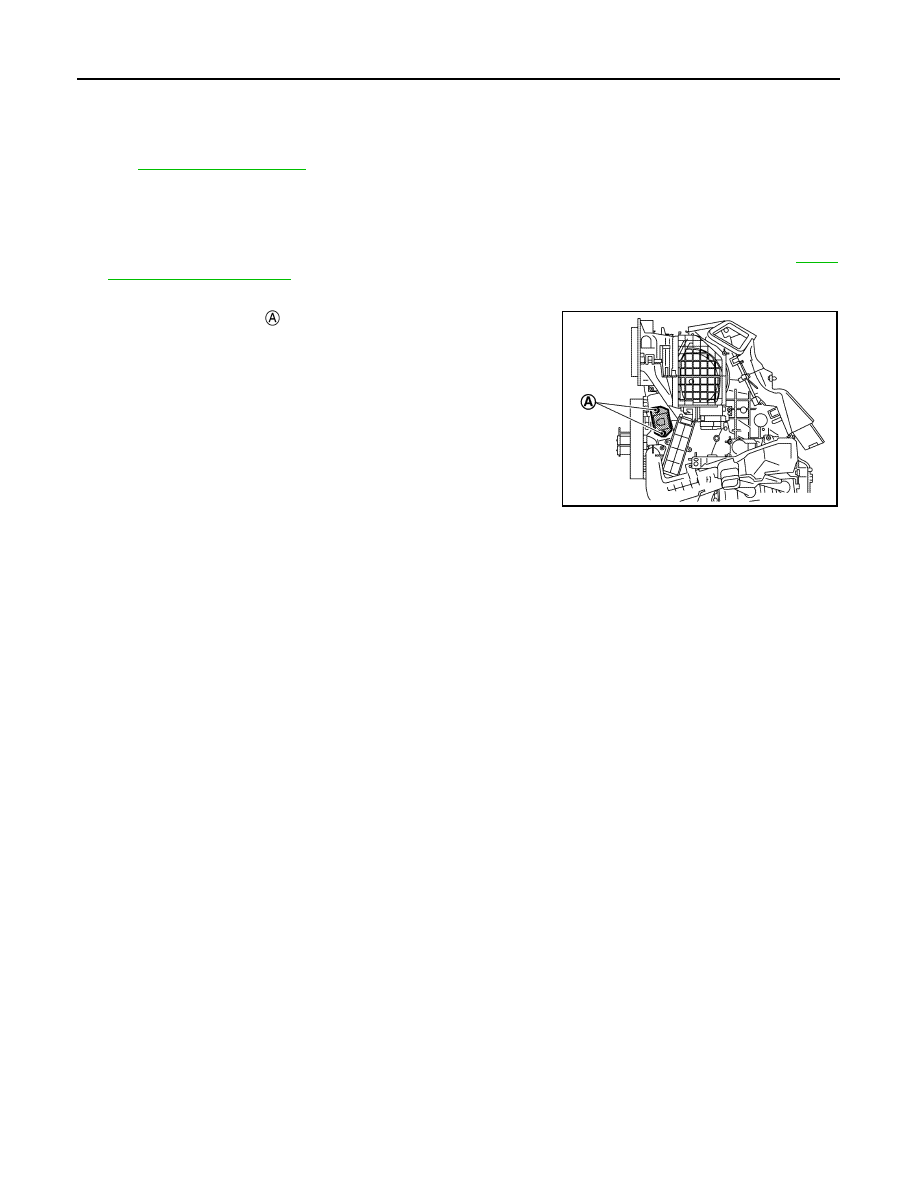

FAN CONTROL AMPLIFIER

FAN CONTROL AMPLIFIER

Exploded View

INFOID:0000000010433494

Refer to

HA-40, "Exploded View"

.

Removal and Installation

INFOID:0000000010433495

REMOVAL

1.

Remove instrument lower panel LH (LHD models) or glove box cover (RHD models). Refer to

IP-13,

"Removal and Installation"

.

2.

Disconnect power transistor harness connector.

3.

Remove fixing screws

, and then remove fan control amplifier.

INSTALLATION

Install in the reverse order of removal.

JMIIA3400ZZ

DOOR MOTOR

HAC-299

< REMOVAL AND INSTALLATION >

[MANUAL HEATER ]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

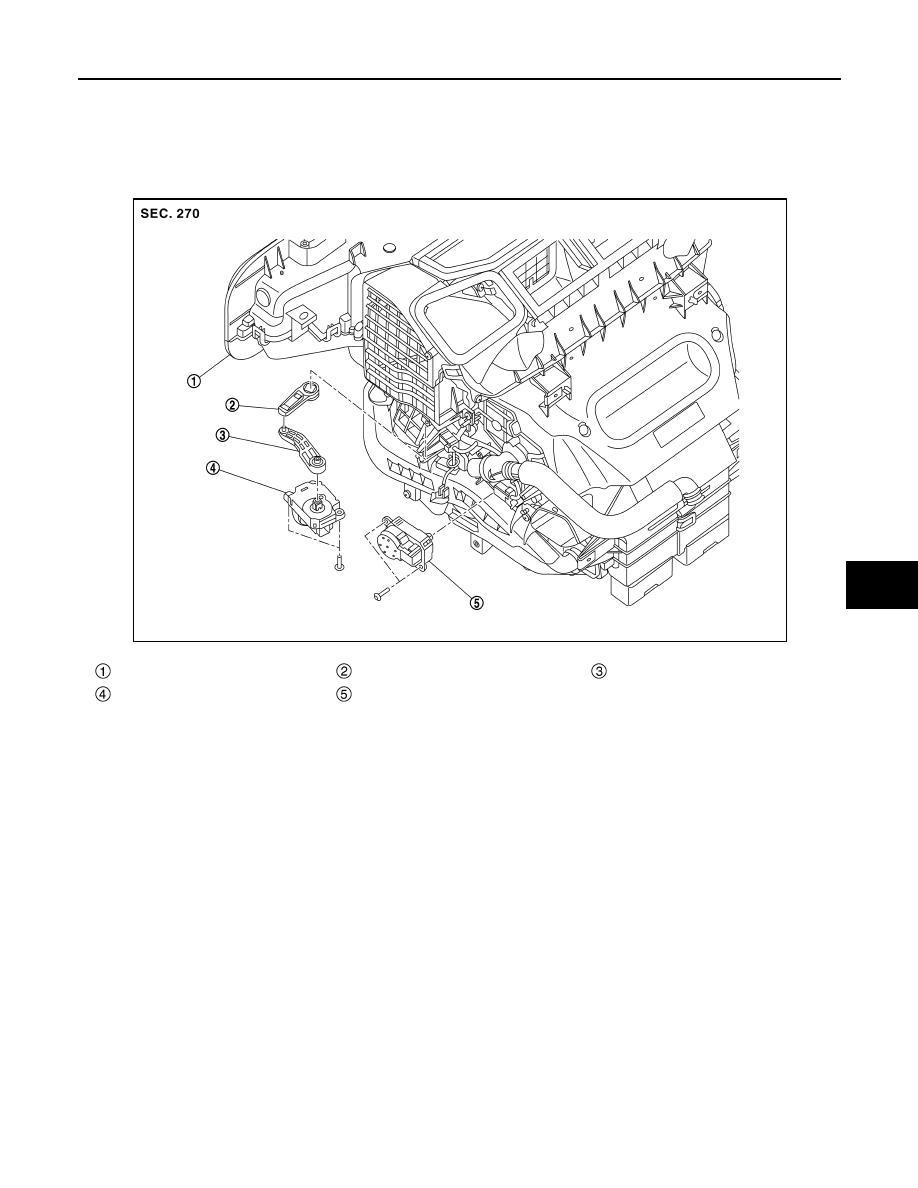

DOOR MOTOR

Exploded View

INFOID:0000000010433496

LEFT SIDE

RIGHT SIDE

A/C unit assembly

Intake door lever

Intake door link

Intake door motor

Air mix door motor LH

JMIIA3368GB
