Nissan Qashqai J11. Manual - part 1148

HAC-228

< REMOVAL AND INSTALLATION >

[MANUAL AIR CONDITIONING]

INTAKE SENSOR

INTAKE SENSOR

Exploded View

INFOID:0000000010432586

Refer to

HA-40, "Exploded View"

.

Removal and Installation

INFOID:0000000010432587

REMOVAL

1.

Remove instrument lower cover LH. Refer to

IP-19, "Removal and Installation"

.

2.

Remove intake sensor from A/C unit assembly.

3.

Disconnect harness connector from intake sensor.

CAUTION:

If disconnect harness connector from intake sensor, replace intake sensor with new one.

INSTALLATION

Note the following item, and then install in the order of removal.

CAUTION:

If disconnect harness connector from intake sensor, replace intake sensor with new one.

REFRIGERANT PRESSURE SENSOR

HAC-229

< REMOVAL AND INSTALLATION >

[MANUAL AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

REFRIGERANT PRESSURE SENSOR

Exploded View

INFOID:0000000010432588

Refer to

HA-33, "Exploded View"

 (HRA2DDT engine models),

HA-77, "Exploded View"

 (K9K engine models)

or

HA-124, "Exploded View"

 (R9M engine models).

Removal and Installation

INFOID:0000000010432589

REMOVAL

Refer to

HA-37, "REFRIGERANT PRESSURE SENSOR : Removal and Installation"

 (HRA2DDT engine mod-

els),

HA-81, "REFRIGERANT PRESSURE SENSOR : Removal and Installation"

 (K9K engine models) or

HA-

129, "REFRIGERANT PRESSURE SENSOR : Removal and Installation"

 (R9M engine models).

INSTALLATION

Install in the reverse order of removal.

HAC-230

< REMOVAL AND INSTALLATION >

[MANUAL AIR CONDITIONING]

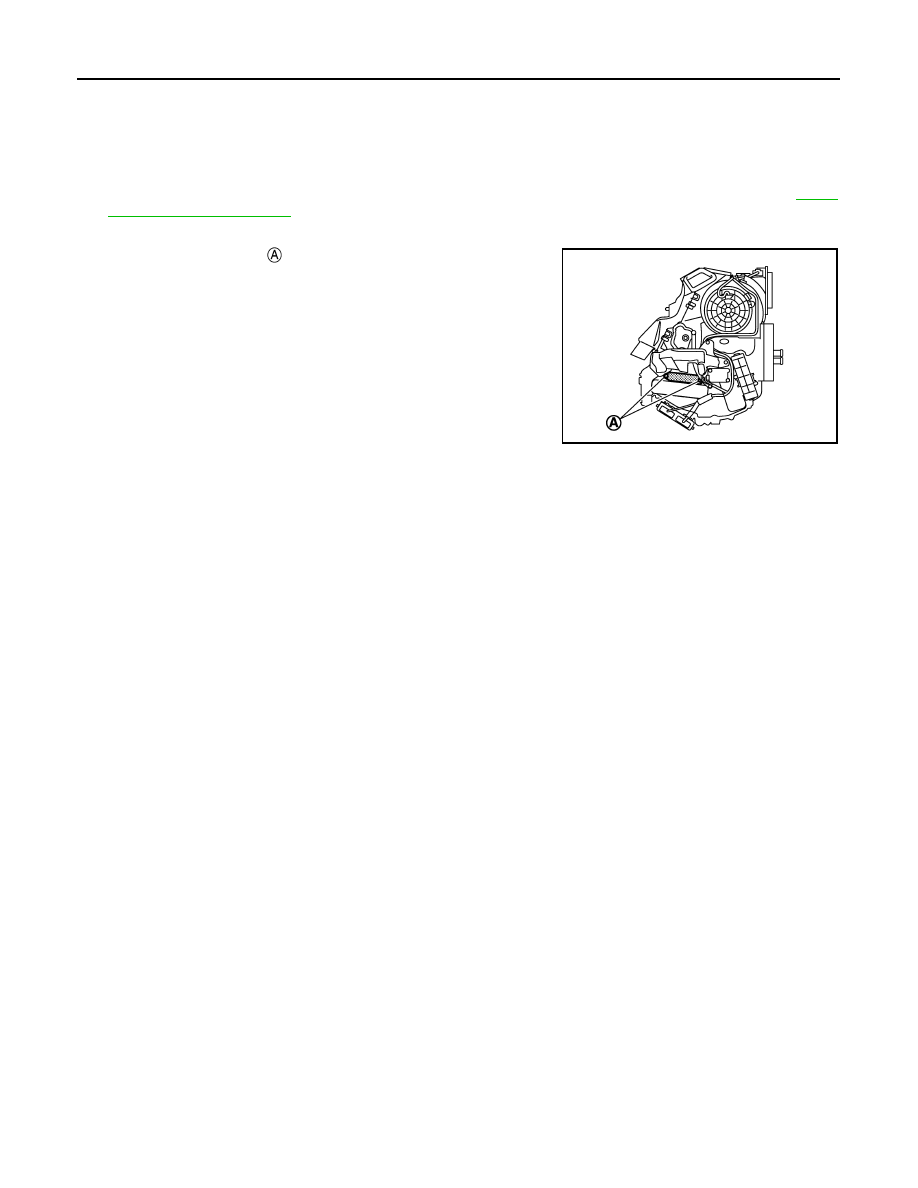

PTC HEATER

PTC HEATER

Removal and Installation

INFOID:0000000010500716

REMOVAL

1.

Remove instrument lower cover RH (RHD models) or glove box cover (LHD models). Refer to

IP-13,

"Removal and Installation"

.

2.

Disconnect PTC heater connector.

3.

Remove fixing screws

, and then remove PTC heater from A/

C unit assembly.

INSTALLATION

Install in the reverse order of removal.

JMIIA3532ZZ

FAN CONTROL AMPLIFIER

HAC-231

< REMOVAL AND INSTALLATION >

[MANUAL AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

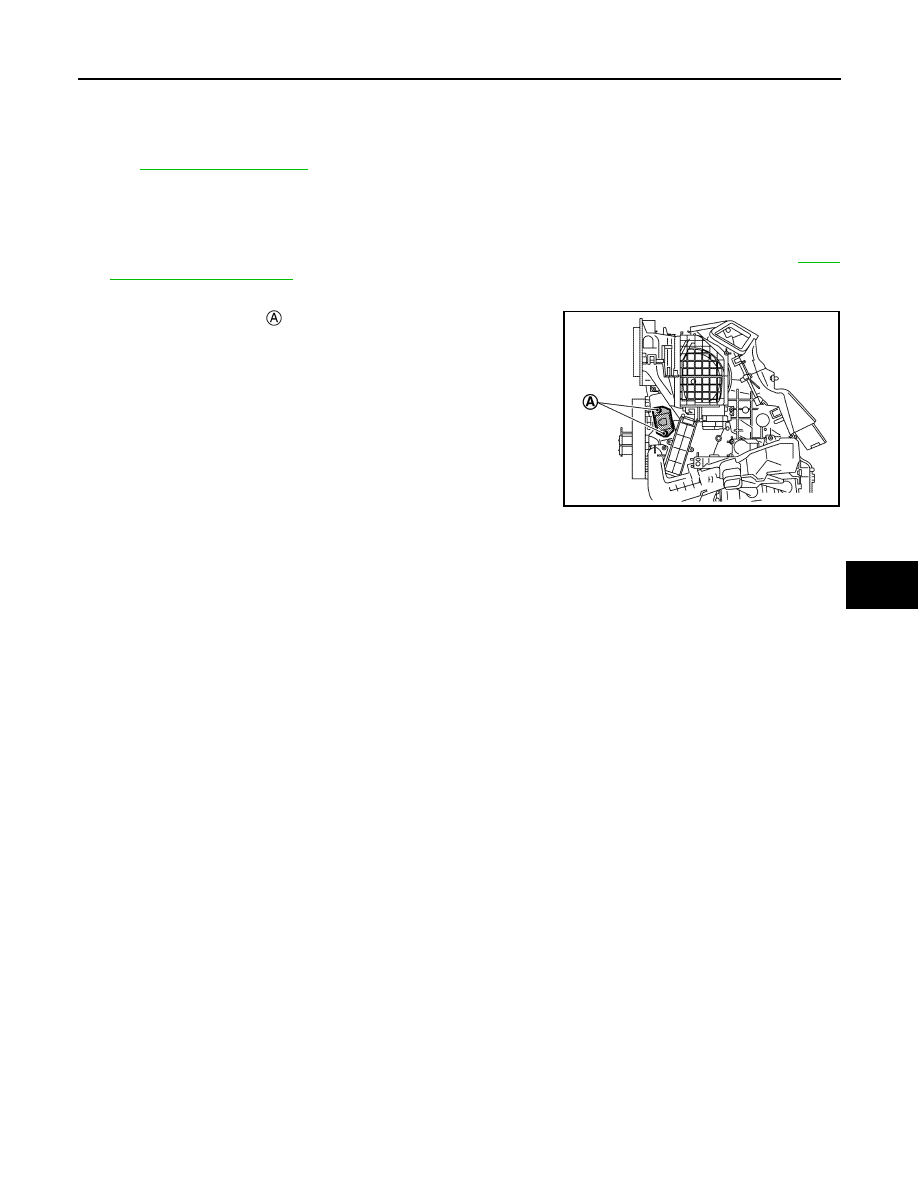

FAN CONTROL AMPLIFIER

Exploded View

INFOID:0000000010432590

Refer to

HA-40, "Exploded View"

.

Removal and Installation

INFOID:0000000010432591

REMOVAL

1.

Remove instrument lower panel LH (LHD models) or glove box cover (RHD models). Refer to

IP-13,

"Removal and Installation"

.

2.

Disconnect power transistor harness connector.

3.

Remove fixing screws

, and then remove fan control amplifier.

INSTALLATION

Install in the reverse order of removal.

JMIIA3400ZZ
