Nissan Qashqai J11. Manual - part 1145

HAC-216

< DTC/CIRCUIT DIAGNOSIS >

[MANUAL AIR CONDITIONING]

ECV (ELECTRICAL CONTROL VALVE)

HR engine models with CVT, MR16DDT engine models and R9M engine models for EURO3

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair harness or connector.

4.

CHECK ECV

Check ECV. Refer to

HAC-216, "Component Inspection"

.

Is the inspection result normal?

YES

>> Replace IPDM E/R. Refer to

PCS-68, "Removal and Installation"

NO

>> Replace compressor. Refer to

HA-31, "Removal and Installation"

 (HRA2DDT and MR16DDT

engine models for Europe),

HA-75, "Removal and Installation"

. (K9K and R9M engine models for

Europe),

HA-122, "Removal and Installation"

 (HRA2DDT, MR16DDT and MR20DD engine mod-

els except for Europe) or

HA-171, "Removal and Installation"

. (K9K and R9M engine models

except for Europe).

Component Inspection

INFOID:0000000010500544

1.

CHECK ECV

Check continuity between compressor terminals.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace compressor. Refer to

HA-31, "Removal and Installation"

 (HRA2DDT and MR16DDT

engine models for Europe),

HA-75, "Removal and Installation"

. (K9K and R9M engine models for

Europe),

HA-122, "Removal and Installation"

 (HRA2DDT, MR16DDT and MR20DD engine mod-

els except for Europe) or

HA-171, "Removal and Installation"

. (K9K and R9M engine models

except for Europe).

Compressor

IPDM E/R

Continuity

Connector

Terminal

Connector

Terminal

F180

4

F89

82

Existed

Terminal

Continuity

3

4

Existed

PTC HEATER

HAC-217

< DTC/CIRCUIT DIAGNOSIS >

[MANUAL AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

PTC HEATER

Component Function Check

INFOID:0000000010500545

1.

CHECK PTC HEATER OPERATION

1.

Start the engine.

2.

Operate blower motor.

3.

Operate temperature control dial to full hot position.

4.

Check for warm air at discharge air outlet.
NOTE:
• Engine must be cold.
• Battery must be charged.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Refer to

HAC-217, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000010500546

1.

CHECK FUSE AND FUSIBLE LINK

1.

Turn ignition switch OFF.

2.

Check 30 A fuses (Nos. 35, 36 and 40).

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Replace the blown fuse or fusible link after repairing the affected circuit if a fuse is blown.

2.

CHECK PTC RELAY POWER SUPPLY

1.

Disconnect PTC relay connector.

2.

Turn ignition switch ON.

3.

Check voltage between PTC relay harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair harness or connector between PTC relay and fuse.

3.

CHECK PTC RELAY CONTROL SIGNAL CIRCUIT FOR OPEN

1.

Disconnect BCM connector.

2.

Check continuity between PTC relay harness connector and BCM harness connector.

Is the inspection result normal?

Relay

+

−

Voltage

PTC relay

Connector

Terminal

1

E27

2

Ground

Battery voltage

3

2

E28

2

3

3

E29

2

3

PTC relay

BCM

Continuity

Relay

Connector

Terminal

Connector

Terminal

1

E27

1

E60

172

Existed

2

E28

173

3

E29

170

HAC-218

< DTC/CIRCUIT DIAGNOSIS >

[MANUAL AIR CONDITIONING]

PTC HEATER

YES

>> GO TO 4.

NO

>> Repair harness or connector.

4.

CHECK PTC HEATER POWER SUPPLY CIRCUIT FOR OPEN

Check continuity between PTC relay harness connector and PTC heater harness connector.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair harness or connector.

5.

CHECK PTC HEATER GROUND CIRCUIT FOR OPEN

Check continuity between PTC heater harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Repair harness or connector.

6.

CHECK PTC RELAY

Check PTC relay. Refer to

HAC-218, "Component Inspection (PTC Relay)"

.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> Replace malfunctioning PTC relay.

7.

CHECK PTC HEATER

Check PTC heater. Refer to

HAC-219, "Component Inspection (PTC Heater)"

.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

BCS-135, "Removal and Installation"

.

NO

>> Replace PTC heater. Refer to

HAC-230, "Removal and Installation"

.

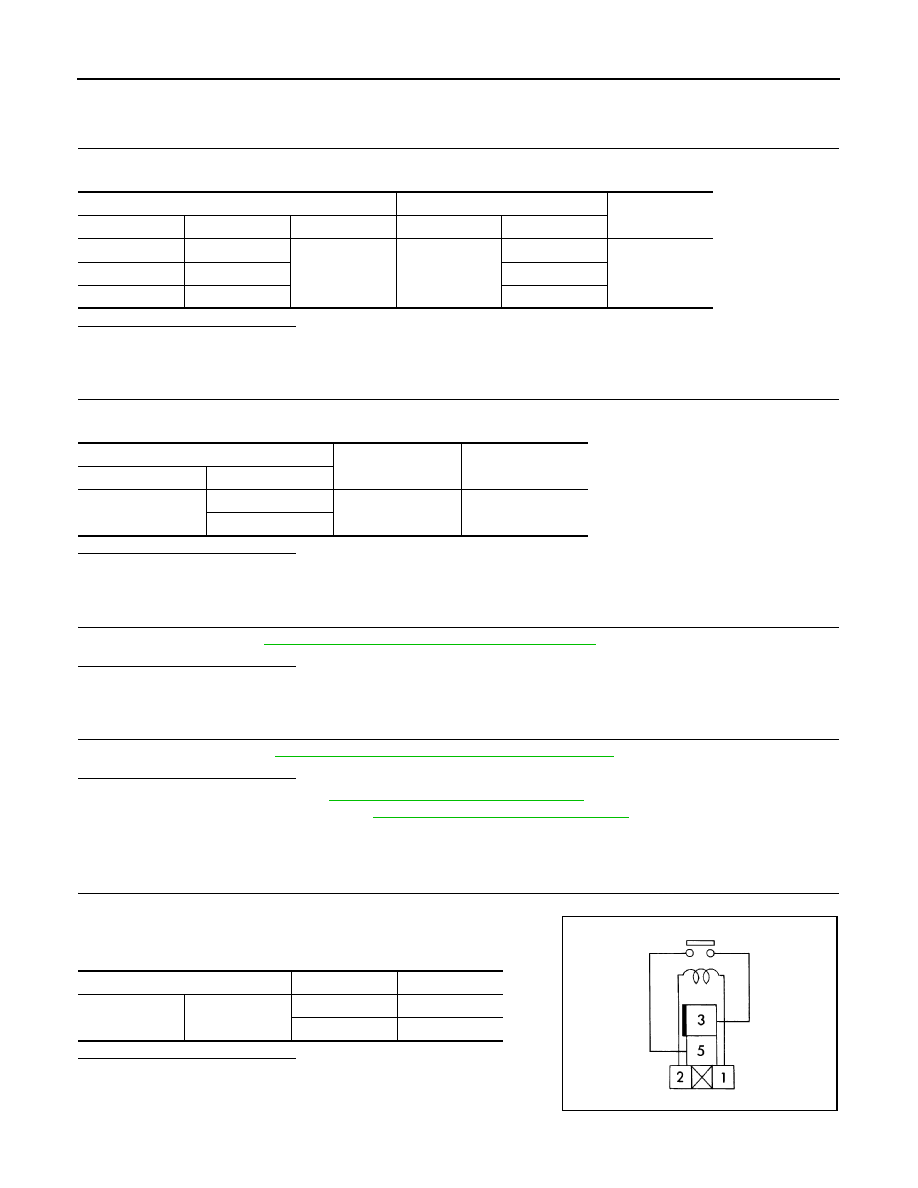

Component Inspection (PTC Relay)

INFOID:0000000010500547

1.

CHECK PTC RELAY

1.

Remove PTC relay.

2.

Check continuity between PTC relay terminals 3 and 5 when the
voltage is supplied between terminals 1 and 2.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace malfunctioning PTC relay.

PTC relay

PTC heater

Continuity

Relay

Connector

Terminal

Connector

Terminal

1

E27

5

E140

1

Existed

2

E28

3

3

E29

5

PTC heater

—

Continuity

Connector

Terminal

E140

2

Ground

Existed

4

Terminal

Voltage

Continuity

3

5

ON

Existed

OFF

Not existed

JSIIA1551ZZ

PTC HEATER

HAC-219

< DTC/CIRCUIT DIAGNOSIS >

[MANUAL AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

Component Inspection (PTC Heater)

INFOID:0000000010500548

1.

CHECK PTC HEATER

Check resistance between PTC heater terminals.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace PTC heater. Refer to

HAC-230, "Removal and Installation"

.

Terminal

Resistance (

Ω

)

1

2

Except 0 or

∞

3

2 and 4

5

4
