EXHAUST MANIFOLD

EM-395

< REMOVAL AND INSTALLATION >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

• If it exceeds the standard, replace exhaust manifold.

INSPECTION AFTER INSTALLATION

Start engine and raise engine speed to check no exhaust emission leaks.

EM-396

< REMOVAL AND INSTALLATION >

[R9M]

OIL PAN (LOWER) AND OIL STRAINER

OIL PAN (LOWER) AND OIL STRAINER

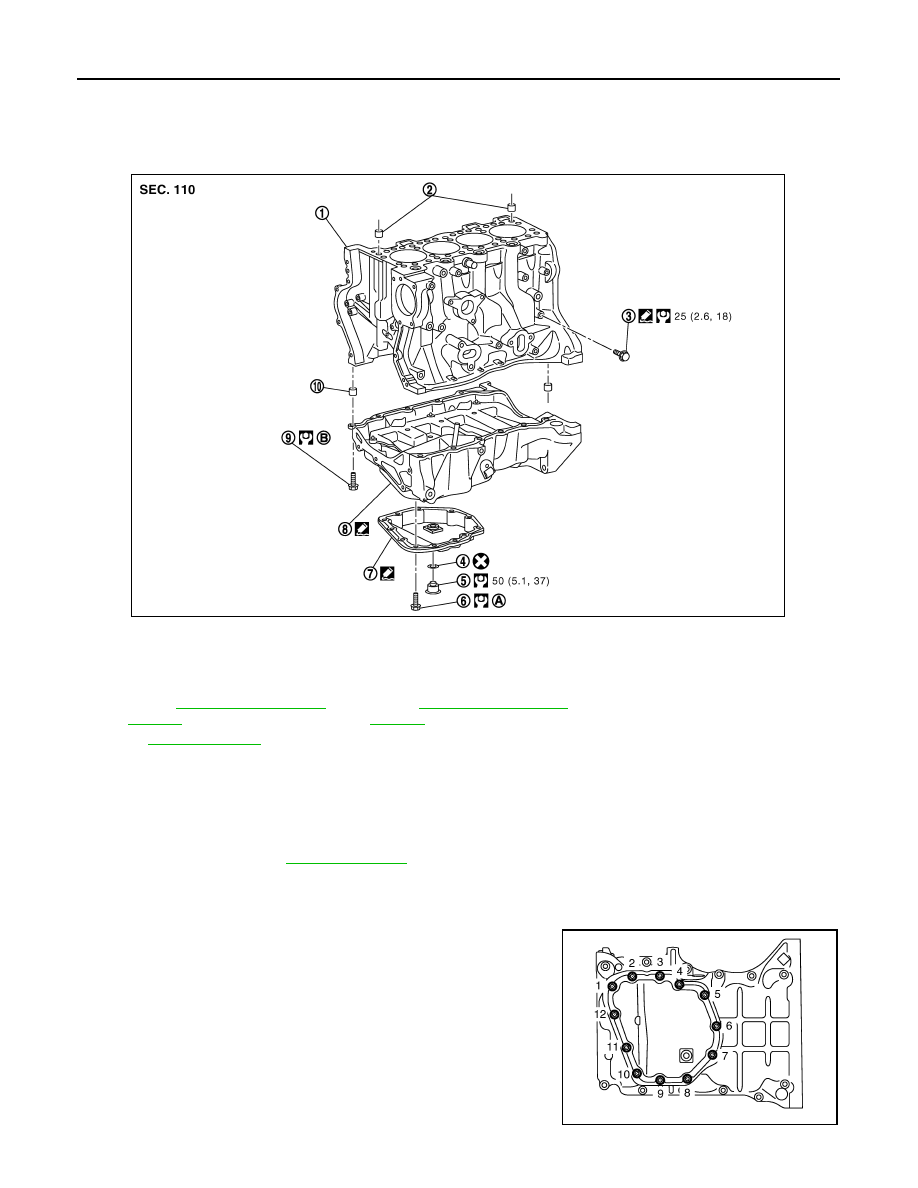

Exploded View

INFOID:0000000010281988

Removal and Installation

INFOID:0000000010281989

REMOVAL

1.

Remove engine undercover.

2.

Drain engine oil. Refer to

LU-49, "Draining"

.

CAUTION:

Perform this step when engine is cold.

3.

Remove oil pan (lower) with the following procedure:

a.

Loosen mounting bolts in reverse order shown in the figure.

1.

Cylinder block

2.

Bush

3.

TDC pin plug

4.

Gasket

5.

Oil pan drain plug

6.

Oil pan (lower) bolt

7.

Oil pan (lower)

8.

Oil pan (upper)

9.

Oil pan (upper) bolt

A.

Refer to

EM-396, "Removal and In-

stallation"

B.

Refer to

EM-437, "Removal and In-

stallation"

Refer to

GI-4, "Components"

 for symbols in the figure.

E1BIA1206GB

E1BIA0582ZZ

OIL PAN (LOWER) AND OIL STRAINER

EM-397

< REMOVAL AND INSTALLATION >

[R9M]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

b.

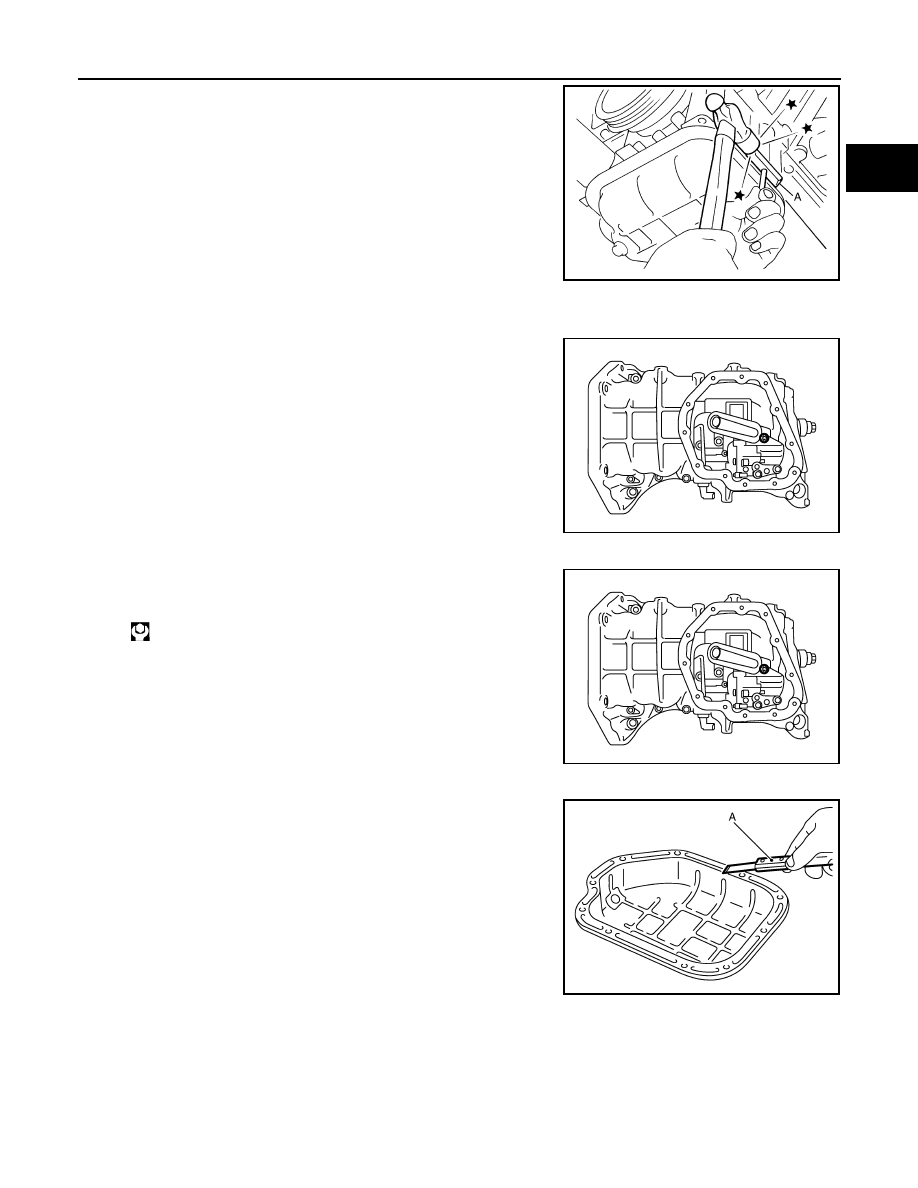

Insert the seal cutter [SST:KV10111100 ( — )] (A) between oil
pan (upper) and oil pan (lower). Slide tool by tapping on the side
of the tool with a hammer.

CAUTION:

• Be careful not to damage mating surface.
• Never insert screwdriver, or oil pan flange will be

deformed.

c.

Remove oil pan (lower).

4.

Remove oil strainer.
• Loosen mounting bolt.

INSTALLATION

1.

Install oil strainer.
• Tighten oil strainer mounting bolts.

2.

Install oil pan (lower) with the following procedure:

a.

Use a scraper (A) to remove old liquid gasket from mating sur-
faces.

CAUTION:

Never scratch or damage the mating surfaces when clean-
ing off old liquid gasket.
• Remove old liquid gasket from the bolt holes and threads.

JPBIA0276ZZ

E1BIA0647ZZ

: 10.0 N·m (1.0 kg-m, 7 ft-lb)

E1BIA0647ZZ

JPBIA0025ZZ

EM-398

< REMOVAL AND INSTALLATION >

[R9M]

OIL PAN (LOWER) AND OIL STRAINER

b.

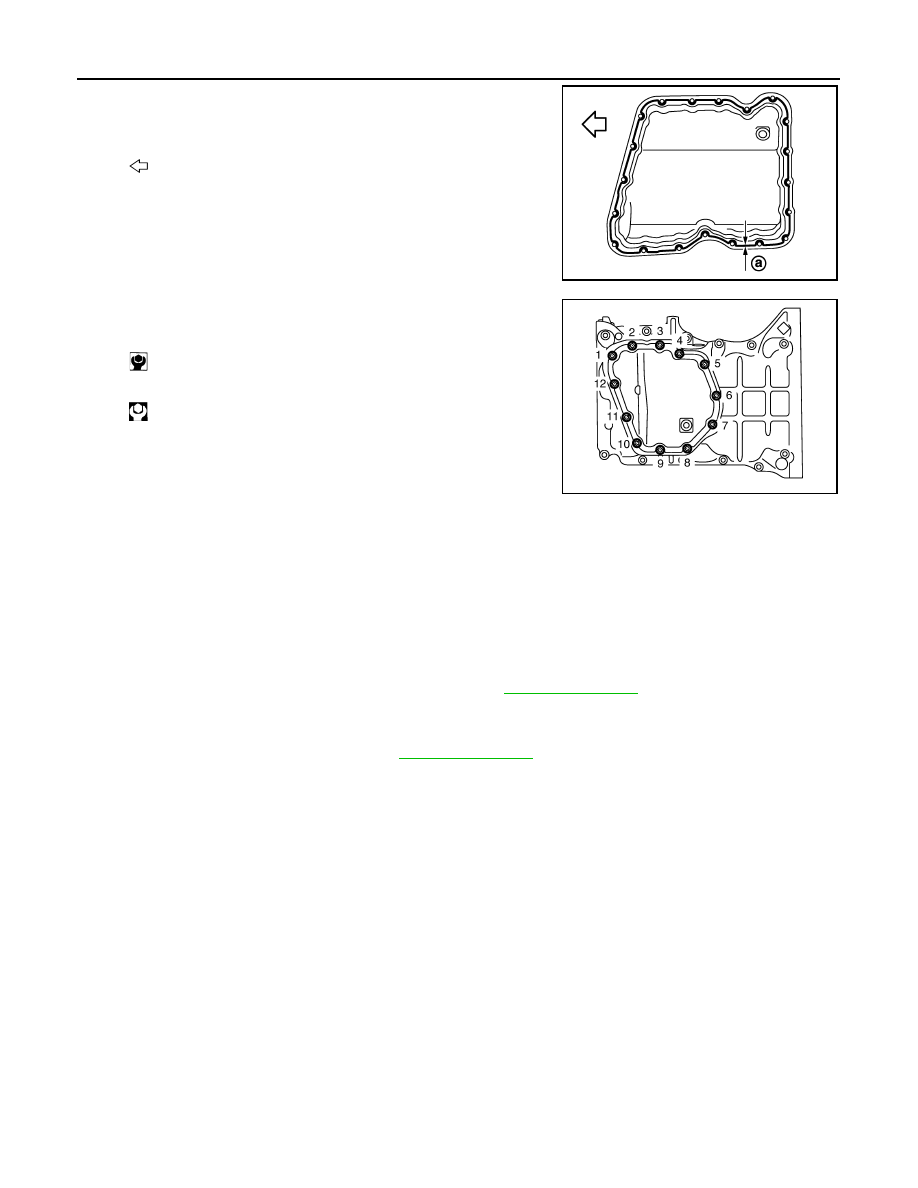

Apply a continuous bead of liquid gasket with the tube presser
(commercial service tool) as shown in the figure.

Use Genuine Liquid Gasket or equivalent

CAUTION:

Attaching should be done within 5 minutes after coating.

c.

Tighten mounting bolts in two steps separately in numerical
order as shown in the figure.

3.

Install in the reverse order of removal, for the rest of parts.
NOTE:
At least 30 minutes after oil pan is installed, pour engine oil.

Inspection

INFOID:0000000010281990

INSPECTION AFTER REMOVAL

Clean oil strainer if any object attached.

INSPECTION AFTER INSTALLATION

1.

Check the engine oil level and adjust engine oil. Refer to

LU-48, "Inspection"

.

2.

Start engine, and check there is no leak of engine oil.

3.

Stop engine and wait for 10 minutes.

4.

Check the engine oil level again. Refer to

LU-48, "Inspection"

.

a

: 3.0 - 7.0 mm (0.118 - 0.276 in)

: Engine front

JPBIA0648ZZ

1st step: 5.0 N·m (0.51 kg-m, 44 in-lb)

2nd step: 12.0 N·m (1.2 kg-m, 9 ft-lb)
