Nissan Qashqai J11. Manual - part 1131





HAC-160

< SYSTEM DESCRIPTION >

[MANUAL AIR CONDITIONING]

OPERATION

OPERATION

Switch Name and Function

INFOID:0000000010432511

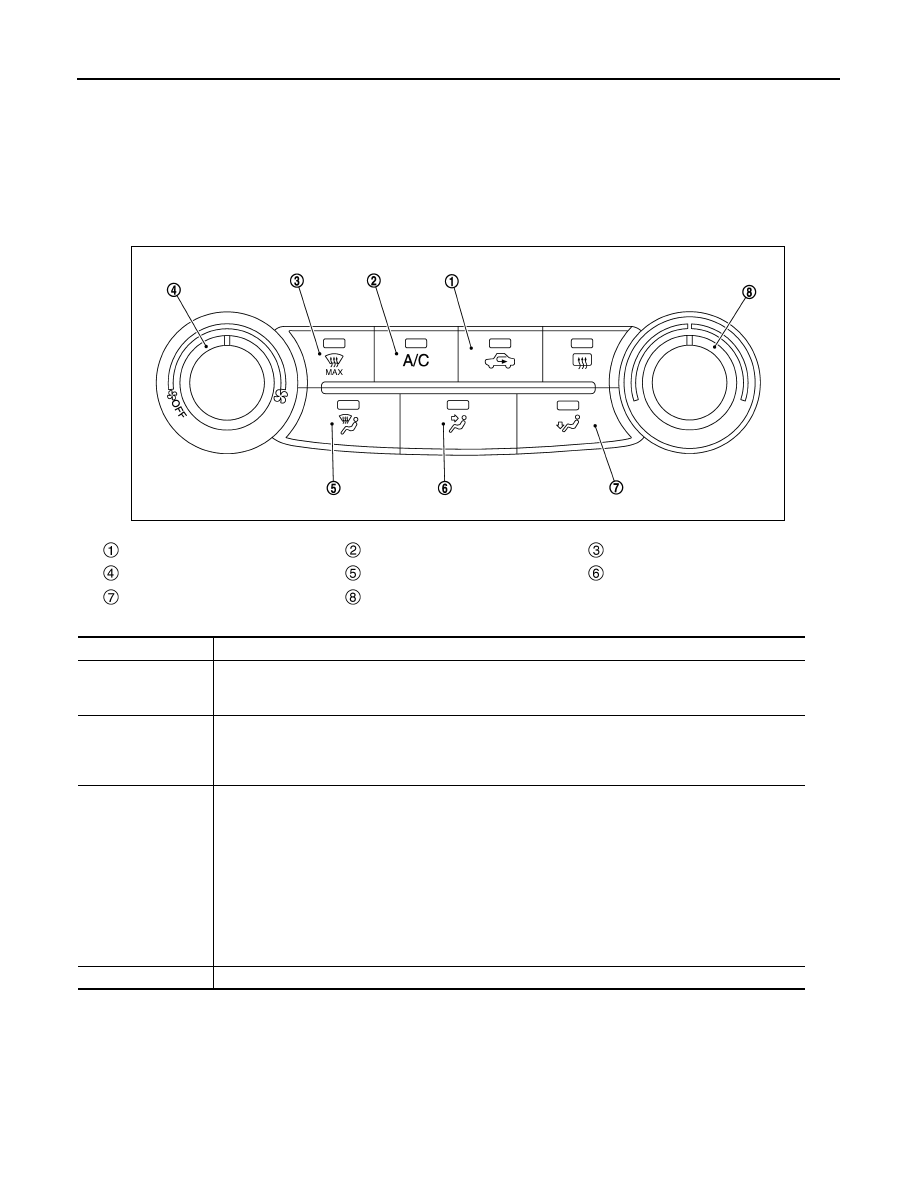

OPERATION AND DISPLAY OF AUTOMATIC AIR CONDITIONING SYSTEM (FOR EUROPE AND
RUSSIA)

Operation: A/C control

INTAKE switch

A/C switch

MAX DEF switch

Fan control dial

MODE DEF switch

MODE VENT switch

MODE FOOT switch

Temperature control dial

Switch name

Function

INTAKE switch

Air inlet changes between recirculation (REC)

 fresh air intake (FRE) each time this switch is pressed.

• Switch indicator lamp ON: Recirculation
• Switch indicator lamp OFF: Fresh air intake

A/C switch

Compressor control (switch indicator) changes between ON

 OFF each time this switch is pressed

while blower motor is operated.
NOTE:
A/C switch cannot be turned ON when blower motor is OFF.

MAX DEF switch

MAX DEF mode (switch indicator) changes between ON

 OFF each time switch is pressed.

• Air conditioning becomes the following status when MAX DEF mode is turned ON.
- Air outlet: DEF
- Air flow: ON
- Air inlet: Fresh air intake
- A/C switch: ON
• Air conditioning becomes the following status when MAX DEF mode is turned OFF.
- Air outlet: Settings set before DEF mode is turned ON
- Air flow: Settings set before DEF mode is turned ON
- Air inlet: Settings set before DEF mode is turned ON
- A/C switch: Settings set before DEF mode is turned ON

Fan control dial

The air flow can be manually set within the range of speeds 1st - 24th by operating the dial.

JMIIA3578ZZ

OPERATION

HAC-161

< SYSTEM DESCRIPTION >

[MANUAL AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

MODE DEF switch

• Air outlet changes to DEF when this switch is pressed while air conditioning is ON and air outlet con-

dition is automatic control.

• Air outlet changes as following when this switch is pressed while air conditioning is ON and air outlet

condition is manual control.

- V/D

 VENT

- VENT

 V/D

- B/L

 ALL

- ALL

 B/L

- FOOT

 D/F

- D/F

 FOOT

- DEF

 DEF

• When this switch is pressed while air conditioning is ON and MODE DEF is ON, air outlet control is

changed to automatic control.

• When this switch is pressed while air conditioning is OFF, Air conditioning becomes the following status
- Air outlet: DEF
- Air flow: Minimum setting
- Air inlet: Settings set before air conditioning is turned OFF
- A/C switch: Settings set before air conditioning is turned OFF
• When this switch is pressed while MAX DEF is ON, Air conditioning becomes the following status
- Air outlet: DEF
- Air flow: Settings set before MAX DEF is turned ON*
- Air inlet: Settings set before MAX DEF is turned ON*
- A/C switch: Settings set before MAX DEF is turned ON*
NOTE:
*: When MAX DEF is turned ON from air conditioning OFF status, each settings set before air condition-
ing is turned OFF.

MODE VENT switch

• Air outlet changes to VENT when this switch is pressed while air conditioning is ON and air outlet con-

dition is automatic control.

• Air outlet changes as following when this switch is pressed while air conditioning is ON and air outlet

condition is manual control.

- V/D

 DEF

- VENT

 VENT

- B/L

 FOOT

- ALL

 D/F

- FOOT

 B?L

- D/F

 ALL

- DEF

 V/D

• When this switch is pressed while air conditioning is ON and MODE VENT is ON, air outlet control is

changed to automatic control.

• When this switch is pressed while air conditioning is OFF, Air conditioning becomes the following status
- Air outlet: VENT
- Air flow: Minimum setting
- Air inlet: Settings set before air conditioning is turned OFF
- A/C switch: Settings set before air conditioning is turned OFF
• When this switch is pressed while MAX DEF is ON, Air conditioning becomes the following status
- Air outlet: VENT
- Air flow: Settings set before MAX DEF is turned ON*
- Air inlet: Settings set before MAX DEF is turned ON*
- A/C switch: Settings set before MAX DEF is turned ON*
NOTE:
*: When MAX DEF is turned ON from air conditioning OFF status, each settings set before air condition-
ing is turned OFF.

Switch name

Function

HAC-162

< SYSTEM DESCRIPTION >

[MANUAL AIR CONDITIONING]

OPERATION

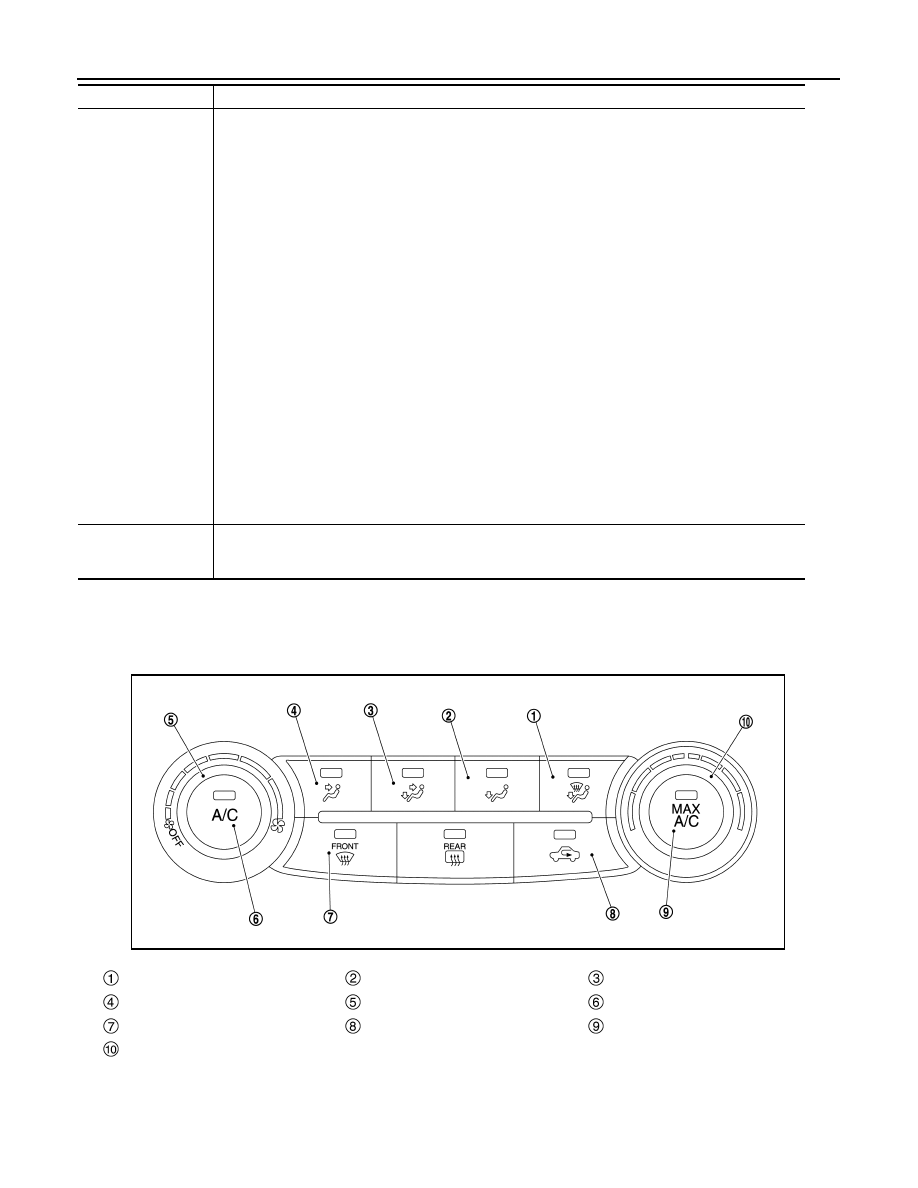

OPERATION AND DISPLAY OF AUTOMATIC AIR CONDITIONING SYSTEM (EXCEPT FOR EU-
ROPE AND RUSSIA)

Operation: A/C control

MODE FOOT switch

• Air outlet changes to FOOT when this switch is pressed while air conditioning is ON and air outlet con-

dition is automatic control.

• Air outlet changes as following when this switch is pressed while air conditioning is ON and air outlet

condition is manual control.

- V/D

 ALL

- VENT

 B/L

- B/L

 VENT

- ALL

 V/D

- FOOT

 FOOT

- D/F

 DEF

- DEF

D/F

• When this switch is pressed while air conditioning is ON and MODE FOOT is ON, air outlet control is

changed to automatic control.

• When this switch is pressed while air conditioning is OFF, Air conditioning becomes the following status
- Air outlet: FOOT
- Air flow: Minimum setting
- Air inlet: Settings set before air conditioning is turned OFF
- A/C switch: Settings set before air conditioning is turned OFF
• When this switch is pressed while MAX DEF is ON, Air conditioning becomes the following status
- Air outlet: FOOT
- Air flow: Settings set before MAX DEF is turned ON*
- Air inlet: Settings set before MAX DEF is turned ON*
- A/C switch: Settings set before MAX DEF is turned ON*
NOTE:
*: When MAX DEF is turned ON from air conditioning OFF status, each settings set before air condition-
ing is turned OFF.

Temperature control
dial

The air flow temperature can be adjusted by operating the dial.
• Clockwise: Raise the air flow temperature.
• Counterclockwise: Lower the air flow temperature.

Switch name

Function

D/F switch

FOOT switch

B/L switch

VENT switch

Fan control dial

A/C switch

DEF switch

INTAKE switch

MAX A/C switch

Temperature control dial

JMIIA3339ZZ

OPERATION

HAC-163

< SYSTEM DESCRIPTION >

[MANUAL AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

Switch name

Function

Temperature control
dial

The air flow temperature can be adjusted by operating the dial.
• Clockwise: Raise the air flow temperature.
• Counterclockwise: Lower the air flow temperature.

Fan control dial

The air flow can be manually set within the range of speeds 1st - 24th by operating the dial.

A/C switch

Compressor control (switch indicator) changes between ON

 OFF each time this switch is pressed

while blower motor is operated.
NOTE:
A/C switch cannot be turned ON when blower motor is OFF.

MAX A/C switch

• Air conditioning becomes the following status when MAX A/C is turned ON by pushing the switch while

blower fan is operated.

- Air outlet: VENT (Air outlet is set to VENT position, but VENT switch indicator lamp is not indicated.)
- Air flow: Settings set before MAX A/C mode is turned ON
- Temperature setting: Full cold
- Air inlet: Recirculation
- A/C switch: ON
• Air conditioning becomes the following status when MAX A/C is turned OFF by pushing the switch

while MAX A/C is ON.

- Air outlet: VENT (When MAX A/C is turned OFF, VENT switch indicator lamp is turned ON.)
- Air flow: Settings set before MAX A/C is turned ON
- Temperature setting: Settings set before MAX A/C is turned ON
- Air inlet: Settings set before MAX A/C is turned ON
- A/C switch: ON

INTAKE switch

Air inlet changes between recirculation (REC)

 fresh air intake (FRE) each time this switch is pressed.

• Switch indicator lamp ON: Recirculation
• Switch indicator lamp OFF: Fresh air intake

VENT switch

• When each switch is pressed, air outlet can be switched to any position.
• Air inlet is set to fresh air intake (FRE), when D/F or DEF is selected while air conditioning system is

in the ON position.

NOTE:
Air outlet can be changed when air conditioning system is in the OFF position.

B/L switch

FOOT switch

D/F switch

DEF switch
