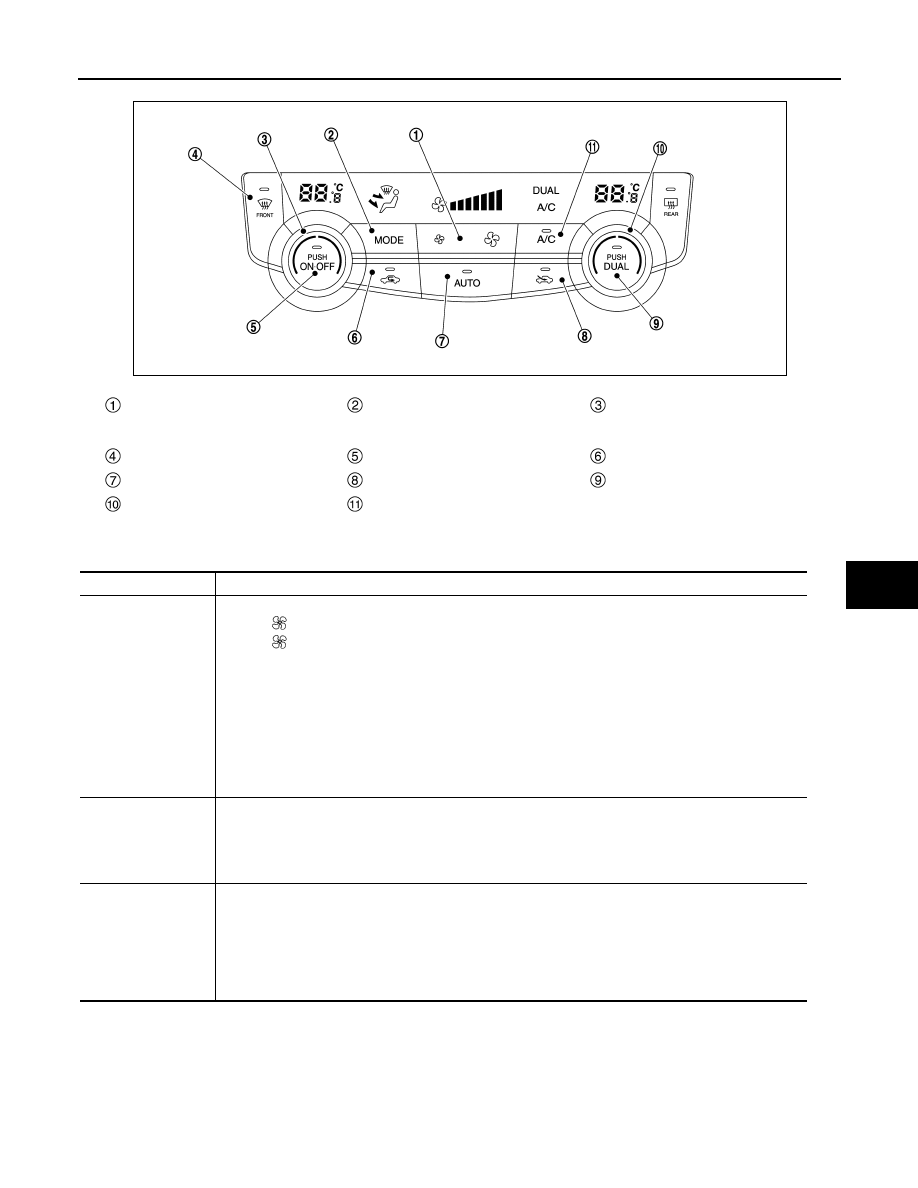

HAC-36
< SYSTEM DESCRIPTION >
[AUTOMATIC AIR CONDITIONING]
OPERATION
Temperature control
dial (passenger side)
• Left and right ventilation temperature separately control (DUAL switch indicator) turns ON according
to dial operation. Air flow temperature of passenger side can be changed without changing air flow
temperature of driver side.
• Setting temperature can be set according to dial operation within a range between 16.0
°
C – 30.0
°
C at
a rate of 0.5
°
C per adjustment.
- Clockwise: Setting temperature increases
- Counterclockwise: Setting temperature decreases
• If temperature control dial (passenger side) is counterclockwise turned when temperature setting is
16.0
°
C, temperature setting indicates “Lo”. And air mix setting is set to full cold.
• If temperature control dial (passenger side) is clockwise turned when temperature setting is 30.0
°
C,
temperature setting indicates “HI”. And air mix setting is set to full hot.
NOTE:
When air conditioning is OFF, setting temperature can be set only while air conditioning status screen
(only when MODE switch is pressed) is indicated.
MAX DEF switch
MAX DEF mode (switch indicator) changes between ON
⇔
OFF each time switch is pressed.
• When this switch is pressed while air conditioning is ON
- Air conditioning becomes the following status when DEF mode is turned ON.
• Air outlet: DEF
• Air flow: Maximum setting
• Air inlet: Fresh air intake
• A/C switch: ON
- Air conditioning becomes the following status when DEF mode is turned OFF.
• Air outlet: Settings set before DEF mode is turned ON
• Air flow: Settings set before DEF mode is turned ON
• Air inlet: Settings set before DEF mode is turned ON
• A/C switch: Settings set before DEF mode is turned ON
• When this switch is pressed while air conditioning is OFF
- Air conditioning turns ON and operates in the following status, when DEF mode is turned ON.
• Air outlet: DEF
• Air flow: Maximum setting
• Air inlet: Fresh air intake
• A/C switch: ON
- Air conditioning becomes the following status when DEF mode is turned OFF.
• Air outlet: Automatic control
• Air flow: Automatic control
• Air inlet: Automatic control
• A/C switch: Settings set before DEF mode is turned OFF
NOTE:
When DEF mode is turned ON while AUTO switch indicator is turned ON, AUTO switch indicator turns
OFF. However, automatic air flow control continues.
A/C switch
Compressor control (switch indicator) changes between ON
⇔
OFF each time this switch is pressed
while blower motor is operated.
NOTE:
A/C switch cannot be turned ON when blower motor is OFF.
AUTO switch
• AUTO switch indicator turns ON and air conditioning becomes the following status, when this switch is
pressed while air conditioning is ON.
- Air outlet: Automatic control
- Air flow: Automatic control
- Air inlet: Automatic control
- A/C switch: Settings set before this switch is pressed
• Air conditioning turns ON and operates according to the following status, when this switch is pressed
while air conditioning is OFF. (AUTO switch indicator turns ON)
- Air outlet: Automatic control
- Air flow: Automatic control
- Air inlet: Automatic control
- A/C switch: Settings set before this switch is pressed
NOTE:
When air outlet or air flow is manually operated while AUTO switch indicator is ON, AUTO switch indica-
tor turns OFF. However, automatic control continues for other functions than air outlet or air flow.
Switch name
Function
