HAC-8

< PRECAUTION >

[AUTOMATIC AIR CONDITIONING]

PRECAUTIONS

5.

Wait at least 3 minutes. For vehicle with the engine listed below, remove the battery terminal after a lapse
of the specified time.

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

6.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

D4D engine

: 20 minutes

HRA2DDT

: 12 minutes

K9K engine

: 4 minutes

M9R engine

: 4 minutes

R9M engine

: 4 minutes

V9X engine

: 4 minutes

COMPONENT PARTS

HAC-9

< SYSTEM DESCRIPTION >

[AUTOMATIC AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

SYSTEM DESCRIPTION

COMPONENT PARTS

AUTOMATIC AIR CONDITIONING SYSTEM

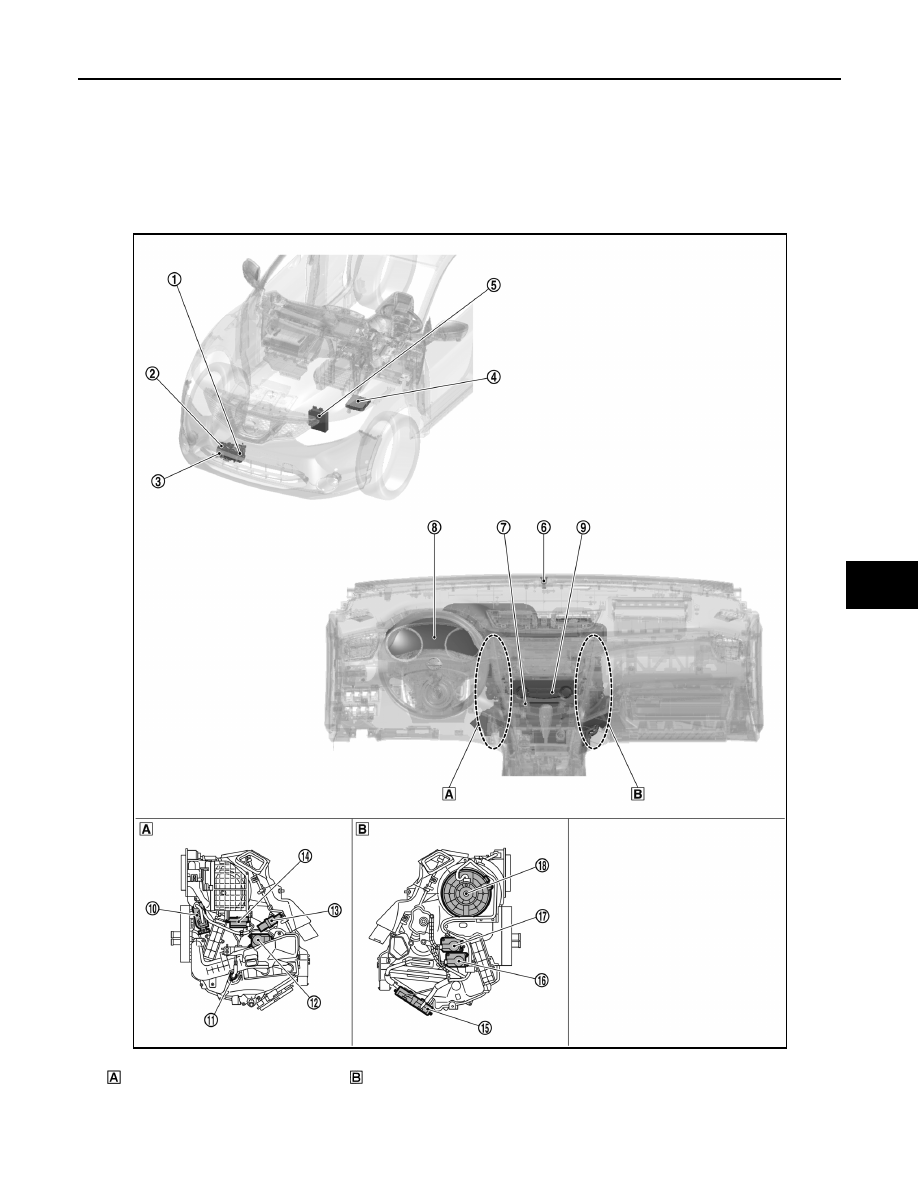

AUTOMATIC AIR CONDITIONING SYSTEM : Component Parts Location

INFOID:0000000010432153

Left side of A/C unit assembly

Right side of A/C unit assembly

JMIIA3541ZZ

HAC-10

< SYSTEM DESCRIPTION >

[AUTOMATIC AIR CONDITIONING]

COMPONENT PARTS

PTC HEATER CONTROL SYSTEM

No.

Component

Function

Compressor

Magnet clutch

HAC-18, "COMPRESSOR : Magnet Clutch"

ECV (electrical control
valve)

HAC-18, "COMPRESSOR : ECV (Electrical Control Valve)"

Refrigerant pressure sensor

HAC-19, "Refrigerant Pressure Sensor"

Ambient sensor

HAC-19, "Ambient Sensor"

IPDM E/R

A/C relay is integrated in IPDM E/R. IPDM E/R operates A/C relay when
receiving A/C compressor request signal from ECM via CAN communica-
tion line.
Refer to

PCS-5, "Component Parts Location"

 for detailed installation loca-

tion.

ECM

ECM, when receiving A/C ON signal and blower fan ON signal from BCM,
transmits A/C compressor request signal to IPDM E/R via CAN communi-
cation according to status of the engine and refrigerant pressure.
ECM transmits engine coolant temperature signal to combination meter via
CAN communication line.
Refer to

ECH-13, "Component Parts Location"

 (HR engine models),

ECM-

25, "ENGINE CONTROL SYSTEM : Component Parts Location"



(MR16DDT engine models),

ECM-627, "ENGINE CONTROL SYSTEM :

Component Parts Location"

 (MR20DD engine models),

ECK-12, "Compo-

nent Parts Location"

 (K9K engine models) or

EC9-14, "Component Parts

Location"

 (R9M engine models) for detailed installation location.

Sunload sensor

HAC-19, "Sunload Sensor"

In-vehicle sensor

HAC-19, "In-vehicle Sensor"

Combination meter

Combination meter transmits ambient temperature signal and vehicle
speed signal to A/C auto amp. via CAN communication line.

A/C control

HAC-18, "A/C Control"

Power transistor

HAC-17, "A/C UNIT ASSEMBLY : Power Transistor"

Intake sensor

HAC-14, "A/C UNIT ASSEMBLY : Intake Sensor"

Air mix door motor (Driver side)

HAC-14, "A/C UNIT ASSEMBLY : Air Mix Door Motor (Driver Side)"

Aspirator

HAC-14, "A/C UNIT ASSEMBLY : Aspirator"

Intake door motor

HAC-16, "A/C UNIT ASSEMBLY : Intake Door Motor"

A/C auto amp.

HAC-19, "A/C Auto Amp."

Air mix door motor (Passenger side)

HAC-15, "A/C UNIT ASSEMBLY : Air Mix Door Motor (Passenger Side)"

Mode door motor

HAC-15, "A/C UNIT ASSEMBLY : Mode Door Motor"

Blower motor

HAC-17, "A/C UNIT ASSEMBLY : Blower Motor"

COMPONENT PARTS

HAC-11

< SYSTEM DESCRIPTION >

[AUTOMATIC AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

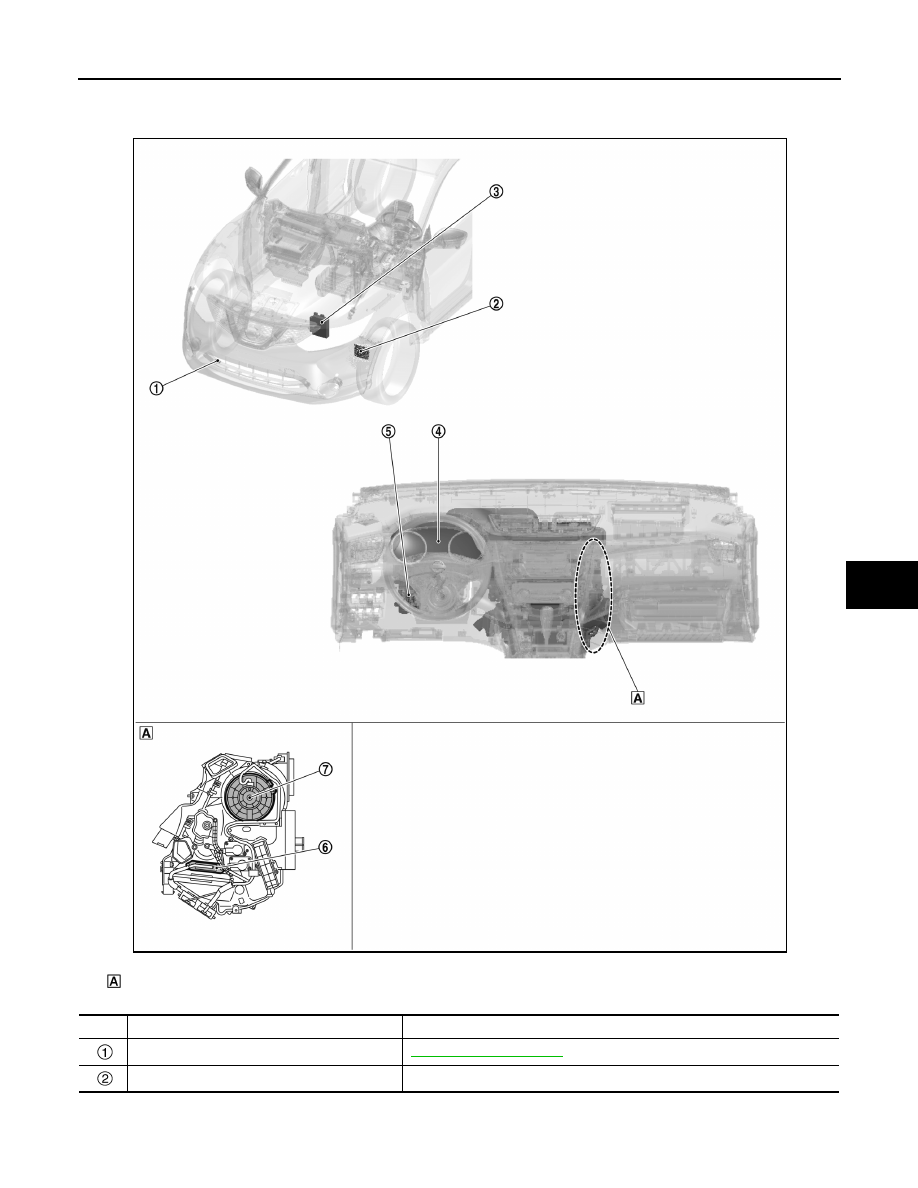

PTC HEATER CONTROL SYSTEM : Component Parts Location

INFOID:0000000010499384

Right side of A/C unit assembly

JMIIA3545ZZ

No.

Component

Function

Ambient sensor

HAC-19, "Ambient Sensor"

PTC relay-1/2/3

PTC relay is controlled by BCM, and supplies power supply to PTC heater.
