Nissan Qashqai J11. Manual - part 1082





HA-154

< PREPARATION >

[TYPE 4]

PREPARATION

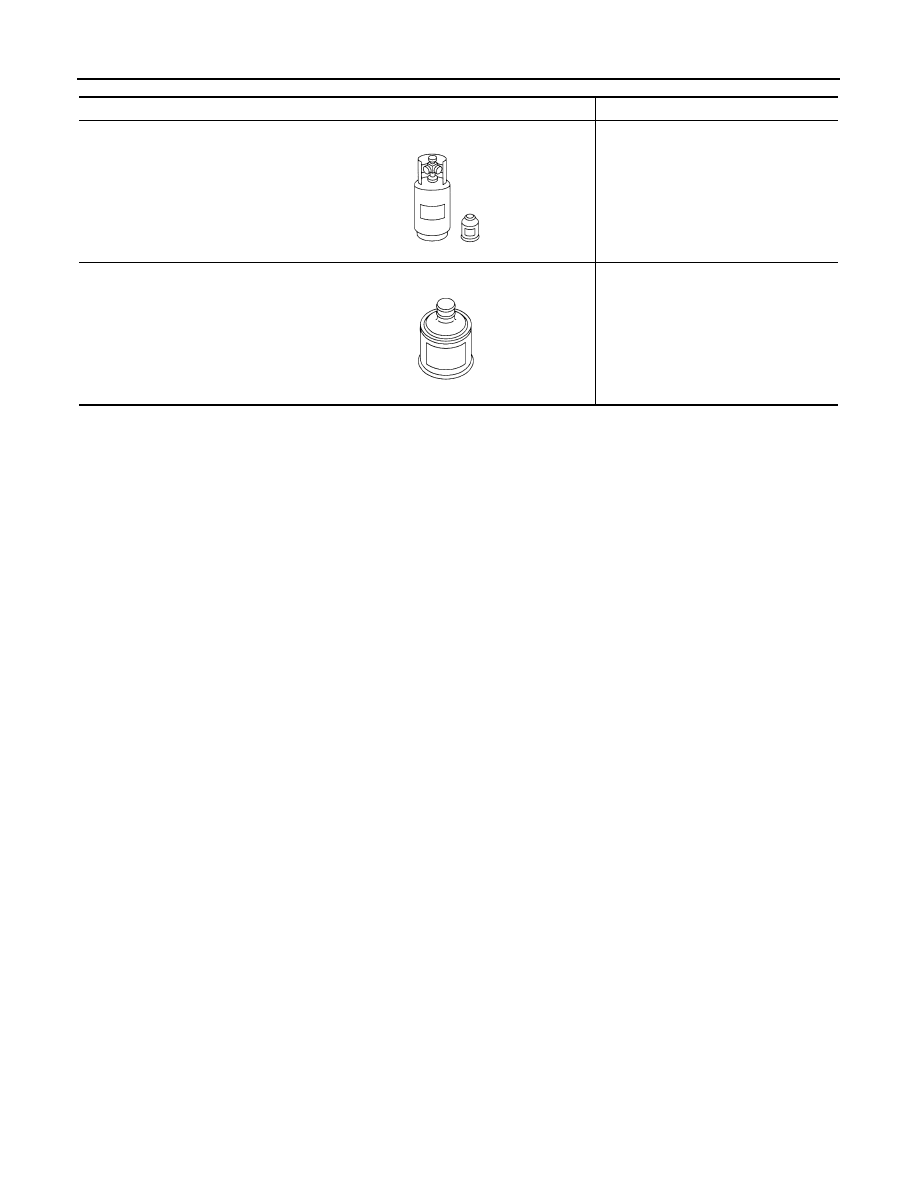

Tool name

Description

HFC-134a (R-134a) refrigerant

Container color: Light blue
Container marking: HFC-134a (R-
134a)
Fitting size: Thread size

• Large container 1/2

-16 ACME

ND-OIL8

Type: Polyalkylene glycol oil (PAG),
ND-OIL8
Application:
HFC-134a (R-134a) swash plate com-
pressors

S-NT196

JMIIA1759ZZ

COMPONENT PARTS

HA-155

< SYSTEM DESCRIPTION >

[TYPE 4]

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

SYSTEM DESCRIPTION

COMPONENT PARTS

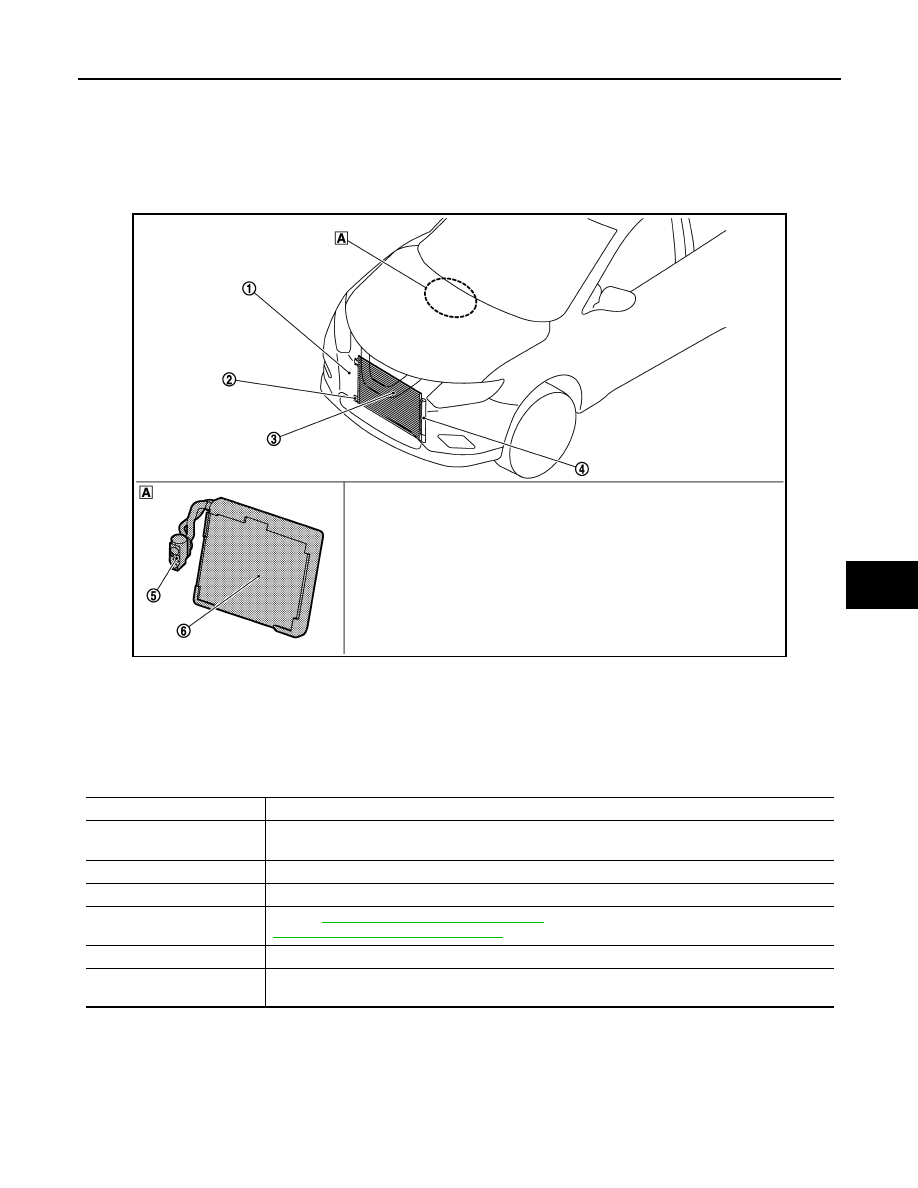

Component Parts Location

INFOID:0000000010867294

Component Description

INFOID:0000000010867295

JMIIA3523ZZ

1.

Refrigerant pressure sensor

2.

Compressor

3.

Condenser

4.

Liquid tank

5.

Expansion valve

6.

Evaporator

A.

Built-in A/C unit assembly

Component

Description

Evaporator

The mist form liquid refrigerant transforms to gas by evaporation by the air conveyed from blower
motor. The air is cooled by the heat by evaporation.

Condenser

Cools refrigerant discharged from compressor, and transforms it to liquid refrigerant.

Compressor

Intakes, compresses, and discharges refrigerant, to circulate refrigerant inside the refrigerant cycle.

Refrigerant pressure sensor

Refer to

HAC-19, "Refrigerant Pressure Sensor"

 (AUTOMATIC AIR CONDITIONING SYSTEM) or

HAC-150, "Refrigerant Pressure Sensor"

 (MANUAL AIR CINDITIONING SYSTEM).

Liquid tank

Eliminates foreign matter in refrigerant, and stores temporarily liquid refrigerant.

Expansion valve

Transforms high-pressure liquid refrigerant to mist form low-pressure liquid refrigerant by drawing
function.

HA-156

< SYSTEM DESCRIPTION >

[TYPE 4]

SYSTEM

SYSTEM

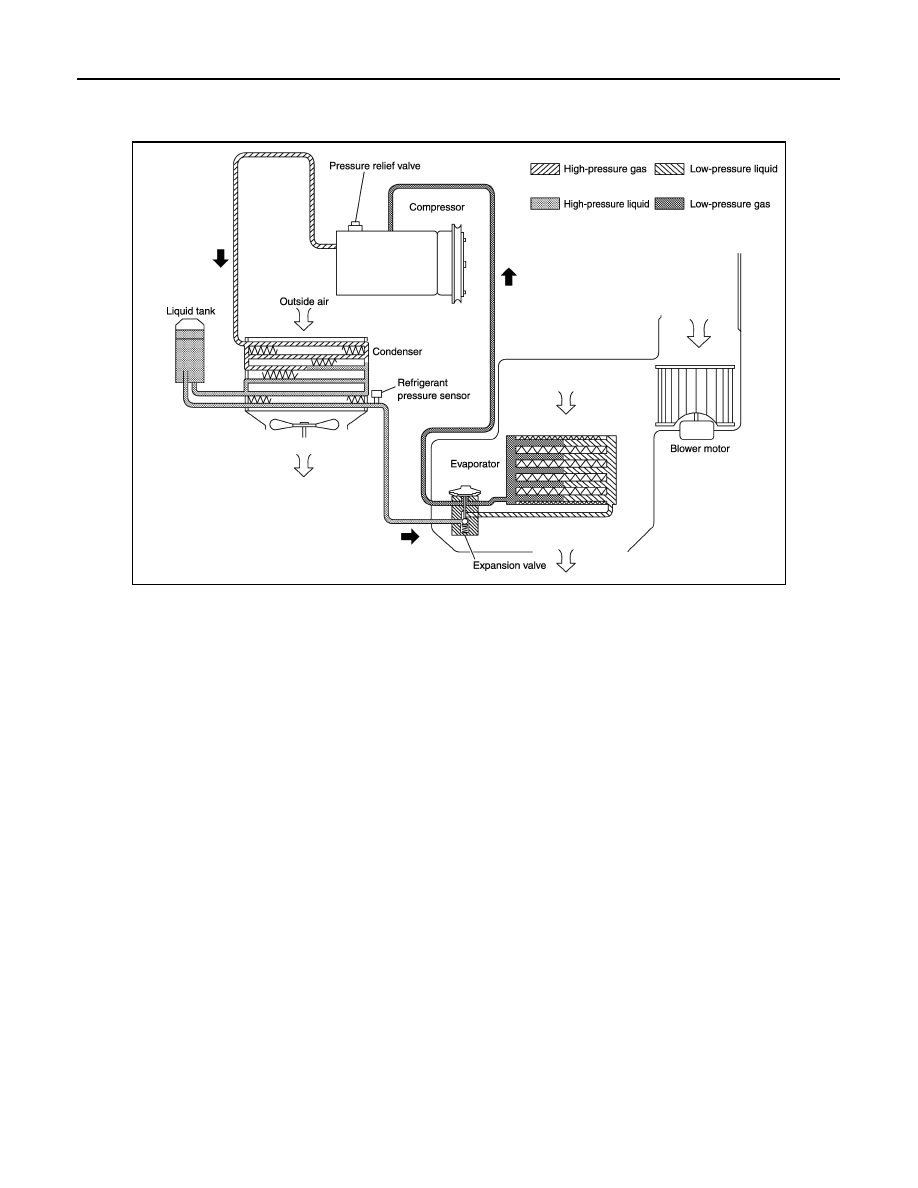

System Diagram

INFOID:0000000010704693

System Description

INFOID:0000000010704694

REFRIGERANT CYCLE

Refrigerant Flow

The refrigerant from the compressor, flows the condenser with liquid tank, the evaporator, and returns to the
compressor. The refrigerant evaporation in the evaporator is controlled by an expansion valve.

Freeze Protection

To prevent evaporator from freezing up, the evaporator air temperature is monitored, and the voltage signal to
the A/C auto amp. makes the A/C relay go OFF and stop the compressor.

REFRIGERANT SYSTEM PROTECTION

Refrigerant Pressure Sensor

• The refrigerant system is protected against excessively high- or low-pressures by the refrigerant pressure

sensor, located on the condenser & liquid tank assembly. The refrigerant pressure sensor detects the pres-
sure inside the refrigerant line and sends the voltage signal to the ECM if the system pressure rises above,
or falls below the specifications.

• ECM turns the A/C relay to OFF and stops the compressor when the high-pressure side detected by refriger-

ant pressure sensor is following conditions;

- Approximately 3,120 kPa (31.2 bar, 31.8 kg/cm

2

, 452 psi) or more (Engine speed is 1,500 rpm or more.)

- Approximately 2,740 kPa (27.4 bar, 27.9 kg/cm

2

, 397 psi) or more (Engine speed is less than 1,500 rpm.)

- Approximately 140 kPa (1.4 bar, 1.2 kg/cm

2

, 17 psi) or less

Pressure Relief Valve

The refrigerant system is also protected by a pressure relief valve, located in the rear head of the compressor.
The release port on the pressure relief valve automatically opens and releases refrigerant into the atmosphere
when the pressure of refrigerant in the system increases to an unusual level [more than 3,800 kPa (38.0 bar,
38.8 kg/cm

2

, 551 psi)].

JPIIA1671GB

DIAGNOSIS AND REPAIR WORKFLOW

HA-157

< BASIC INSPECTION >

[TYPE 4]

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000010704909

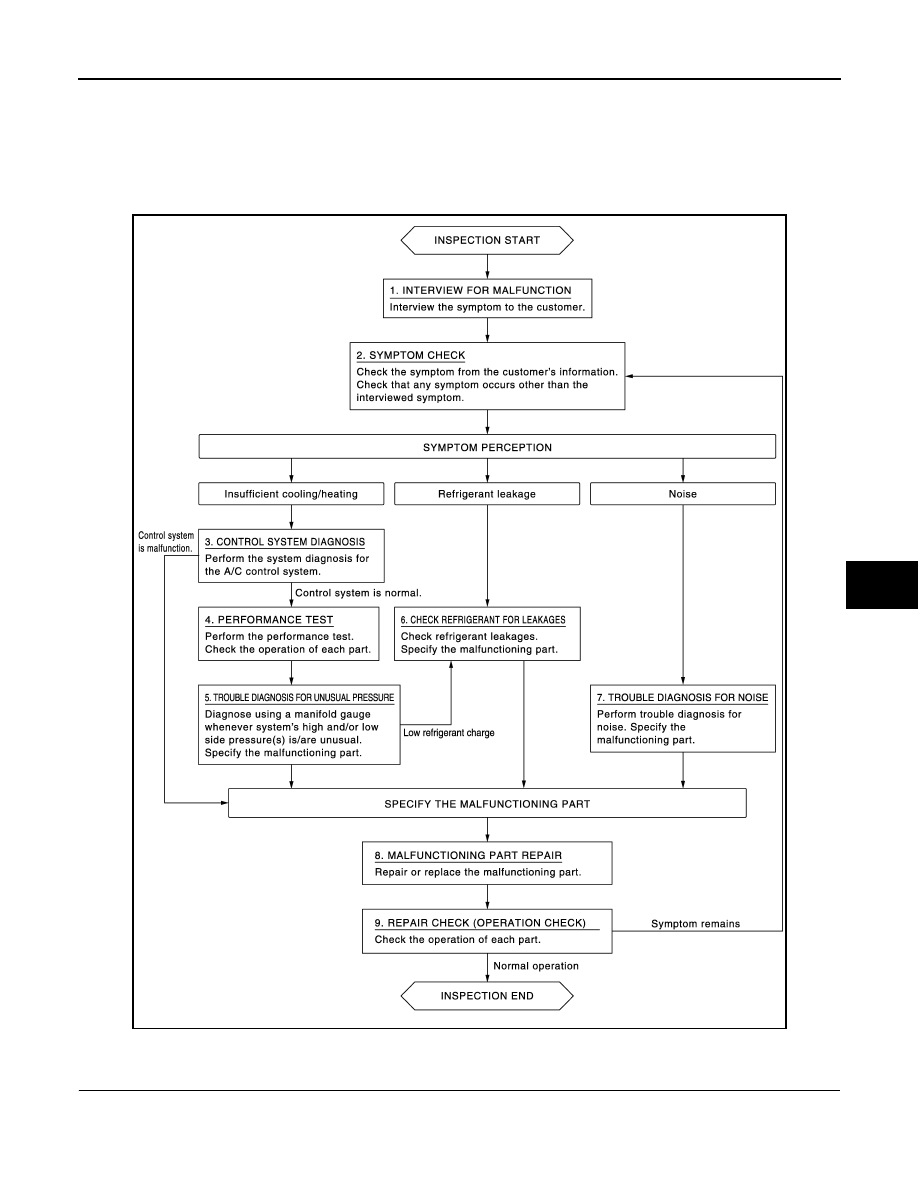

OVERALL SEQUENCE

DETAILED FLOW

1.

INTERVIEW FOR MALFUNCTION

Interview the symptom to the customer.

NNIIA0143GB
