HA-130

< REMOVAL AND INSTALLATION >

[TYPE 3]

COOLER PIPE AND HOSE

Perform lubricant return operation before each refrigeration system disassembly. However, if a large
amount of refrigerant or lubricant is detected, never perform lubricant return operation. Refer to

HA-

114, "Perform Lubricant Return Operation"

.

REMOVAL

1.

Use a refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant. Refer to

HA-112,

"Recycle Refrigerant"

.

2.

Remove front bumper fascia assembly. Refer to

EXT-20, "Removal and Installation"

.

3.

Clean refrigerant pressure sensor and its surrounding area, and then remove dust and rust from refriger-
ant pressure sensor.

CAUTION:

Be sure to clean carefully.

4.

Disconnect refrigerant pressure sensor connector.

5.

Use a adjustable wrench or other tool to hold the refrigerant pressure sensor mounting block, and then
remove the refrigerant pressure sensor from high-pressure pipe 1.

CAUTION:

• Never damage high-pressure pipe 1.
• Cap or wrap the joint of the A/C piping with suitable material such as vinyl tape to avoid the entry

of air.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Replace O-ring with new one. Then apply compressor oil to them when installing.
• Check for leakages when recharging refrigerant. Refer to

HA-110, "Leak Test"

.

CONDENSER

HA-131

< REMOVAL AND INSTALLATION >

[TYPE 3]

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

CONDENSER

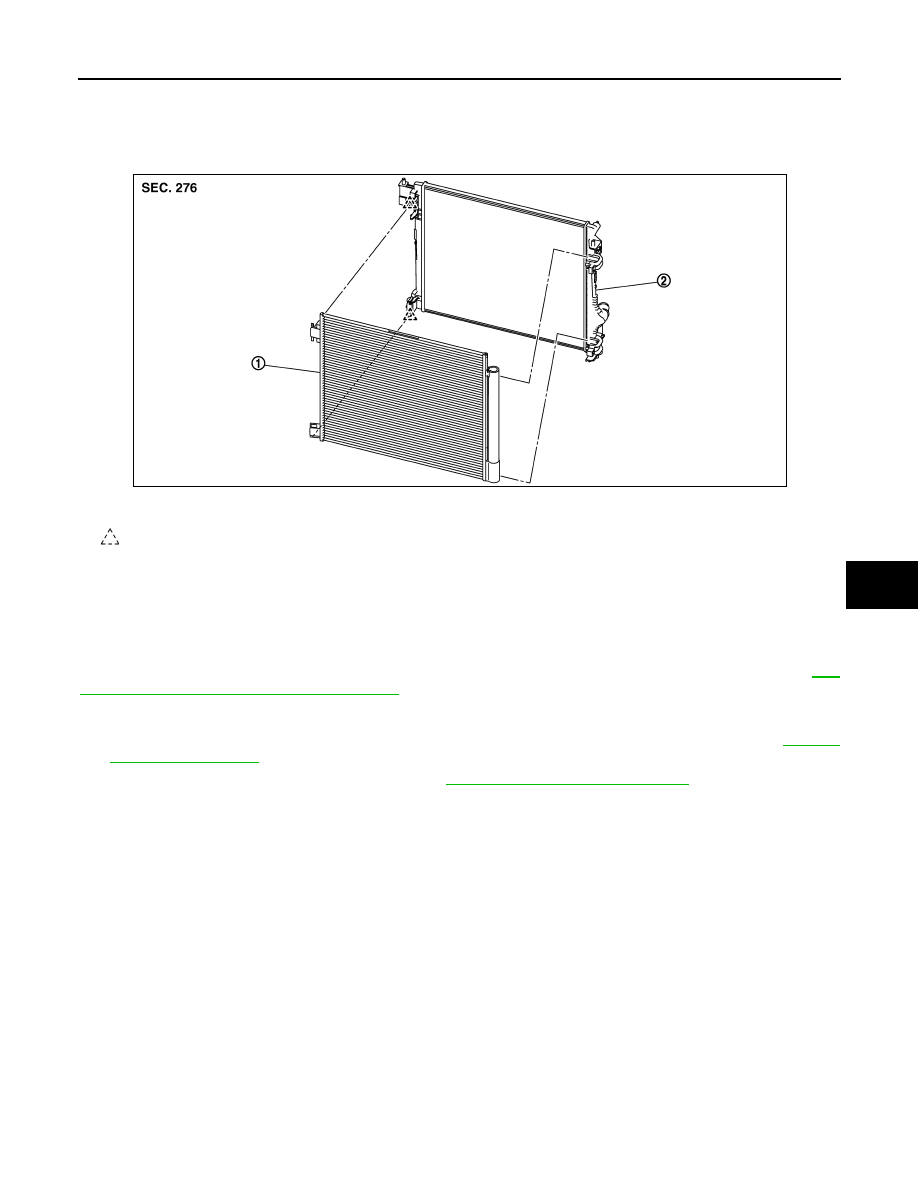

Exploded View

INFOID:0000000010501668

CONDENSER

CONDENSER : Removal and Installation

INFOID:0000000010501669

CAUTION:

Perform lubricant return operation before each refrigeration system disassembly. However, if a large
amount of refrigerant or lubricant is detected, never perform lubricant return operation. Refer to

HA-

114, "Perform Lubricant Return Operation"

.

REMOVAL

1.

Use a refrigerant collecting equipment (for HFC-134a) to discharge the refrigerant. Refer to

HA-112,

"Recycle Refrigerant"

.

2.

Remove front bumper fascia assembly. Refer to

EXT-20, "Removal and Installation"

3.

Remove mounting bolt, and then disconnect high-pressure pipe 1 from the condenser & liquid tank
assembly.

CAUTION:

Cap or wrap the joint of the A/C piping and condenser with suitable material such as vinyl tape to
avoid the entry of air.

4.

Remove mounting bolt, and then disconnect high-pressure pipe 2 from the condenser & liquid tank
assembly.

CAUTION:

Cap or wrap the joint of the A/C piping and condenser with suitable material such as vinyl tape to
avoid the entry of air.

5.

Disengage fixing pawls, and then remove the condenser & liquid tank assembly from the vehicle.

CAUTION:

Never damage core surface of condenser.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Replace O-rings with new ones. Then apply compressor oil to them when installing.

1.

Condenser & liquid tank assembly

2.

Radiator

: Pawl

JMIIA3533ZZ

HA-132

< REMOVAL AND INSTALLATION >

[TYPE 3]

CONDENSER

• Perform lubricant adjusting procedure before installing new condenser. Refer to

HA-114, "Lubricant

Adjusting Procedure for Components Replacement Except Compressor"

.

• Check for leakages when recharging refrigerant. Refer to

HA-110, "Leak Test"

.

A/C UNIT ASSEMBLY

HA-133

< REMOVAL AND INSTALLATION >

[TYPE 3]

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

A/C UNIT ASSEMBLY

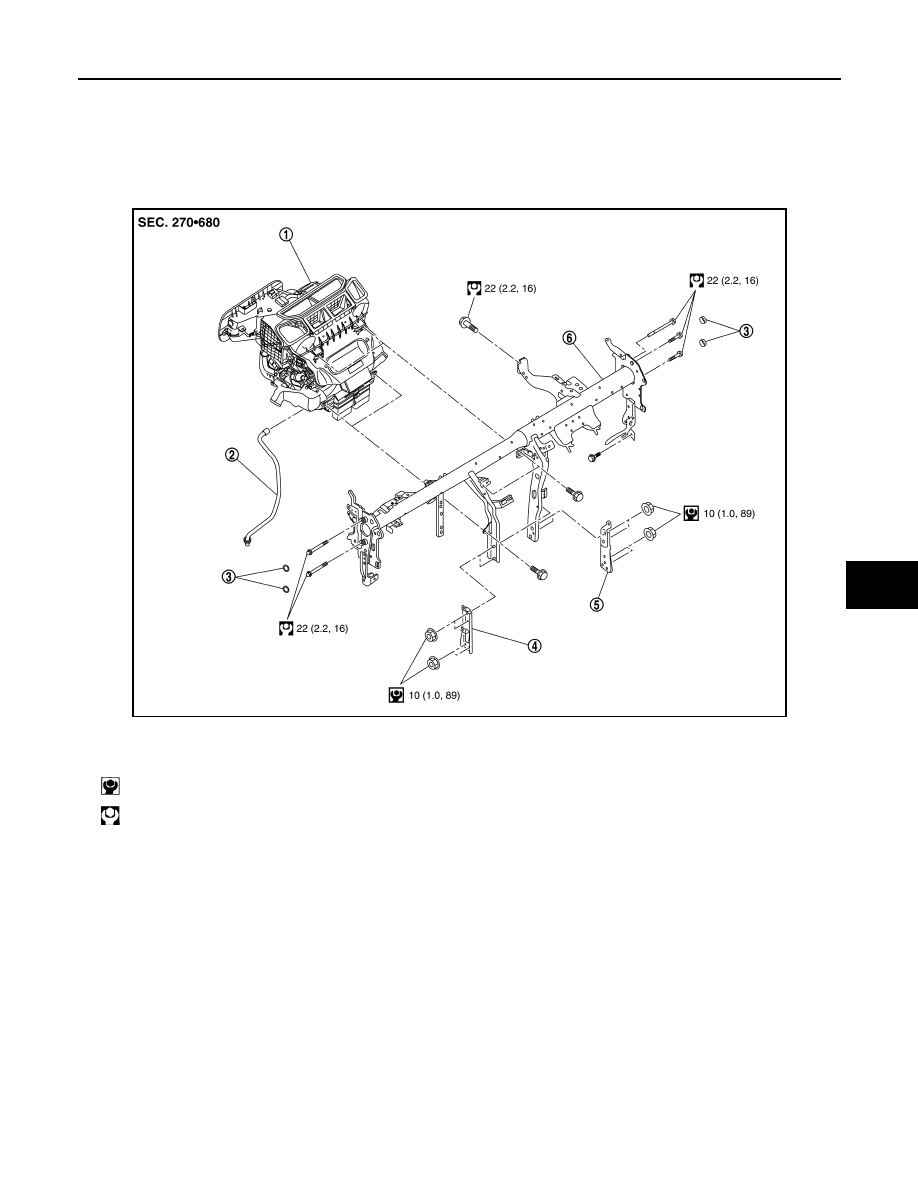

Exploded View

INFOID:0000000010501670

REMOVAL

RHD models

JMIIA3405GB

1.

A/C unit assembly

2.

Drain hose

3.

Cap

4.

Instrument stay LH

5.

Instrument stay RH

6.

Steering member

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)
