Nissan Qashqai J11. Manual - part 1064

HA-82

< REMOVAL AND INSTALLATION >

[TYPE 2]

CONDENSER

• Perform lubricant adjusting procedure before installing new condenser. Refer to

HA-67, "Lubricant

Adjusting Procedure for Compressor Replacement"

.

• Check for leakages when recharging refrigerant. Refer to

HA-63, "Leak Test"

.

A/C UNIT ASSEMBLY

HA-83

< REMOVAL AND INSTALLATION >

[TYPE 2]

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

A/C UNIT ASSEMBLY

Exploded View

INFOID:0000000010501544

REMOVAL

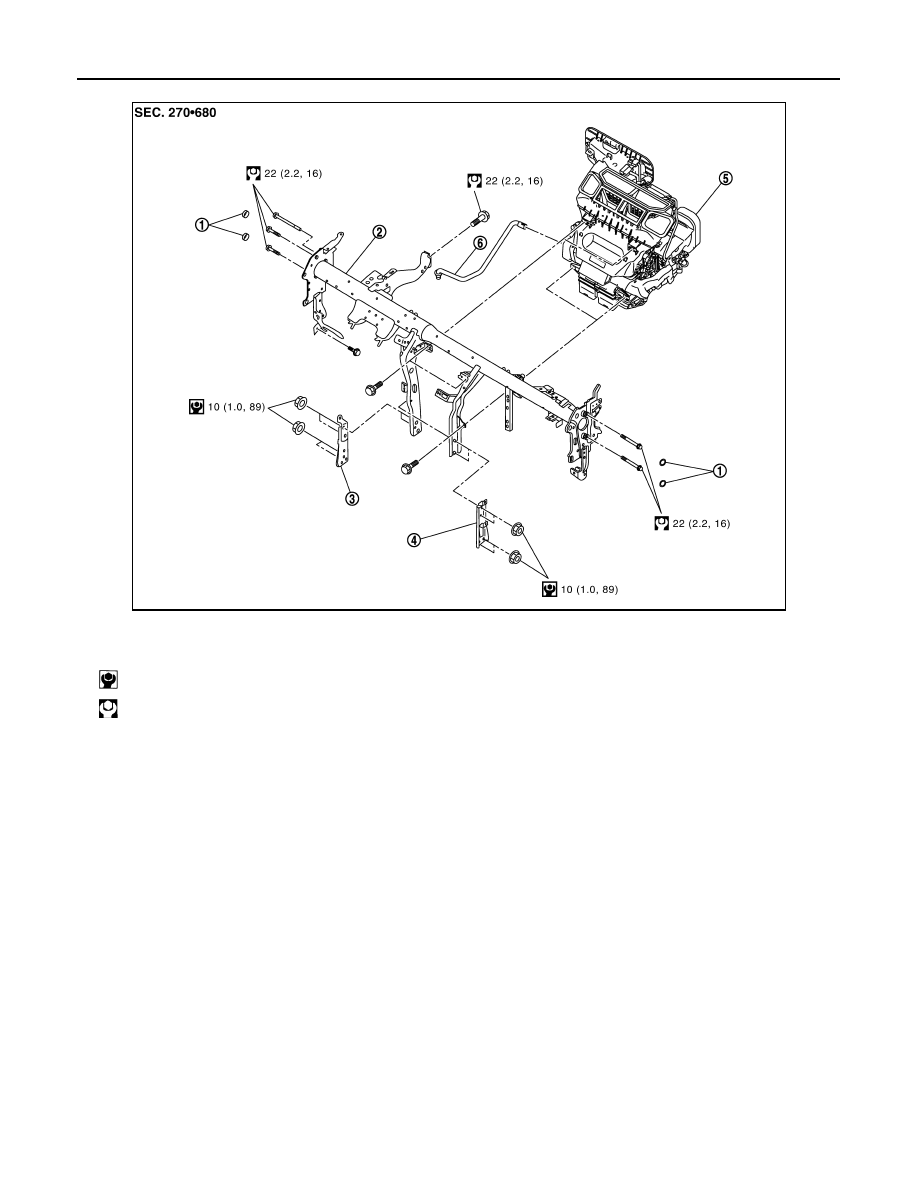

RHD models

JMIIA3405GB

1.

A/C unit assembly

2.

Drain hose

3.

Cap

4.

Instrument stay LH

5.

Instrument stay RH

6.

Steering member

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)

HA-84

< REMOVAL AND INSTALLATION >

[TYPE 2]

A/C UNIT ASSEMBLY

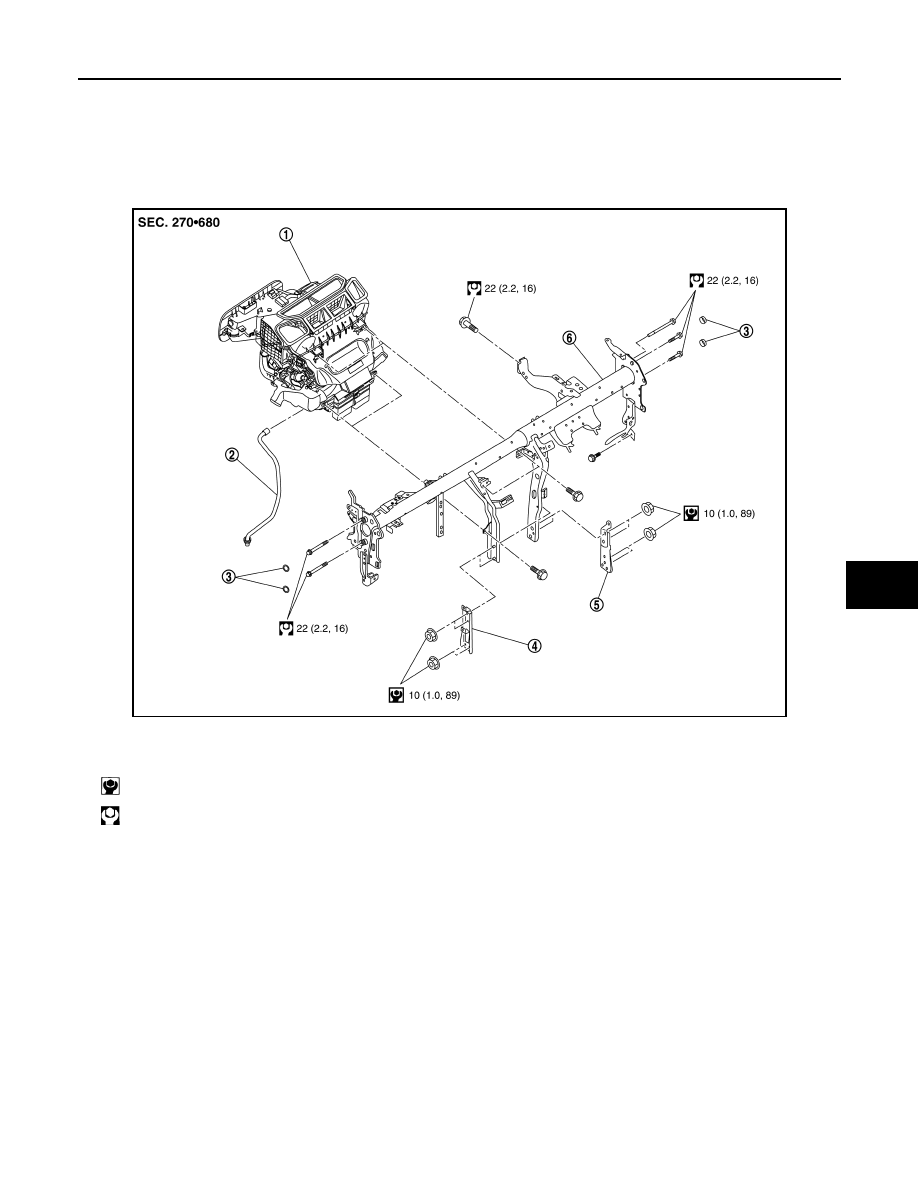

LHD models

DISASSEMBLY

JMIIA3519GB

1.

Cap

2.

Steering member

3.

Instrument stay LH

4.

Instrument stay RH

5.

A/C unit assembly

6.

Drain hose

: N·m (kg-m, in-lb)

: N·m (kg-m, ft-lb)

A/C UNIT ASSEMBLY

HA-85

< REMOVAL AND INSTALLATION >

[TYPE 2]

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

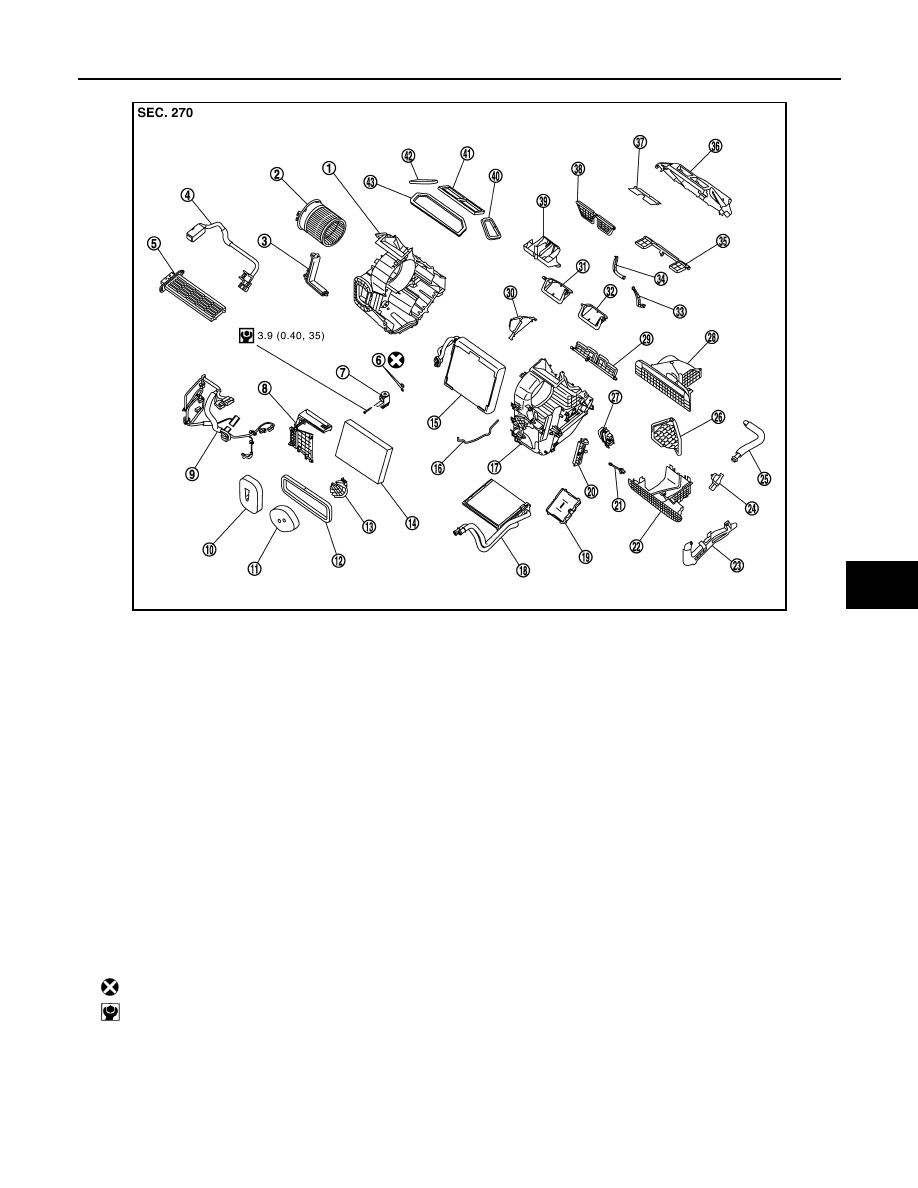

A/C unit

•

*1

: Automatic air conditioning

•

*2

: Manual air conditioning

JMIIA3520GB

1.

Heater & cooling unit case RH

2.

Blower motor assembly

3.

Filter cover RH

4.

Sub harness

5.

PTC heater

6.

O-ring

7.

Expansion valve

8.

Main case center

9.

Sub harness

10. Cooler packing

11.

Heater pipe packing

12. Intake packing

13. Heater pipe clamp

14.

Air conditioner filter

15. Evaporator assembly

16. Case packing

17.

Heater & cooling unit case LH

18. Heater core

19. A/C auto amp.

*1

20.

Filter cover LH

21. Intake sensor

22. Intake box case lower

23.

Heater pipe cover

24. Aspirator

*1

25. Aspirator duct

*1

26.

Intake door

27. Power transistor

*1

Fan control amplifier

*2

28. Intake box case upper

29.

Foot door

30. Plate case center

31. Air mix door RH

32.

Air mix door LH

33. Center ventilator door·center ventila-

tor & defroster door rod

34. Foot door & mode door rod

35.

Side ventilator door

36. Main case rear

37. Mode door

38.

Center ventilator & defroster door

39. Air guide case

40. Side ventilator packing LH

41.

Center ventilator packing

42. Side ventilator packing RH

43. Defroster packing

: Always replace after every disassembly.

: N·m (kg-m, in-lb)
