SERVICE DATA AND SPECIFICATIONS (SDS)

EM-355

< SERVICE DATA AND SPECIFICATIONS (SDS)

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

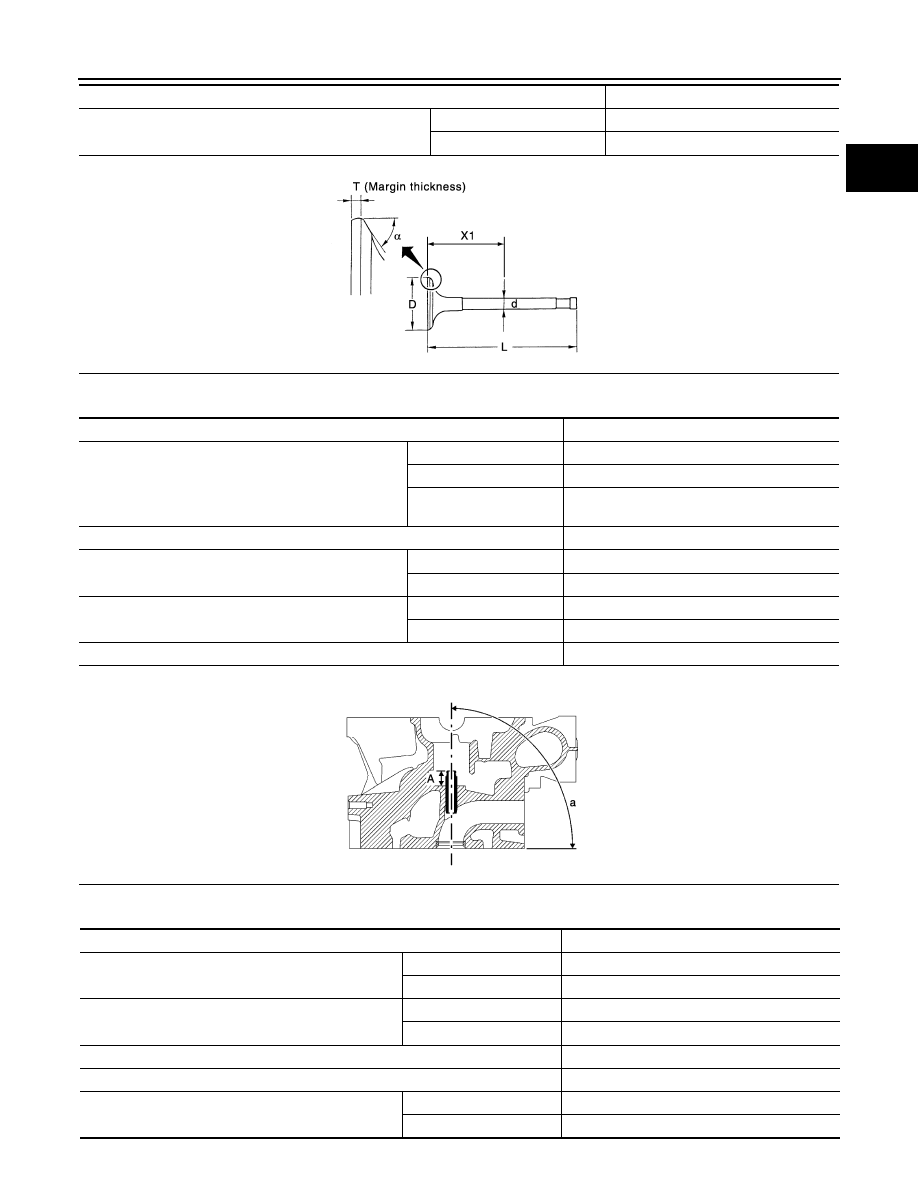

VALVE GUIDE

VALVE SEAT

Valve lift

mm (in)

Intake

8.0 (0.315)

Exhaust

8.6 (0.339)

Items

Standard

E1BIA0064ZZ

Items

Standard

Valve guide

mm (in)

Length

40.35 - 40.65 (1.5886 - 1.6004)

Outer diameter

10.956 - 11.062 (0.4313 - 0.4355)

Inner diameter (Finished
size)

6.000 - 6.018 (0.2362 - 0.2369)

Cylinder head valve guide hole diameter

mm (in)

11.0 (0.4431)

Valve guide clearance

mm (in)

Intake

0.020 - 0.050 (0.0008 - 0.0020)

Exhaust

0.030 - 0.063 (0.0012 - 0.0025)

Projection length “A”

mm (in)

Intake

14.0 (0.5512)

Exhaust

14.2 (0.5591)

Valve guide inclination angle “a”

degree

90

°

00

′

 (90.00

°

)

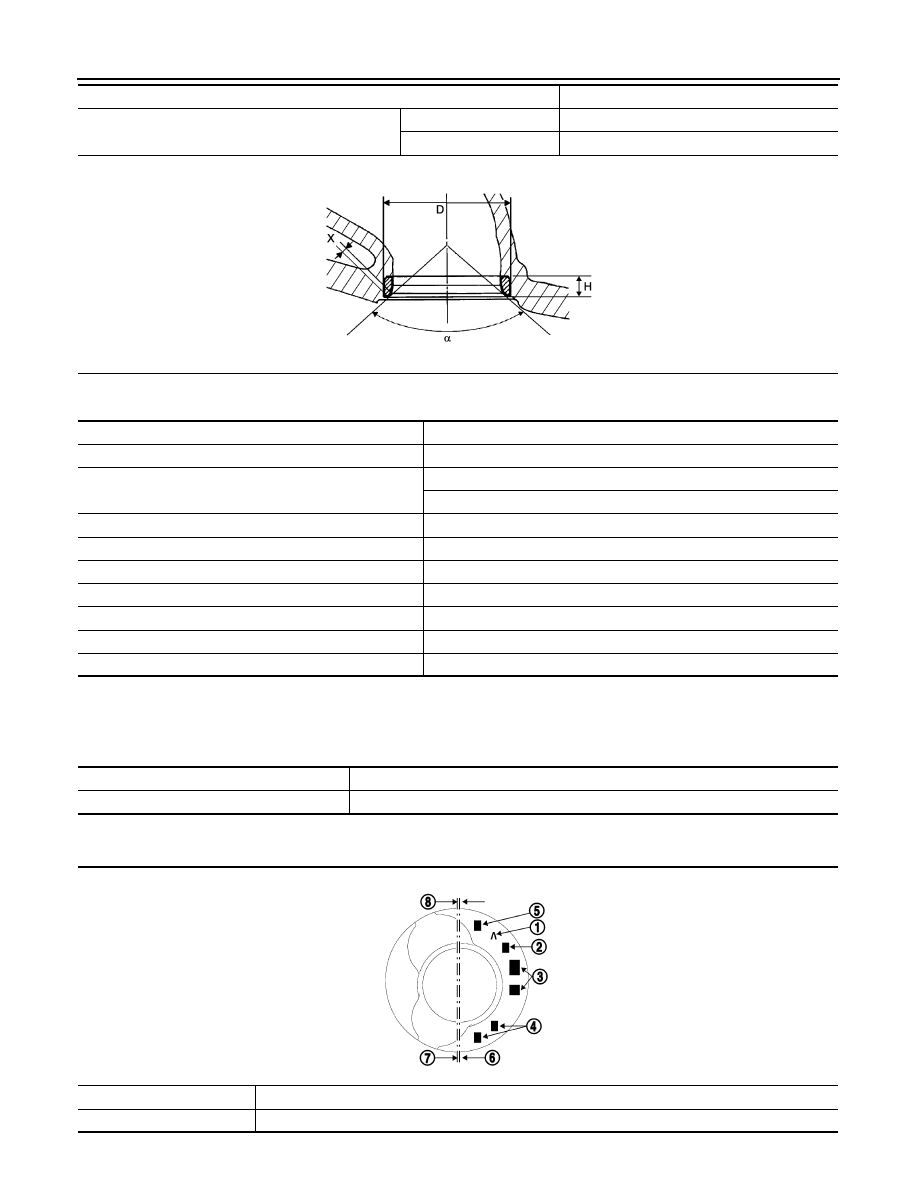

E1BIA0065ZZ

Items

Standard

Cylinder head seat recess diameter “D”

mm (in)

Intake

34.444 - 34.474 (1.3561 - 1.3572)

Exhaust

29.955 - 29.985 (1.1793 - 1.1805)

Valve seat outer diameter “D”

mm (in)

Intake

34.534 - 34.550 (1.3596 - 1.3602)

Exhaust

30.035 - 30.048 (1.1825 - 1.1830)

Angle “

α

”

degree

89

°

30

′

 (89.50

°

)

Contacting width “X”

mm (in)

1.8 (0.071)

Valve seat height “H”

mm (in)

Intake

4.61 - 4.69 (0.1815 - 0.1846)

Exhaust

5.63 - 5.71 (0.2217 - 0.2248)

EM-356

< SERVICE DATA AND SPECIFICATIONS (SDS)

[K9K]

SERVICE DATA AND SPECIFICATIONS (SDS)

VALVE SPRING

Cylinder Block

INFOID:0000000010282111

CYLINDER BLOCK

Unit: mm (in)

PISTON MARKING

Cylinder head seat recess depth “H”

mm (in)

Intake

6.0 (0.236)

Exhaust

7.0 (0.276)

Items

Standard

E1BIA0066ZZ

Items

Standard

Free height

mm (in)

43.31 (1.7051)

Pressure                                N (kg, lb) at height mm (in)

218 - 242 (22.2 - 24.7, 49.0 - 54.4) at 33.80 (1.3307)

477 - 523 (48.7 - 53.3, 107.2 - 117.6) at 24.80 (0.9764)

Spring squareness

mm (in)

1.2 (0.047)

Full pressed height

mm (in)

23.40 (0.9213)

Diameter of wire

mm (in)

3.45 (0.1358)

Outer diameter at the top of spring

mm (in)

20.8 - 21.2 (0.8189 - 0.8346)

Outer diameter at the bottom of spring

mm (in)

25.5 - 25.9 (1.0039 - 1.0197)

Inner diameter at the top of spring

mm (in)

13.9 - 14.3 (0.5472 - 0.5630)

Inner diameter at the bottom of spring

mm (in)

18.6 - 19.0 (0.7323 - 0.7480)

Items

Standard

Cylinder block top surface clearance

Less than 0.05 (0.002)

1

Direction of fitting of the piston mark towards the flywheel

2

Height between the piston pin and the top of the piston (see table below).

MBIB0337E

SERVICE DATA AND SPECIFICATIONS (SDS)

EM-357

< SERVICE DATA AND SPECIFICATIONS (SDS)

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

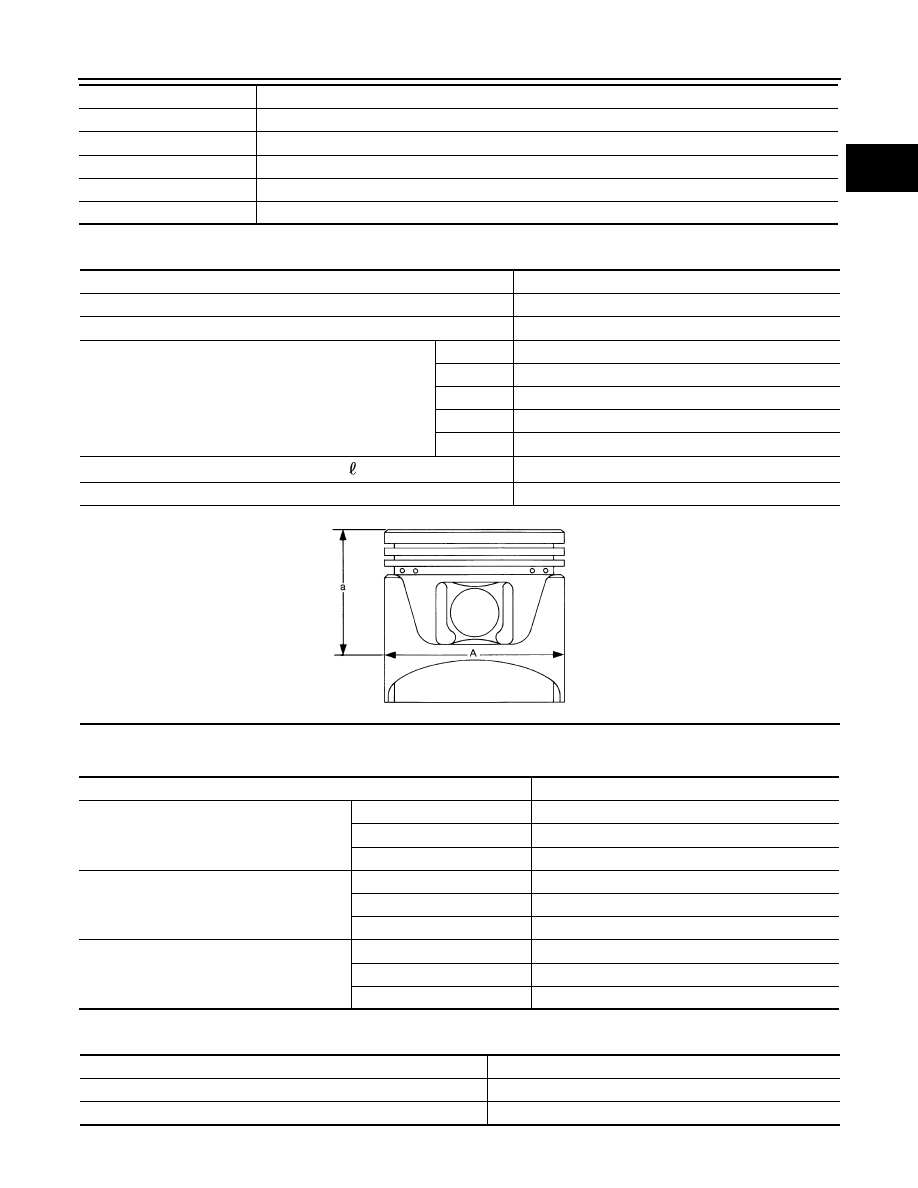

PISTON

Unit: mm (in)

PISTON RING

Unit: mm (in)

PISTON PIN

Unit: mm (in)

3

Used by the supplier only

4

Used by the supplier only

5

Used by the supplier only

6

Piston axis of symmetry

7

Piston pin hole axis

8

Offset between the hole axis (7) and the piston's axis of symmetry (6) is 0.3 mm (0.012 in)

Items

Standard

Piston skirt diameter “A”

mm (in)

75.938 - 75.952 (2.9897 - 2.9902)

“a” dimension

mm (in)

56.0 (2.205)

Piston pin hole diameter

mm (in)

Category J

41.605 - 41.646 (1.6380 - 1.6396)

Category K

41.647 - 41.688 (1.6396 - 1.6413)

Category L

41.689 - 41.730 (1.6413 - 1.6429)

Category M

41.731 - 41.772 (1.6429 - 1.6446)

Category N

41.773 - 41.814 (1.6446 - 1.6462)

Capacity of combustion chamber

m

 (Imp fl oz)

19.89 - 20.39 (0.78 - 0.80)

Piston protrusion

mm (in)

0.023 - 0.281 (0.009 - 0.011)

SEM882E

Items

Standard

Thickness

Top

1.97 - 1.99 (0.0776 - 0.0783)

2nd

1.97 - 1.99 (0.0776 - 0.0783)

Oil ring

2.47 - 2.49 (0.0972 - 0.0980)

Side clearance

Top

0.10 - 0.12 (0.0039 - 0.0047)

2nd

0.08 - 0.10 (0.0031 - 0.0039)

Oil ring

0.03 - 0.07 (0.0011 - 0.0027)

Piston ring end gap

Top

0.20 - 0.35 (0.0079 - 0.0138)

2nd

0.70 - 0.90 (0.0276 - 0.0354)

Oil ring

0.25 - 0.50 (0.0098 - 0.0197)

Items

Standard

Length

57.97 - 60.0 (2.282 - 2.362)

Piston pin outer diameter

25.995 - 26.000 (1.0234 - 1.0236)

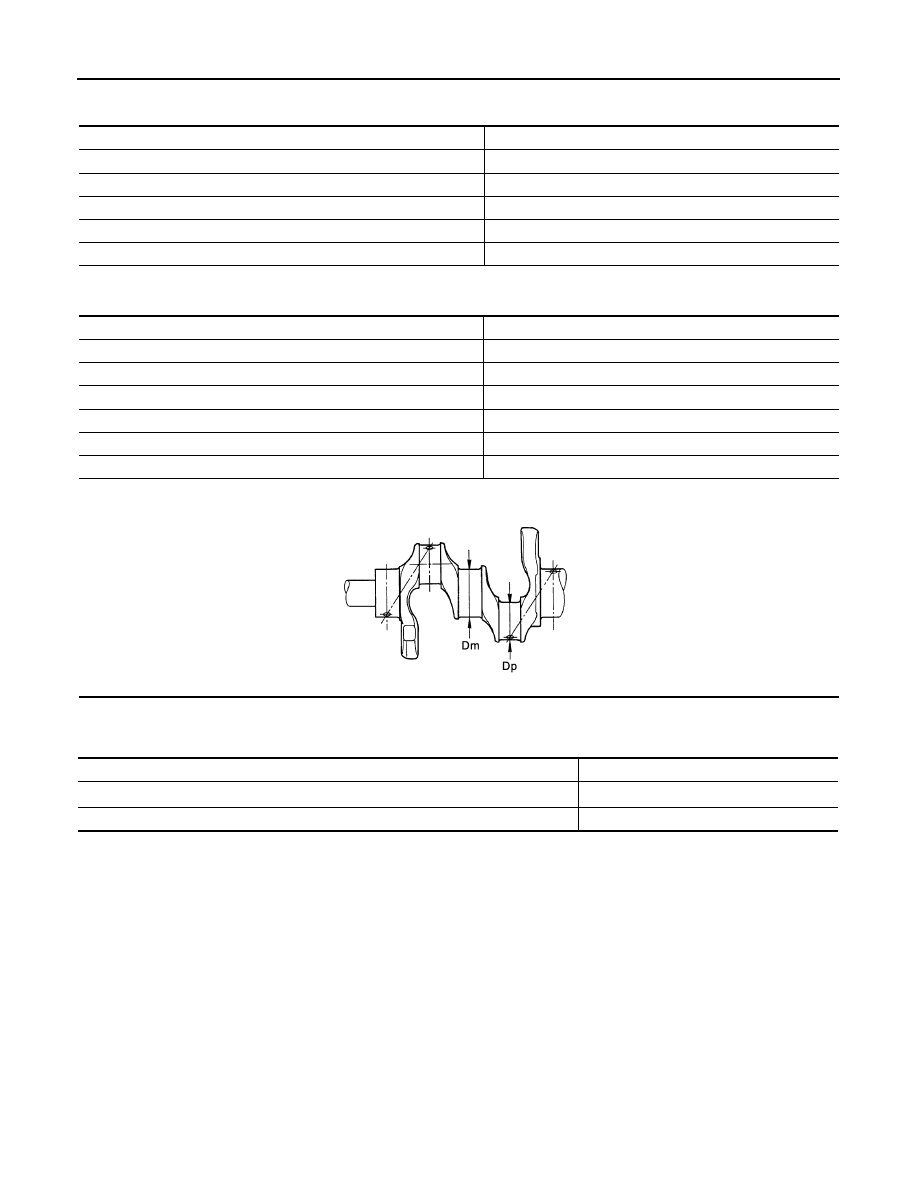

EM-358

< SERVICE DATA AND SPECIFICATIONS (SDS)

[K9K]

SERVICE DATA AND SPECIFICATIONS (SDS)

CONNECTING ROD

Unit: mm (in)

CRANKSHAFT

Unit: mm (in)

Turbocharger

INFOID:0000000010282112

Items

Standard

Center distance

133.75 (5.266)

Connecting rod small end diameter (with bush)

26.013 - 26.025 (1.0241 - 1.0246)

Connecting rod big end diameter

47.610 - 47.627 (1.8744 - 1.8751)

Big end longitudinal play

0.205 - 0.467 (0.0081 - 0.0184)

Big end radial play

0.016 - 0.07 (0.0006 - 0.0027)

Items

Standard

Main journal diameter “Dm”

47.99 - 48.01 (1.8894 - 1.8902)

Pin journal diameter “Dp”

43.96 - 43.98 (1.7307 - 1.7315)

Maximum run-out allowed on the flywheel bearing face of the flywheel

0.6 (0.024)

Lateral play (without lateral shim)

0.045 - 0.252 (0.0018 - 0.0099)

Lateral play (with lateral shim)

0.045 - 0.852 (0.0018 - 0.0335)

Journal radial play

0.010 - 0.054 (0.0004 - 0.0021)

E1BIA0067ZZ

Items

Standard

Regulation value operating vacuum

kPa (bar, kg/cm

2

, psi)

40 (0.4, 0.4, 5.8)

Valve rod moving length

mm (in)

1.4 (0.055)
