Nissan Qashqai J11. Manual - part 1001
SBC-6
< SYSTEM DESCRIPTION >
SYSTEM
SYSTEM
SEAT BELT WARNING LAMP CONTROL SYSTEM
SEAT BELT WARNING LAMP CONTROL SYSTEM : System Description
INFOID:0000000010323900

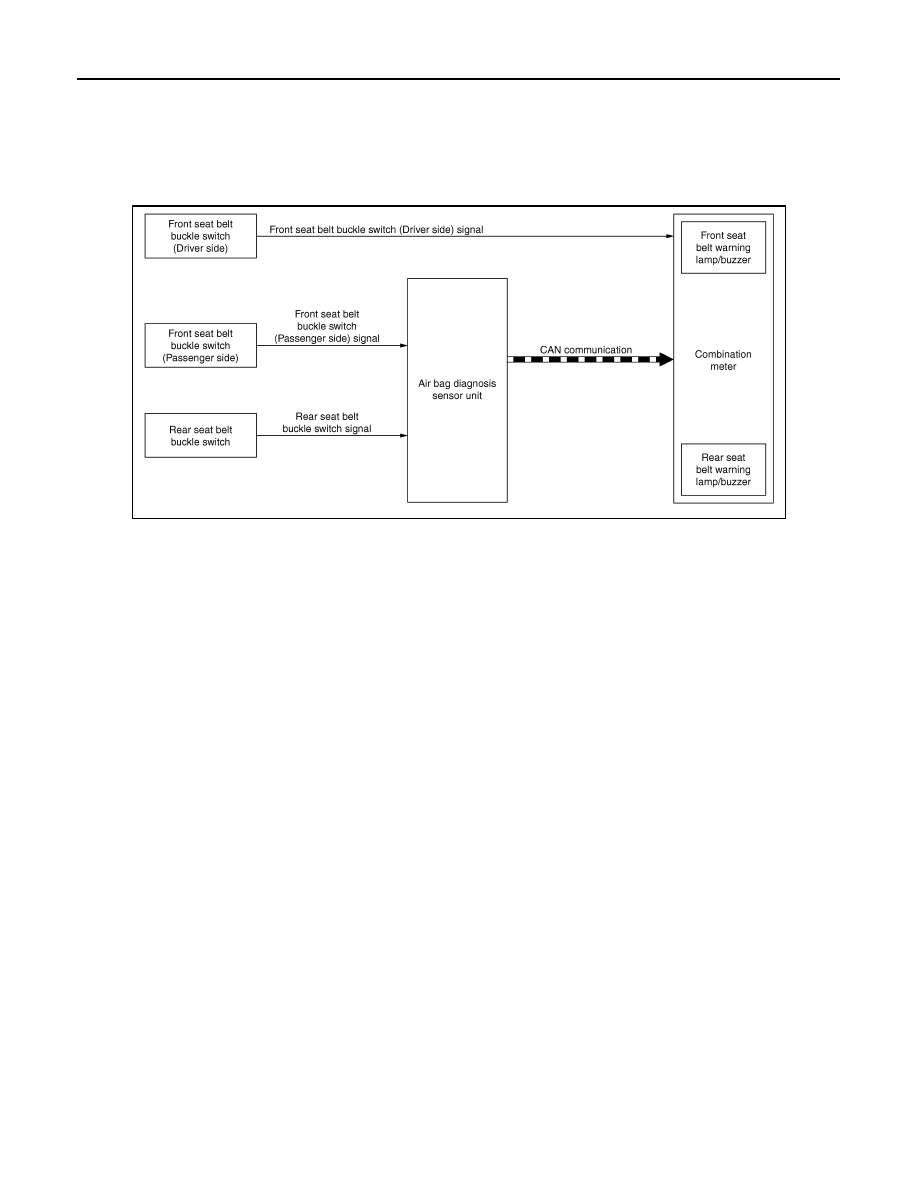

SYSTEM DIAGRAM
SEAT BELT WARNING LAMP OPERATION
Seat belt warning lamp on combination meter turns ON during a period when ignition switch is turns ON until
front seat belts are fastened. Seat belt warning lamp turns OFF when front seat belt is fastened. Seat belt
warning lamp turns ON again when front seat belt is unfastened.
REAR SEAT BELT WARNING LAMP OPEATION
Seat belt warning is displayed on information display for approximately 35 seconds when the following condi-
tions.
• Ignition switch is ON and engine starts running.
• Rear seat belt buckle switch is turned ON (rear seat belt is not fastened) and vehicle speed is 15km/h (9.3
MPH) or more.
Seat belt warning is canceled when the following conditions.
• Ignition switch is turned OFF.
• Approximately 35 seconds are passed since rear seat belt warning is displayed.
SEAT BELT WARNING CHIME OPERATION
Front seat belt warning chime sounds for approximately 90 seconds when the vehicle speed is approximately
15 km/h (9.3 MPH) or more while front seat belts are not fastened. Front seat belt warning chime stops when
front seat belt is fastened.
Rear seat belt warning chime sounds for approximately 50ms after rear seat belt warning is displayed.
JMHIA2902GB
