INJECTION TUBE AND FUEL INJECTOR

EM-295

< REMOVAL AND INSTALLATION >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

Inspection

INFOID:0000000010287267

INSPECTION AFTER INSTALLATION

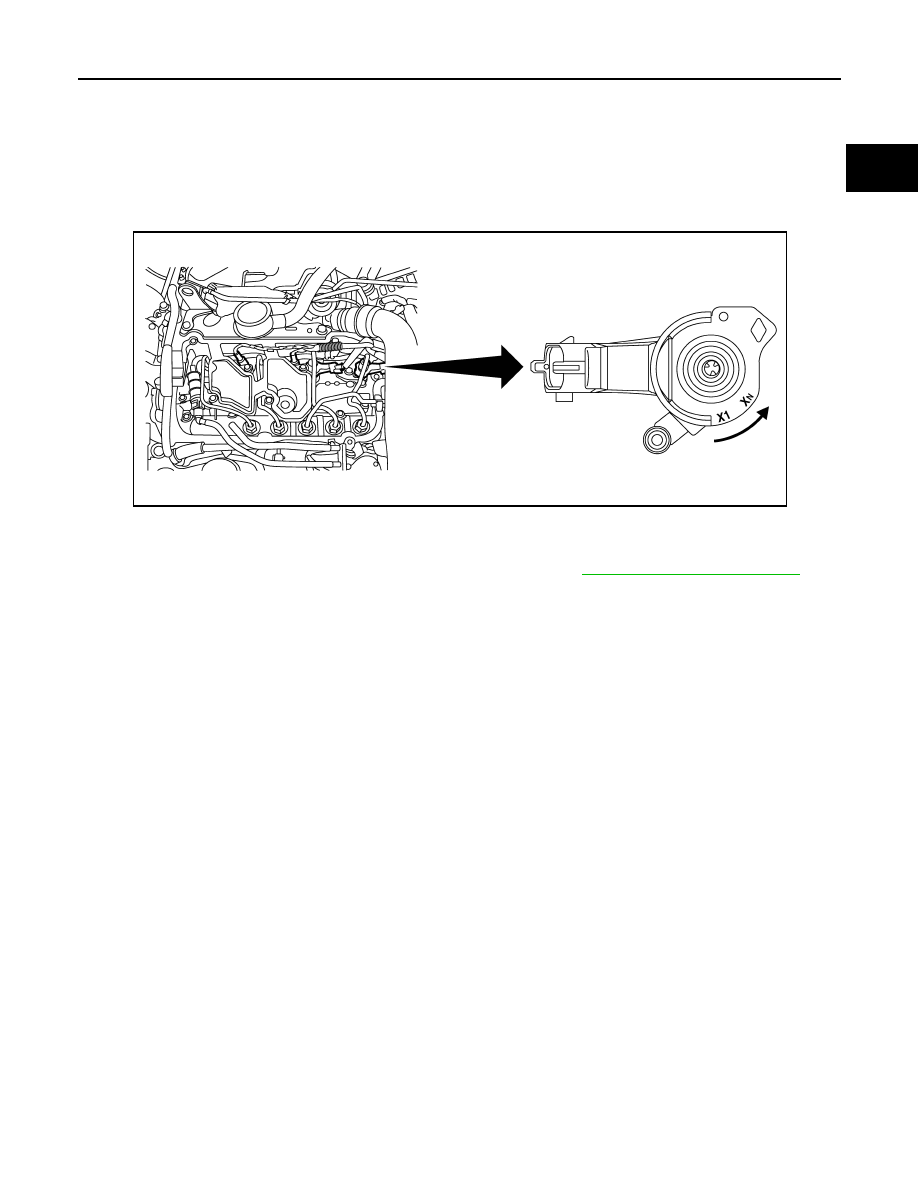

• When replacing fuel injector, note the injector IMA code and the corresponding cylinder number.

NOTE:
IMA codes are from X1 to XN.

- Program the injectors using diagnostic tool.

• Start the engine and check for fuel leak for one minute after starting.

CAUTION:

After any operation, check that there are no diesel leaks. Refer to

FL-30, "General Precautions"

.

E1BIA0649ZZ

EM-296

< REMOVAL AND INSTALLATION >

[K9K]

OIL PAN

OIL PAN

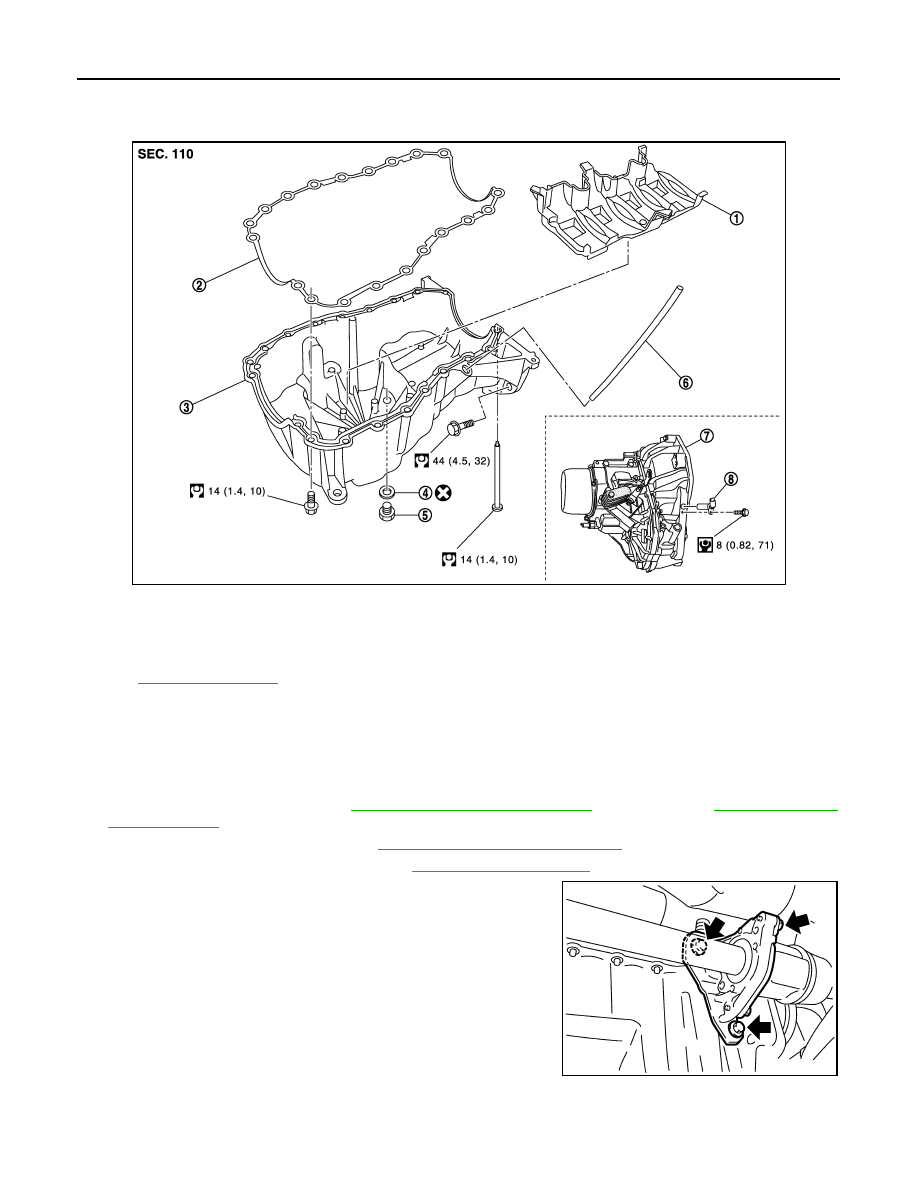

Exploded View

INFOID:0000000010287212

Refer to

GI-4, "Components"

 for symbol marks in the figure.

Removal and Installation

INFOID:0000000010287213

REMOVAL

CAUTION:

Never drain engine oil when the engine is hot to avoid the danger of being scalded.

1.

Remove RH front wheel. Refer to

WT-60, "Removal and Installation"

. (with TPMS) or

WT-73, "Removal

and Installation"

 (without TPMS).

2.

Remove fender protector RH. Refer to

EXT-32, "Removal and Installation"

.

3.

Remove engine mounting bracket. Refer to

EM-318, "Exploded View"

.

4.

Remove center bearing bracket as shown.

JPBIA3125GB

1.

Baffle plate

2.

Gasket

3.

Oil pan

4.

O-ring

5.

Drain plug

6.

Oil level gauge guide

7.

Transaxle

8.

Crankshaft position sensor (POS)

MBIB1037E

OIL PAN

EM-297

< REMOVAL AND INSTALLATION >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

5.

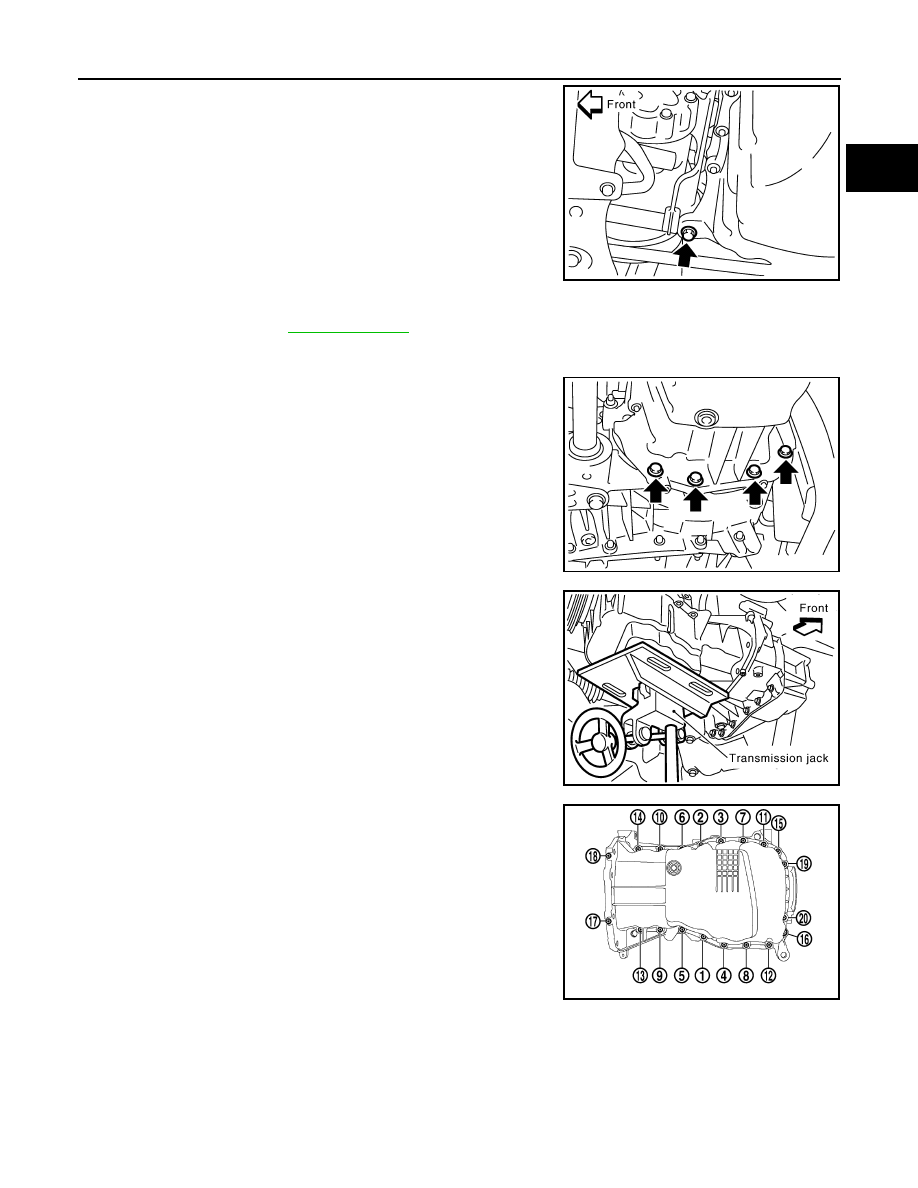

Remove A/C compressor bracket mounting bolt as shown.

6.

Remove oil level gauge guide.

7.

Drain engine oil. Refer to

LU-36, "Draining"

.

CAUTION:

Perform when engine is cold.

8.

Remove oil pan and transaxle joint bolts.

9.

Support the engine bottom of the oil pan with a transmission jack
etc.

10. Remove oil pan bolt reverse order as shown.

MBIB1038E

MBIB1039E

MBIB0575E

MBIB1257E

EM-298

< REMOVAL AND INSTALLATION >

[K9K]

OIL PAN

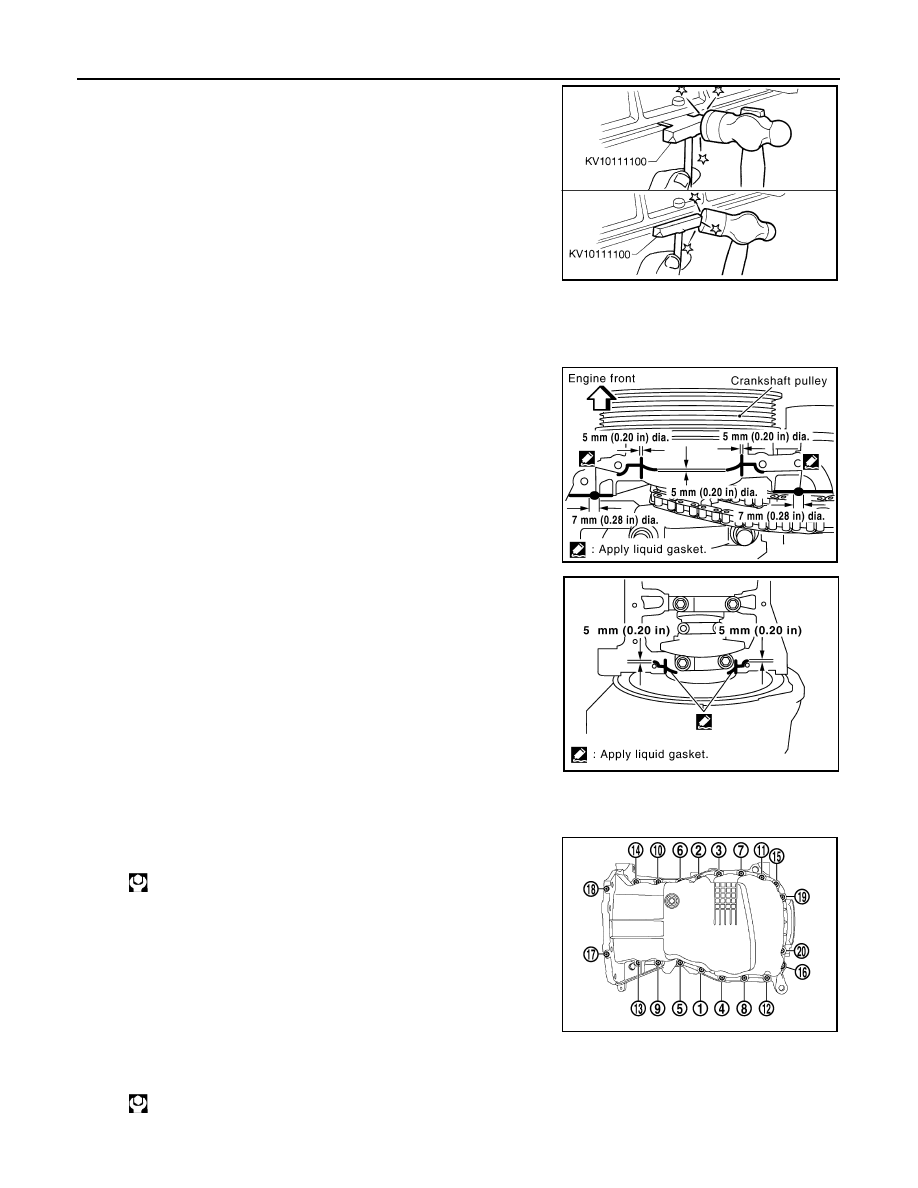

• Insert seal cutter (special service tool) between upper oil pan

and cylinder block. Slide tool by tapping on the side of the tool
with a hammer.

CAUTION:

Exercise care never damage mating surface.

11. Remove oil pan and baffle plate.

INSTALLATION

• Install in the reverse order of removal paying attention to the following.

1.

Apply liquid gasket as shown.
• Use Genuine Liquid Gasket or equivalent.

2.

Install baffle plate.

3.

Install oil pan.
• Tighten the mounting bolts of oil pan on the clutch housing without locking.
• Tighten the bolts in the numerical order shown in the figure.

• Tighten the mounting bolts of oil pan on the clutch housing.

4.

At least 30 minutes after oil pan is installed, pour engine oil.

SEM365EA

MBIB0593E

MBIB0594E

: 14 N·m (1.4 kg-m, 10 ft-lb)

MBIB1257E

: 44 N·m (4.5 kg-m, 10 ft-lb)
