Nissan Qashqai J11. Manual - part 50





DRIVE BELTS

EM-139

< PERIODIC MAINTENANCE >

[MR20DD]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

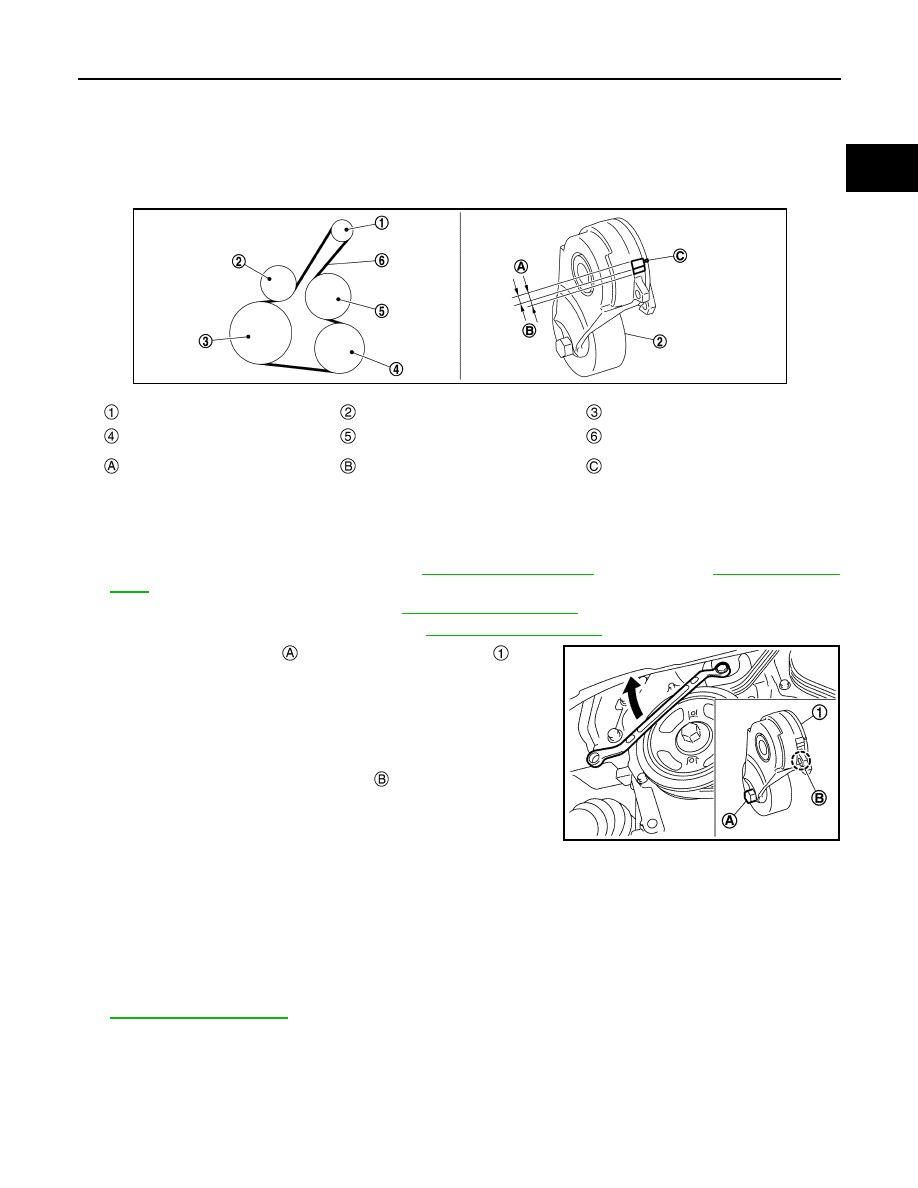

PERIODIC MAINTENANCE

DRIVE BELTS

Exploded View

INFOID:0000000010715455

Removal and Installation

INFOID:0000000010715456

REMOVAL

1.

Remove front wheel and tire (RH). Refer to

WT-60, "Exploded View"

 (with TPMS) or

WT-73, "Exploded

View"

 (without TPMS).

2.

Remove front fillet molding (RH). Refer to

EXT-37, "Exploded View"

.

3.

Remove front fender protector (RH). Refer to

EXT-31, "Exploded View"

.

4.

Hold the hexagonal part

 of drive belt auto-tensioner

 with a

wrench securely. Then move the wrench handle in the direction
of arrow (loosening direction of tensioner).

CAUTION:

Avoid placing hand in a location where pinching may occur
if the holding tool accidentally comes off.

5.

Insert a rod approximately 6 mm (0.24 in) in diameter such as
short-length screwdriver into the hole

 of the retaining boss to

drive belt auto-tensioner.
• Keep drive belt auto-tensioner pulley arm locked after drive

belt is removed.

INSTALLATION

CAUTION:

• Confirm drive belt is completely set to pulleys.
• Check for engine oil, working fluid and engine coolant are not adhered to drive belt and each pulley

groove.

1.

Release drive belt auto-tensioner, and apply tension to drive belt.

2.

Turn crankshaft pulley clockwise several times to equalize tension between each pulley.

3.

Confirm tension of drive belt at indicator (notch on fixed side) is within the possible use range. Refer to

EM-139, "Exploded View"

.

Alternator

Drive belt auto-tensioner

Crankshaft pulley

A/C compressor

Water pump

Drive belt

Possible use range

Range when new drive belt is in-
stalled

Indicator

JPBIA4302ZZ

JPBIA4351ZZ

EM-140

< PERIODIC MAINTENANCE >

[MR20DD]

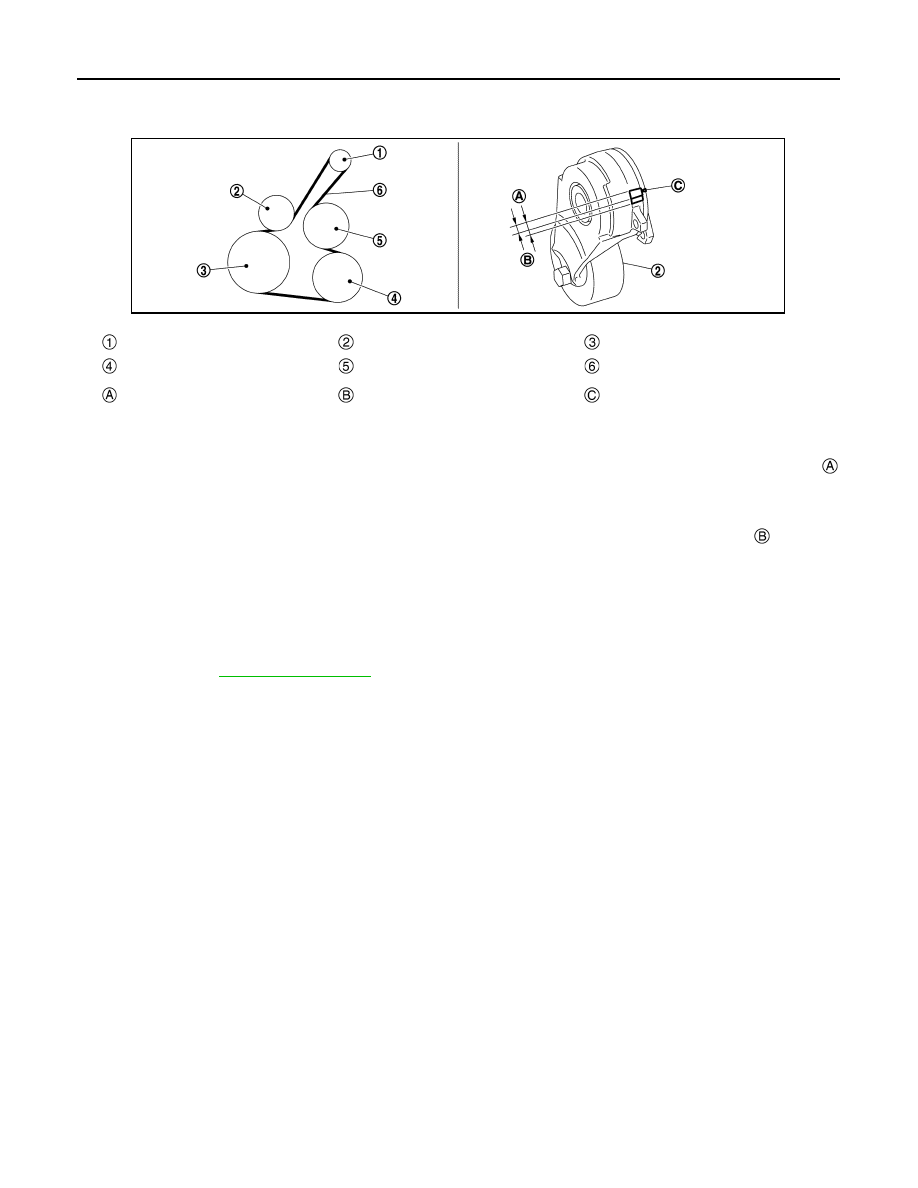

DRIVE BELTS

Inspection

INFOID:0000000010715457

WARNING:

Perform this step when engine is stopped.
• Check that the indicator (notch on fixed side) of drive belt auto-tensioner is within the possible use range

in the figure.
NOTE:
• Check the drive belt auto-tensioner indication when the engine is cold.
• When new drive belt is installed, the indicator (notch on fixed side) should be within the range

 in the fig-

ure.

• Visually check entire drive belts for wear, damage or cracks.
• If the indicator (notch on fixed side) is out of the possible use range or belts is damaged, replace belts.

Adjustment

INFOID:0000000010715458

Alternator

Drive belt auto-tensioner

Crankshaft pulley

A/C compressor

Water pump

Drive belt

Possible use range

Range when new drive belt is in-
stalled

Indicator

JPBIA4302ZZ

Refer to

EM-248, "Drive Belt"

.

AIR CLEANER FILTER

EM-141

< PERIODIC MAINTENANCE >

[MR20DD]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

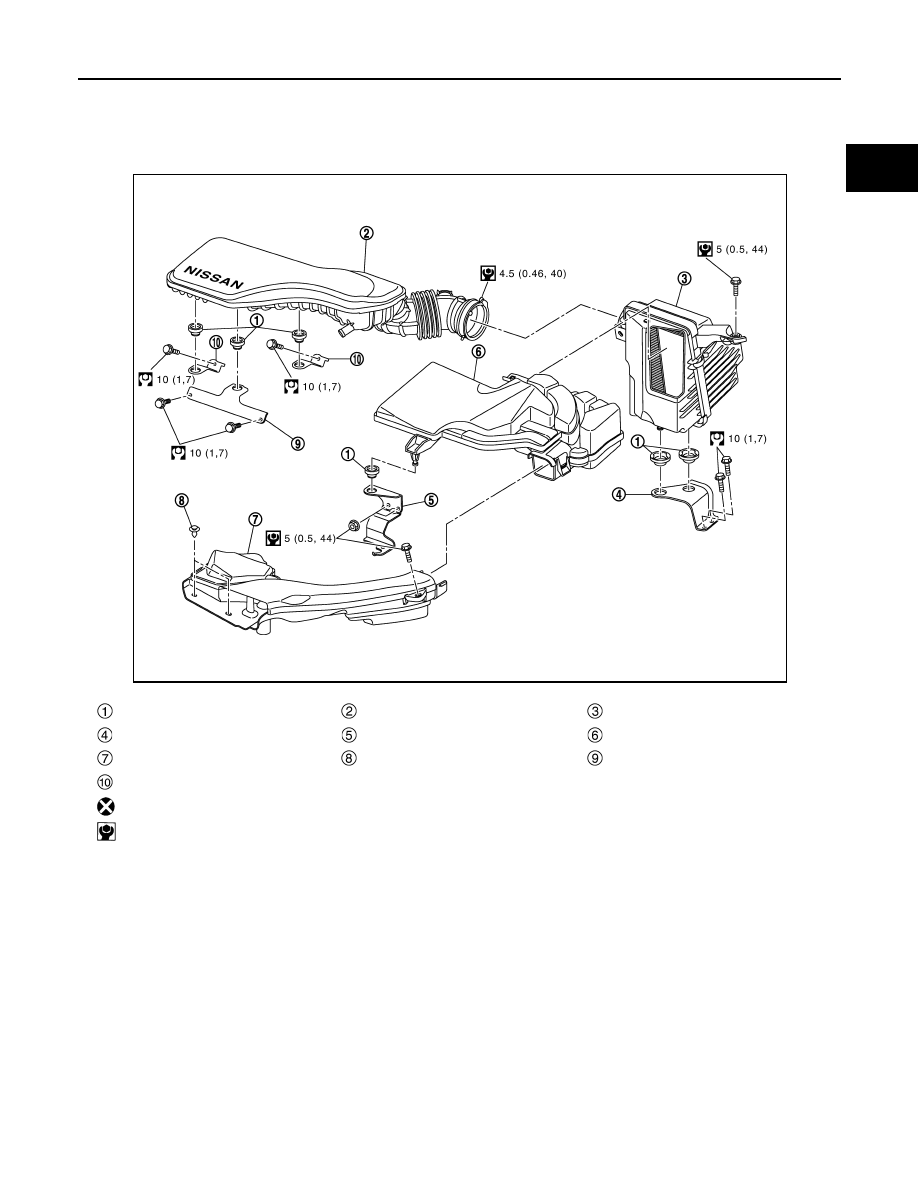

AIR CLEANER FILTER

Exploded View

INFOID:0000000010715459

Removal and Installation

INFOID:0000000010715460

REMOVAL

1.

Release air resonator pawls and remove to upper direction.

Mounting rubber

Air duct assembly

Air cleaner filter unit assembly

Air cleaner filter unit bracket

Air resonator bracket

Air Resonator

Air duct inlet

Clip

Air duct assembly bracket 1

Air duct assembly bracket 2

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

E1BIA1175GB

EM-142

< PERIODIC MAINTENANCE >

[MR20DD]

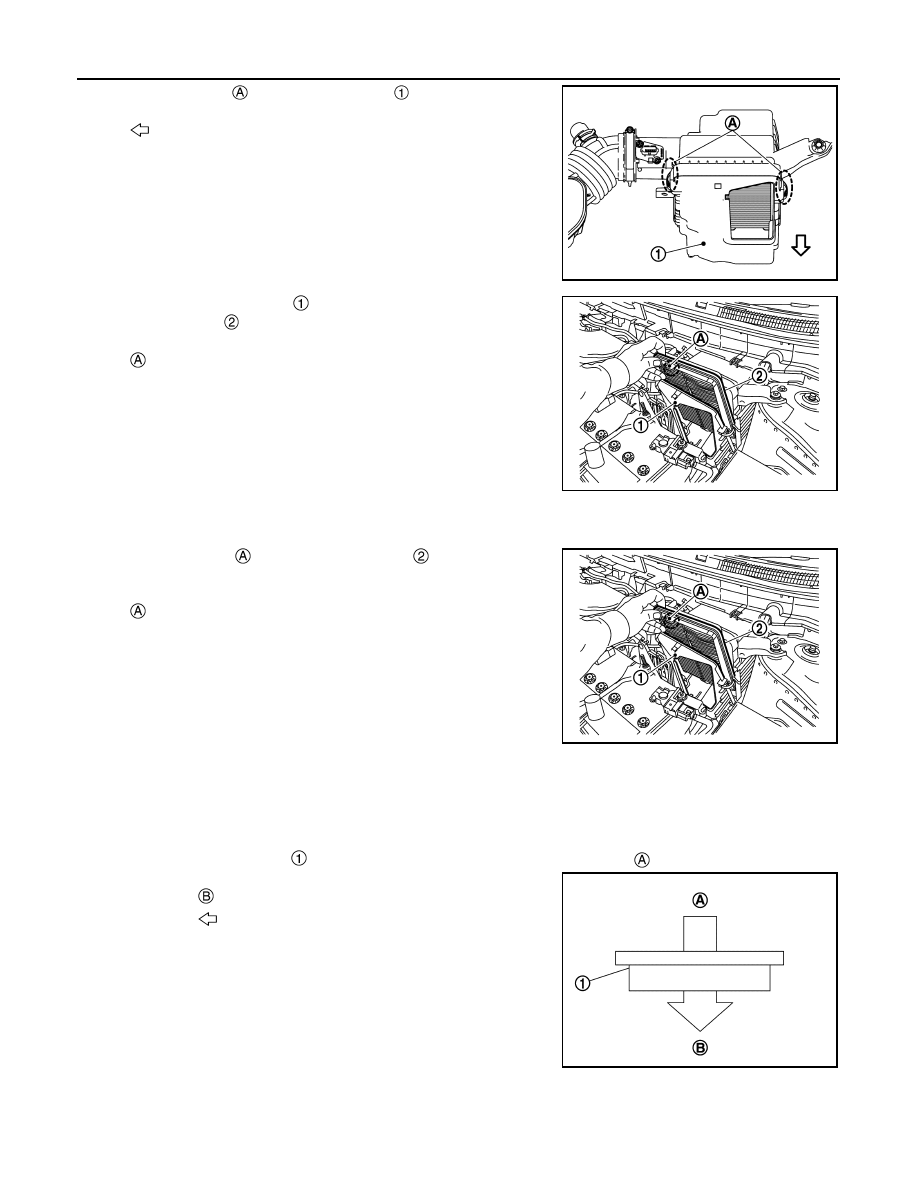

AIR CLEANER FILTER

2.

Remove the clips

 of air cleaner cover

.

3.

Shifte air cleaner cover

 to car front side and remove air

cleaner element

INSTALLATION

Install in the reverse order of removal.
• Insert the projection

 of air cleaner element

 in such a way so

that it becomes the position (upper front side of car) of illustration.

• Verify that there is no looseness in air cleaner cover and has been

fixed accurately.

• Check that pawls of air resonator are engaged.

Inspection (Dry Paper Type)

INFOID:0000000010715461

INSPECTION AFTER REMOVAL

Examine with eyes that there is no stain, clogging, or damage on air cleaner element.
• Remove dusts (such as dead leafs) on air cleaner element surface and inside cleaner case.
• To clean air cleaner element

, blow air on it from the air intake manifold side

 to remove trash or dust.

CAUTION:

• When blowing air on the air cleaner element, attach the

cover to the air cleaner case and stay away from the vehicle
as much as possible to prevent the entry of dirt into the air
cleaner case.

• Never blow air from the ambient air side to prevent clogging.

When the ambient air side needs to be cleaned, attach the
cover to the intake manifold side and lightly dust by hand.

• If clogging or damage is observed, replace the air cleaner element.

: Vehicle front

JPBIA6829ZZ

: Projection

JPBIA6830ZZ

: Projection

JPBIA6830ZZ

Ambient air side

Air blow direction

JSBIA3460ZZ
