Wiring Diagram - CONSULT/GST CHECKING SYSTEM -

INFOID:0000000010242500

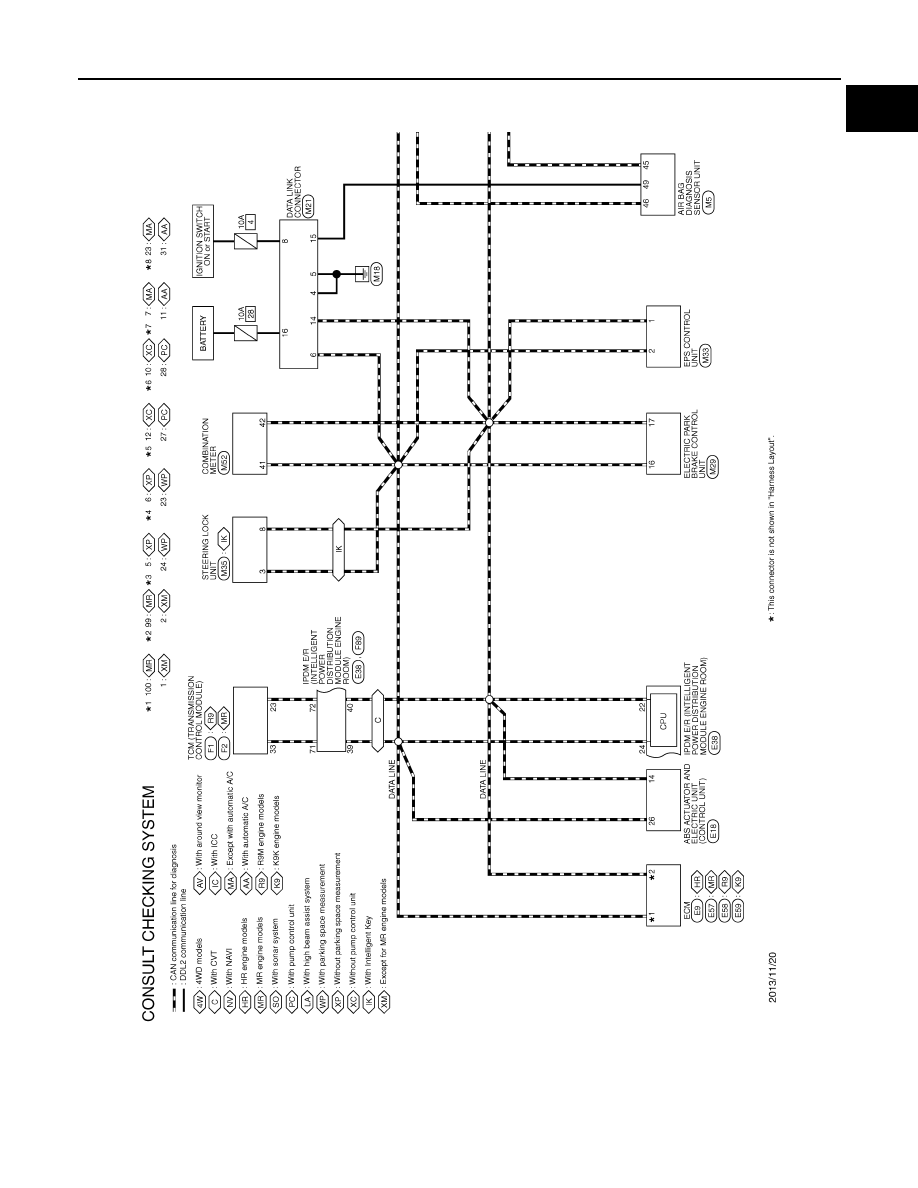

JRAWC0939GB

GI-52

< BASIC INSPECTION >

CONSULT/GST CHECKING SYSTEM

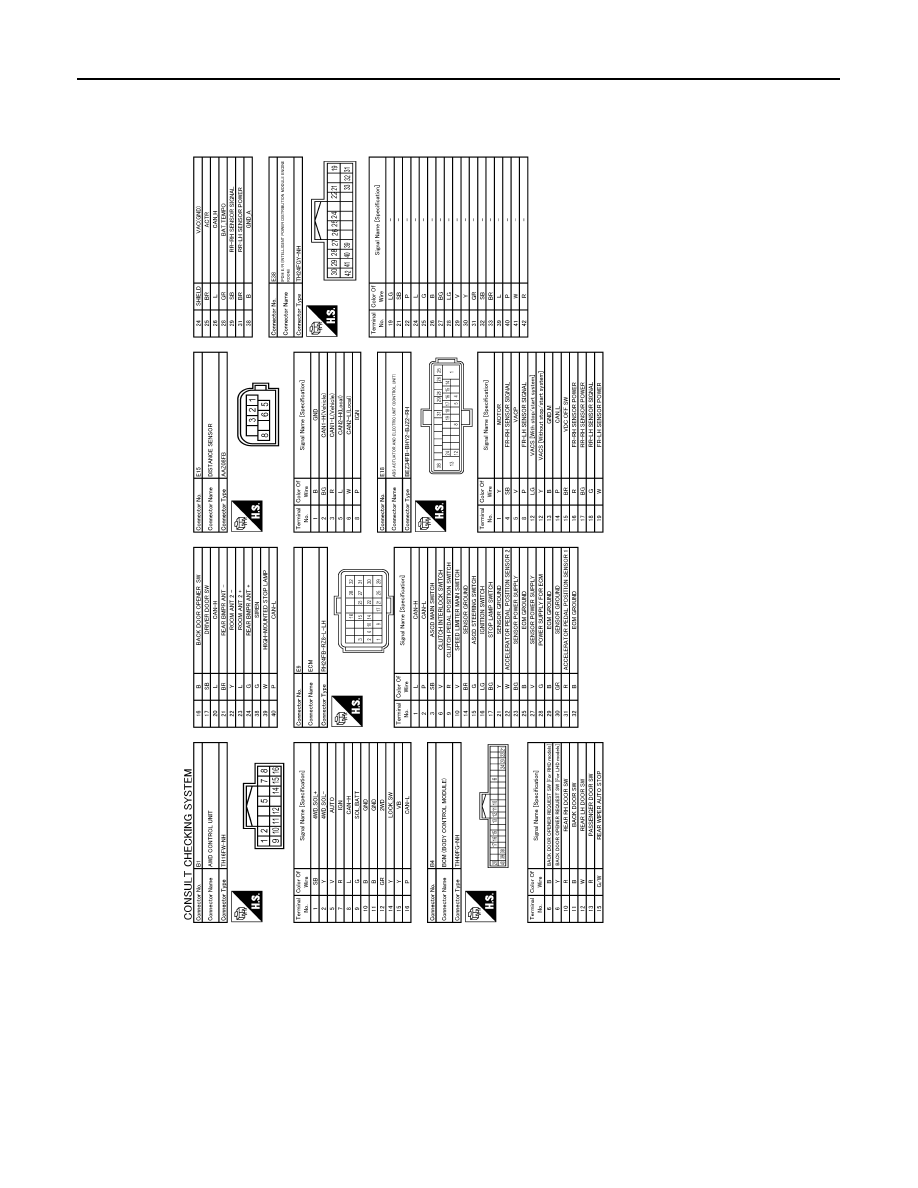

JRAWC1100GB

CONSULT/GST CHECKING SYSTEM

GI-53

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

M

B

GI

N

O

P

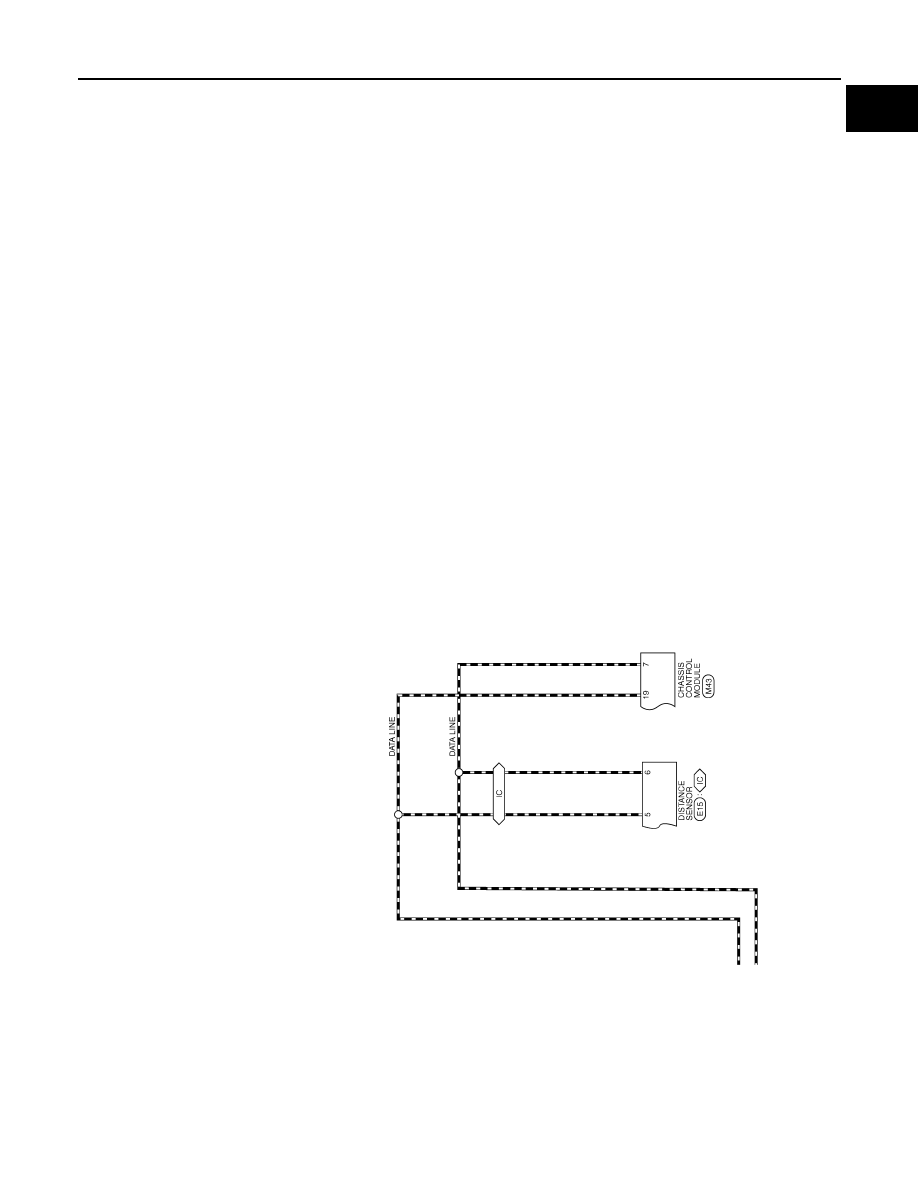

JRAWC1101GB

GI-54

< BASIC INSPECTION >

CONSULT/GST CHECKING SYSTEM

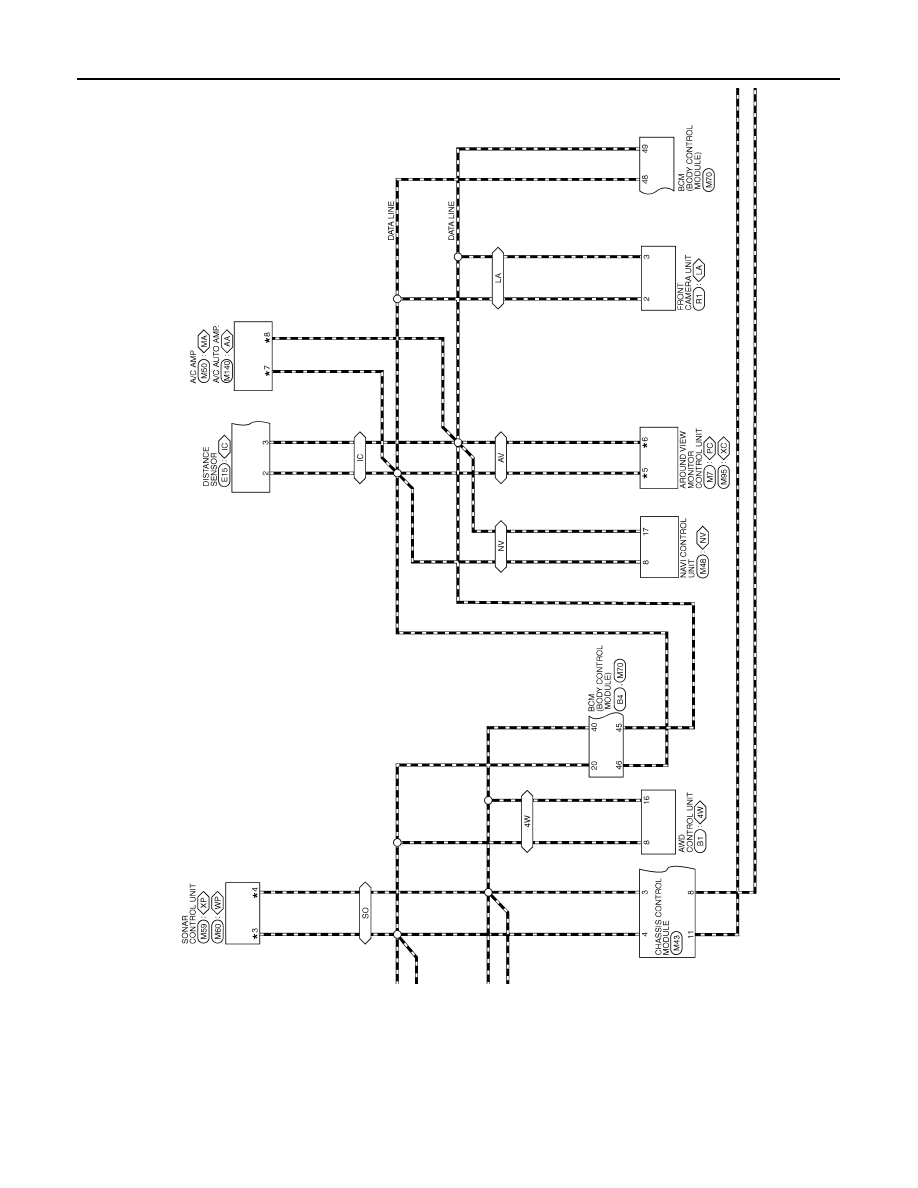

JRAWC0951GB
