B2581, B2582 INTAKE SENSOR

HAC-63

< DTC/CIRCUIT DIAGNOSIS >

[AUTOMATIC AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace intake sensor. Refer to

HAC-97, "Removal and Installation"

.

Terminal

Condition

Resistance: k

Ω

Temperature:

°C (°F)

1

2

−15 (5)

12.34

−10 (14)

9.62

−5 (23)

7.56

0 (32)

6.00

5 (41)

4.80

10 (50)

3.87

15 (59)

3.15

20 (68)

2.57

25 (77)

2.12

30 (86)

1.76

35 (95)

1.47

40 (104)

1.23

45 (113)

1.04

HAC-64

< DTC/CIRCUIT DIAGNOSIS >

[AUTOMATIC AIR CONDITIONING]

B2630, B2631 SUNLOAD SENSOR

B2630, B2631 SUNLOAD SENSOR

DTC Logic

INFOID:0000000012200051

DTC DETECTION LOGIC

NOTE:

• If DTC is displayed along with DTC U1000, first perform the trouble diagnosis for DTC U1000. Refer to

HAC-

53, "DTC Logic"

.

• If DTC is displayed along with DTC U1010, first perform the trouble diagnosis for DTC U1010.

HAC-54,

"DTC Logic"

.

• Sunload sensor may register a malfunction when indoors, at dusk, or at other times when light is insufficient.

When performing the diagnosis indoors, use a lamp (60 W or more) that is pointed at the sunload sensor.

DTC CONFIRMATION PROCEDURE

1.

PERFORM DTC CONFIRMATION PROCEDURE

With CONSULT

1. Turn ignition switch ON.

2. Select “Self Diagnostic Result” mode of “HVAC” using CONSULT.

3. Check DTC.
Is DTC detected?

YES

>> Refer to

HAC-64, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000012200052

1.

CHECK SUNLOAD SENSOR POWER SUPPLY

1. Turn ignition switch OFF.

2. Disconnect sunload sensor connector.

3. Turn ignition switch ON.

4. Check voltage between sunload sensor harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> GO TO 4.

2.

CHECK SUNLOAD SENSOR GROUND CIRCUIT FOR OPEN

1. Turn ignition switch OFF.

2. Disconnect A/C auto amp. connector.

3. Check continuity between sunload sensor harness connector and A/C auto amp harness connector.

DTC

Items

(CONSULT screen terms)

DTC detection condition

Possible cause

B2630

SUNLOAD SENSOR

Detected calorie at sunload sensor 1677 W/m

2



(1442 kcal/m

2

·h) or more.

• Sunload sensor
• A/C auto amp.
• Harness or connectors

(The sensor circuit is open or short-
ed.)

B2631

Detected calorie at sunload sensor 33 W/m

2

 (28

kcal/m

2

·h) or less.

+

−

Voltage

(Approx.)

Sunload sensor

Connector

Terminal

M74

1

Ground

5 V

Sunload sensor

A/C auto amp.

Continuity

Connector

Terminal

Connector

Terminal

M74

2

M50

10

Existed

B2630, B2631 SUNLOAD SENSOR

HAC-65

< DTC/CIRCUIT DIAGNOSIS >

[AUTOMATIC AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair harness or connector.

3.

CHECK SUNLOAD SENSOR

1. Disconnect A/C auto amp. connector.

2. Check sunload sensor. Refer to

HAC-65, "Component Inspection"

.

Is the inspection result normal?

YES

>> Replace A/C auto amp. Refer to

HAC-93, "Removal and Installation"

.

NO

>> Replace sunload sensor. Refer to

HAC-96, "Removal and Installation"

.

4.

CHECK SUNLOAD SENSOR POWER SUPPLY CIRCUIT FOR OPEN

1. Turn ignition switch OFF.

2. Disconnect A/C auto amp. connector.

3. Check continuity between sunload sensor harness connector and A/C auto amp. harness connector.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair harness or connector.

5.

CHECK SUNLOAD SENSOR POWER SUPPLY CIRCUIT FOR SHORT

Check continuity between sunload sensor harness connector and ground.

Is the inspection result normal?

YES

>> Replace A/C auto amp. Refer to

HAC-93, "Removal and Installation"

.

NO

>> Repair harness or connector.

Component Inspection

INFOID:0000000012200053

1.

CHECK SUNLOAD SENSOR

1. Turn ignition switch ON.

2. Check voltage between A/C auto amp. harness connector and ground. Refer to applicable table for the

normal value.

Sunload sensor

A/C auto amp.

Continuity

Connector

Terminal

Connector

Terminal

M74

1

M50

5

Existed

Sunload sensor

—

Continuity

Connector

Terminal

M74

1

Ground

Not existed

A/C auto amp.

Connector

+

−

Terminal

Terminal

M50

5

30

HAC-66

< DTC/CIRCUIT DIAGNOSIS >

[AUTOMATIC AIR CONDITIONING]

B2630, B2631 SUNLOAD SENSOR

NOTE:

• When checking indoors, use a lamp of approximately 60 W. Move the lamp towards and away from the

sensor to check.

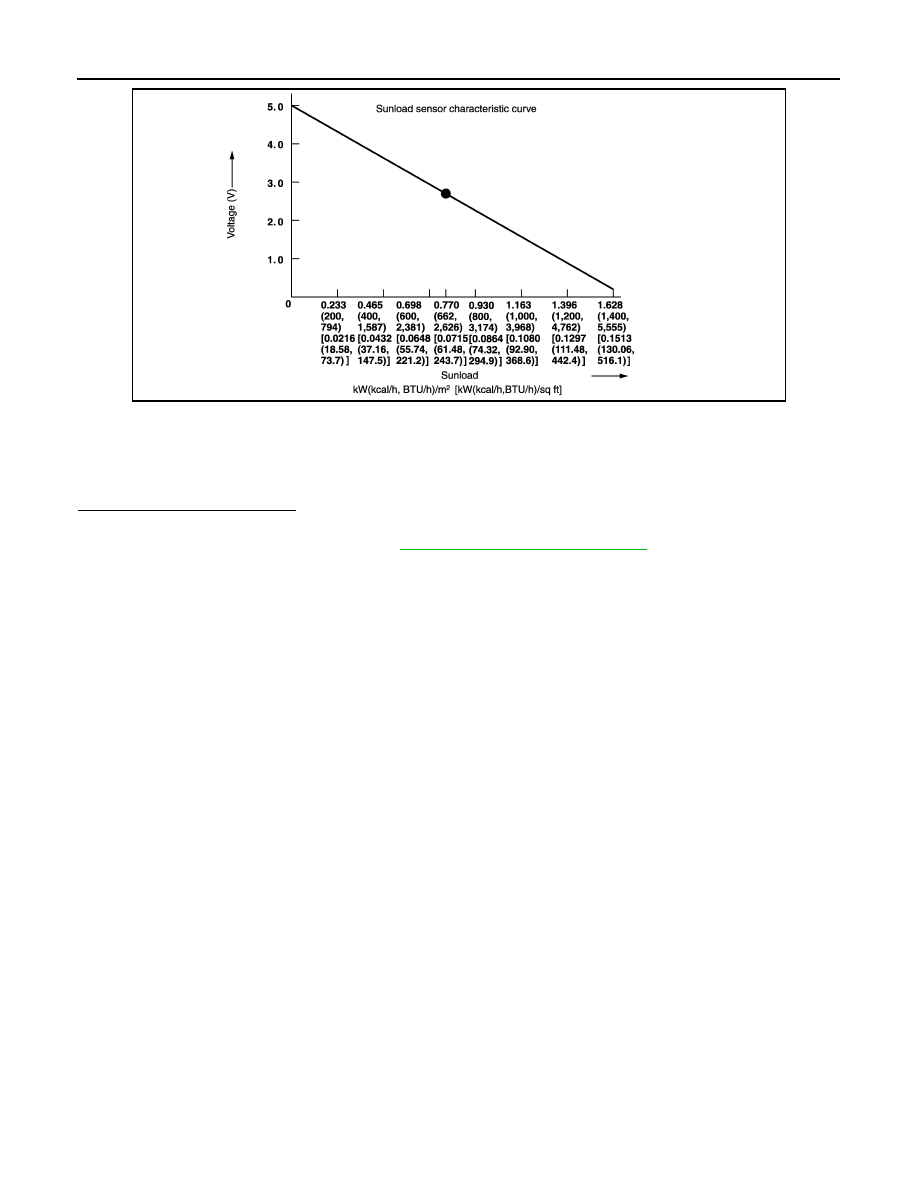

• The sunload amount produced by direct sunshine in fair weather is equivalent to approximately 0.77

kW/m

2

 (662 kcal/m

2

·h).

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace sunload sensor. Refer to

HAC-96, "Removal and Installation"

.

JPIIA1659GB
