A/C AUTO AMP.
HAC-31
< ECU DIAGNOSIS INFORMATION >
[AUTOMATIC AIR CONDITIONING]
C
D
E
F
G
H
J
K
L
M
A
B
HAC
N
O
P

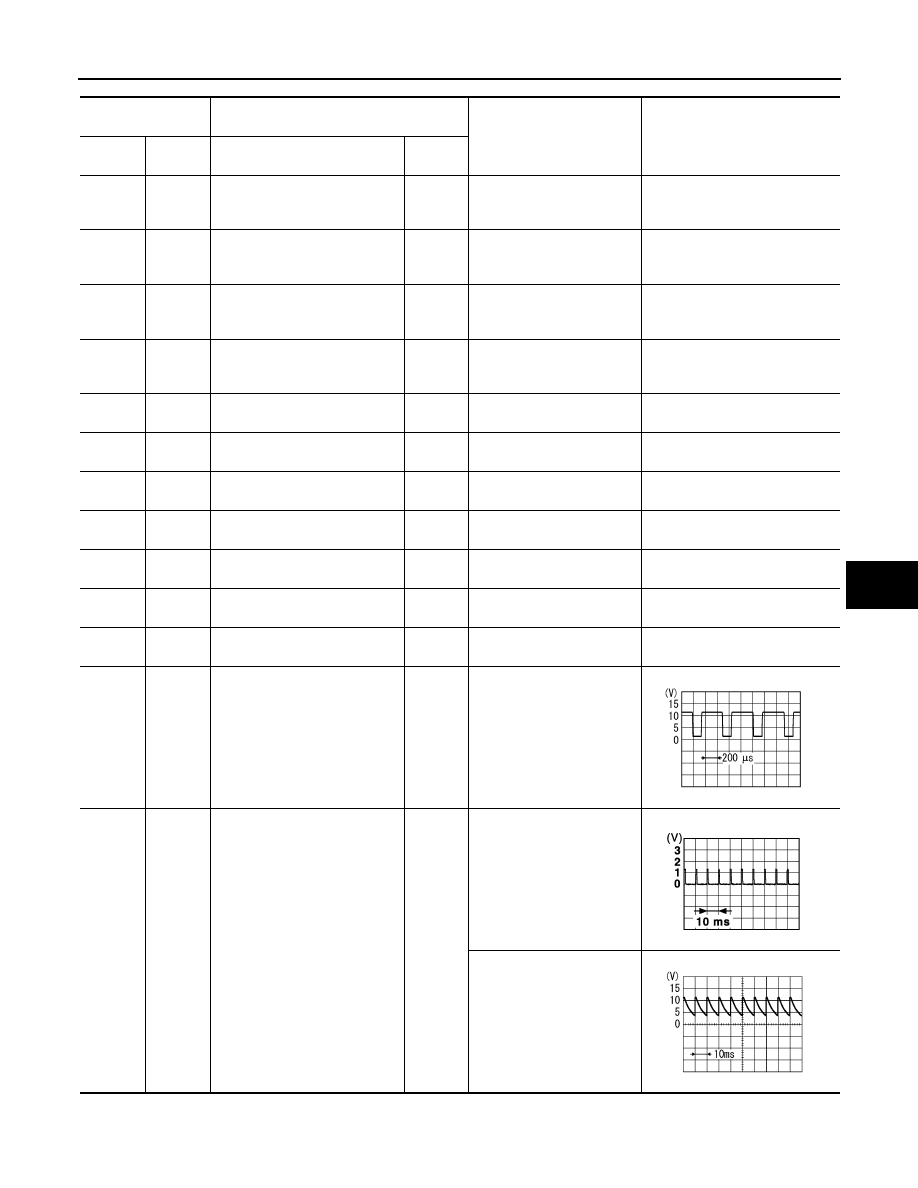

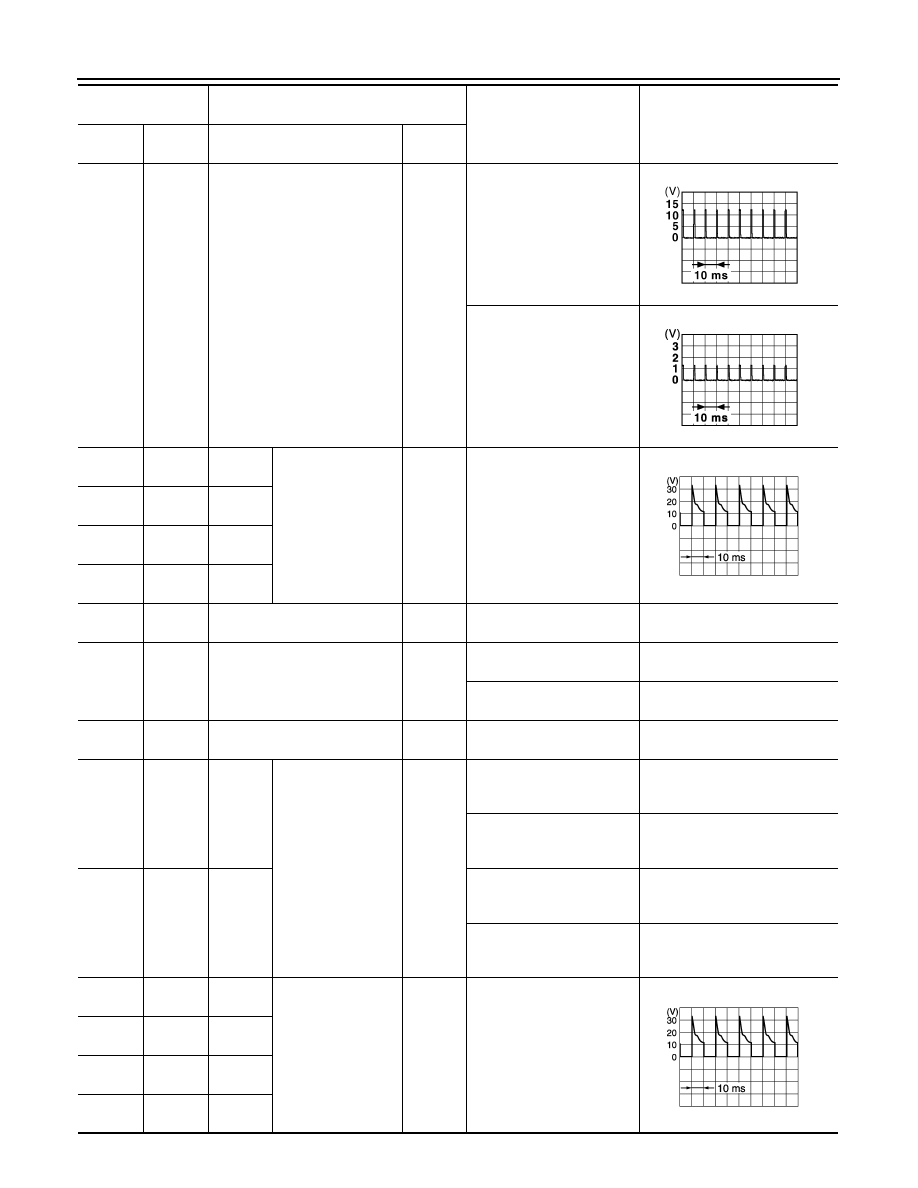

Terminal No.
(Wire color)
Description
Condition
Value
+
−
Signal name
Input/
Output
2
(LG)
30
(B)
In-vehicle sensor signal
Input
Ignition switch ON
0 – 4.8 V
Output voltage varies with in-ve-
hicle temperature
3
(V)
30
(B)
Intake sensor signal
Input
Ignition switch ON
0 – 4.8 V
Output voltage varies with evapo-
rator fin temperature
4
(GR)
30
(B)
Ambient sensor signal
Input
Ignition switch ON
0 – 4.8 V
Output voltage varies with ambi-
ent temperature
5
(P)
30
(B)
Sunload sensor signal
Input
Ignition switch ON
0 – 4.8 V
Output voltage varies with sun-
load amount
6
(L)
—
CAN-H
Input/
Output
—
—
7
(P)
—
CAN-L
Input/
Output
—
—
8
(W)
30
(B)
Intake door motor PBR power
supply
Output
Ignition switch ON
4.8 – 5.2 V
9
(P)
30
(B)
A/C auto amp. connection rec-
ognition signal
Output
Ignition switch ON
11 – 14 V
10
(R)
30
(B)
Sensor ground
—
Ignition switch ON
0 – 0.1 V
11
(LG)
30
(B)
Ignition power supply
Input
Ignition switch ON
11 – 14 V
12
(Y)
30
(B)
Battery power supply
Input
Ignition switch OFF
11 – 14 V
13
(GR)
30
(B)
Power transistor control signal
Output
• Ignition switch ON
• Blower motor: 1st speed
(manual)
14
(LG)
30
(B)
Blower fan ON signal
Output
• Ignition switch ON
• Blower motor: OFF
• Ignition switch ON
• Blower motor: ON
