CONSULT/GST CHECKING SYSTEM

GI-53

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

M

B

GI

N

O

P

CONSULT/GST CHECKING SYSTEM

Description

INFOID:0000000012196804

• When CONSULT/GST is connected with a data link connector (A)

equipped on the vehicle side, it will communicate with the control

unit equipped in the vehicle and then enable various kinds of diag-

nostic tests.

• Refer to “CONSULT Software Operation Manual” for more informa-

tion.

CONSULT Function and System Application*1

INFOID:0000000012196805

FUNCTION

*: Permanent DTC is not applied for regions where it is not mandated.

SYSTEM APPLICATION

*1

1

: Instrument lower cover LH

JPAIA0875ZZ

Mode

Function

All DTC Reading

Display all DTCs or diagnostic items that all ECUs are recording and judging.

Work Support

This mode enables a technician to adjust some devices faster and more accurately.

Self Diagnostic Results

Retrieve DTC from ECU and display diagnostic items.

Data Monitor

Monitor the input/output signal of the control unit in real time.

CAN Diagnosis

This mode displays a network diagnosis result about CAN by diagram.

CAN Diagnosis Support Monitor

It monitors the status of CAN communication.

Active Test

Send the drive signal from CONSULT to the actuator.The operation check can be performed.

ECU Identification

Display the ECU identification number (part number etc.) of the selected system.

Configuration

Function to READ/WRITE vehicle configuration.

SRT&P-DTC Confirmation

The state of System Readiness Test (SRT) items, the presence or absence of permanent DTC*,
and driving conditions can be checked.

DTC work support

DTC reproduction procedure can be performed speedily and precisely.

Others

Other results or histories, etc. that are recorded in ECU are displayed.

System

All DTC Reading

W

ork

 Su

pp

ort

Sel

f Di

ag

nos

tic Re

su

lts

Da

ta

 Mo

ni

tor

CAN Diagnosis

CAN

Di

ag

no

si

s S

up

port

 M

on

ito

r

Ac

tive

 T

e

st

ECU Id

en

tifi

ca

tio

n

Co

nf

ig

ur

at

io

n

SR

T&P-DTC Conf

irmati

on

DTC work support

Ot

he

rs

ENGINE

x

x

x

x

x

x

x

x

-

x

*2

x

-

TRANSMISSION

x

x

x

x

x

x

-

x

-

-

-

• CALIB  DATA

AIR  BAG

x

-

x

-

x

-

-

x

-

-

-

• TROUBLE DIAG RECORD
• SELF-DIAG RESULT [CAN]
• Cause of Warning Lamp

GI-54

< BASIC INSPECTION >

CONSULT/GST CHECKING SYSTEM

x: Applicable
*1: If GST application is equipped, functions in accordance with SAE J1979 and ISO 15031-5 can be used.
*2: Permanent DTC is not applied for regions where it is not mandated.

CONSULT/GST Data Link Connector (DLC) Circuit

INFOID:0000000012196806

INSPECTION PROCEDURE

If the CONSULT/GST cannot diagnose the system properly, check the following items.

NOTE:

The DDL1 and DDL2 circuits from DLC pins 12, 13, 14 and 15 may be connected to more than one system. A

short in a DDL circuit connected to a control unit in one system may affect CONSULT access to other systems.

If the GST cannot operate properly, check the circuit based on the information of SAE J1962 and ISO 15031-

3.

METER  /  M&A

x

-

x

x

x

x

-

-

-

-

-

• Warning  History

BCM

x

x

x

x

x

x

x

x

x

-

-

-

IPDM  E/R

x

-

x

x

x

x

x

x

-

-

-

-

EPS

x

-

x

x

x

x

-

x

-

-

-

-

ALL  MODE  AWD  /  4WD

x

x

x

x

x

x

x

x

-

-

-

-

MULTI  DISPLAY

x

-

x

x

x

x

x

-

-

-

-

-

HVAC

-

x

x

x

x

x

x

x

-

-

-

-

ABS

x

x

x

x

x

x

x

x

-

-

-

-

OCCUPANT  DETECTION

-

x

-

-

-

-

-

-

-

-

-

-

NAVI  CONTROL  UNIT

x

-

x

x

x

x

-

x

x

-

-

-

AVM

x

x

x

x

x

x

-

x

x

-

-

-

System

A

ll DTC Reading

W

o

rk Su

pp

ort

Se

lf Dia

gno

stic

 Res

ul

ts

Dat

a M

on

ito

r

CA

N D

iag

no

si

s

CAN Diagnosis Su

ppo

rt M

o

nit

or

Ac

tive

 T

est

ECU I

de

nti

ficati

on

Co

nfi

gu

rati

on

SR

T&

P-DTC Confirmation

DTC work

support

Othe

rs

Symptom

Check item

CONSULT/GST cannot access
any system.

• CONSULT/GST DLC power supply circuit (Terminal 8 and 16) and ground circuit (Terminal 4 and 5)

CONSULT cannot access indi-
vidual system. (Other systems
can be accessed.)

• Power supply and ground circuit for the control unit of the system (For detailed circuit, refer to wiring

diagram for each system.)

• Open or short circuit between the system and CONSULT DLC (For detailed circuit, refer to wiring

diagram for each system.)

• Open or short circuit CAN communication line. Refer to

LAN-17, "Trouble Diagnosis Flow Chart"

.

CONSULT/GST CHECKING SYSTEM

GI-55

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

M

B

GI

N

O

P

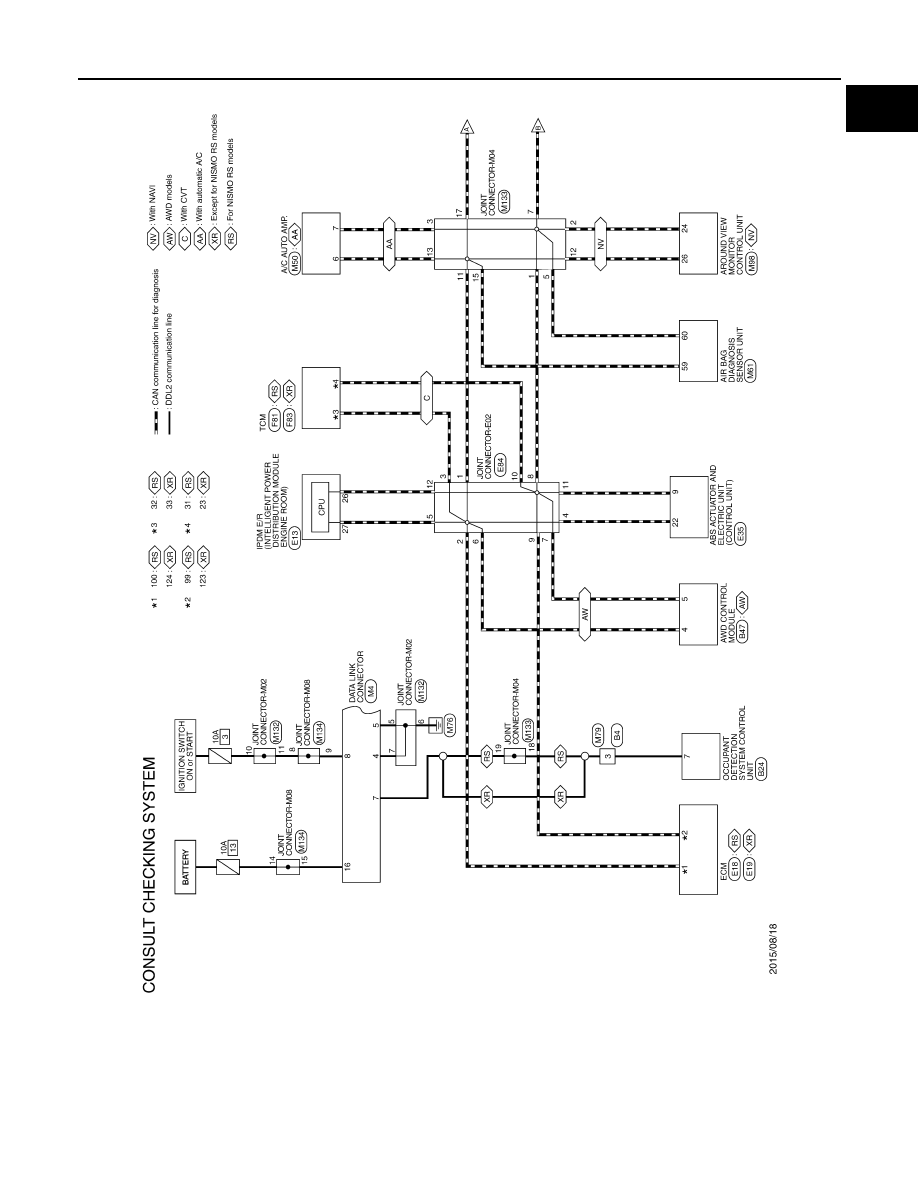

Wiring Diagram - CONSULT/GST CHECKING SYSTEM -

INFOID:0000000012196807

JRAWC2858GB

GI-56

< BASIC INSPECTION >

CONSULT/GST CHECKING SYSTEM

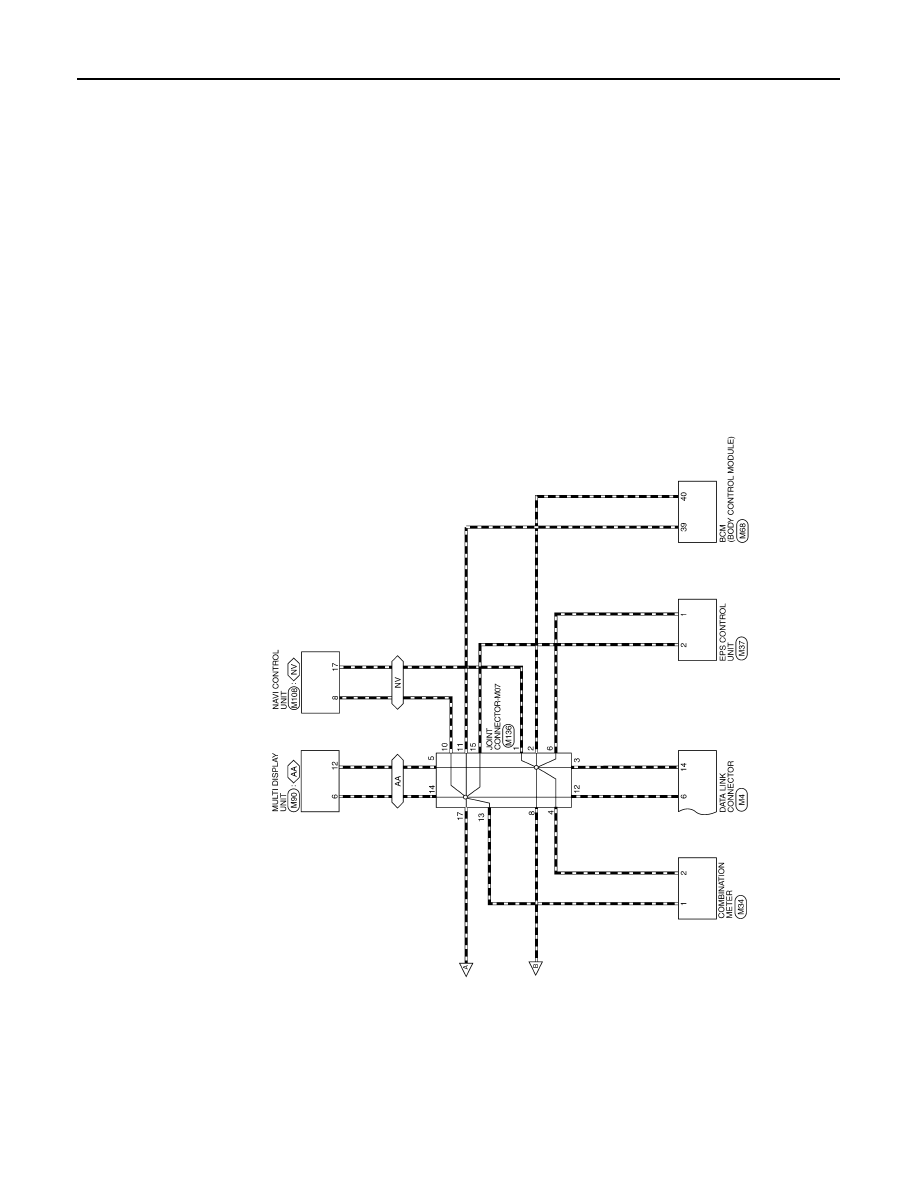

JRAWC2859GB
