IDENTIFICATION INFORMATION

GI-37

< VEHICLE INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

GI

N

O

P

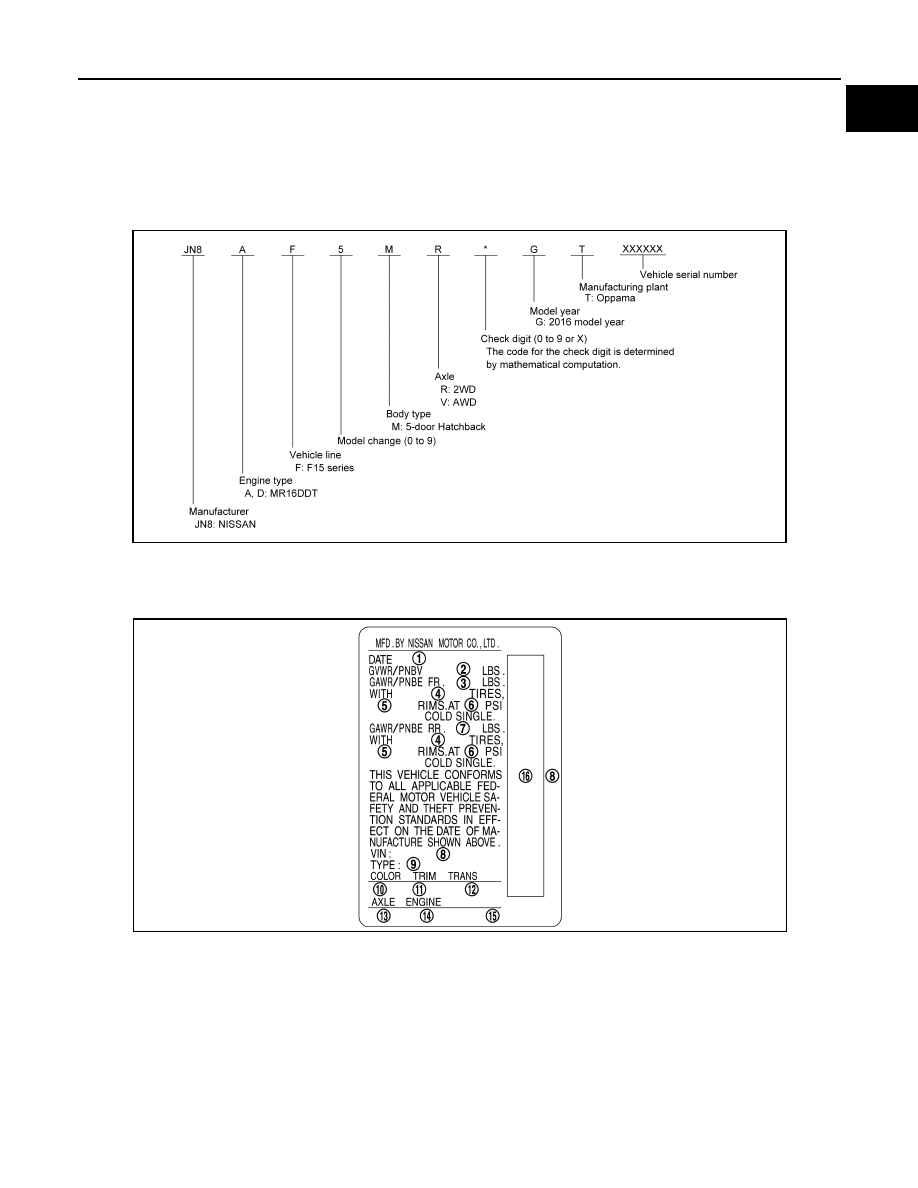

VEHICLE IDENTIFICATION NUMBER ARRANGEMENT

CERTIFICATION LABEL

FMVSS certification label

CMVSS certification label

1.

Air conditioner specification label

2.

Emission control information label

3.

Vehicle identification number
(Chassis number)

4.

Vehicle identification number plate

5.

FMVSS certification label
(For USA)
CMVSS certification label
(For Canada)

6.

Tire and loading information label

JSAIA4313GB

1.

MFR Month / Year

2.

Gross vehicle weight rating

3.

Gross axle weight rating (Front)

4.

Tire size

5.

Wheel size

6.

Tire inflation pressure

7.

Gross axle weight rating (Rear)

8.

Vehicle identification number

9.

Verification model code

10. Body color number

11. Trim color number

12. Transmission type

13. Axle type

14. Engine type

15. Engine displacement

16. VIN bar code

JSAIA2499ZZ

GI-38

< VEHICLE INFORMATION >

IDENTIFICATION INFORMATION

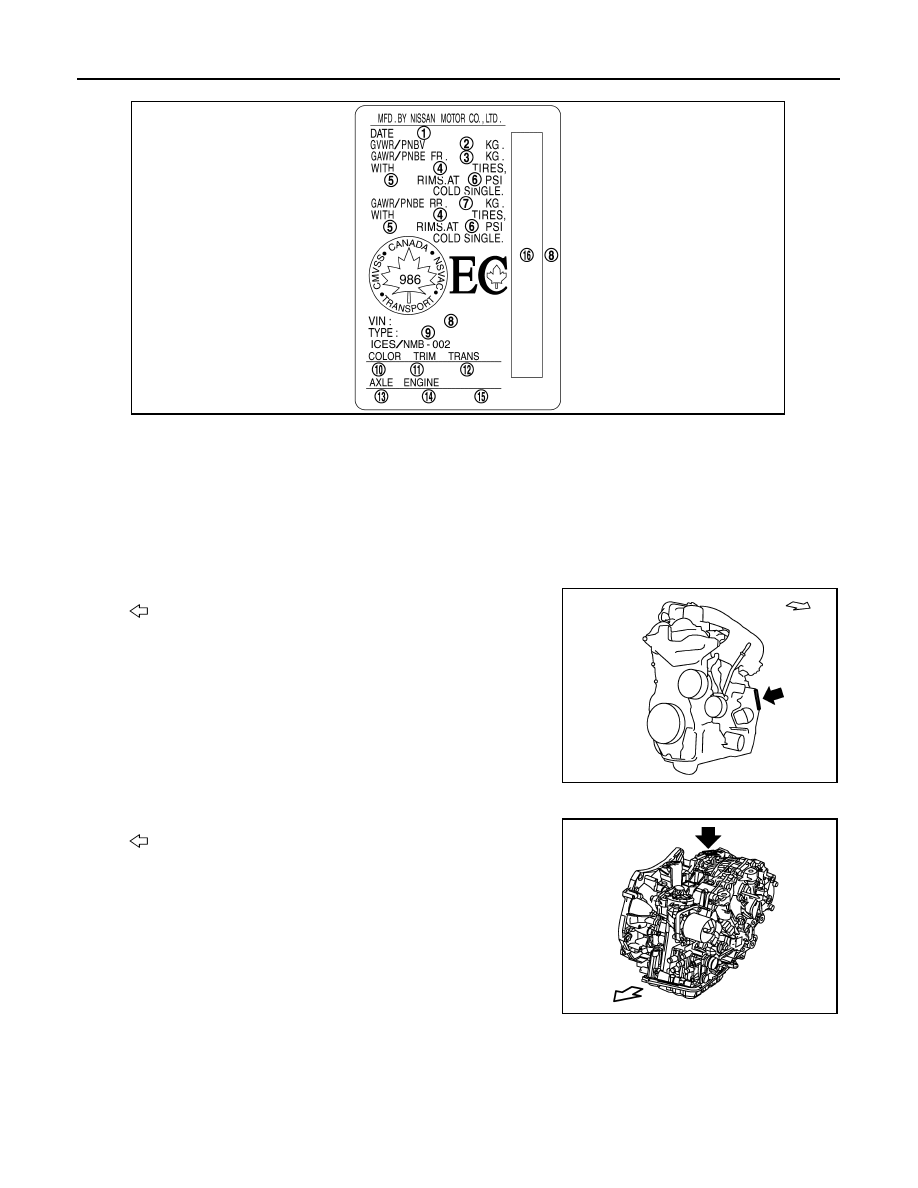

ENGINE SERIAL NUMBER

CVT NUMBER

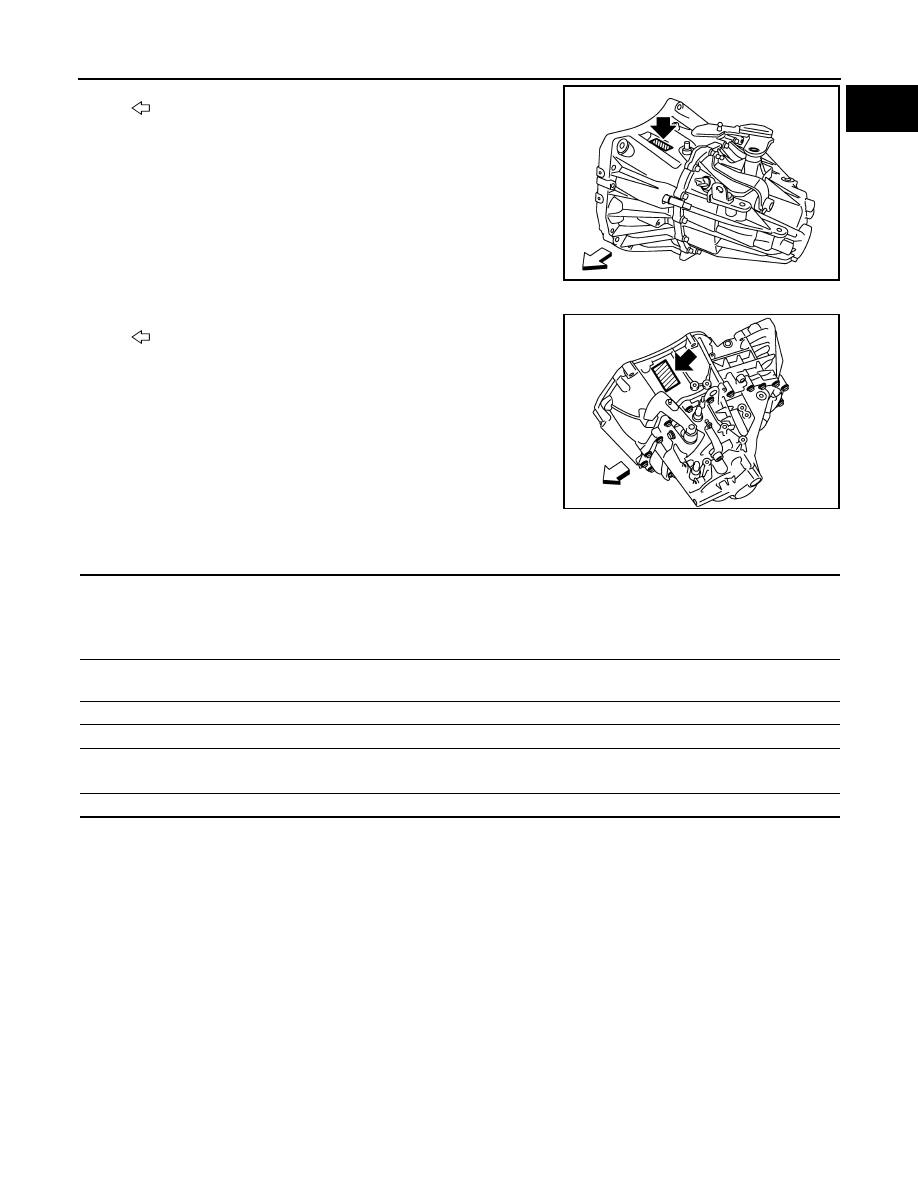

MANUAL TRANSAXLE NUMBER

6MT (RS6F94R)

1.

MFR Month / Year

2.

Gross vehicle weight rating

3.

Gross axle weight rating (Front)

4.

Tire size

5.

Wheel size

6.

Tire inflation pressure

7.

Gross axle weight rating (Rear)

8.

Vehicle identification number

9.

Verification model code

10. Body color number

11. Trim color number

12. Transmission type

13. Axle type

14. Engine type

15. Engine displacement

16. VIN bar code

JSAIA2500ZZ

: Vehicle front

SAIA1341E

: Vehicle front

SAIA1496E

IDENTIFICATION INFORMATION

GI-39

< VEHICLE INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

GI

N

O

P

6MT (RS6F52H)

Dimensions

INFOID:0000000012196797

Unit: mm (in)

*1: With front license plate bracket
*2: Without front license plate bracket
*3: With front license plate bracket (NISMO models)
*4: Without front license plate bracket (NISMO models)
*5: NISMO models
*6: 2WD models
*7: AWD models

: Vehicle front

SAIA1338E

: Vehicle front

JPAIA0046ZZ

Overall length

4,135 (162.8)

*1

4,125 (162.4)

*2

4,165 (164.0)

*3

4,160 (163.8)

*4

Overall width

1,765 (69.5)
1,770 (69.7)

*5

Overall height

1,570 (61.8)

Front tread

1,525 (60.0)

Rear tread

1,525 (60.0)

*6

1,505 (59.3)

*7

Wheelbase

2,530 (99.6)

GI-40

< VEHICLE INFORMATION >

IDENTIFICATION INFORMATION

Wheels & Tires

INFOID:0000000012196798

*1: 2WD models
*2: AWD models
*3: NISMO RS models

Conventional

17 inch

Tire

P215/55R17 93V

Road wheel
(Aluminum)

Size

17

× 7J

Inset

47 mm (1.85 in)

18 inch

Tire

225/45R18 95Y

Road wheel
(Aluminum)

Size

18

× 7J

Inset

47 mm (1.85 in)

Spare

16 inch

Tire

T135/80D16 101M

*1

T135/90D16 102M

*2

Road wheel
(Steel)

Size

16

× 4T

Inset

30 mm (1.18 in)

17 inch

Tire

T135/70D17 92M

*3

Road wheel
(Steel)

Size

17

× 4T

Inset

30 mm (1.18 in)
