HOW TO READ WIRING DIAGRAMS

Connector Symbols

INFOID:0000000012196770

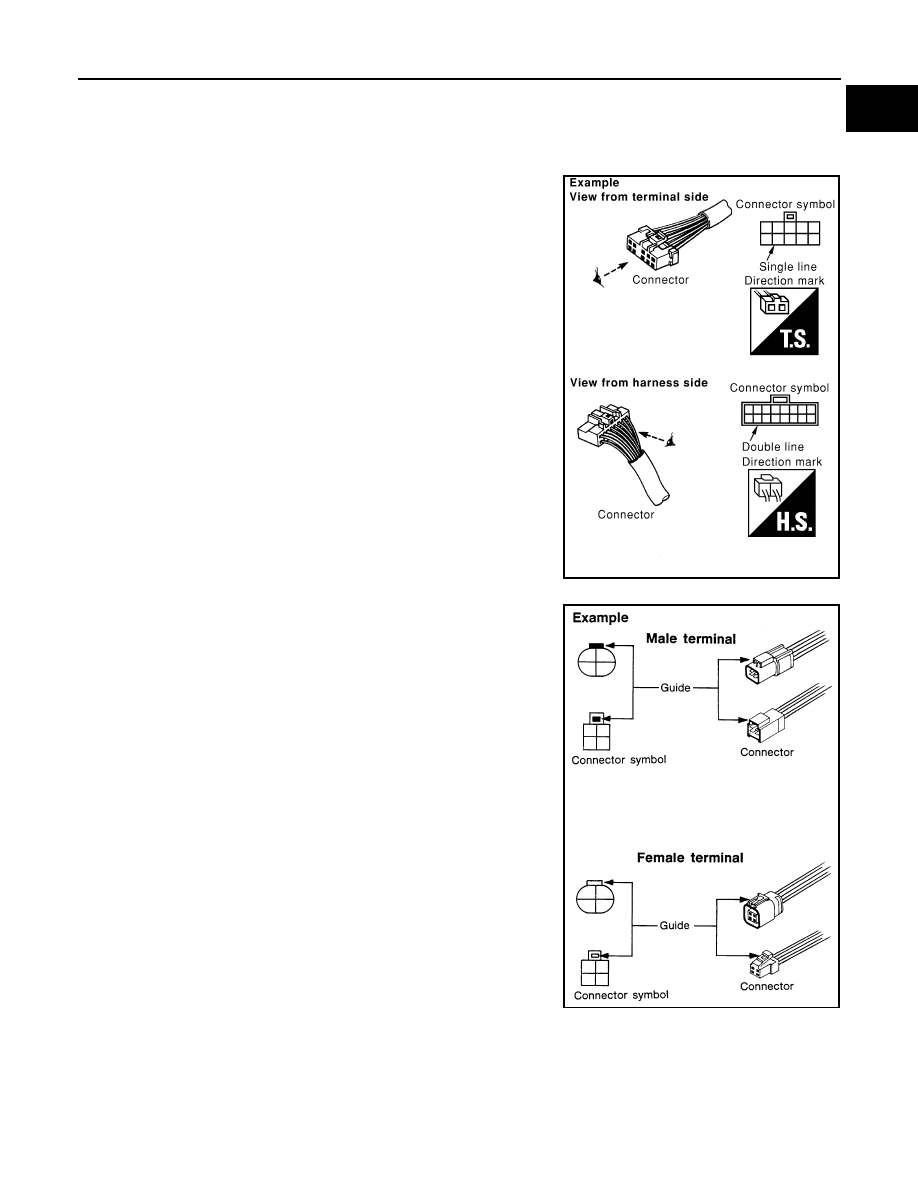

Most of connector symbols in wiring diagrams are shown from the terminal side.

• Connector symbols shown from the terminal side are enclosed by

a single line and followed by the direction mark.

• Connector symbols shown from the harness side are enclosed by

a double line and followed by the direction mark.

• Certain systems and components, especially those related to

OBD, may use a new style slide-locking type harness connector.

For description and how to disconnect, refer to PG section,

“Description”, “HARNESS CONNECTOR”.

• Male and female terminals

Connector guides for male terminals are shown in black and

female terminals in white in wiring diagrams.

SAIA0257E

SGI363

GI-10

< HOW TO USE THIS MANUAL >

HOW TO READ WIRING DIAGRAMS

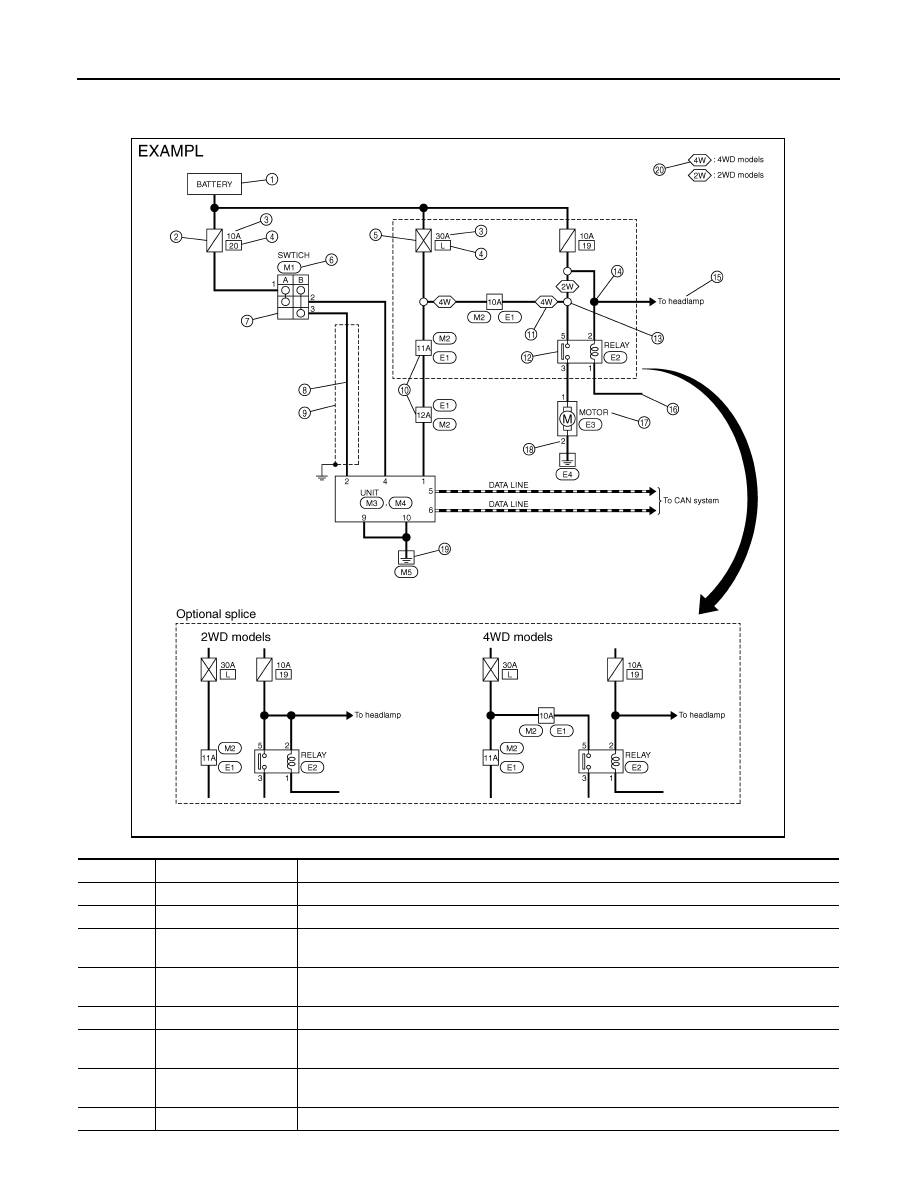

Sample/Wiring Diagram -Example-

INFOID:0000000012196771

Each section includes wiring diagrams.

Description

JCAWA0150GB

Number

Item

Description

1

Power supply

• This means the power supply of fusible link or fuse.

2

Fuse

• “/” means the fuse.

3

Current rating of fusible
link/fuse

• This means the current rating of the fusible link or fuse.

4

Number of fusible link/
fuse

• This means the number of fusible link or fuse location.

5

Fusible link

• “X” means the fusible link.

6

Connector number

• Alphabetic characters show to which harness the connector is placed.
• Numeric characters show the identification number of connectors.

7

Switch

• This shows that continuity exists between terminals 1 and 2 when the switch is in the A posi-

tion. Continuity exists between terminals 1 and 3 when the switch is in the B position.

8

Circuit (Wiring)

• This means the wiring.

HOW TO READ WIRING DIAGRAMS

GI-11

< HOW TO USE THIS MANUAL >

C

D

E

F

G

H

I

J

K

L

M

B

GI

N

O

P

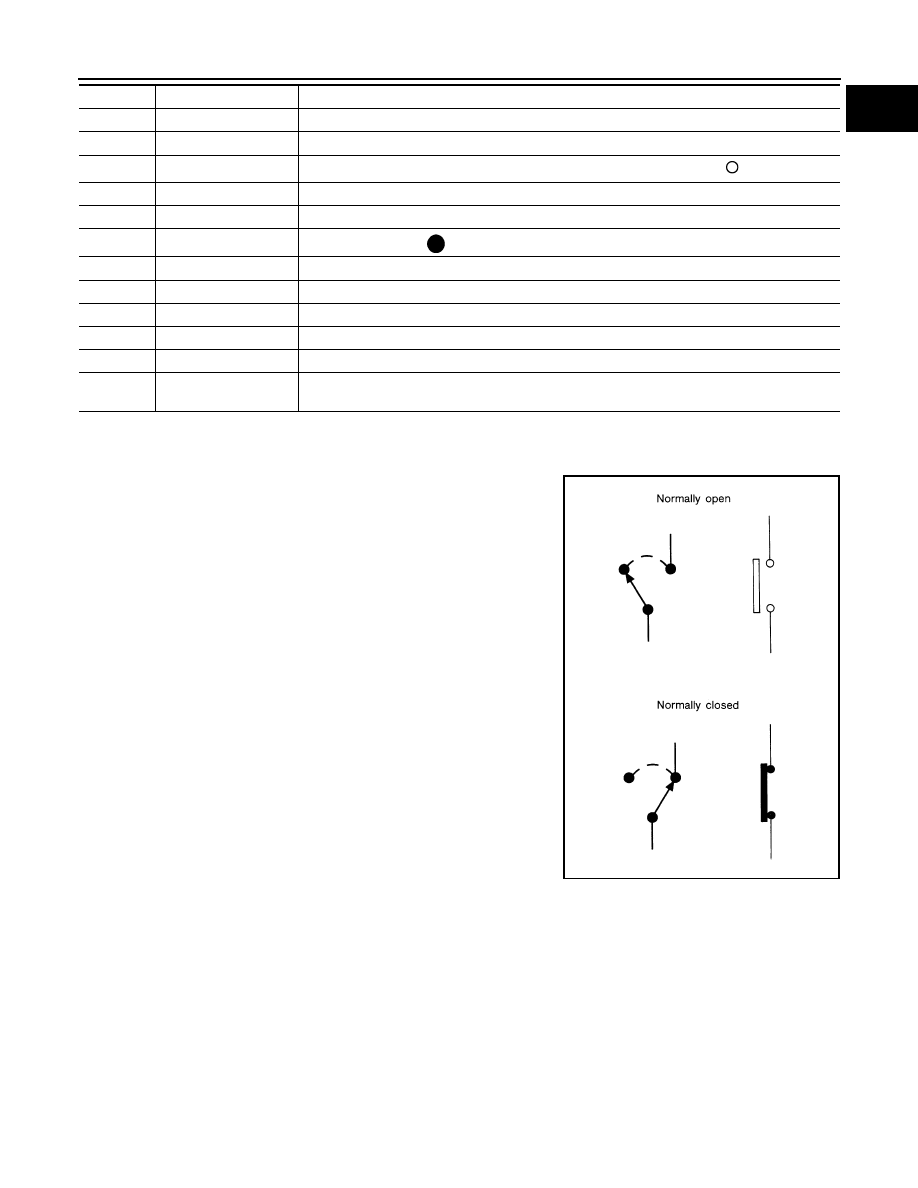

SWITCH POSITIONS

Switches are shown in wiring diagrams as if the vehicle is in the “normal” condition.

A vehicle is in the “normal” condition when:

• ignition switch is “OFF”

• doors, hood and trunk lid/back door are closed

• pedals are not depressed

• parking brake is released

MULTIPLE SWITCH

The continuity of multiple switch is described in two ways as shown below.

• The switch chart is used in schematic diagrams.

9

Shielded line

• The line enclosed by broken line circle shows shield wire.

10

Connectors

• This means that a transmission line bypasses two connectors or more.

11

Option abbreviation

• This means the vehicle specifications which layouts the circuit between “ ”.

12

Relay

• This shows an internal representation of the relay.

13

Optional splice

• The open circle shows that the splice is optional depending on vehicle application.

14

Splice

• The shaded circle “

” means the splice.

15

System branch

• This shows that the circuit is branched to other systems.

16

Page crossing

• This circuit continues to an adjacent page.

17

Component name

• This shows the name of a component.

18

Terminal number

• This means the terminal number of a connector.

19

Ground (GND)

• This shows the ground connection.

20

Explation of option de-
scription

• This shows a description of the option abbreviation used on the page.

Number

Item

Description

SGI860

GI-12

< HOW TO USE THIS MANUAL >

HOW TO READ WIRING DIAGRAMS

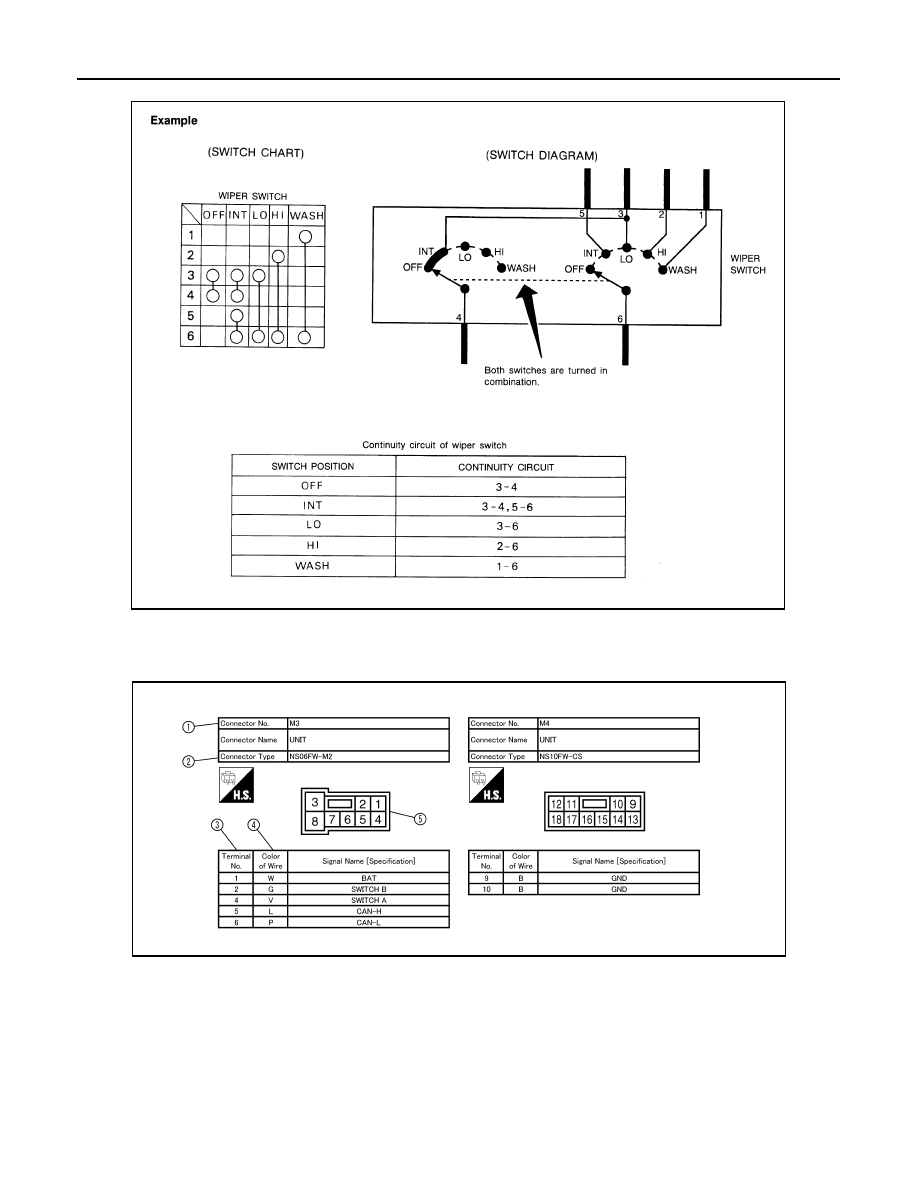

• The switch diagram is used in wiring diagrams.

Connector Information

INFOID:0000000012196772

HOW TO USE CONNECTOR INFORMATION

JSAIA0017GB

JCAWA0152GB
