BACK DOOR FINISHER

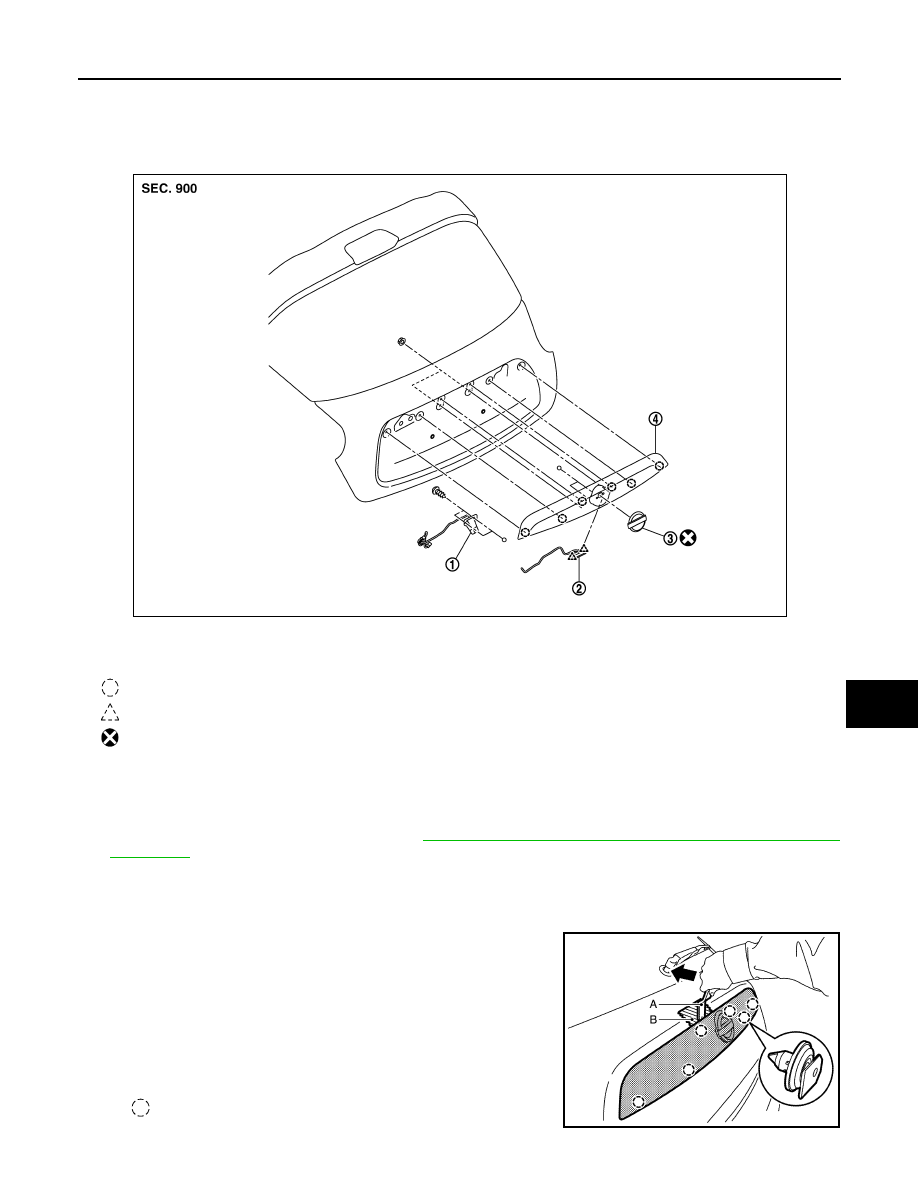

Exploded View
INFOID:0000000012199339
Removal and Installation
INFOID:0000000012199340
REMOVAL
1. Remove back door lower finisher. Refer to
INT-39, "BACK DOOR LOWER FINISHER : Removal and
.
2. Remove back door finisher mounting nuts.
3. Disconnect license lamp, back door opener request switch and rear view camera harness connectors.
4. Remove harness grommet.
5. Disengage back door finisher fixing clips using a remover tool
(A).
6. Disengage back door finisher fixing clips at both ends of back
door finisher from inside of back door.
CAUTION:
• Apply protect tape (B) on back door panel to protect the
painted surface from damage.
• Never pull back door finisher strongly.
1.
Rear view camera
2.
Back door opener request switch
3.
Emblem
4.
Back door finisher
: Clip
: Pawl
: Always replace after every disassembly.
JMKIA5733ZZ
: Clip
JMKIA6179ZZ
