EXL-36

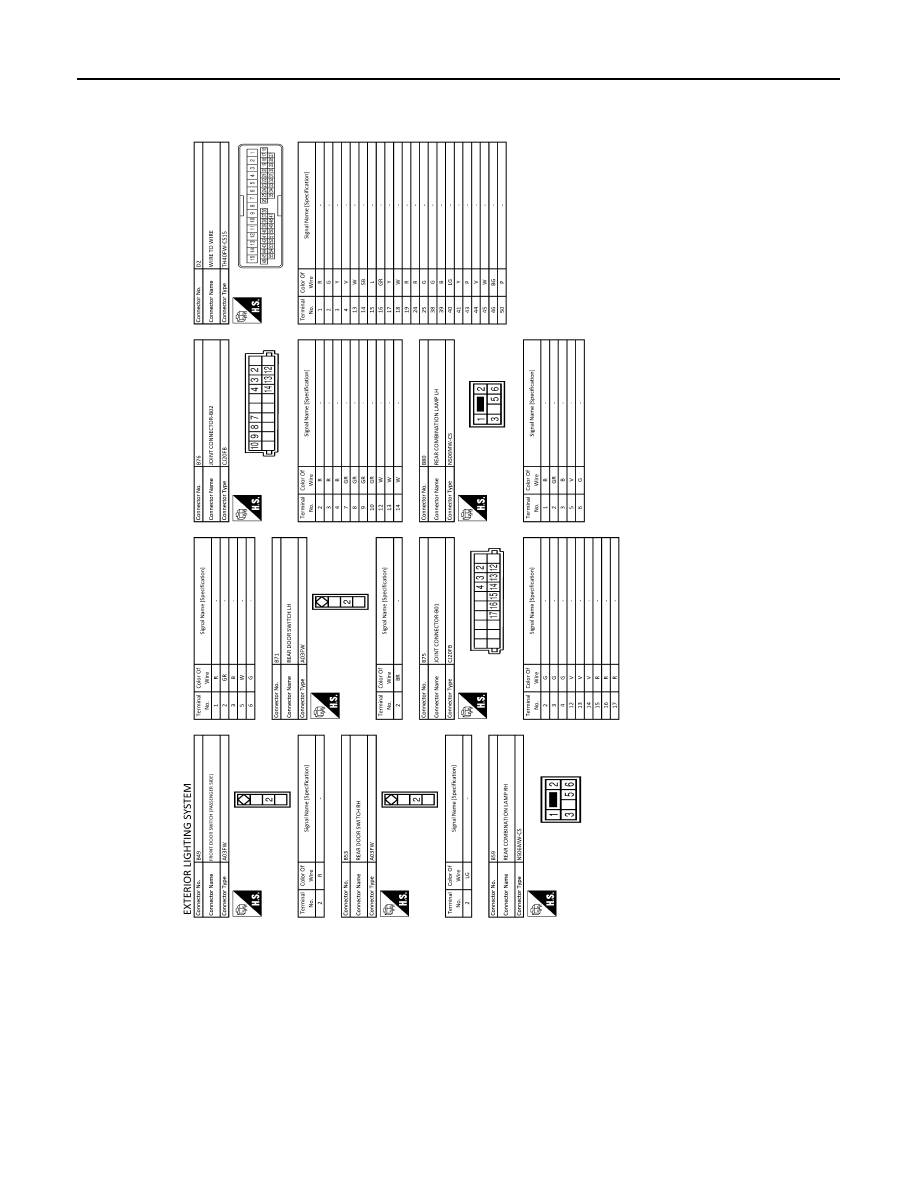

< WIRING DIAGRAM >

[XENON TYPE]

EXTERIOR LIGHTING SYSTEM

JRLWF5316GB

EXTERIOR LIGHTING SYSTEM

EXL-37

< WIRING DIAGRAM >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

JRLWF5317GB

EXL-38

< WIRING DIAGRAM >

[XENON TYPE]

EXTERIOR LIGHTING SYSTEM

JRLWF5318GB

EXTERIOR LIGHTING SYSTEM

EXL-39

< WIRING DIAGRAM >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

JRLWF5319GB
