Nissan Juke F15. Manual - part 695
EX-12
< REMOVAL AND INSTALLATION >
[MR16DDT ]
EXHAUST SYSTEM

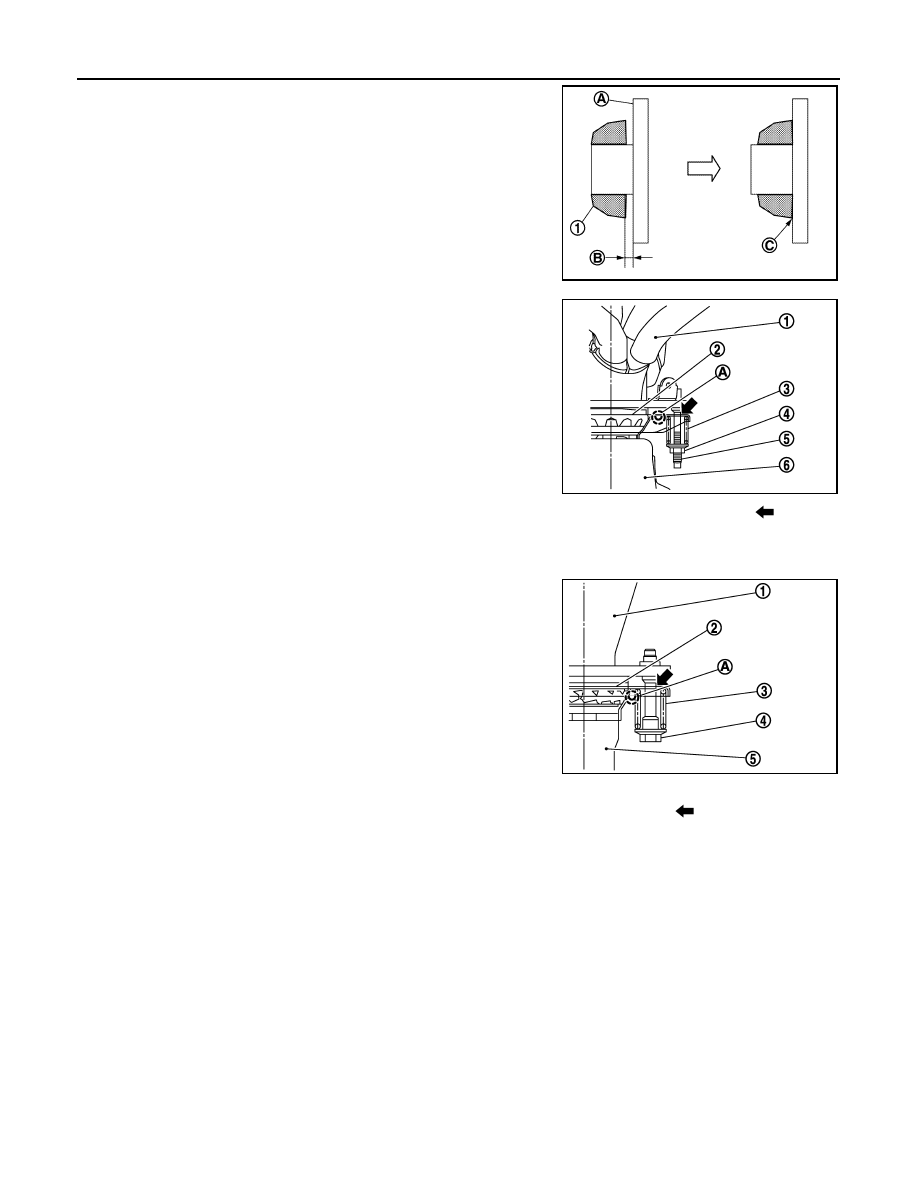

2. Check that seal bearing (1) is in absolute contact (C) with the
flange (A). If there is clearance (B), insert seal bearing straight
by hand to bring the seal bearing into absolute contact with the
flange.
CAUTION:
• Never use a tool for insertion.
• Never insert seal bearing by tightening exhaust front
tube.
3. With spring (3), tighten nut (4).
CAUTION:
• Fasten stud bolts to the flange of exhaust manifold side to
the specified torque before fastening mounting nuts.
• Ensure springs are seated correctly on the flange and not
sitting on (A).
• Be careful that stud bolt does not interfere with mounting hole of exhaust front tube (
).
4. After installing, check that stud bolt does not interfere with mounting hole of exhaust front tube.
Exhaust Front Tube to Main Muffler
1. Securely insert seal bearing (2) into exhaust front tube (1) side
in the direction as shown in the figure.
CAUTION:
Be careful not to damage seal bearing surface when install-
ing.
2. With spring, tighten bolt.
CAUTION:
• Ensure springs are seated correctly on the flange and not sitting on (A).
• Be careful that bolt does not interfere with mounting hole of main muffler (
).
3. After installing, check that bolt does not interfere with mounting hole of main muffler.
Inspection
INFOID:0000000012197616
INSPECTION AFTER INSTALLATION
• Check clearance between tail tube and rear bumper is even.
• With engine running, check exhaust tube joints for gas leakage and unusual noises.
• Check to ensure that mounting brackets and mounting rubbers are installed properly and free from undue
stress. Improper installation could result in excessive noise and vibration.
JPBIA6289ZZ
1
: Exhaust manifold
2
: Seal bearing
5
: Stud bolt
6
: Exhaust front tube
JPBIA2372ZZ
3
: Spring
4
: Bolt
5
: Main muffler
JPBIA2174ZZ
