P0181 FTT SENSOR

EC-913

< DTC/CIRCUIT DIAGNOSIS >

[MR EXCEPT FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

P0181 FTT SENSOR

DTC Logic

INFOID:0000000012198408

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

INSPECTION START

Is it necessary to erase permanent DTC?

YES

>> GO TO 7.

NO

>> GO TO 2.

2.

PRECONDITIONING

If DTC CONFIRMATION PROCEDURE has been previously conducted, always perform the following proce-

dure before conducting the next test.

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

>> GO TO 3.

3.

PERFORM DTC CONFIRMATION PROCEDURE FOR MALFUNCTION A-I

1. Turn ignition switch ON and wait at least 10 seconds.

2. Check 1st trip DTC.
Is 1st trip DTC detected?

YES

>> Proceed to

EC-915, "Diagnosis Procedure"

.

NO

>> GO TO 4.

4.

CHECK ENGINE COOLANT TEMPERATURE

With CONSULT

1. Select “COOLANT TEMP/S” in “DATA MONITOR” with CONSULT.

2. Check “COOLANT TEMP/S” value.

With GST

Follow the procedure “With CONSULT” above.
“COOLANT TEMP/S” less than 60

°C (140°F)?

YES

>> INSPECTION END

NO

>> GO TO 5.

5.

PERFORM DTC CONFIRMATION PROCEDURE FOR MALFUNCTION A-II

With CONSULT

1. Cool engine down until “COOLANT TEMP/S” is less than 60

°C (140°F).

DTC No.

CONSULT screen terms

(Trouble diagnosis content)

DTC detecting condition

Possible cause

P0181

FTT SENSOR
(Fuel temperature sensor a cir-
cuit range/performance)

A)

Rationally incorrect voltage from the
sensor is sent to ECM, compared with
the voltage signals from ECT sensor
and intake air temperature sensor.

• Harness or connectors

(The FTT sensor circuit is open or
shorted)

• FTT sensor

B)

The comparison result of signals trans-
mitted to ECM from each temperature
sensor (IAT sensor, ECT sensor, EOT
sensor, and FTT sensor) shows that
the voltage signal of the FTT sensor is
higher/lower than that of other temper-
ature sensors when the engine is start-
ed with its cold state.

• Harness or connectors

(High or low resistance in the FTT
sensor circuit)

• FTT sensor

EC-914

< DTC/CIRCUIT DIAGNOSIS >

[MR EXCEPT FOR NISMO RS MODELS]

P0181 FTT SENSOR

2. Wait at least 10 seconds.

3. Check 1st trip DTC.

With GST

Follow the procedure “With CONSULT” above.
Is 1st trip DTC detected?

YES

>> Proceed to

EC-915, "Diagnosis Procedure"

.

NO

>> GO TO 6.

6.

PERFORM COMPONENT FUNCTION CHECK (FOR MALFUNCTION B)

Perform component function check. Refer to

EC-914, "Component Function Check"

.

NOTE:

Use the component function check to check the overall function of the FTT sensor circuit. During this check, a

1st trip DTC might not be confirmed.
Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Proceed to

EC-915, "Diagnosis Procedure"

.

7.

PRECONDITIONING

If DTC CONFIRMATION PROCEDURE has been previously conducted, always perform the following proce-

dure before conducting the next test.

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

TESTING CONDITION:

• Before performing the following procedure, do not add fuel.

• Before performing the following procedure, check that fuel level is between 1/4 and 4/4.

• Before performing the following procedure, confirm that battery voltage is 11 V or more at idle.

>> GO TO 8.

8.

PERFORM DTC CONFIRMATION PROCEDURE B

1. Move the vehicle to a cool place.

NOTE:

Cool the vehicle in an environment of ambient air temperature between

−10°C (14°F) and 35°C (95°F).

2. Turn ignition switch OFF and leave the vehicle for 12 hours.

CAUTION:

Never turn ignition switch ON during this procedure.

NOTE:

The vehicle must be cooled with the hood open.

3. Start engine and let it idle for 5 minutes or more.

CAUTION:

Never turn ignition switch OFF during idling.

4. Check 1st trip DTC.
Is 1st trip DTC detected?

YES

>> Proceed to

EC-915, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Component Function Check

INFOID:0000000012198409

1.

CHECK FUEL TANK TEMPERATURE (FTT) SENSOR

1. Turn ignition switch OFF.

2. Disconnect fuel level sensor unit and fuel pump harness connector.

3. Remove fuel level sensor unit. Refer to

FL-7, "2WD : Removal and Installation"

 (2WD models),

FL-11,

"AWD : Removal and Installation"

 (AWD models).

P0181 FTT SENSOR

EC-915

< DTC/CIRCUIT DIAGNOSIS >

[MR EXCEPT FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

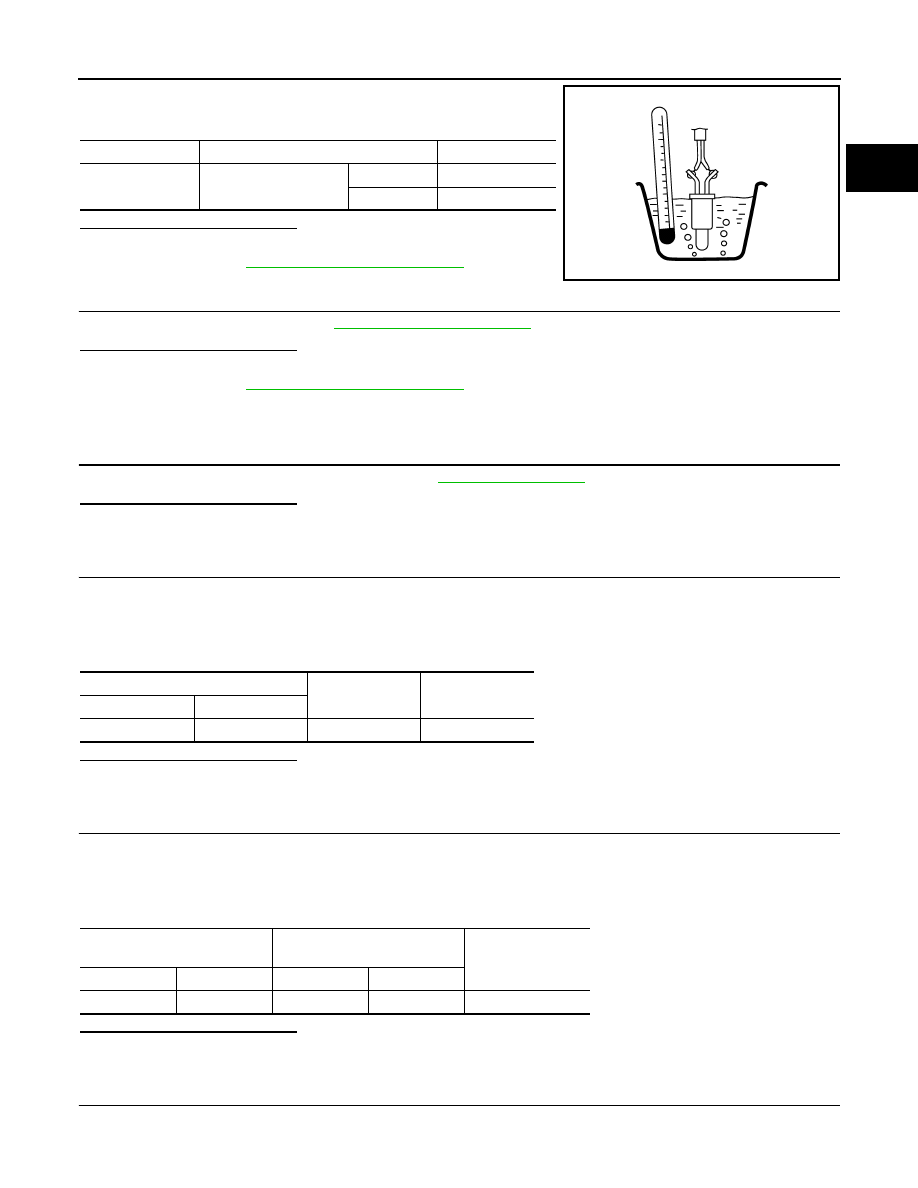

4. Check resistance between fuel level sensor unit and fuel pump

terminals by heating with hot water as shown in the figure.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Proceed to

EC-915, "Diagnosis Procedure"

.

2.

CHECK INTERMITTENT INCIDENT

Check intermittent incident. Refer to

GI-45, "Intermittent Incident"

.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Proceed to

EC-915, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000012198410

1.

INSPECTION START

Confirm the detected malfunction (A or B). Refer to

EC-913, "DTC Logic"

.

Which malfunction is detected?

A

>> GO TO 2.

B

>> GO TO 5.

2.

CHECK FUEL TANK TEMPERATURE SENSOR POWER SUPPLY

1. Turn ignition switch OFF.

2. Disconnect fuel level sensor unit and fuel pump harness connector.

3. Turn ignition switch ON.

4. Check the voltage between fuel level sensor unit and fuel pump harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> GO TO 3.

3.

CHECK FUEL TANK TEMPERATURE SENSOR POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect ECM harness connector.

3. Check the continuity between fuel tank temperature sensor harness connector and ECM harness connec-

tor.

Is the inspection result normal?

YES

>> Perform the trouble diagnosis for power supply circuit.

NO

>> Repair or replace error-detected parts.

4.

CHECK FUEL TANK TEMPERATURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT

1. Turn ignition switch OFF.

2. Disconnect ECM harness connector.

Terminals

Condition

Resistance (k

Ω)

4 and 5

Temperature [

°C (°F)]

20 (68)

2.3 – 2.7

50 (122)

0.79 – 0.90

JMBIA0167ZZ

Fuel level sensor unit and fuel pump

Ground

Voltage

Connector

Terminal

B46

4

Ground

Approx. 5 V

Fuel level sensor unit and fuel

pump

ECM

Continuity

Connector

Terminal

Connector

Terminal

B46

4

E19

128

Existed

EC-916

< DTC/CIRCUIT DIAGNOSIS >

[MR EXCEPT FOR NISMO RS MODELS]

P0181 FTT SENSOR

3. Check the continuity between fuel level sensor unit and fuel pump harness connector and ECM harness

connector.

4. Also check harness for short to ground and short to power.
Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair open circuit, short to ground or short to power in harness or connector.

5.

CHECK FUEL TANK TEMPERATURE SENSOR

Check fuel tank temperature sensor. Refer to

EC-916, "Component Inspection"

.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-45, "Intermittent Incident"

.

NO

>> Replace fuel level sensor unit and fuel pump. Refer to

FL-7, "2WD : Removal and Installation"

(2WD models),

FL-11, "AWD : Removal and Installation"

 (AWD models).

Component Inspection

INFOID:0000000012198411

1.

CHECK FUEL TANK TEMPERATURE SENSOR

1. Turn ignition switch OFF.

2. Remove fuel level sensor unit. Refer to

FL-7, "2WD : Removal and Installation"

 (2WD models),

FL-11,

"AWD : Removal and Installation"

 (AWD models).

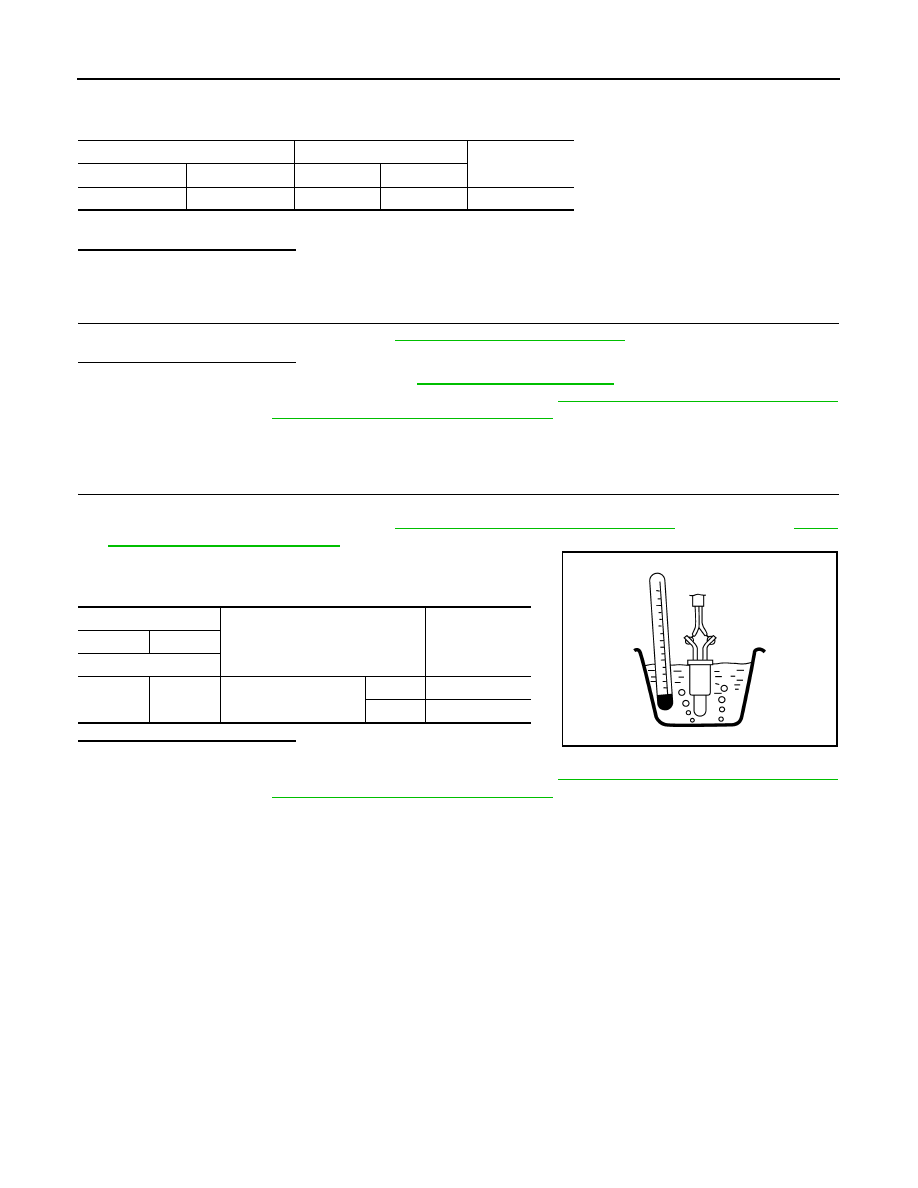

3. Check resistance between “fuel level sensor unit and fuel pump”

terminals by heating with hot water as shown in the figure.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace fuel level sensor unit and fuel pump. Refer to

FL-7, "2WD : Removal and Installation"

(2WD models),

FL-11, "AWD : Removal and Installation"

 (AWD models).

Fuel level sensor unit and fuel pump

ECM

Continuity

Connector

Terminal

Connector

Terminal

B46

5

E19

148

Existed

Mass air flow sensor

Condition

Resistance (k

Ω)

+

Terminals

4

5

Temperature [

°C (°F)]

20 (68)

2.3 - 2.7 k

50 (122)

0.79 - 0.90 k

JMBIA0167ZZ
