P0117, P0118 ENGINE COOLANT TEMPERATURE SENSOR 1

EC-861

< DTC/CIRCUIT DIAGNOSIS >

[MR EXCEPT FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

4. Also check harness for short to ground to power.
Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace error-detected parts.

3.

CHECK ENGINE COOLANT TEMPERATURE SENSOR 1

Check the engine coolant temperature sensor 1. Refer to

EC-861, "Component Inspection (Engine Coolant

Temperature Sensor 1)"

.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-45, "Intermittent Incident"

.

NO

>> Replace engine coolant temperature sensor 1. Refer to

CO-54, "Exploded View"

.

4.

CHECK ENGINE COOLANT TEMPERATURE SENSOR 1 POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect ECM harness connector.

3. Check the continuity between ECT sensor 1 harness connector and ECM harness connector.

4. Also check harness for short to ground.
Is the inspection result normal?

YES

>> Perform the trouble diagnosis for power supply circuit.

NO

>> Repair or replace error-detected parts.

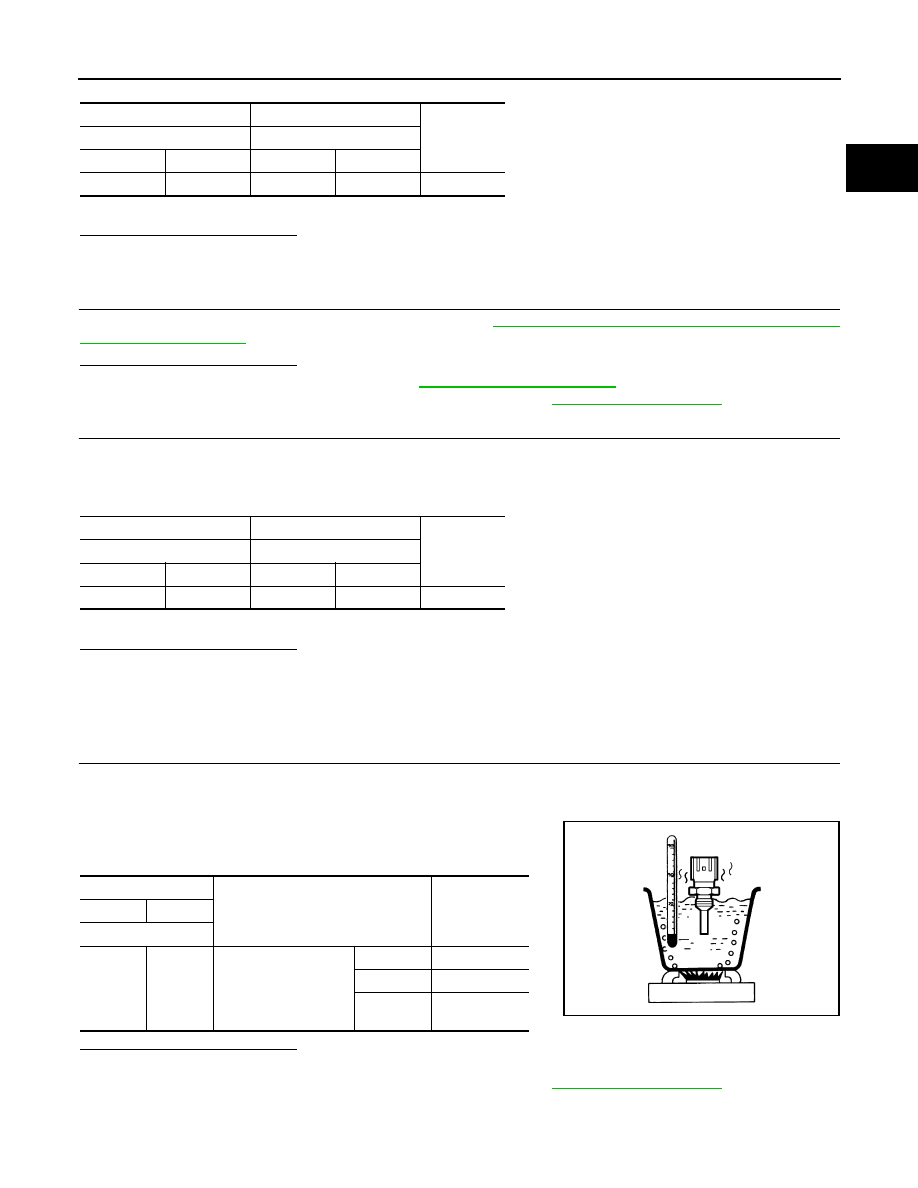

Component Inspection (Engine Coolant Temperature Sensor 1)

INFOID:0000000012198369

1.

CHECK ENGINE COOLANT TEMPERATURE SENSOR 1

1. Turn ignition switch OFF.

2. Disconnect engine coolant temperature sensor 1 harness connector.

3. Remove engine coolant temperature sensor 1.

4. Check resistance between engine coolant temperature sensor 1

terminals by heating with hot water as shown in the figure.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace engine coolant temperature sensor 1. Refer to

CO-54, "Exploded View"

.

+

−

Continuity

ECT sensor 1

ECM

Connector

Terminal

Connector

Terminal

F50

2

F23

45

Existed

+

−

Continuity

ECT sensor 1

ECM

Connector

Terminal

Connector

Terminal

F50

1

F23

35

Existed

ECT sensor 1

Condition

Resistance

+

−

Terminal

1

2

Temperature [

°C (°F)]

20 (68)

2.37 - 2.63 k

Ω

50 (122)

0.68 - 1.00 k

Ω

90 (194)

0.236 - 0.260

k

Ω

JMBIA0080ZZ

EC-862

< DTC/CIRCUIT DIAGNOSIS >

[MR EXCEPT FOR NISMO RS MODELS]

P011C IAT SENSOR

P011C IAT SENSOR

DTC Logic

INFOID:0000000012198370

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following procedure

before conducting the next test.

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

TEST CONDITION:

Before performing the following procedure, confirm that battery voltage is more than 11 V at idle.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

1. Start engine and let it idle for at least 5 seconds.

2. Check 1st trip DTC.
Is 1st trip DTC detected?

YES

>> Proceed to

EC-862, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000012198371

1.

CHECK INTAKE AIR TEMPERATURE SENSOR 2

Check intake air temperature sensor 2. Refer to

EC-863, "Component Inspection (Intake Air Temperature Sen-

sor 2)"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Replace turbocharger boost sensor (with intake air temperature sensor 2). Refer to

EM-194,

"Exploded View"

.

2.

CHECK INTAKE AIR TEMPERATURE SENSOR 1

Check intake air temperature sensor 1. Refer to

EC-863, "Component Inspection (Intake Air Temperature Sen-

sor 1)"

.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-45, "Intermittent Incident"

.

NO

>> Replace mass air flow sensor (with intake air temperature sensor 1). Refer to

EM-192, "Exploded

View"

.

DTC No.

Trouble diagnosis name

(Trouble diagnosis content)

DTC detecting condition

Possible cause

P011C

CAT/IAT CRRLTN B1
(Charge air temperature/Intake
air temperature correlation)

• ECM detects a state that the temperature

difference between intake air temperature
sensor 1 and 2 remains 20

°C (68°F) or less

continuously for 5 seconds or more.

• ECM detects a state that the difference be-

tween the temperature of intake air temper-
ature sensor 2 and its estimated
temperature calculated by ECM from in-
take air temperature 1 and turbocharger
boost sensor remains 106

°C (223°F) or

more continuously for 5 seconds or more.

• Harness or connectors

(High or low resistance in the intake
air temperature sensor 1 circuit)
(High or low resistance in the intake
air temperature sensor 2 circuit)

• Intake air temperature sensor 1
• Intake air temperature sensor 2

P011C IAT SENSOR

EC-863

< DTC/CIRCUIT DIAGNOSIS >

[MR EXCEPT FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Component Inspection (Intake Air Temperature Sensor 1)

INFOID:0000000012198372

1.

CHECK INTAKE AIR TEMPERATURE SENSOR 1

1. Turn ignition switch OFF.

2. Disconnect mass air flow sensor harness connector.

3. Check resistance between mass air flow sensor terminals as follows.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace mass air flow sensor (with intake air temperature sensor 1). Refer to

EM-192, "Exploded

View"

.

Component Inspection (Intake Air Temperature Sensor 2)

INFOID:0000000012198373

1.

CHECK INTAKE AIR TEMPERATURE SENSOR 2

1. Turn ignition switch OFF.

2. Disconnect turbocharger boost sensor harness connector.

3. Check resistance between turbocharger boost sensor terminals as follows.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace turbocharger boost sensor (with intake air temperature sensor 2). Refer to

EM-194,

"Exploded View"

.

Mass air flow sensor

Condition

Resistance (k

Ω)

+

−

Terminal

3

4

Temperature [

°C (°F)]

25 (77)

1.80 – 2.20

Turbocharger boost sensor

Condition

Resistance (k

Ω)

+

−

Terminal

3

 4

Temperature [

°C (°F)]

25 (77)

1.80 – 2.20

EC-864

< DTC/CIRCUIT DIAGNOSIS >

[MR EXCEPT FOR NISMO RS MODELS]

P0122, P0123 TP SENSOR

P0122, P0123 TP SENSOR

DTC Logic

INFOID:0000000012198374

DTC DETECTION LOGIC

NOTE:

If DTC P0122 or P0123 is displayed with DTC P0643, first perform the trouble diagnosis for DTC P0643.

Refer to

EC-1060, "DTC Logic"

.

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following procedure

before conducting the next test.

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

TESTING CONDITION:

Before performing the following procedure, confirm that battery voltage is more than 8 V at idle.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

1. Start engine and let it idle for 1 second.

2. Check DTC.
Is DTC detected?

YES

>> Proceed to

EC-864, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000012198375

1.

CHECK THROTTLE POSITION SENSOR 2 POWER SUPPLY

1. Turn ignition switch OFF.

2. Disconnect electric throttle control actuator harness connector.

3. Turn ignition switch ON.

4. Check the voltage between electric throttle control actuator harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

CHECK THROTTLE POSITION SENSOR 2 POWER SUPPLY CIRCUIT

DTC No.

Trouble diagnosis name

(Trouble diagnosis con-

tent)

DTC detecting condition

Possible cause

P0122

TP SEN 2/CIRC-B1
(Throttle position sensor
2 circuit low input)

An excessively low voltage from the TP sensor
2 is sent to ECM.

• Harness or connectors

(TP sensor 2 circuit is open or shorted.)

• Electric throttle control actuator

(TP sensor 2)

P0123

TP SEN 2/CIRC-B1
(Throttle position sensor
2 circuit high input)

An excessively high voltage from the TP sensor
2 is sent to ECM.

+

−

Voltage

(Approx.)

Electric throttle control actuator

Connector

Terminal

F29

5

Ground

5 V
