Nissan Juke F15. Manual - part 477

ENGINE CONTROL SYSTEM

EC-721

< WIRING DIAGRAM >

[MR EXCEPT FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

WIRING DIAGRAM

ENGINE CONTROL SYSTEM

Wiring Diagram

INFOID:0000000012198251

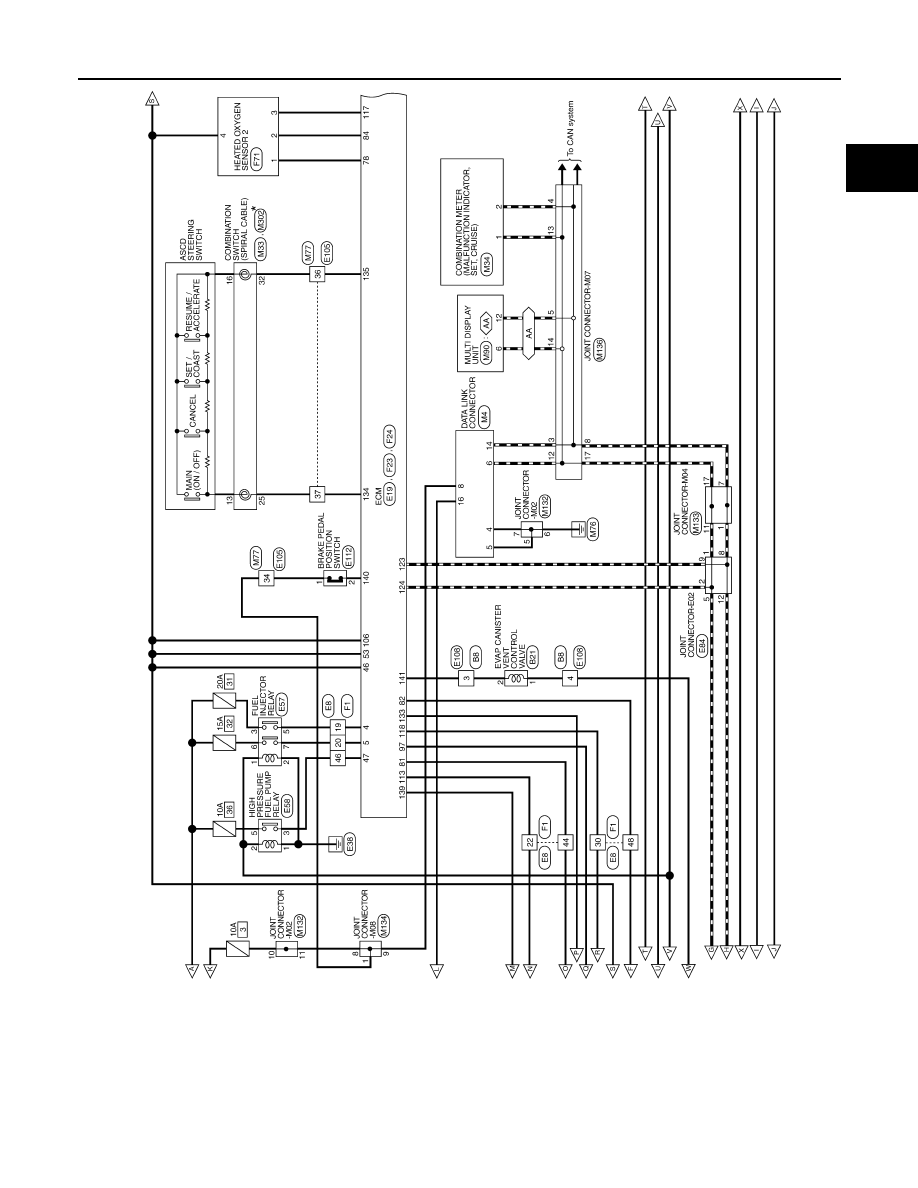

JRBWD6947GB

EC-722

< WIRING DIAGRAM >

[MR EXCEPT FOR NISMO RS MODELS]

ENGINE CONTROL SYSTEM

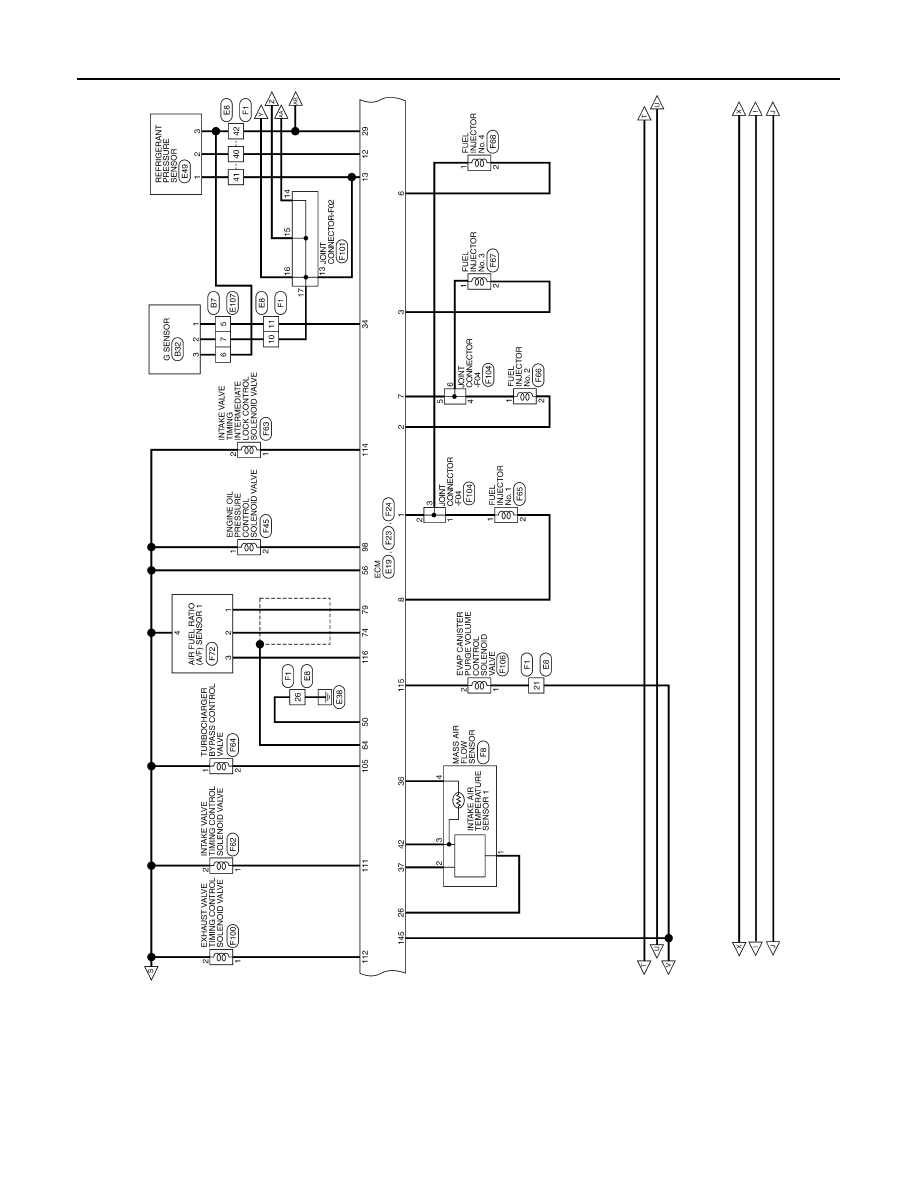

JRBWD6948GB

ENGINE CONTROL SYSTEM

EC-723

< WIRING DIAGRAM >

[MR EXCEPT FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

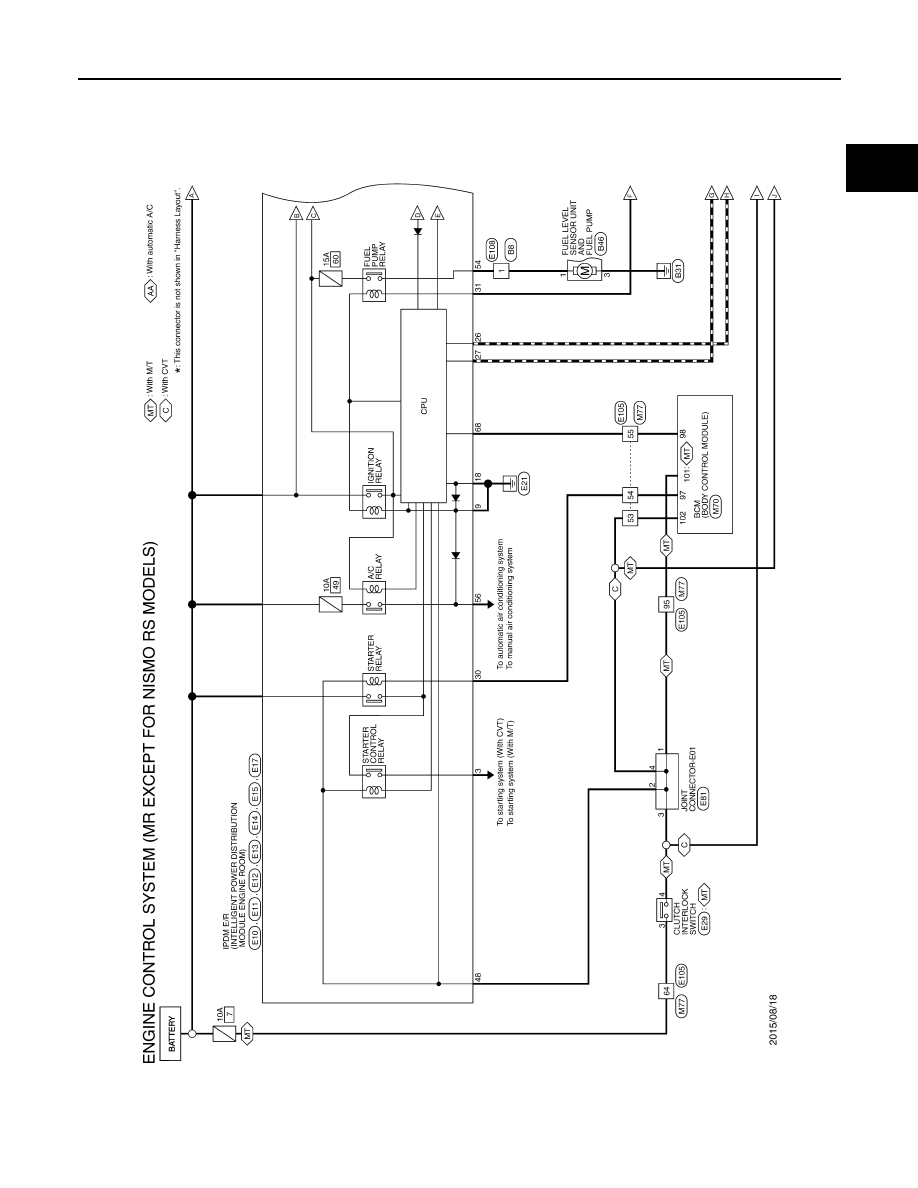

JRBWD6949GB

EC-724

< WIRING DIAGRAM >

[MR EXCEPT FOR NISMO RS MODELS]

ENGINE CONTROL SYSTEM

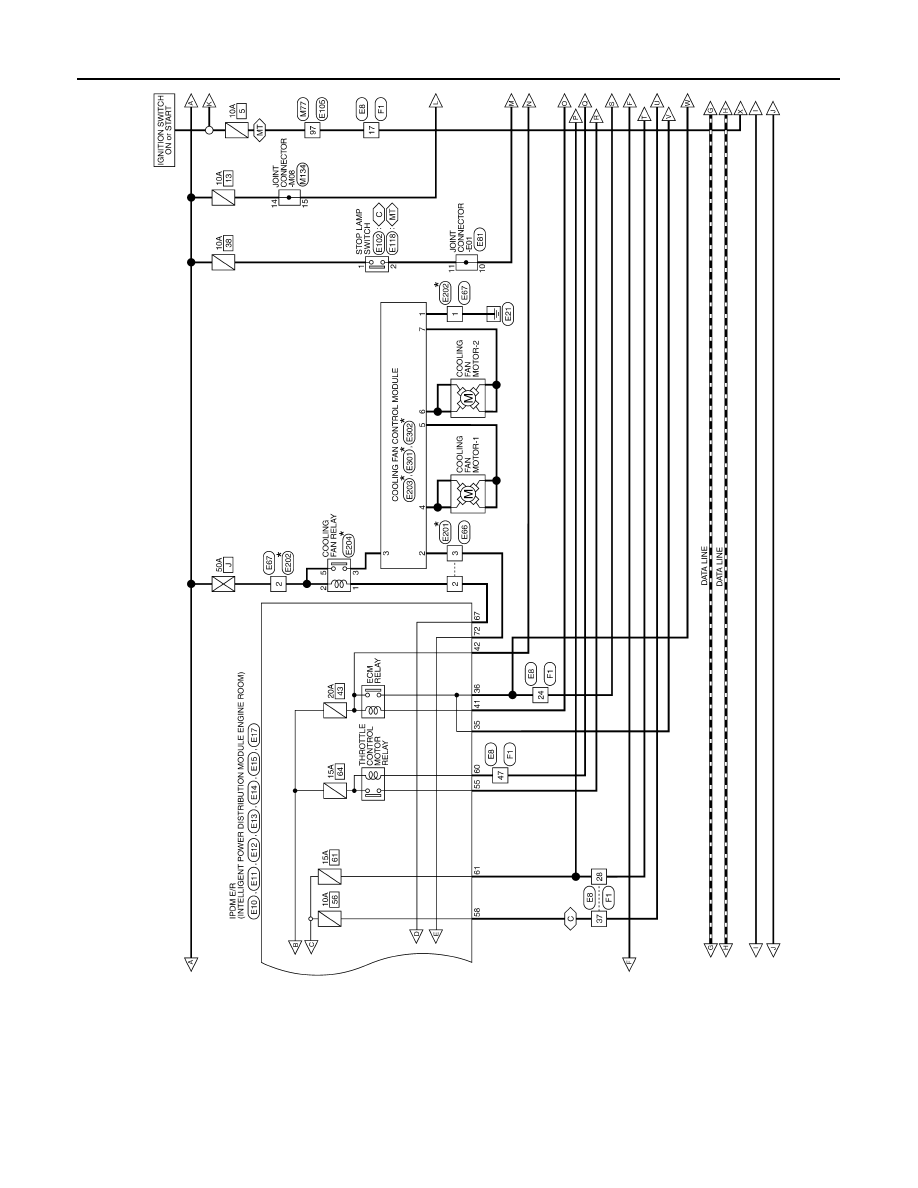

JRBWD6950GB
