DIAGNOSIS SYSTEM (ECM)

EC-677

< SYSTEM DESCRIPTION >

[MR EXCEPT FOR NISMO RS MODELS]

*: Leaving cooling fan OFF with CONSULT while engine is running may cause the engine to overheat.

DTC WORK SUPPORT MODE

Test Item

ALTERNATOR DUTY

• Ignition switch: ON
• Change duty ratio using CON-

SULT.

Battery voltage changes.

• Harness and connectors
• Alternator
• IPDM E/R

POWER BALANCE

• Engine: After warming up, idle

the engine.

• A/C switch OFF
• Shift lever: P or N (CVT), Neutral

(M/T)

• Cut off each fuel injector signal

one at a time using CONSULT.

Engine runs rough or dies.

• Harness and connectors
• Compression
• Fuel injector
• Power transistor
• Spark plug
• Ignition coil

EGR CONTROL
VALVE

• Ignition switch: ON
• Engine stopped
• Change valve target angle using

CONSULT

Valve opening angle changes ac-
cording to target angle (from 0deg
to 70deg)

• Harness and connectors
• EGR valve

VALVE TIMING OFF-
SET DATA WRITING

• Ignition switch: ON
• Engine stopped
• Change the wastegate target

stroke using CONSULT

Wastegate position sensor output
voltage changes according to tar-
get stroke value.

• Harness and connectors
• Wastegate actuator (Removal

wastegate actuator from turbo-
charger is NG)

• Turbocharger assembly

TC BYPASS VALVE

• Ignition switch: ON
• Engine stopped or Engine run-

ning (idling, less than 1200rpm)

• Input “ON” “OFF” signal using

CONSULT

Bypass valve makes the operating
sound.

• Harness and connectors
• Turbocharger bypass valve (Re-

moval bypass valve from Turbo-
charger is NG)

• Turbocharger assembly

ENGINE OIL PRES-
SURE CONTROL
SOLENOID VALVE

• Water temperature: >

−10°C

• Engine oil temperature: < 120

°C

(248

°F)

• Engine speed: < 4000rpm

Engine oil pressure change

• Harness and connectors
• Engine oil pressure control sole-

noid valve

• Engine oil pressure sensor
• Engine oil pump

SWRL CONT S/V
VALVE

• Ignition switch: ON
• Engine stopped
• Turn the intake manifold runner

control valve “ON” and “OFF” us-
ing CONSULT to open or close.

Touch the intake manifold runner
control valve motor and check the
operating vibration and sound.

• Harness and connectors
• Intake manifold runner control

valve

• Intake manifold runner control

valve motor

AUTO STOP START

• Engine: After warming up, run

engine at idle

• Shift lever: Neutral position
• “Start” and “Cancel” using CON-

SULT.

Check the stop/start system oper-
ate and restart.

• Harness and connectors
• IPDM E/R
• Starter motor
• Engine restart relay
• Starter control relay
• DC/DC converter
• Battery

CAUTION:

Be careful so that a hood operates in the opened state when carry out work.

WASTEGATE ACTU-
ATOR

• Ignition switch: ON
• Engine stopped
• Change valve of wastegate actu-

ator target angle using CON-
SULT

Wastegate valve position sensor
voltage changes according to valve
target angle

• Harness and connectors
• Electric wastegate control actua-

tor (Removal bypass valve from
turbocharger is NG)

• Turbocharger assembly

VENT CONTROL/V

• Ignition switch: ON
• Engine stopped
• Turn solenoid valve ON and OFF

with the CONSULT and listen to
operating sound.

Solenoid valve makes an operating
sound.

• Harness and connectors
• EVAP canister vent control sole-

noid valve

Test item

Condition

Judgement

Check item (Remedy)

EC-678

< SYSTEM DESCRIPTION >

[MR EXCEPT FOR NISMO RS MODELS]

DIAGNOSIS SYSTEM (ECM)

SRT & P-DTC MODE

SRT STATUS Mode

• For items whose SRT codes are set, “CMPLT” is displayed on the CONSULT screen; for items whose SRT

codes are not set, “INCMP” is displayed.

• “SRT STATUS” provides the presence or absence of permanent DTCs stored in ECM memory.

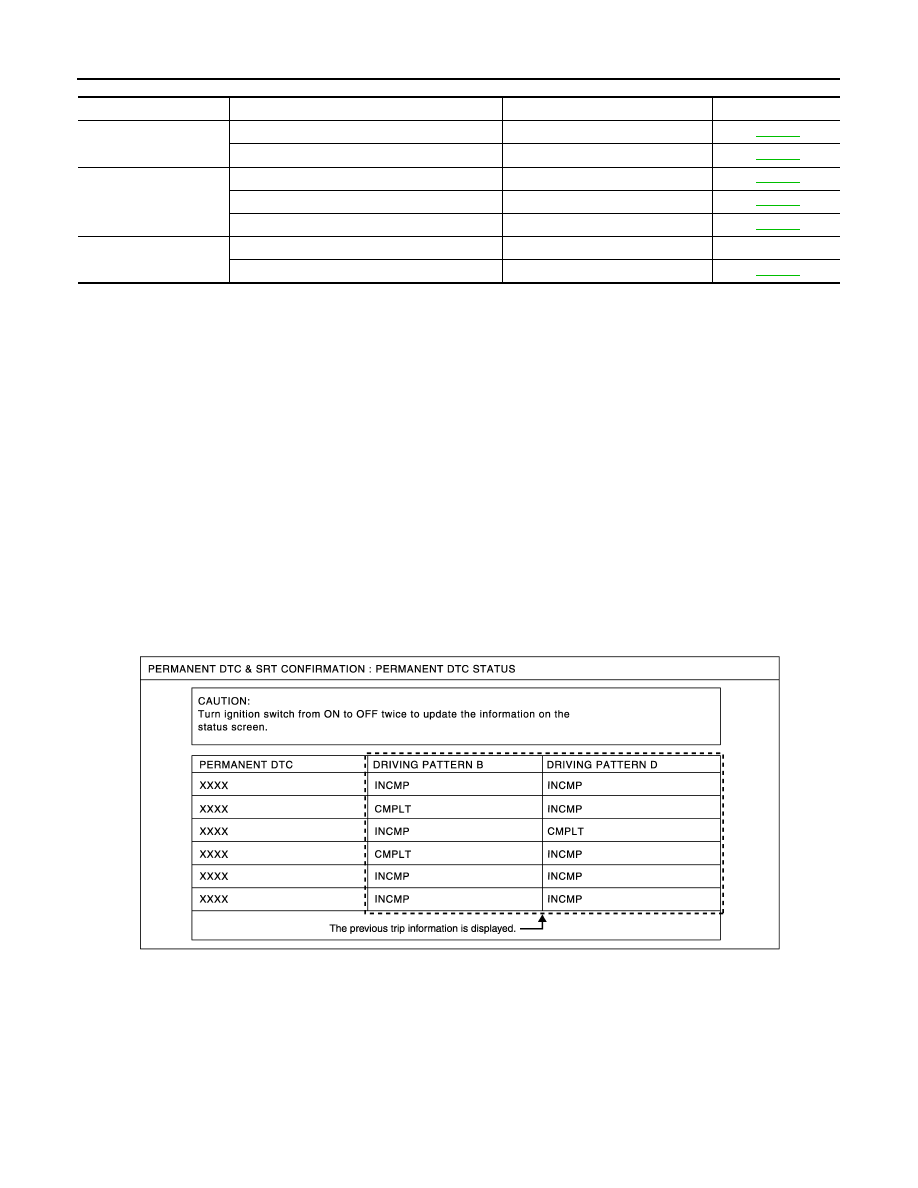

PERMANENT DTC STATUS Mode

How to display permanent DTC status

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

4. Turn ignition switch ON.

5. Select “PERMANENT DTC STATUS” in “DTC & SRT CONFIRMATION” mode with CONSULT.

NOTE:

Permanent DTCs stored in ECM memory are displayed on the CONSULT screen to show if a driving pat-

tern required for erasing permanent DTCs is complete (CMPLT) or incomplete (INCMP).

CAUTION:

Since the “PERMANENT DTC STATUS” screen displays the previous trip information, repeat the

following twice to update the information: “Ignition switch OFF”, “Wait for more than 10 seconds”

and “Ignition switch ON”.

NOTE:

This mode is not used in regions that permanent DTCs are not regulated by law.

SRT WORK SUPPORT Mode

This mode enables a technician to drive a vehicle to set the SRT while monitoring the SRT status.

PERMANENT DTC WORK SUPPORT Mode

This mode enables a technician to drive a vehicle to complete the driving pattern that is required for erasing

permanent DTC.

NOTE:

This mode is not used in regions that permanent DTCs are not regulated by law.

Test mode

Test item

Corresponding DTC No.

Reference page

EVAPORATIVE SYS-
TEM

PURG VOL CN/V P1444

P0443

EC-977

PURG FLOW P0441

P0441

EC-971

HO2S2

HO2S2 (B1) P1146

P0138

EC-887

HO2S2 (B1) P1147

P0137

EC-881

HO2S2 (B1) P0139

P0139

EC-894

A/F SEN1

A/F SEN1 (B1) P1278/P1279

—

A/F SEN1 (B1) P1276

P0130

EC-871

JSBIA0062GB

ECM

EC-679

< ECU DIAGNOSIS INFORMATION >

[MR EXCEPT FOR NISMO RS MODELS]

ECU DIAGNOSIS INFORMATION

ECM

Reference Value

INFOID:0000000012198246

VALUES ON THE DIAGNOSIS TOOL

NOTE:

• The following table includes information (items) inapplicable to this vehicle. For information (items) applica-

ble to this vehicle, refer to CONSULT display items.

• Numerical values in the following table are reference values.

• These values are input/output values that ECM receives/transmits and may differ from actual operations.

Example: The ignition timing shown by the timing light may differ from the ignition timing displayed on the

data monitor.

This occurs because the timing light shows a value calculated by ECM according to signals received from

the camshaft position sensor and other sensors related to ignition timing.

• For outlines of following items, refer to

EC-667, "CONSULT Function"

Monitor Item

Condition

Values/Status

ENG SPEED

Run engine and compare CONSULT value with the tachometer indication.

Almost the same speed as
the tachometer indication.

MASS AIR FLOW
SENSOR (Hz)

See

EC-786, "Diagnosis Procedure"

B/FUEL SCHDL

See

EC-786, "Diagnosis Procedure"

A/F ALPHA-B1

See

EC-786, "Diagnosis Procedure"

COOLANT TEMP/S

Engine: After warming up

More than 70

°C (158°F)

RADIATOR COOL-
ANT TEMP

Engine: running

0 - 4.8 V

ENGINE COOLANT
B/V POSI

• Ignition switch: ON
• Cold condition

Approx. 207 deg

Engine: Idle

Engine coolant temperature: 64

°C

(148

°F)

Approx. 63 deg

Engine coolant temperature: 75

°C

(167

°F)

Approx. 99 deg

Engine coolant temperature: 86-100

°C

(187- 212

°F)

Approx. 163 deg

A/F SEN1 (B1)

Engine: After warming up

Maintaining engine speed at 2,000 rpm

Fluctuates around 1.5 V

HO2S2 (B1)

• Revving engine from idle up to 3,000 rpm quickly after the following conditions

are met.

- Engine: After warming up
- After keeping engine speed between 3,500 and 4,000 rpm for 1 minute and at

idle for 1 minute under no load

0 - 0.3 V

←→ Approx. 0.6 -

1.0 V

HO2S2 MNTR(B1)

• Revving engine from idle up to 3,000 rpm quickly after the following conditions

are met.

- Engine: After warming up
- After keeping engine speed between 3,500 and 4,000 rpm for 1 minute and at

idle for 1 minute under no load

LEAN

←→ RICH

VHCL SPEED SE

Turn drive wheels and compare CONSULT value with the speedometer indica-
tion.

Almost the same speed as
speedometer indication

BATTERY VOLT

Ignition switch: ON (Engine stopped)

11 - 14 V

ACCEL SEN 1

Ignition switch: ON
(Engine stopped)

Accelerator pedal: Fully released

0.6 - 0.9 V

Accelerator pedal: Fully depressed

4.0 - 4.8 V

ACCEL SEN 2

Ignition switch: ON
(Engine stopped)

Accelerator pedal: Fully released

Approx. 0.8 V

Accelerator pedal: Fully depressed

Approx. 4.6 V

EC-680

< ECU DIAGNOSIS INFORMATION >

[MR EXCEPT FOR NISMO RS MODELS]

ECM

TP SEN 1-B1

• Ignition switch: ON

(Engine stopped)

• Selector lever: D (CVT), 1st (M/T)

Accelerator pedal: Fully released

More than 0.36 V

Accelerator pedal: Fully depressed

Less than 4.75 V

TP SEN 2-B1*

• Ignition switch: ON

(Engine stopped)

• Selector lever: D (CVT), 1st (M/T)

Accelerator pedal: Fully released

More than 0.36 V

Accelerator pedal: Fully depressed

Less than 4.75 V

START SIGNAL

Ignition switch: ON

→ START → ON

OFF

→ ON → OFF

CLSD THL POS

Ignition switch: ON
(Engine stopped)

Accelerator pedal: Fully released

Accelerator pedal: Slightly depressed

OFF

AIR COND SIG

Engine: After warming up, idle the
engine

Air conditioner switch: OFF

OFF

Air conditioner switch: ON
(Compressor operates.)

PW/ST SIGNAL

Engine: After warming up, idle the
engine

Steering wheel: Not being turned

OFF

Steering wheel: Being turned

LOAD SIGNAL

Ignition switch: ON

Rear window defogger switch: ON
and/or Lighting switch: 2nd position

Rear window defogger switch and lighting
switch: OFF

OFF

IGNITION SW

Ignition switch: ON

→ OFF → ON

HEATER FAN SW

Engine: After warming up, idle the
engine

Heater fan switch: ON

Heater fan switch: OFF

OFF

BRAKE SW

Ignition switch: ON

Brake pedal: Fully released

OFF

Brake pedal: Slightly depressed

IGN TIMING

• Engine: After warming up
• Selector lever: P or N (CVT),

Neutral (M/T)

• Air conditioner switch: OFF
• No load

Idle

° - 15° BTDC

2,000 rpm

° - 50° BTDC

COMBUSTION

—

These items are displayed
but are not applicable to this
model.

CAL/LD VALUE

• Engine: After warming up
• Selector lever: P or N (CVT),

Neutral (M/T)

• Air conditioner switch: OFF
• No load

Idle

Approx. 21% (CVT models)

Approx. 17% (M/T models)

2,500 rpm

Approx. 15%

MASS AIRFLOW

• Engine: After warming up
• Selector lever: P or N (CVT),

Neutral (M/T)

• Air conditioner switch: OFF
• No load

Idle

Approx. 1.6 g/s

2,500 rpm

Approx. 5.0 g/s

PURG VOL C/V

• Engine: After warming up
• Selector lever: P or N (CVT),

Neutral (M/T)

• Air conditioner switch: OFF
• No load

Idle
(Accelerator pedal: Not depressed even
slightly, after engine starting.)

0 - 1%

2,000 rpm

1% - 90%

INT/V TIM(B1)

• Engine: After warming up
• Selector lever: P or N (CVT),

Neutral (M/T)

• Air conditioner switch: OFF
• No load

Idle

Approx. 36

°CA

2,000 rpm

Approx. 18

°CA

Monitor Item

Condition

Values/Status
