DIAGNOSIS SYSTEM (ECM)

EC-665

< SYSTEM DESCRIPTION >

[MR EXCEPT FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

OK: Self-diagnosis is carried out and the result is OK.
NG: Self-diagnosis is carried out and the result is NG.
—: Self-diagnosis is not carried out.

When all SRT related self-diagnoses show OK results in a single cycle (Ignition OFF-ON-OFF), the SRT will

indicate “CMPLT”.

→ Case 1 above

When all SRT related self-diagnoses show OK results through several different cycles, the SRT will indicate

“CMPLT” at the time the respective self-diagnoses have at least one OK result.

→ Case 2 above

If one or more SRT related self-diagnoses show NG results in 2 consecutive cycles, the SRT will also indicate

“CMPLT”.

→ Case 3 above

The table above shows that the minimum number of cycles for setting SRT as “INCMP” is the number one (1)

for each self-diagnosis (Case 1 & 2) or the number two (2) for one of self-diagnoses (Case 3). However, in

preparation for the state emissions inspection, it is unnecessary for each self-diagnosis to be executed twice

(Case 3) for the following reasons:

• The SRT will indicate “CMPLT” at the time the respective self-diagnoses have one (1) OK result.

• The emissions inspection requires “CMPLT” of the SRT only with OK self-diagnosis results.

• During SRT driving pattern, the 1st trip DTC (NG) is detected prior to “CMPLT” of SRT and the self-diagnosis

memory must be erased from the ECM after repair.

• If the 1st trip DTC is erased, all the SRT will indicate “INCMP”.

NOTE:

SRT can be set as “CMPLT” together with the DTC(s). Therefore, DTC check must always be carried out

prior to the state emission inspection even though the SRT indicates “CMPLT”.

DIAGNOSIS DESCRIPTION : Permanent Diagnostic Trouble Code (Permanent DTC)

INFOID:0000000012198242

Permanent DTC is defined in SAE J1979/ISO 15031-5 Service $0A.

ECM stores a DTC issuing a command of turning on MIL as a permanent DTC and keeps storing the DTC as

a permanent DTC until ECM judges that there is no presence of malfunction.

Permanent DTCs cannot be erased by using the erase function of CONSULT or Generic Scan Tool (GST) and

by disconnecting the battery to shut off power to ECM. This prevents a vehicle from passing the in-use inspec-

tion without repairing a malfunctioning part.

When not passing the in-use inspection due to more than one permanent DTC, permanent DTCs should be

erased, referring to this manual.

NOTE:

• The important items in in-use inspection are that MIL is not ON, SRT test items are set, and permanent

DTCs are not included.

• Permanent DTCs do not apply for regions that permanent DTCs are not regulated by law.

Self-diagnosis result

Example

Diagnosis

Ignition cycle

← ON → OFF ← ON → OFF ← ON → OFF ← ON →

All OK

Case 1

P0400

OK (1)

— (1)

OK (2)

— (2)

P0402

OK (1)

— (1)

— (1)

OK (2)

P1402

OK (1)

OK (2)

— (2)

— (2)

SRT of EGR

“CMPLT”

“CMPLT”

“CMPLT”

“CMPLT”

Case 2

P0400

OK (1)

— (1)

— (1)

— (1)

P0402

— (0)

— (0)

OK (1)

— (1)

P1402

OK (1)

OK (2)

— (2)

— (2)

SRT of EGR

“INCMP”

“INCMP”

“CMPLT”

“CMPLT”

NG exists

Case 3

P0400

OK

OK

P0402

P1402

NG

NG

NG

(Consecutive

NG)

(1st trip)

DTC

1st trip DTC

1st trip DTC

DTC

(= MIL ON)

SRT of EGR

“INCMP”

“INCMP”

“INCMP”

“CMPLT”

EC-666

< SYSTEM DESCRIPTION >

[MR EXCEPT FOR NISMO RS MODELS]

DIAGNOSIS SYSTEM (ECM)

PERMANENT DTC SET TIMING

The setting timing of permanent DTC is stored in ECM with the lighting of MIL when a DTC is confirmed.

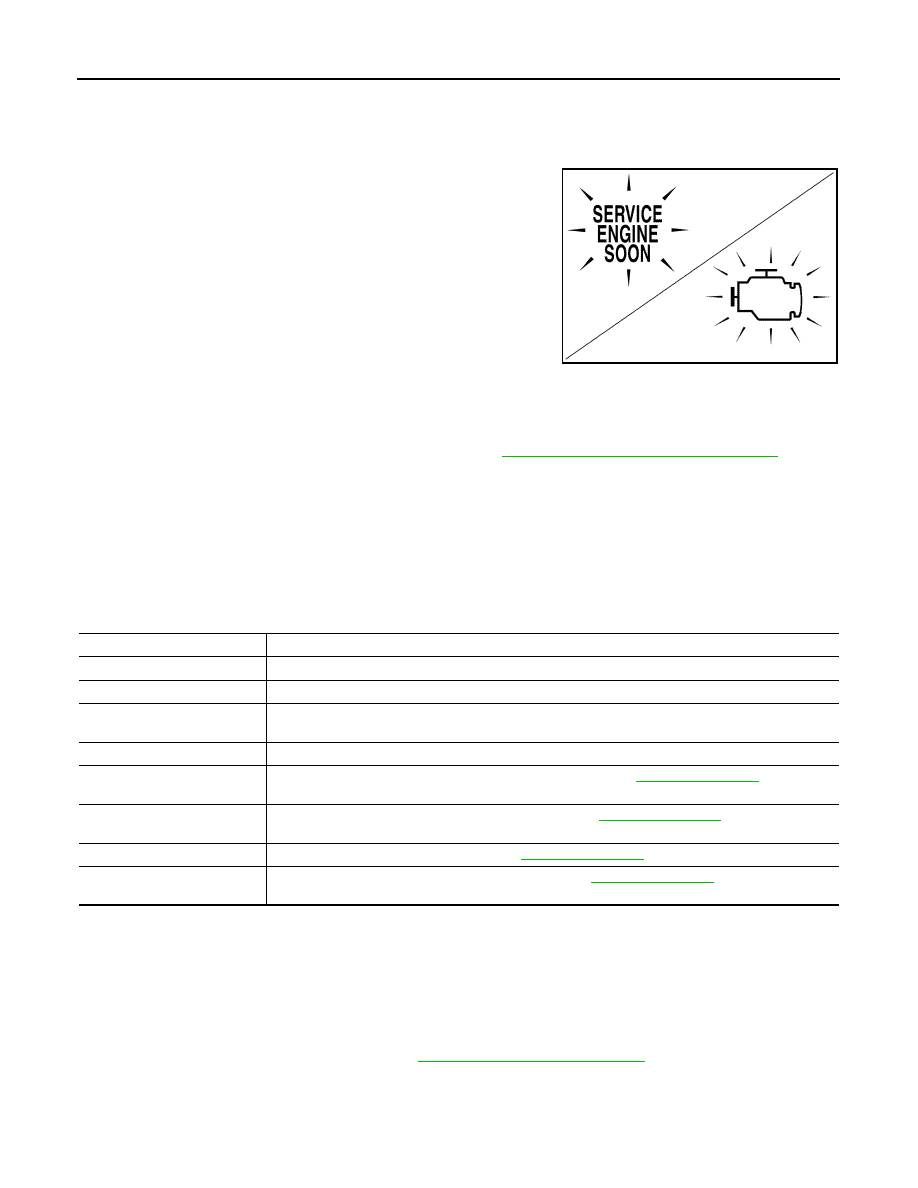

DIAGNOSIS DESCRIPTION : Malfunction Indicator Lamp (MIL)

INFOID:0000000012198243

• When detecting a DTC that affects exhaust gas, the exhaust emis-

sion-related control module transmits a malfunction indicator lamp

signal to ECM via CAN communication line.

ECM prioritizes (MIL: ON/blink) the signal received from the

exhaust emission-related control module and the ECM-stored DTC

that affects exhaust gas and transmits a malfunction indicator lamp

signal to the combination meter via CAN communication line.

The combination meter turns ON or blinks the MIL, according to

the signal transmitted from ECM, and alerts the driver of malfunc-

tion detection.

• Control modules that a DTC of MIL ON/Blink is stored (Control

module varies among DTCs.):

- ECM

- TCM

1. The MIL illuminates when ignition switch is turned ON (engine is not running).

NOTE:

Check the MIL circuit if MIL does not illuminate. Refer to

EC-1237, "Component Function Check"

.

2. When the engine is started, the MIL should go off.

NOTE:

If MIL remains ON or continues blinking, a DTC(s) that affects exhaust gas is detected. In this case, Self-

diagnosis is required for performing inspection and repair.

On Board Diagnosis Function

INFOID:0000000012198244

ON BOARD DIAGNOSIS ITEM

The on board diagnostic system has the following functions.

BULB CHECK MODE

Description

This function allows damage inspection in the MIL bulb (blown, open circuit, etc.).

Operation Procedure

1. Turn ignition switch ON.
2. The MIL on the instrument panel should stay ON.

If it remains OFF, check MIL circuit. Refer to

EC-1237, "Diagnosis Procedure"

.

SRT STATUS MODE

Description

JSBIA1315ZZ

Diagnostic test mode

Function

Bulb check

MIL can be checked.

SRT status

ECM can read if SRT codes are set.

Malfunction warning

If ECM detects a malfunction, it illuminates or blinks MIL to inform the driver that a malfunction has
been detected.

Self-diagnostic results

DTCs or 1st trip DTCs stored in ECM can be read.

Accelerator pedal released po-
sition learning

ECM can learn the accelerator pedal released position. Refer to

EC-753, "Description"

.

Throttle valve closed position
learning

ECM can learn the throttle valve closed position. Refer to

EC-754, "Description"

.

Idle air volume learning

ECM can learn the idle air volume. Refer to

EC-758, "Description"

.

Mixture ratio self-learning value
clear

Mixture ratio self-learning value can be erased. Refer to

EC-762, "Description"

.

DIAGNOSIS SYSTEM (ECM)

EC-667

< SYSTEM DESCRIPTION >

[MR EXCEPT FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

This function allows to read if ECM has completed the self-diagnoses of major emission control systems and

components. For SRT, refer to

EC-664, "DIAGNOSIS DESCRIPTION : System Readiness Test (SRT) Code"

.

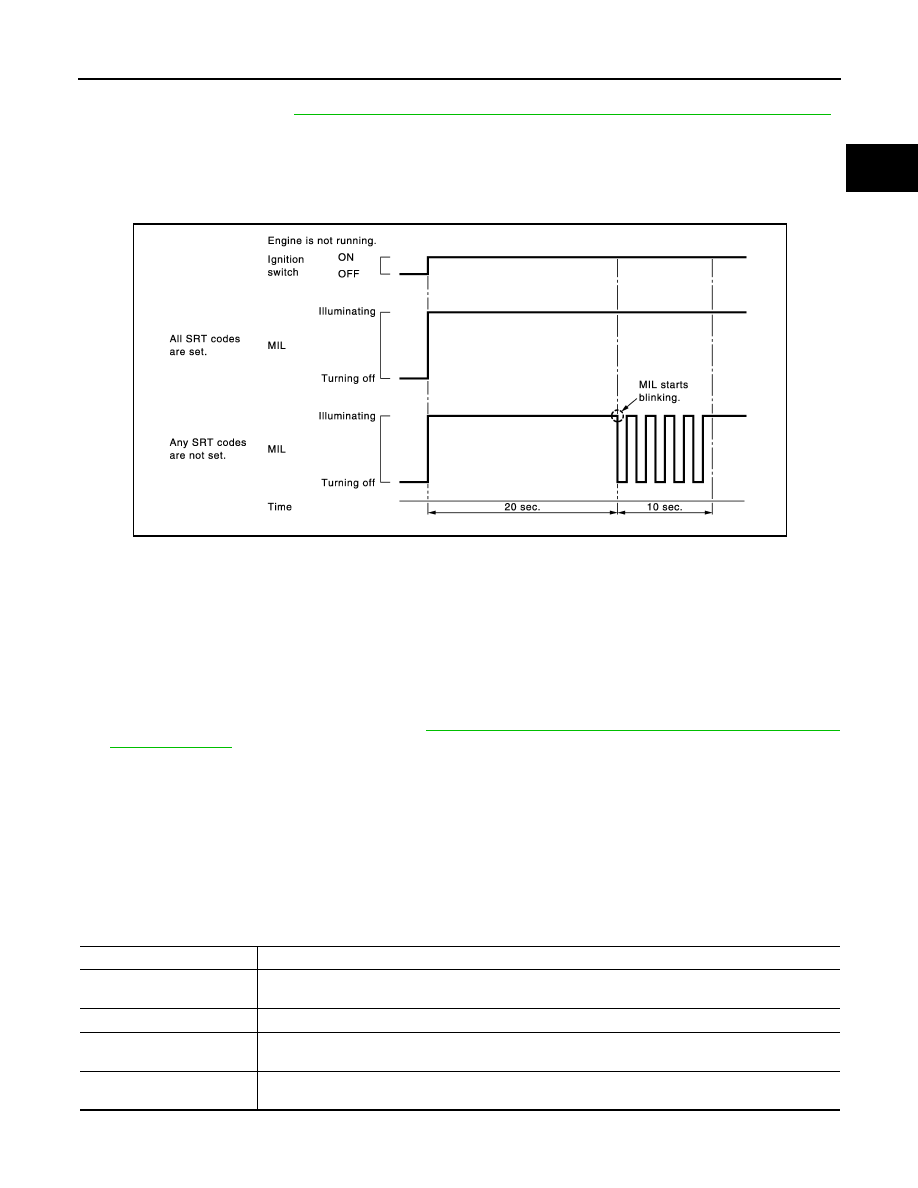

Operation Procedure

1. Turn ignition switch ON and wait 20 seconds.
2. SRT status is indicated as shown blow.

• ECM continues to illuminate MIL if all SRT codes are set.

• ECM blinks MIL for about 10 seconds if all SRT codes are not set.

MALFUNCTION WARNING MODE

Description

In this function ECM turns on or blinks MIL when it detects a malfunction in the emission control system com-

ponents and/or the powertrain control components (which affect vehicle emissions) to inform the driver that a

malfunction has been detected.

Operation Procedure

1. Turn ignition switch ON.
2. Check that MIL illuminates.

If it remains OFF, check MIL circuit. Refer to

EC-664, "DIAGNOSIS DESCRIPTION : System Readiness

Test (SRT) Code"

.

3. Start engine and let it idle.

• For two trip detection logic diagnoses, ECM turns on MIL when it detects the same malfunction twice in

the two consecutive driving cycles.

• For 1st trip detection logic diagnoses, ECM turns on MIL when it detects a malfunction in one driving

cycle.

• ECM blinks MIL when it detects a malfunction that may damage the three way catalyst (misfire).

CONSULT Function

INFOID:0000000012198245

FUNCTION

JMBIA1515GB

Diagnostic test mode

Function

Self Diagnostic Results

Self-diagnostic results such as 1st trip DTC, DTCs and 1st trip freeze frame data or freeze frame data
can be read and erased quickly.*

Data Monitor

Input/Output data in the ECM can be read.

Work support

This mode enables a technician to adjust some devices faster and more accurately by following the in-
dications on the CONSULT unit.

Active Test

Diagnostic Test Mode in which CONSULT drives some actuators apart from the ECMs and also shifts
some parameters in a specified range.

EC-668

< SYSTEM DESCRIPTION >

[MR EXCEPT FOR NISMO RS MODELS]

DIAGNOSIS SYSTEM (ECM)

*: The following emission-related diagnostic information is cleared when the ECM memory is erased.
• Diagnostic trouble codes
• 1st trip diagnostic trouble codes
• Freeze frame data
• 1st trip freeze frame data
• System readiness test (SRT) codes
• Test  values

SELF DIAGNOSTIC RESULT MODE

Self Diagnostic Item

Regarding items of DTC and 1st trip DTC, refer to

EC-706, "DTC Index"

.

How to Read DTC and 1st Trip DTC

DTCs and 1st trip DTCs related to the malfunction are displayed in “Self-diag results”.

• When ECM detects a 1st trip DTC, “1t” is displayed for “TIME”.

• When ECM has detected a current DTC, “0” is displayed for “TIME”.

• If “TIME” is neither “0” nor “1t”, the DTC occurred in the past and ECM shows the number of times the vehi-

cle has been driven since the last detection of the DTC.

How to Erase DTC and 1st Trip DTC

NOTE:

If the ignition switch stays ON after repair work, be sure to turn ignition switch OFF once. Wait at least 10 sec-

onds and then turn it ON (engine stopped) again.

Freeze Frame Data and 1st Trip Freeze Frame Data

Ecu Identification

ECM part number can be read.

DTC Work Support

The status of system monitoring tests and the self-diagnosis status/results can be confirmed.

Diagnostic test mode

Function

Freeze frame data

item*

Description

DIAG TROUBLE
CODE
[PXXXX]

The engine control component part/control system has a trouble code the is displayed as PXXXX. (Refer to

EC-706, "DTC Index"

.)

CAL/LD VALUE [%]

The calculated load value at the moment a malfunction is detected is displayed.

COOLANT TEMP [

°C]

or [

°F]

The engine coolant temperature at the moment a malfunction is detected is displayed.

L-FUEL TRM-B1 [%]

• “Long-term fuel trim” at the moment a malfunction is detected is displayed.
• The long-term fuel trim indicates much more gradual feedback compensation to the base fuel schedule than

short-term fuel trim.

L-FUEL TRM-B2 [%]

S-FUEL TRM-B1 [%]

• “Short-term fuel trim” at the moment a malfunction is detected is displayed.
• The short-term fuel trim indicates dynamic or instantaneous feedback compensation to the base fuel sched-

ule.

S-FUEL TRM-B2 [%]

ENGINE SPEED [rpm] The engine speed at the moment a malfunction is detected is displayed.

VEHICL SPEED
[km/h] or [mph]

The vehicle speed at the moment a malfunction is detected is displayed.

INT MANI PRES [kPa] These items are displayed but are not applicable to this model.

ABSOL TH·P/S [%]

The throttle valve opening angle at the moment a malfunction is detected is displayed.

B/FUEL SCHDL
[msec]

The base fuel schedule at the moment a malfunction is detected is displayed.

INT/A TEMP SE [

°C]

or [

°F]

The intake air temperature at the moment a malfunction is detected is displayed.
