P159A, P159C, P159D G SENSOR

EC-485

< DTC/CIRCUIT DIAGNOSIS >

[MR FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Repair or replace error-detected parts.

6.

CHECK ECM GROUND CIRCUIT

Check the continuity between ECM harness connector and ground.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-45, "Intermittent Incident"

.

NO

>> Repair or replace error-detected parts.

7.

CHECK SENSOR POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect ECM harness connectors and each sensor harness connectors

3. Check harness connector for short to power and short to ground, between the following terminals.

Is the inspection result normal?

YES

>> Perform the trouble diagnosis for power supply circuit.

NO

>> Repair or replace error-detected parts.

Component Inspection

INFOID:0000000012198039

1.

CHECK G SENSOR

With CONSULT

1. Remove G sensor.

2. Reconnect all harness connectors disconnected.

3. Place the G sensor on a flat table.

4. Turn ignition switch ON.

+

−

Continuity

G sensor

ECM

Connector

Terminal

Connector

Terminal

B32

3

F26

87

Existed

ECM

Ground

Continuity

Connector

Terminal

F25

1

Ground

Existed

2

E18

123

124

127

ECM

Sensor

Connector

Terminal

Name

Connector

Terminal

F25

39

FRP sensor

F5

1

EOP sensor

F43

3

Turbocharger boost sensor

F75

1

F26

68

Battery current sensor

F52

1

G sensor

B32

3

72

CMP sensor

F109

1

EVT control position sensor

F110

1

E18

118

APP sensor 2

E101

5

EC-486

< DTC/CIRCUIT DIAGNOSIS >

[MR FOR NISMO RS MODELS]

P159A, P159C, P159D G SENSOR

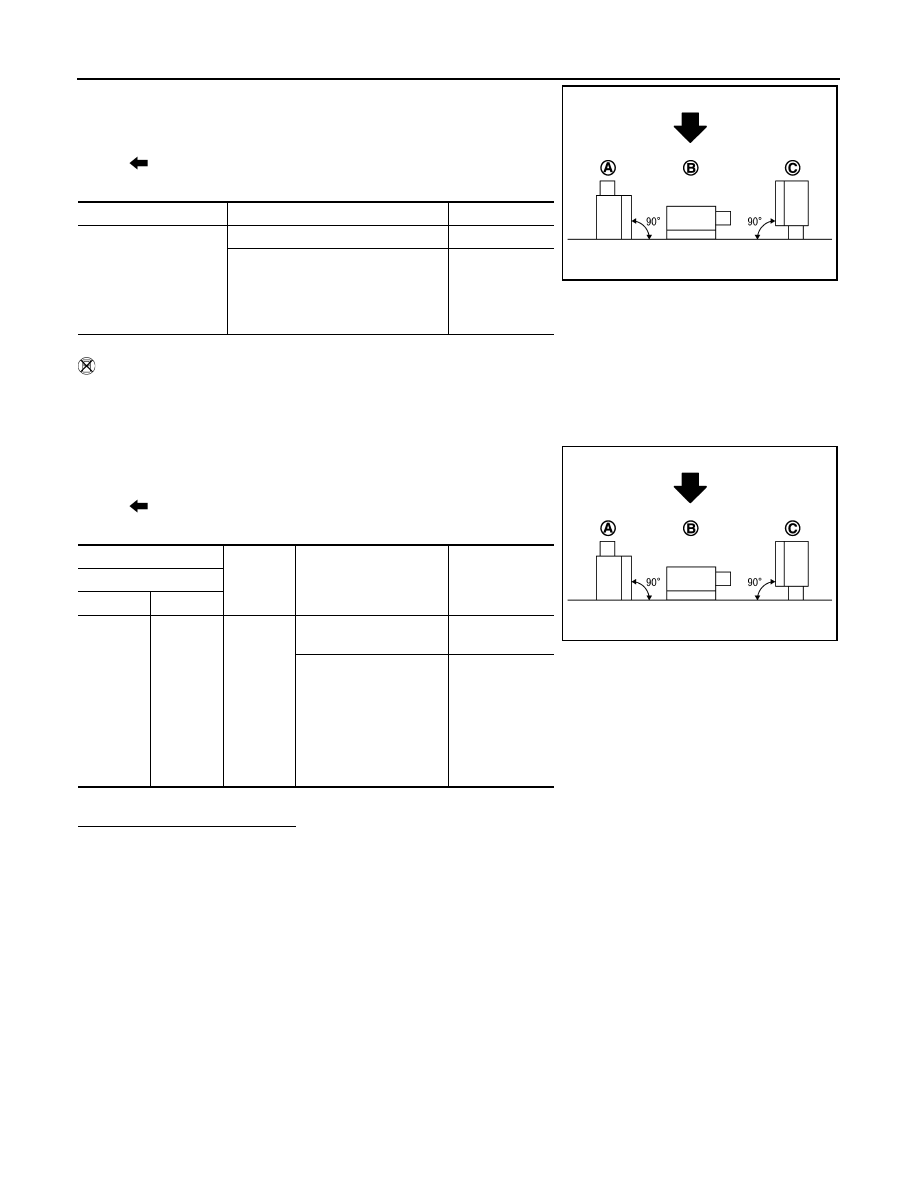

5. Select “G SENSOR” in “DATA MONITOR” mode of “ENGINE”

using CONSULT to check indications according to the following

conditions:

*: Check that voltage rises as the G sensor measurement condition changes in the order of (A), (B), and (C).

Without CONSULT

1. Remove G sensor.

2. Reconnect all harness connectors disconnected.

3. Place the G sensor on a flat table.

4. Turn ignition switch ON.

5. Check the voltage between ECM harness connector terminal

and ground.

*: Check that voltage rises as the G sensor measurement condition changes in the order of (A), (B), and (C).

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace G sensor.

: Direction of gravitational force

Monitor item

Condition

Value (V)

G SENSOR

Parallel with the table (0G) (B)

2.18 – 2.82

Vertical to the table (

−1G) (A)

↓

Parallel with the table (0G) (B)

↓

Vertical to the table (1G) (C)

0.85 – 1.49*

↓

2.18 – 2.82*

↓

3.51 – 4.15*

: Direction of gravitational force

+

−

Condition

Voltage (V)

ECM

Connector

Terminal

F26

83

Ground

Parallel with the table

(0G) (B)

2.18 – 2.82

Vertical to the table (

−1G)

(A)

↓

Parallel with the table

(0G) (B)

↓

Vertical to the table (1G)

(C)

0.85 – 1.49*

↓

2.18 – 2.82*

↓

3.51 – 4.15*

SCIA8343J

SCIA8343J

P159B G SENSOR

EC-487

< DTC/CIRCUIT DIAGNOSIS >

[MR FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

P159B G SENSOR

DTC Logic

INFOID:0000000012198040

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following procedure

before conducting the next test.

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

TEST CONDITION:

Before performing the following procedure, confirm that battery voltage is more than 11 V at idle.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

1. Start engine.

2. Drive the vehicle for at least 5 seconds at 35 km/h (22 MPH) or more.

3. Stop the vehicle and let it idle for at least 5 seconds.

NOTE:

• Depress the brake pedal to bring the vehicle to a full stop.

• Never depress the accelerator pedal while the vehicle is stopped.

4. Repeat Step 2 and Step 3 thirteen times.

5. Check 1st trip DTC.
Is 1st trip DTC detected?

YES

>> Proceed to

EC-488, "Diagnosis Procedure"

.

DTC No.

Trouble diagnosis name

(Trouble diagnosis content)

DTC detecting condition

Possible cause

P159B

G SENSOR
(G sensor circuit range/perfor-
mance)

Every time when the vehicle is stopped, ECM
detects the following status 13 times in a row:
A voltage signal transmitted from the G sen-
sor is less than 2.275V or more than 2.725 V
continuously for 5 seconds or more.

• Harness or connectors

(G sensor circuit is open or shorted.)
(Intake air temperature sensor 2 cir-
cuit is open or shorted.)
(Turbocharger boost sensor circuit is
open or shorted.)
(Fuel rail pressure sensor circuit is
open or shorted.)
(Battery current sensor circuit is open
or shorted.)
(Crankshaft position sensor circuit is
open or shorted.)
(Exhaust valve timing control position
sensor circuit is open or shorted.)
(Accelerator pedal position sensor 2
circuit is open or shorted.)
(Engine oil pressure sensor circuit is
open or shorted.)

• G sensor
• Intake air temperature sensor 2
• Turbocharger boost sensor
• Fuel rail pressure sensor
• Battery current sensor
• Crankshaft position sensor
• Exhaust valve timing control position

sensor

• Accelerator pedal position sensor 2
• Engine oil pressure sensor
• G sensor fitting condition

EC-488

< DTC/CIRCUIT DIAGNOSIS >

[MR FOR NISMO RS MODELS]

P159B G SENSOR

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000012198041

1.

PERFORM CALIBRATION OF G SENSOR

Perform calibration of G sensor. Refer to

EC-164, "Description"

.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

Perform DTC Confirmation Procedure. Refer to

EC-487, "DTC Logic"

.

Is 1st trip DTC detected?

YES

>> GO TO 3.

NO

>> INSPECTION END

3.

CHECK G SENSOR FITTING CONDITION

Check G sensor fitting condition.
Is the inspection result normal?

YES

>> GO TO 4.

NO

>> 1. Adjust parts fitting condition.

2. Perform calibration of G sensor. Refer to

EC-164, "Description"

.

4.

CHECK G SENSOR POWER SUPPLY CIRCUIT-I

1. Turn ignition switch OFF.

2. Disconnect G sensor harness connector.

3. Turn ignition switch ON.

4. Check the voltage between G sensor harness connector terminals.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> GO TO 7.

5.

CHECK G SENSOR SIGNAL CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect ECM harness connector.

3. Check the continuity between G sensor harness connector and ECM harness connector.

4. Also check harness for short to ground and short to power.
Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Repair or replace error-detected parts.

6.

CHECK G SENSOR

Check G sensor. Refer to

EC-490, "Component Inspection"

.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-45, "Intermittent Incident"

.

NO

>> 1. Replace G sensor.

G sensor

Voltage

(Approx.)

Connector

+

−

Terminal

B32

3

2

5 V

G sensor

ECM

Continuity

Connector

Terminal

Connector

Terminal

B32

1

F26

83

Existed
