P0181 FTT SENSOR

EC-305

< DTC/CIRCUIT DIAGNOSIS >

[MR FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

P0181 FTT SENSOR

DTC Logic

INFOID:0000000012197850

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

INSPECTION START

Is it necessary to erase permanent DTC?

YES

>> GO TO 7.

NO

>> GO TO 2.

2.

PRECONDITIONING

If DTC CONFIRMATION PROCEDURE has been previously conducted, always perform the following proce-

dure before conducting the next test.

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

>> GO TO 3.

3.

PERFORM DTC CONFIRMATION PROCEDURE FOR MALFUNCTION A-I

1. Turn ignition switch ON and wait at least 10 seconds.

2. Check 1st trip DTC.
Is 1st trip DTC detected?

YES

>> Proceed to

EC-307, "Diagnosis Procedure"

.

NO

>> GO TO 4.

4.

CHECK ENGINE COOLANT TEMPERATURE

With CONSULT

1. Select “COOLAN TEMP/S” in “DATA MONITOR” of “ENGINE” using CONSULT.

2. Check “COOLAN TEMP/S” value.

With GST

Follow the procedure “With CONSULT” above.
“COOLAN TEMP/S” less than 60

°C (140°F)?

YES

>> INSPECTION END

NO

>> GO TO 5.

5.

PERFORM DTC CONFIRMATION PROCEDURE FOR MALFUNCTION A-II

With CONSULT

1. Cool engine down until “COOLAN TEMP/S” is less than 60

°C (140°F).

DTC No.

Trouble diagnosis name

(Trouble diagnosis content)

DTC detecting condition

Possible cause

P0181

FTT SENSOR
[Fuel tank temperature (FTT)
sensor circuit range/perfor-
mance]

A)

Rationally incorrect voltage from the
sensor is sent to ECM, compared with
the voltage signals from ECT sensor
and intake air temperature sensor 1.

• Harness or connectors

(FTT sensor circuit is open or shorted)

• FTT sensor
• Combination meter

B)

The comparison result of signals trans-
mitted to ECM from each temperature
sensor (IAT sensor 1, IAT sensor 2,
ECT sensor, EOT sensor, and FTT
sensor) shows that the voltage signal
of the FTT sensor is higher/lower than
that of other temperature sensors
when the engine is started with its cold
state.

• Harness or connectors

(High or low resistance in the FTT
sensor circuit)

• FTT sensor

EC-306

< DTC/CIRCUIT DIAGNOSIS >

[MR FOR NISMO RS MODELS]

P0181 FTT SENSOR

2. Wait at least 10 seconds.

3. Check 1st trip DTC.

With GST

Follow the procedure “With CONSULT” above.
Is 1st trip DTC detected?

YES

>> Proceed to

EC-307, "Diagnosis Procedure"

.

NO

>> GO TO 6.

6.

PERFORM COMPONENT FUNCTION CHECK (FOR MALFUNCTION B)

Perform component function check. Refer to

EC-306, "Component Function Check"

.

NOTE:

Use the component function check to check the overall function of the FTT sensor circuit. During this check, a

1st trip DTC might not be confirmed.
Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Proceed to

EC-307, "Diagnosis Procedure"

.

7.

PRECONDITIONING

If DTC CONFIRMATION PROCEDURE has been previously conducted, always perform the following proce-

dure before conducting the next test.

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

TESTING CONDITION:

• Before performing the following procedure, do not add fuel.

• Before performing the following procedure, check that fuel level is between 1/4 and 4/4.

• Before performing the following procedure, confirm that battery voltage is 11 V or more at idle.

>> GO TO 8.

8.

PERFORM DTC CONFIRMATION PROCEDURE B

1. Start engine and let it idle for 60 minutes.

2. Move the vehicle to a cool place.

NOTE:

Cool the vehicle in an environment of ambient air temperature between

−10°C (14°F) and 35°C (95°F).

3. Turn ignition switch OFF and soak the vehicle for 12 hours.

CAUTION:

Never turn ignition switch ON during soaking.

NOTE:

The vehicle must be cooled with the hood open.

4. Start engine and let it idle for 5 minutes or more.

CAUTION:

Never turn ignition switch OFF during idling.

5. Check 1st trip DTC.
Is 1st trip DTC detected?

YES

>> Proceed to

EC-307, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Component Function Check

INFOID:0000000012197851

1.

CHECK FUEL TANK TEMPERATURE (FTT) SENSOR

1. Turn ignition switch OFF.

2. Disconnect fuel level sensor unit and fuel pump harness connector.

3. Remove fuel level sensor unit. Refer to

FL-6, "2WD : Exploded View"

(2WD),

FL-10, "AWD : Exploded

View"

(AWD).

P0181 FTT SENSOR

EC-307

< DTC/CIRCUIT DIAGNOSIS >

[MR FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

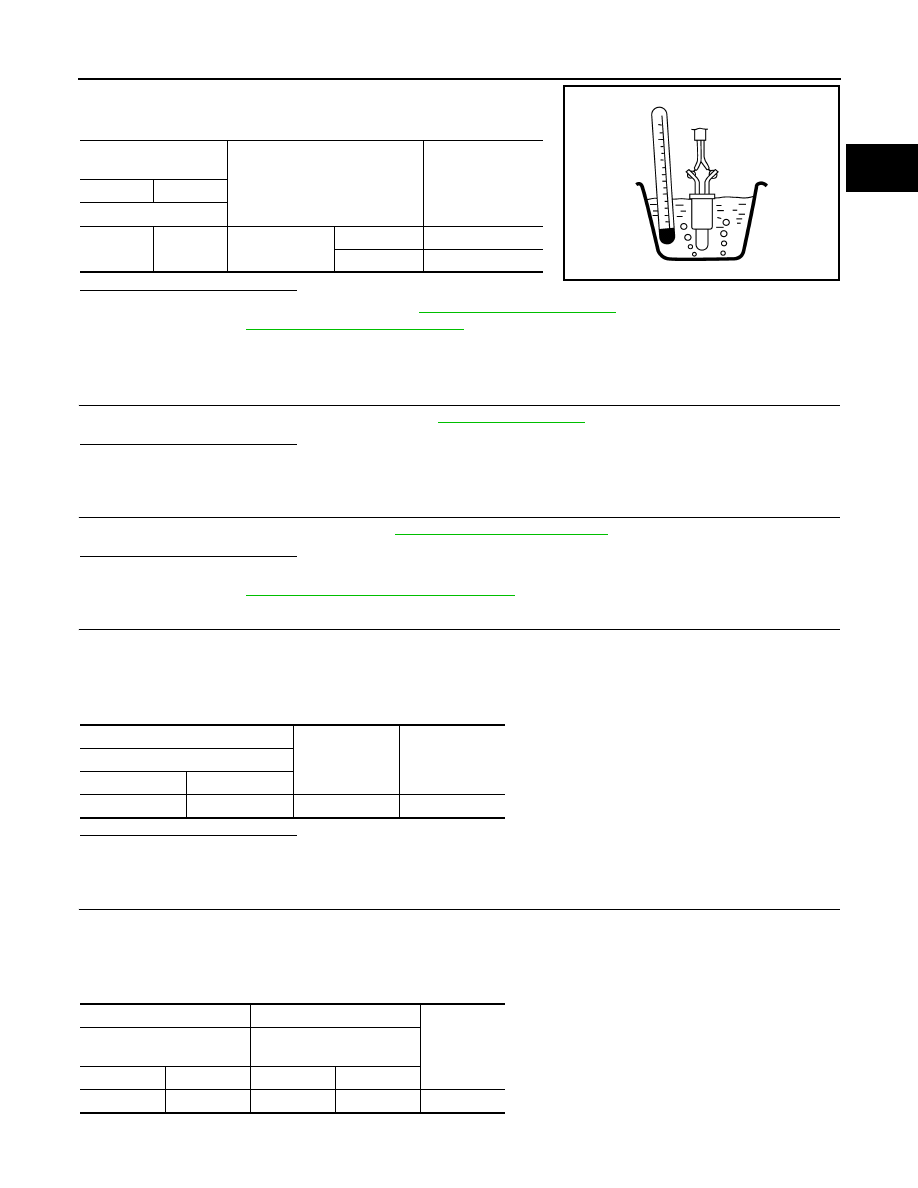

4. Check resistance between fuel level sensor unit and fuel pump

terminals by heating with hot water as shown in the figure.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-45, "Intermittent Incident"

.

NO

>> Proceed to

EC-307, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000012197852

1.

INSPECTION START

Confirm the detected malfunction (A or B). Refer to

EC-305, "DTC Logic"

.

Which malfunction is detected?

A

>> GO TO 2.

B

>> GO TO 6.

2.

CHECK DTC WITH COMBINATION METER

Check DTC with combination meter. Refer to

MWI-22, "CONSULT Function"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Proceed to

MWI-54, "Component Function Check"

.

3.

CHECK FUEL TANK TEMPERATURE (FTT) SENSOR POWER

1. Turn ignition switch OFF.

2. Disconnect fuel level sensor unit and fuel pump harness connector.

3. Turn ignition switch ON.

4. Check the voltage between fuel level sensor unit and fuel pump harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> GO TO 4.

4.

CHECK FUEL TANK TEMPERATURE (FTT) SENSOR POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect ECM harness connector.

3. Check the continuity between fuel level sensor unit and fuel pump harness connector and ECM harness

connector.

4. Also check harness for short to ground and to power.

Fuel level sensor unit

and fuel pump

Condition

Resistance (k

Ω)

+

−

Terminal

4



5

Temperature [

°C

(

°F)]

20 (68)

2.3 – 2.7

50 (122)

0.79 – 0.90

JMBIA0167ZZ

+

−

Voltage

(Approx.)

Fuel level sensor unit and fuel pump

Connector

Terminal

B46

4

Ground

 5 V

+

-

Continuity

Fuel level sensor unit and

fuel pump

ECM

Connector

Terminal

Connector

Terminal

B46

4

F26

84

Existed

EC-308

< DTC/CIRCUIT DIAGNOSIS >

[MR FOR NISMO RS MODELS]

P0181 FTT SENSOR

Is the inspection result normal?

YES

>> Perform the trouble diagnosis for power supply circuit.

NO

>> Repair or replace error-detected parts.

5.

CHECK FTT SENSOR GROUND CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect combination meter harness connector.

3. Check the continuity between fuel level sensor unit and fuel pump harness connector and combination

meter harness connector.

4. Also check harness for short to power.
Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Repair or replace error-detected parts.

6.

CHECK FUEL TANK TEMPERATURE (FTT) SENSOR

Check the FTT sensor. Refer to

EC-308, "Component Inspection"

.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-45, "Intermittent Incident"

.

NO

>> Replace fuel level sensor unit and fuel pump. Refer to

FL-6, "2WD : Exploded View"

(2WD),

FL-10,

"AWD : Exploded View"

(AWD).

Component Inspection

INFOID:0000000012197853

1.

CHECK FUEL TANK TEMPERATURE (FTT) SENSOR

1. Turn ignition switch OFF.

2. Disconnect fuel level sensor unit and fuel pump harness connector.

3. Remove fuel level sensor unit. Refer to

FL-6, "2WD : Exploded View"

(2WD),

FL-10, "AWD : Exploded

View"

(AWD).

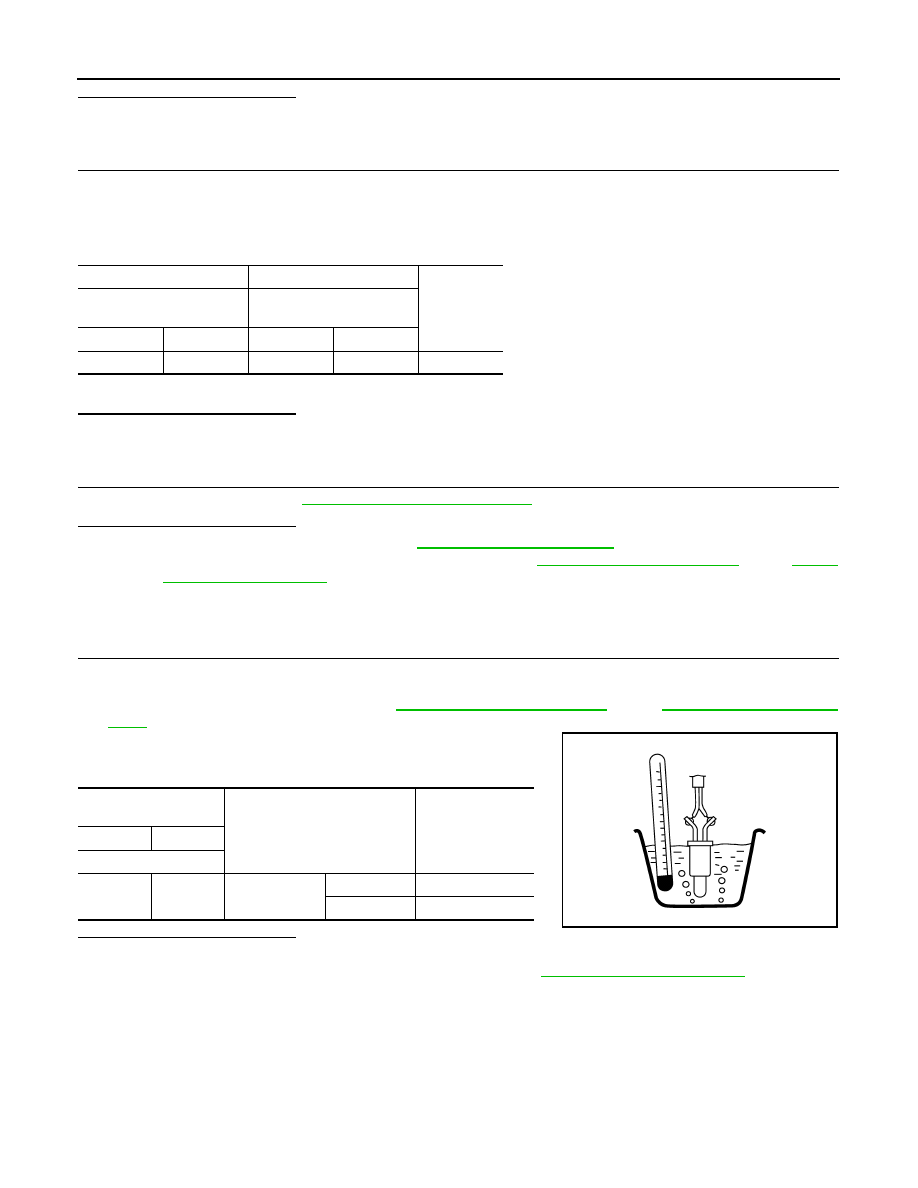

4. Check resistance between fuel level sensor unit and fuel pump

terminals by heating with hot water as shown in the figure.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace fuel level sensor unit and fuel pump. Refer to

FL-6, "2WD : Exploded View"

.

+

-

Continuity

Fuel level sensor unit and

fuel pump

Combination meter

Connector

Terminal

Connector

Terminal

B46

5

M34

24

Existed

Fuel level sensor unit

and fuel pump

Condition

Resistance (k

Ω)

+

−

Terminal

4



5

Temperature
[

°C (°F)]

20 (68)

2.3 – 2.7

50 (122)

0.79 – 0.90

JMBIA0167ZZ
