PREPARATION

EC-25

< PREPARATION >

[MR FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

PREPARATION

PREPARATION

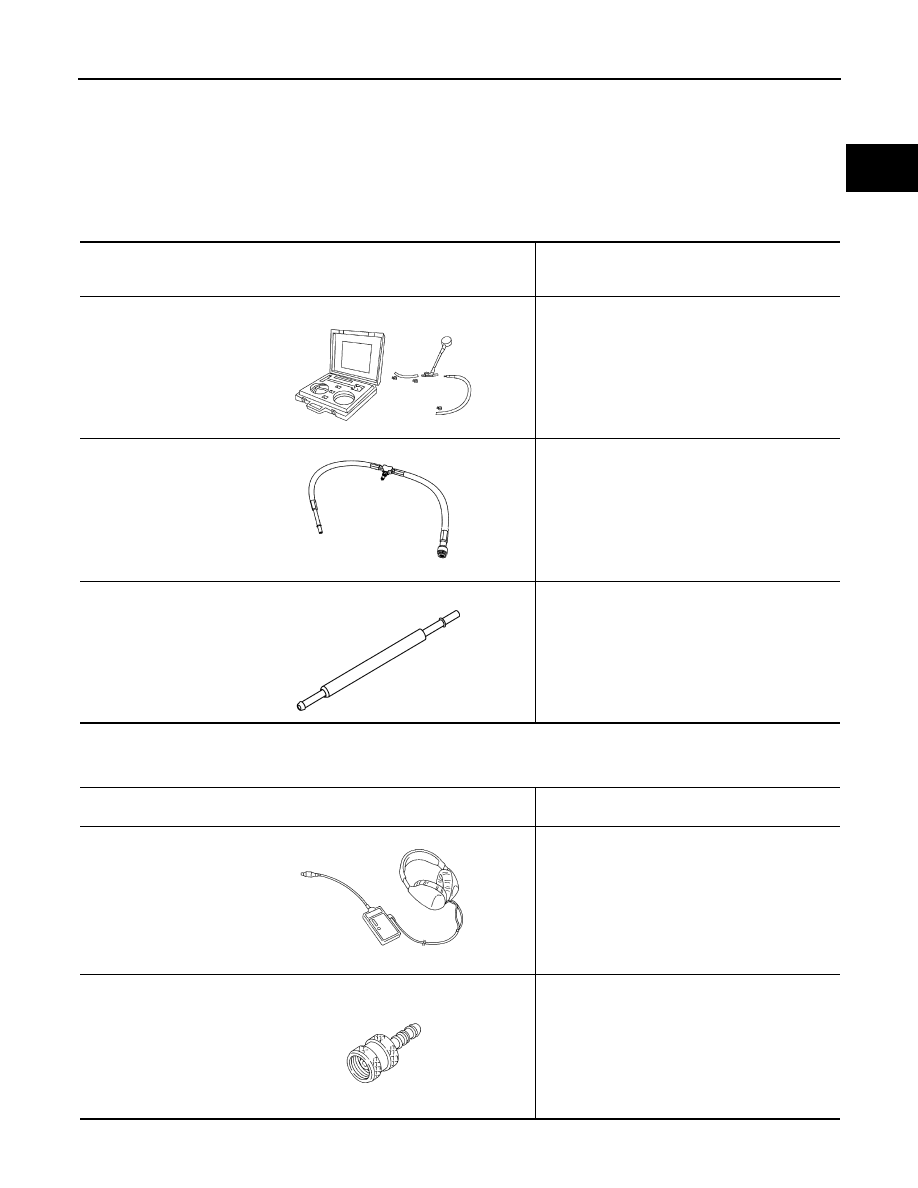

Special Service Tools

INFOID:0000000012197622

NOTE:

The actual shapes of TechMate tools may differ from those of special service tools illustrated here.

Commercial Service Tools

INFOID:0000000012197623

Tool number
(TechMate No.)
Tool name

Description

(J-44321)
Fuel pressure gauge
kit

Checks fuel pressure

(J-44321-6)
Fuel pressure adapter

Connects fuel pressure gauge to quick connector
type fuel lines.

KV10120000
Fuel tube adapter

Measures fuel pressure

LEC642

LBIA0376E

JSBIA0410ZZ

Tool name
(TechMate No.)

Description

Leak detector
i.e.: (J-41416)

Locates the EVAP leak

EVAP service port
adapter
i.e.: (J-41413-OBD)

Applies positive pressure through EVAP service
port

S-NT703

S-NT704

EC-26

< PREPARATION >

[MR FOR NISMO RS MODELS]

PREPARATION

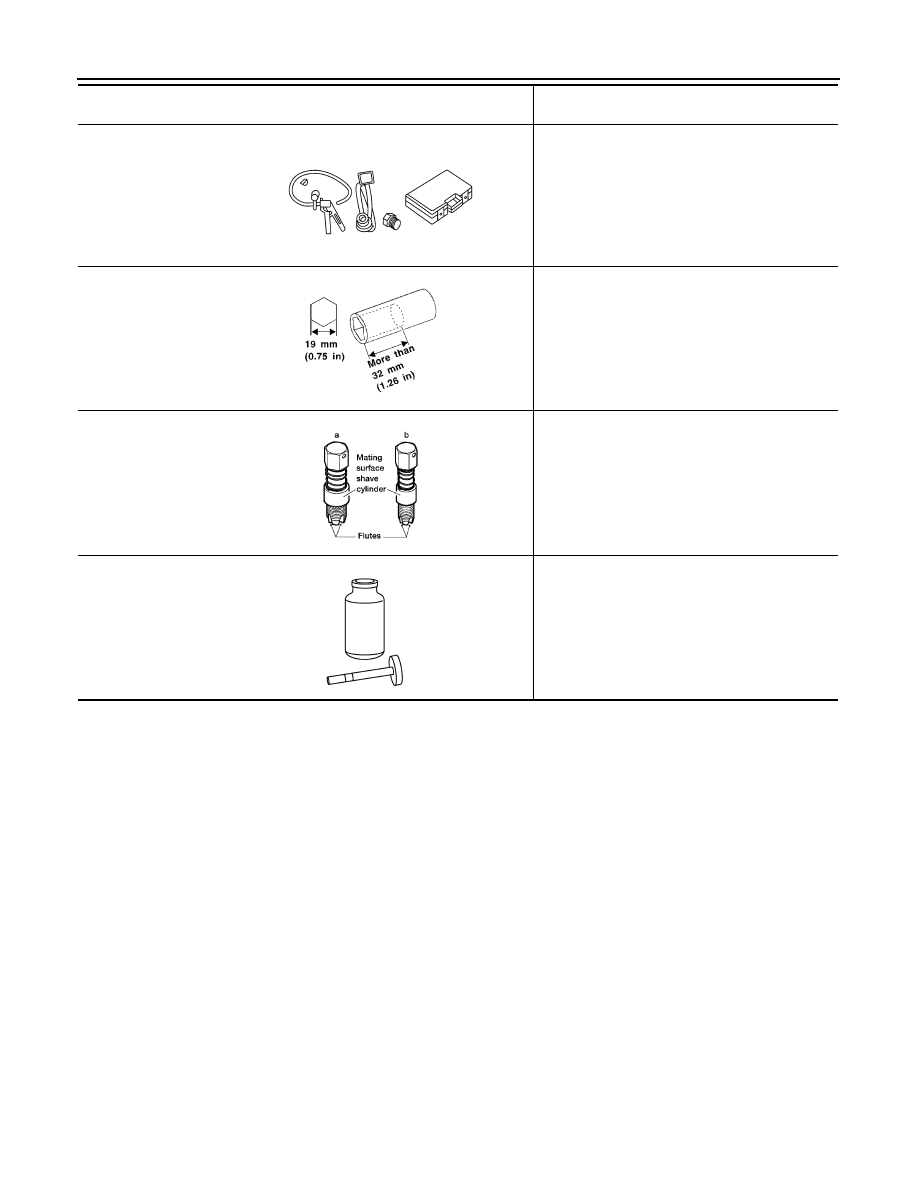

Fuel filler cap adapter
i.e.: (J-42909)

Checks fuel tank vacuum relief valve opening
pressure

Socket wrench

Removes and installs engine coolant temperature
sensor

Oxygen sensor thread
cleaner
i.e.: (J-43897-18)
(J-43897-12)

Reconditions the exhaust system threads before
installing a new oxygen sensor. Use with anti-
seize lubricant shown below.
a: 18 mm diameter with pitch 1.5 mm for Zirco-
nia Oxygen Sensor
b: 12 mm diameter with pitch 1.25 mm for Tita-
nia Oxygen Sensor

Anti-seize lubricant
i.e.: (Permatex

TM



133AR or equivalent
meeting MIL specifica-
tion MIL-A-907)

Lubricates oxygen sensor thread cleaning tool
when reconditioning exhaust system threads.

Tool name
(TechMate No.)

Description

ALBIA1353ZZ

S-NT705

AEM488

S-NT779

COMPONENT PARTS

EC-27

< SYSTEM DESCRIPTION >

[MR FOR NISMO RS MODELS]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

SYSTEM DESCRIPTION

COMPONENT PARTS

ENGINE CONTROL SYSTEM

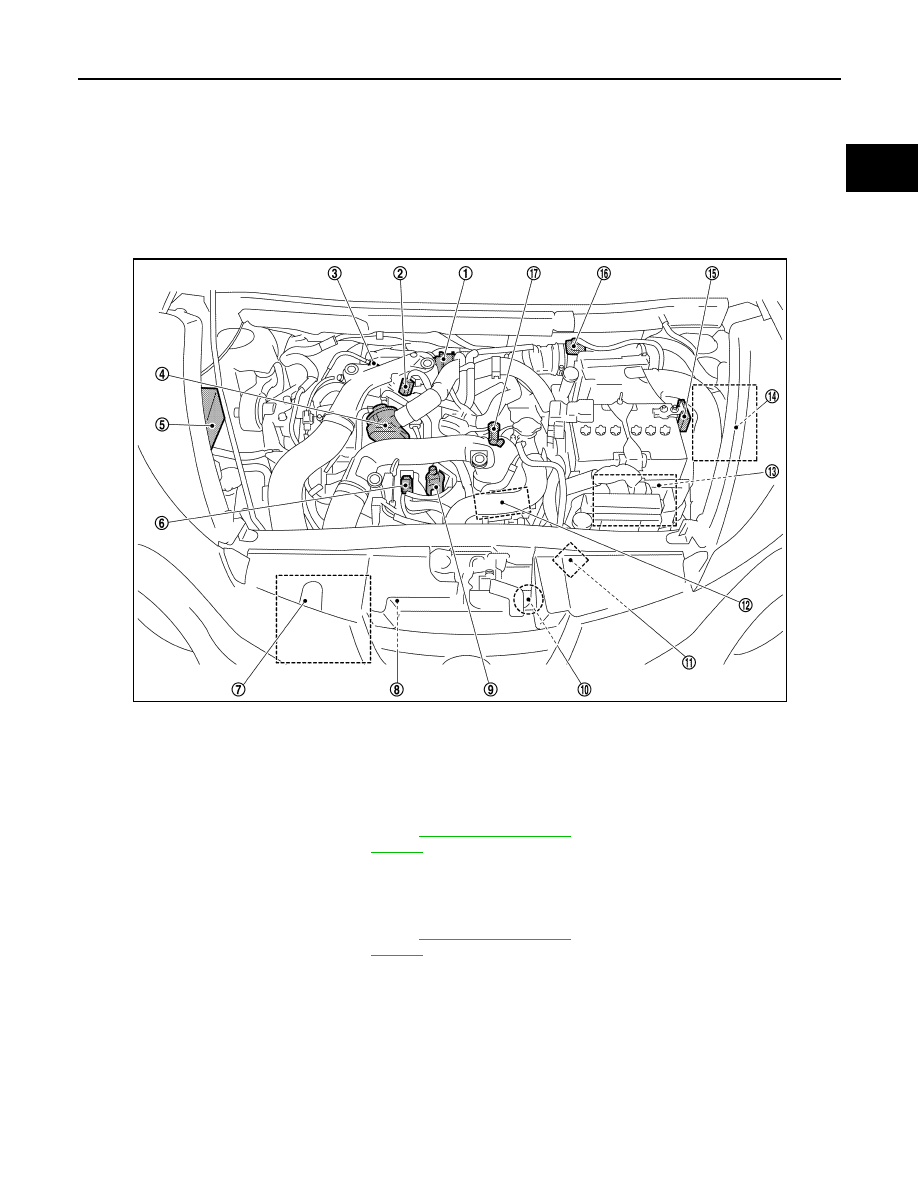

ENGINE CONTROL SYSTEM : Component Parts Location

INFOID:0000000012197624

ENGINE ROOM COMPARTMENT

ENGINE COMPARTMENT

1.

Boost control actuator

2.

Turbocharger boost control solenoid
valve

3.

A/F sensor 1

4.

Recirculation valve

5.

Relay box
• Fuel injector relay
• Fuel  pump  relay

6.

EVAP canister purge volume control
solenoid valve

7.

Inter cooler

8.

Refrigerant pressure sensor
Refer to

HAC-7, "Component Parts

Location"

.

9.

EVAP service port

10. Cooling fan motor

11.

Cooling fan control module

12.

Electric throttle control actuator
 (with built in throttle position sensor
and throttle control motor)

13. ECM

14. IPDM E/R

Refer to

PCS-5, "Component Parts

Location"

.

15.

Battery current sensor
(with battery temperature sensor)

16. Mass air flow sensor

(with intake air temperature sensor 1)

17. Turbocharger boost sensor

(with intake air temperature sensor 2)

JPBIA5718ZZ

EC-28

< SYSTEM DESCRIPTION >

[MR FOR NISMO RS MODELS]

COMPONENT PARTS

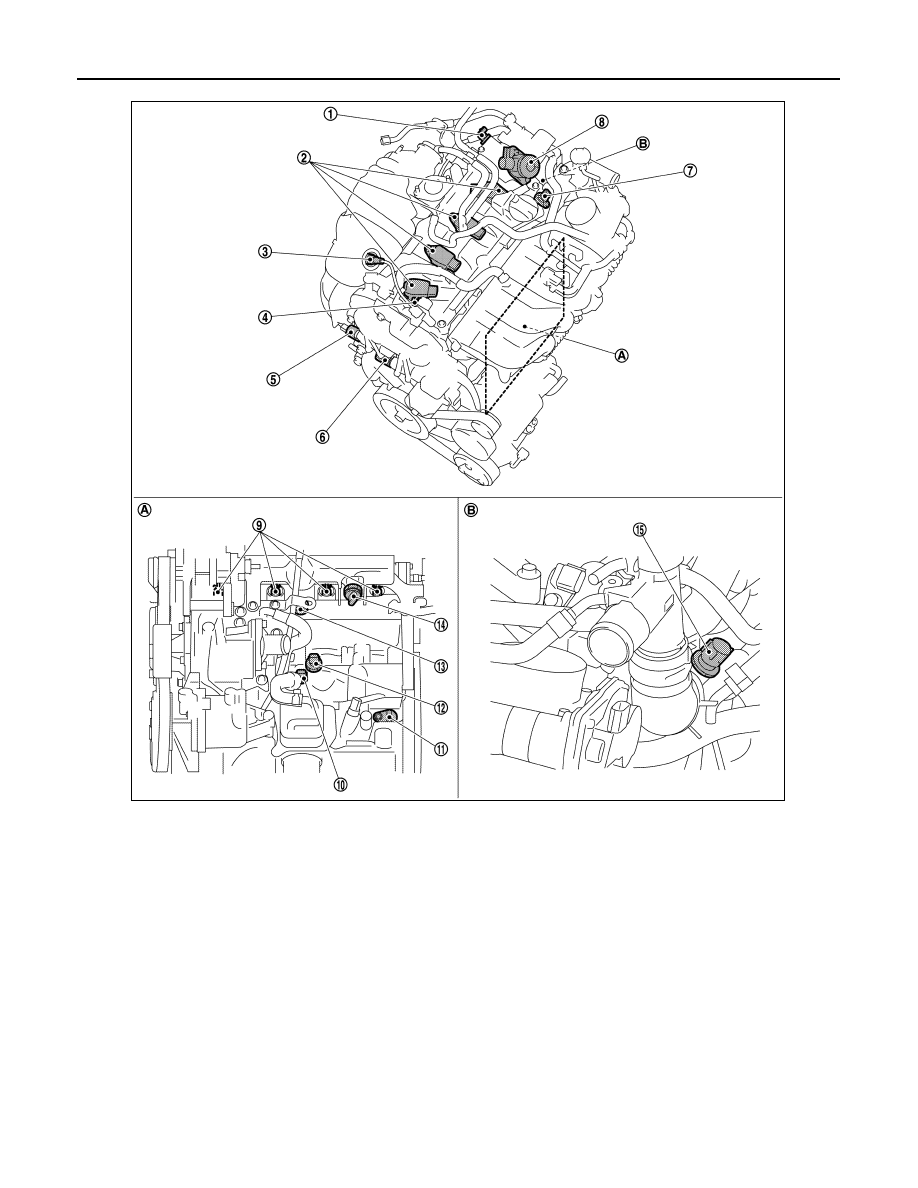

EXHAUST COMPARTMENT

2WD

JPBIA4608ZZ

1.

Exhaust valve timing control position
sensor

2.

Ignition coil
(with power transistor)

3.

A/F sensor 1

4.

PCV valve

5.

Exhaust valve timing control solenoid
valve

6.

Intake valve timing control solenoid
valve

7.

Camshaft position sensor (PHASE)

8.

High pressure fuel pump

9.

Fuel injector

10. Engine oil temperature sensor

11. Crankshaft position sensor (POS)

12. Engine oil pressure sensor

13. Knock sensor

14

Fuel rail pressure sensor

15. Engine coolant temperature sensor

A.

Cylinder block left side

B.

Engine rear end
